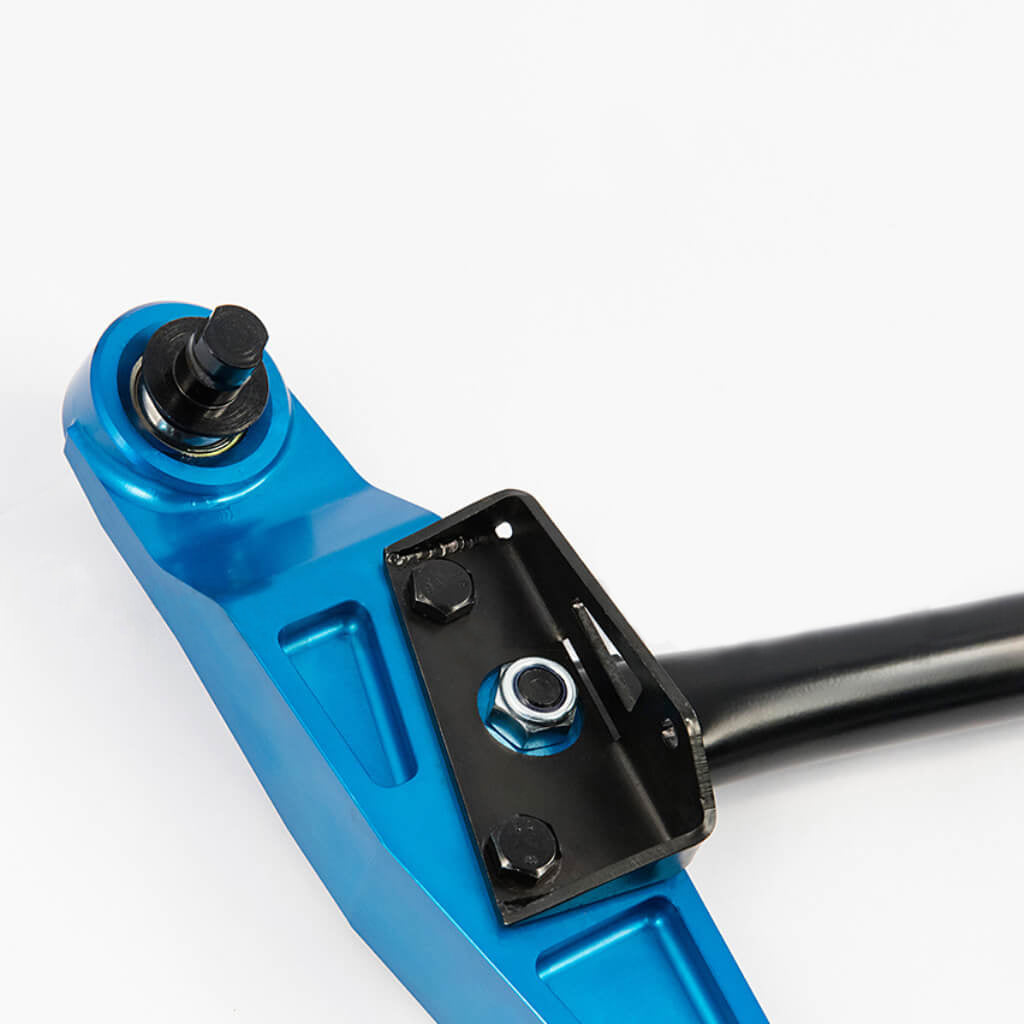

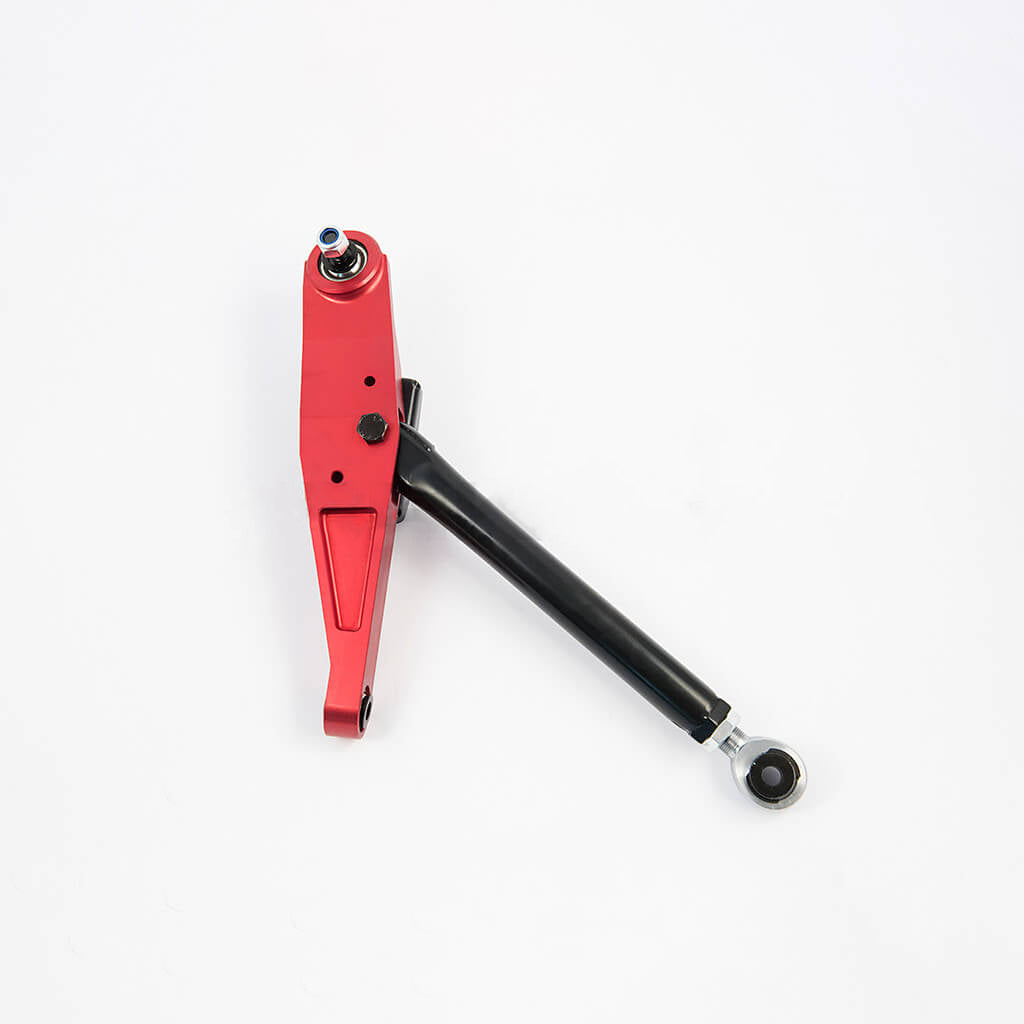

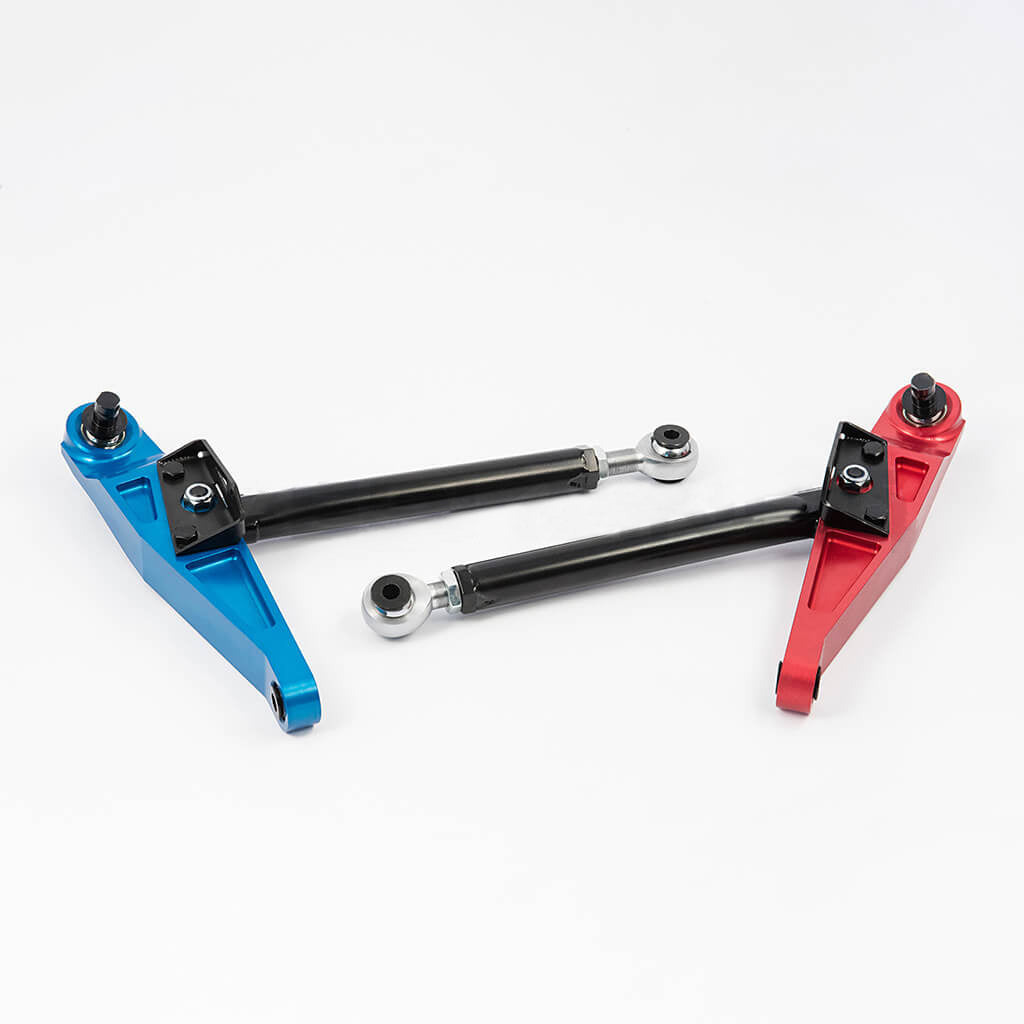

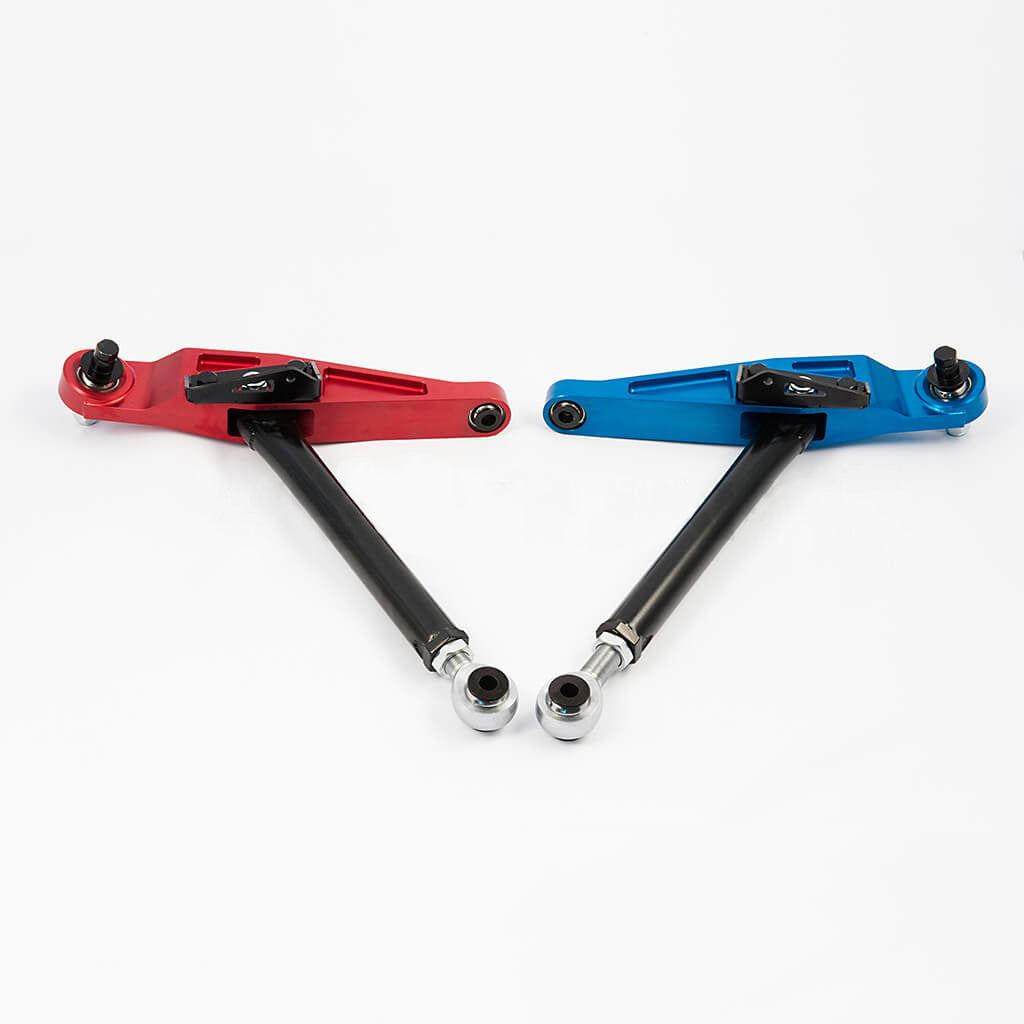

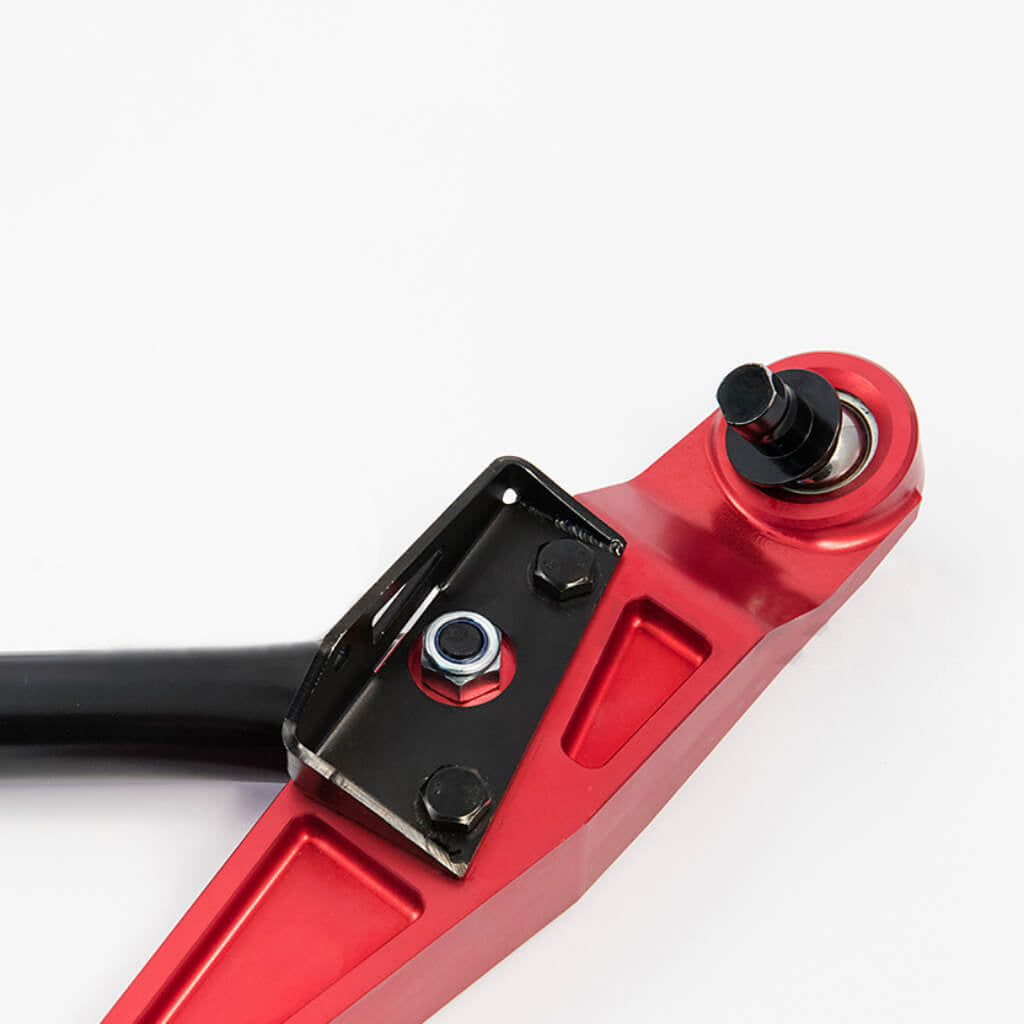

VERKLINE WAS-802-803 Front Arms Assembly Kit R4 for MITSUBISHI EVO X
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
VERKLINE WAS-802-803 Front Arms Assembly Kit R4 for MITSUBISHI EVO X
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
The Kit included
- Front light weight aluminium wishbones (left and right).
- Two pins for uprighs.
- Two M22 motorsport rod ends.
- Four motorsport bearings.
- Two arm antiroll brackets.
- Spacer sleeves for assemble of the rod ends in the front subframe.
- Six 10.9 bolts used.
- Four 10.9 screws used.
Features
- R4 spec front suspension arm.
- Comes preassembled ready for fitment in the car.
- Allow increased caster and camber adjustment.
- R4 rally kit compliant.
- Same rod end suppler as for original R4 kit.
- Greater strength over OEM wishbones.
- Wishbones are anodized in red and blue colors.
Technical details
- Manufactured from 7075 aluminium on 5 axis CNC.
- T45 tubing used.
- Pins made from 42CrMo4.
- Tig Welded.
- Full 3D CAD designed.
- FEA Tested and additional reinforcement to the original design was made.
Notice: Works only with R4 front subframe WAS-821 or equivalent.
