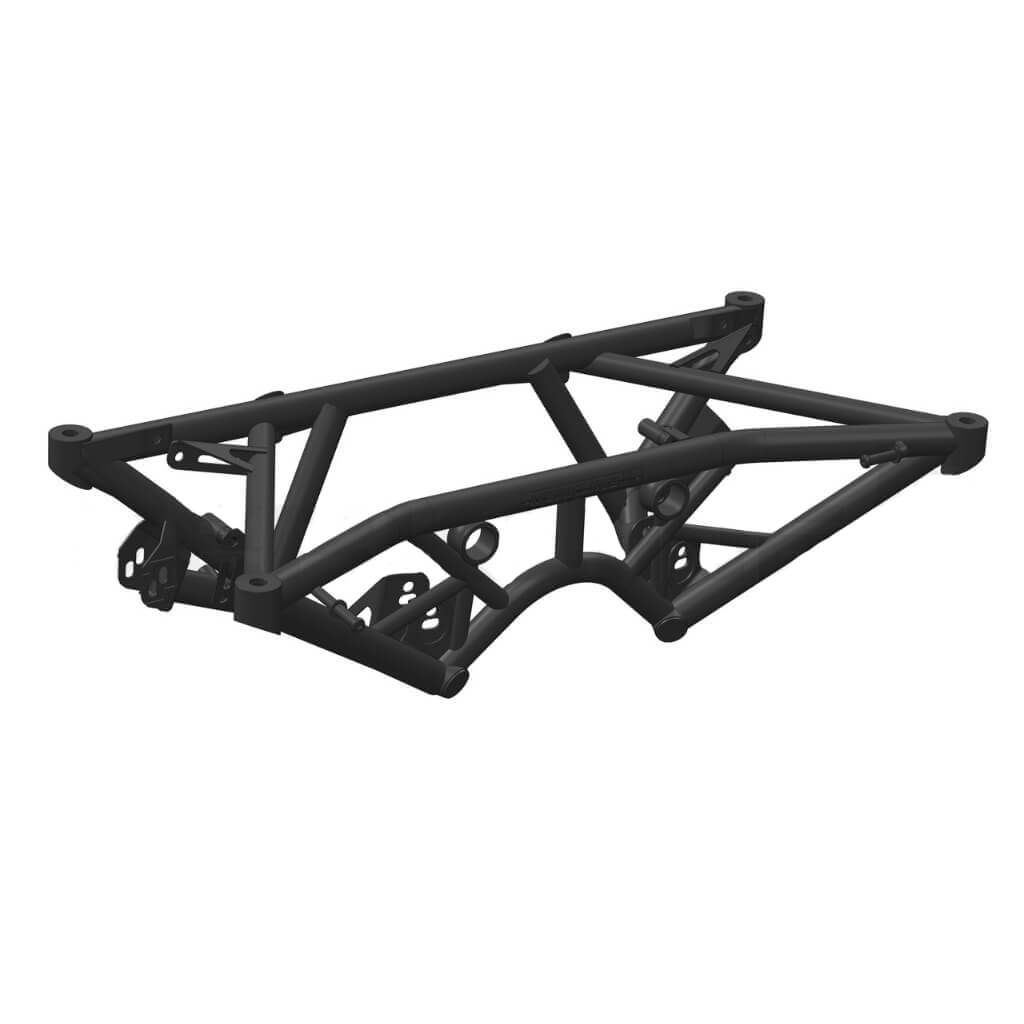

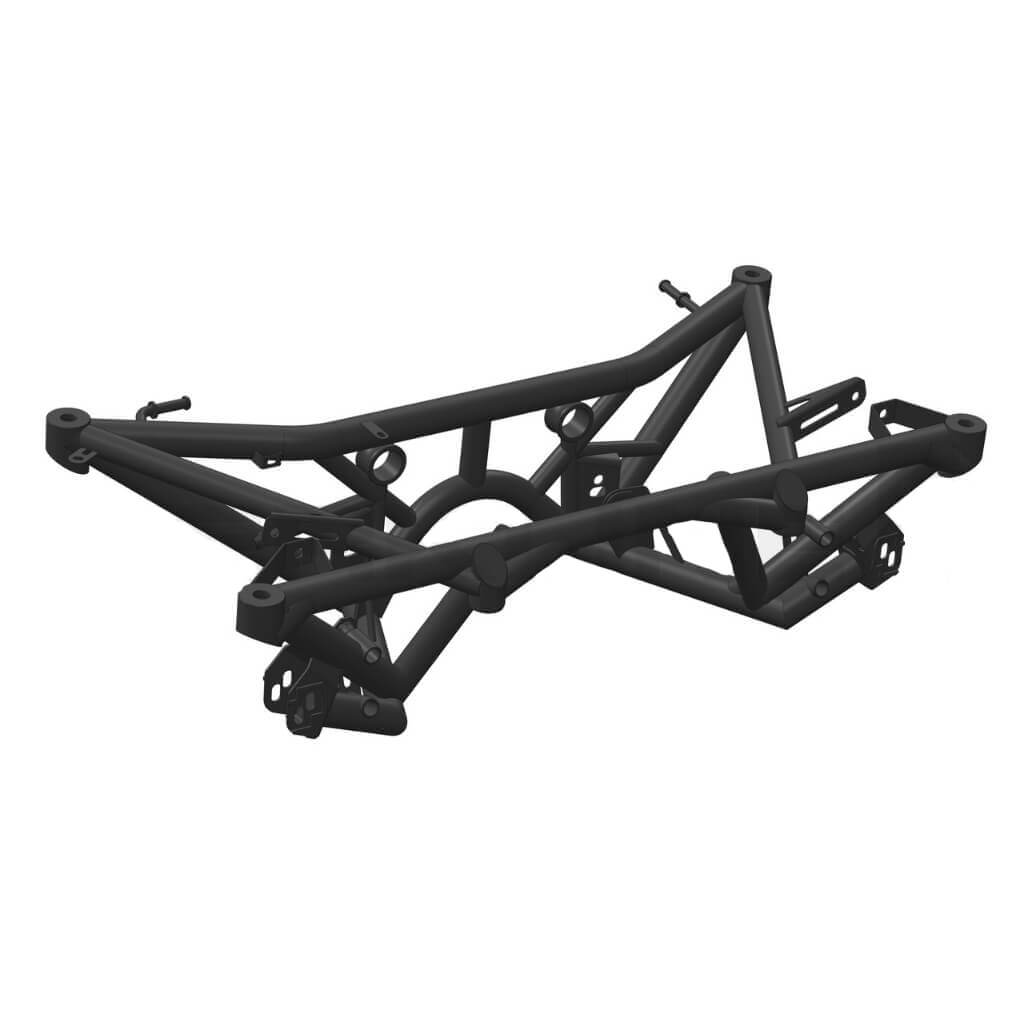

VERKLINE WAS-602 Rear Lightweight Tubular Subframe Kit for TOYOTA GR Yaris (XP210) 2020-

Product functionalities:

• Additional (revised) suspension mounting points for improved suspension kinematics for lowered cars with racing or track purpose
• Bump steer adjustability
• One mounting subframe position eliminates subframe shifting under the car. No need for subframe locking kit / deadset collar kit (weight savings)
• Increases chassis rigidity for improved handling performance. No need for additional lower bar/member brace (weight savings)
• Better access to car underbody

Features:

• Lighter than OEM by 6 kg.
• Compatible with both OEM and Verkline wishbones.
• Made from T45 super strong piping..
• Delivered painted (powder coated) black.

What is included

• One rear subframe powder coated black with lower brace.
• Set of adjustment shims for kinematics adjustment.
• One black polyurethane mount for the rear differential.
• Set of mounting bolts.
• Adjustment Wrench.
• Printed install instructions (9 pages).

Notice: If you want to use modified suspension mounting points that are available on this subframe, you need to use also Verkline wishbones - WAS-621 and WAS-622 OEM wishbones won’t work there. For standard OEM pickup on subframe it is possible to use OEM wishbones.

Notice 2: Not all aftermarket exhaust systems will fit with this subframe. There might be some rework on aftermarket exhaust necessary.

Notice 3: Installation of this rear insert kit will introduce some additional some NVH (noise, vibration, and harshness) transfer into the cabin.
