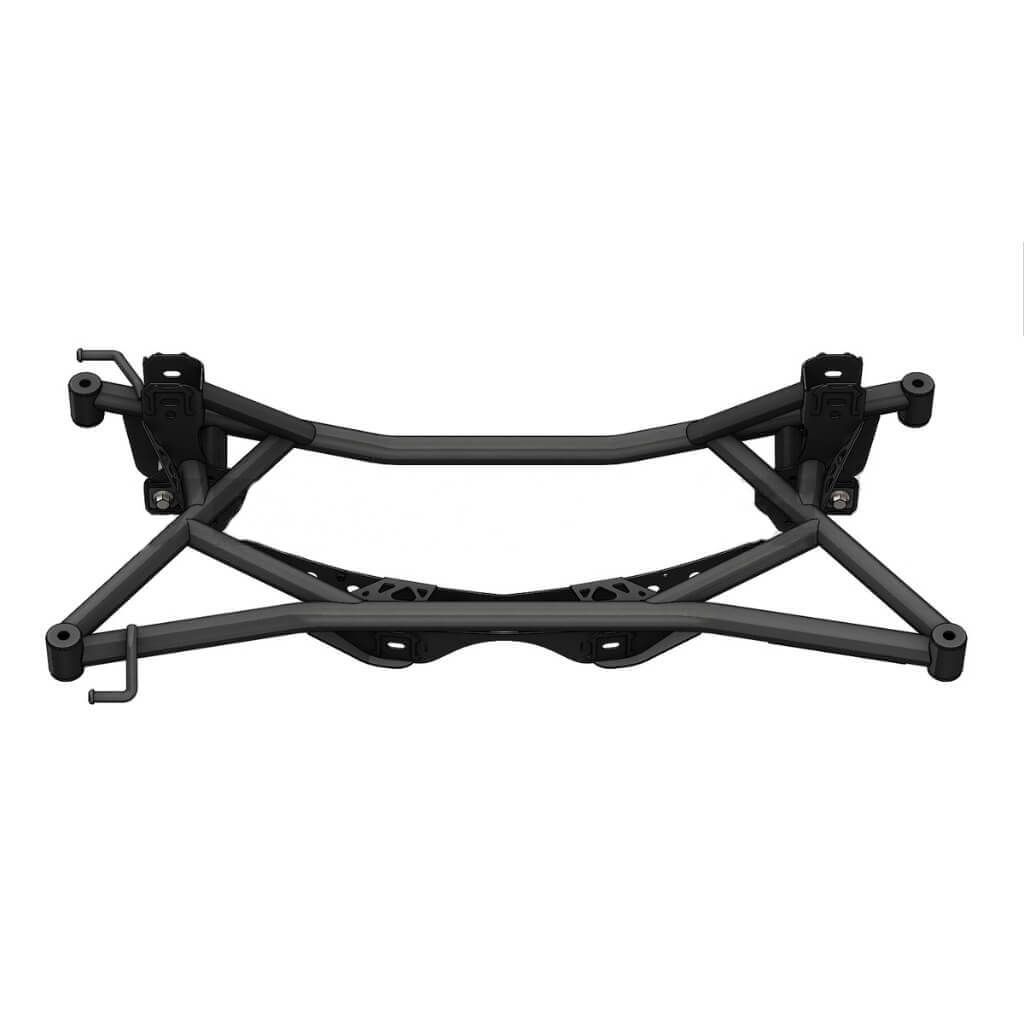

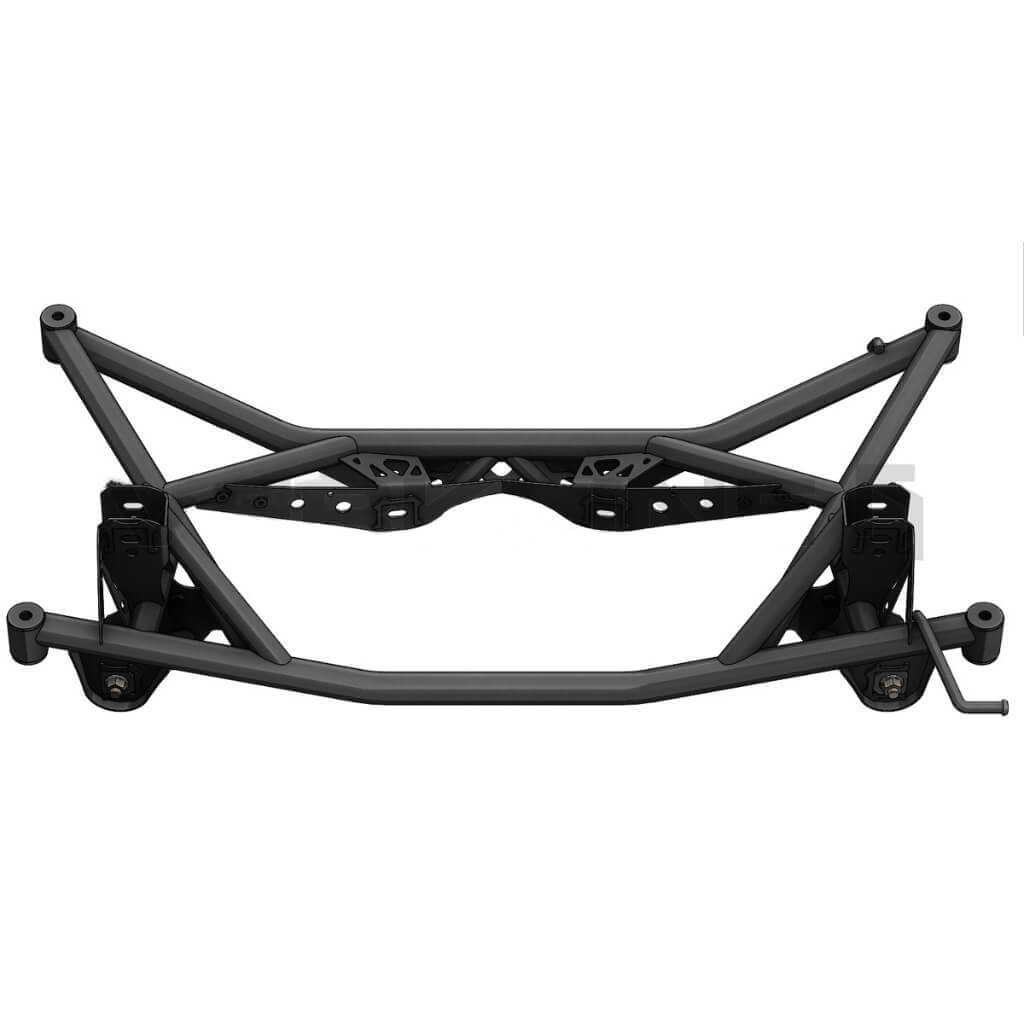

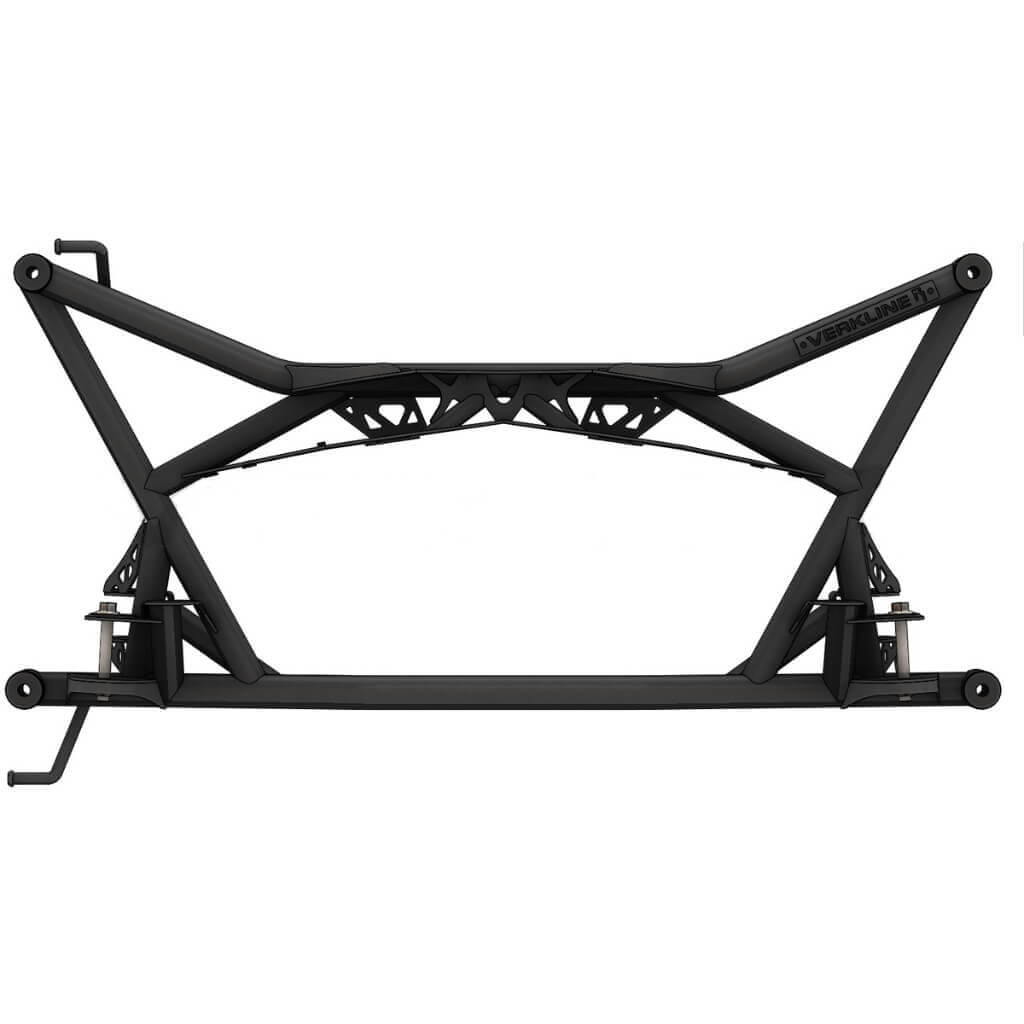

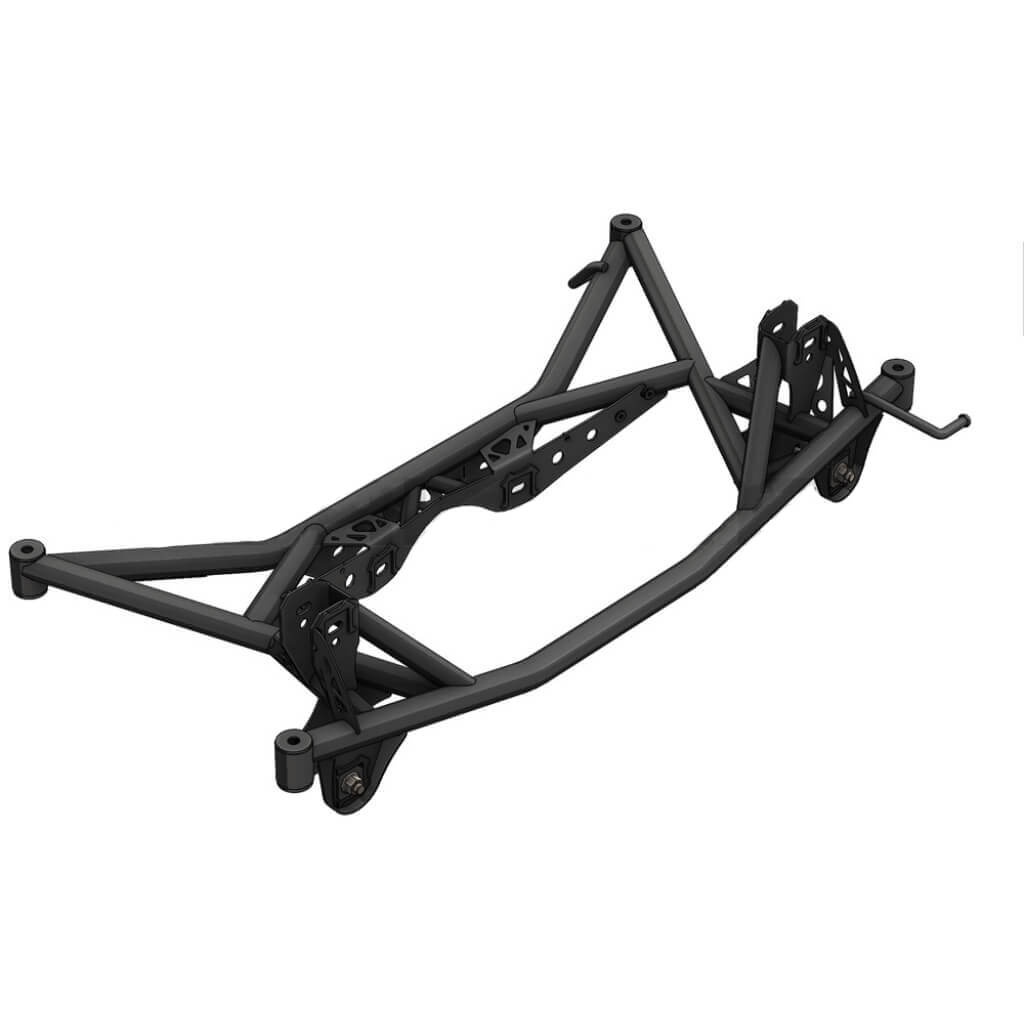

VERKLINE WAS-565 Rear Lightweight Tubular Subframe for AUDI S3 (8V / 8P)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
VERKLINE WAS-565 Rear Lightweight Tubular Subframe for AUDI S3 (8V / 8P)
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
Using same T45 tubing as in WRC cars, our subframes provide increased stiffness and mass reduction. All factory parts bolt up to this unit, no other modifications are necessary.
Benefits
- 11 kg. It is 2 kg saving over OEM steel subframe.
- Possibility of adjusting camber, toe and bump steer for improved suspension kinematics.
- Additional mounting for upper control arm – provides better camber gain and roll center position (requires adjustable control arm to keep camber adjustment).
- One mounting subframe position, eliminates subframe shifting under the car. No need for subframe locking kit / billet aluminium rear subframe inserts (weight savings).
- Increases chassis rigidity for improved handling performance.
Features
- Better access to car under body and enables wishbones change without subframe removal.
- T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets.
- All components TIG welded.
- Delivered painted (powder coated) black.
- Can be used with OEM wishbones or our adjustable wishbones.
- Mounts to the OEM car body and no other modifications are needed to fit the subframe.
- Includes mounts for two OEM rear xenon lights sensors.
- Can be used with exhaust up to 4 inch. OEM positioning.
- No need for subframe inserts or our aluminium subframe bushings as the subframe comes with solid mounts to the car body.
What is included
- Rear subframe powder coated in back.
- 3 mm metal adjustable wishbone position shims.
- Printed install instructions.
Replaces
- 1K0 505 315 BH /BM /H
- 5Q0 505 315 G /H
- 5N0 505 315 B /AB /G
Notice: Sold for off road, track and racing applications only. Mounting the subframe may increase some noise, vibration, and harshness (NVH) in the car.
Notice 2: The subframe is made to fit the PQ35 FWD anti roll bar, which has a 696 mm distance between mounts. There are two types used. If you have an anti-roll bar you need to check if it is possible to adjust the lengths (of the mounting points) if it is wider than 696 mm.
