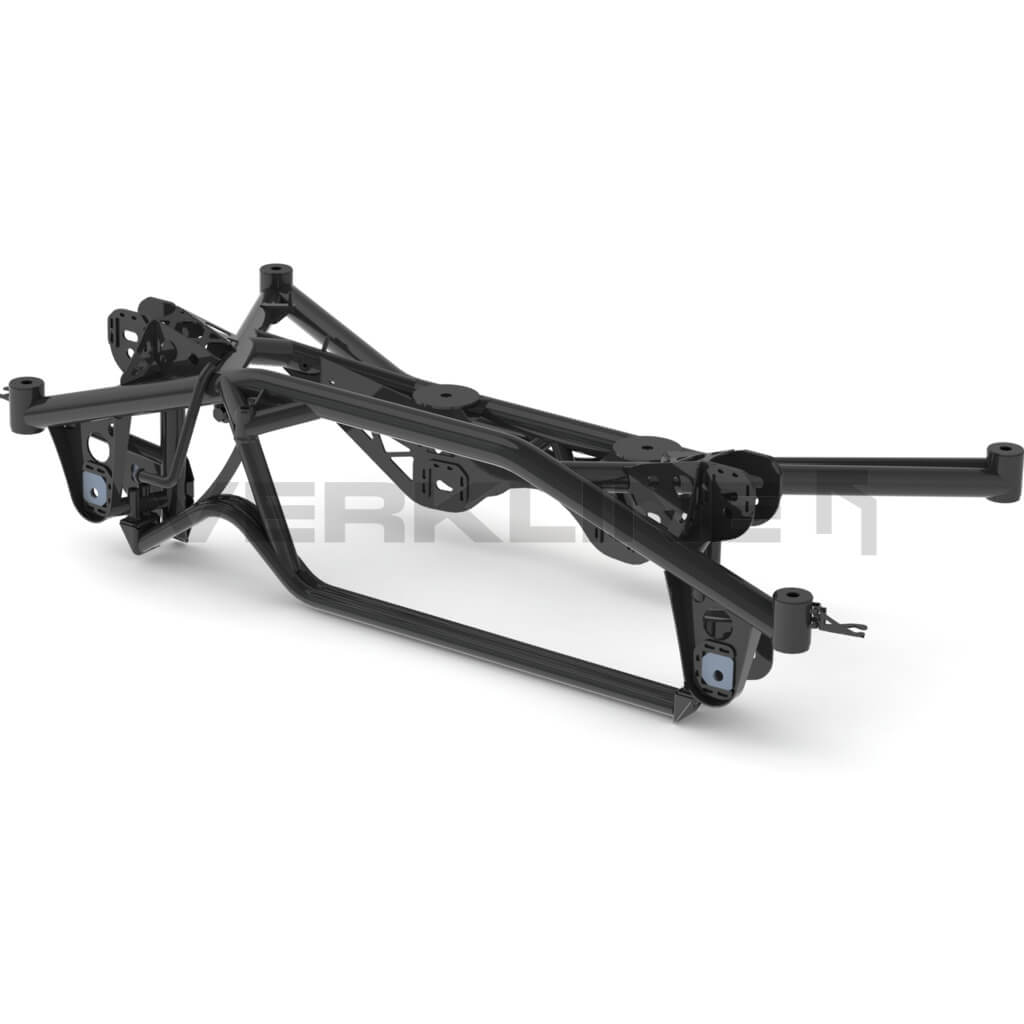

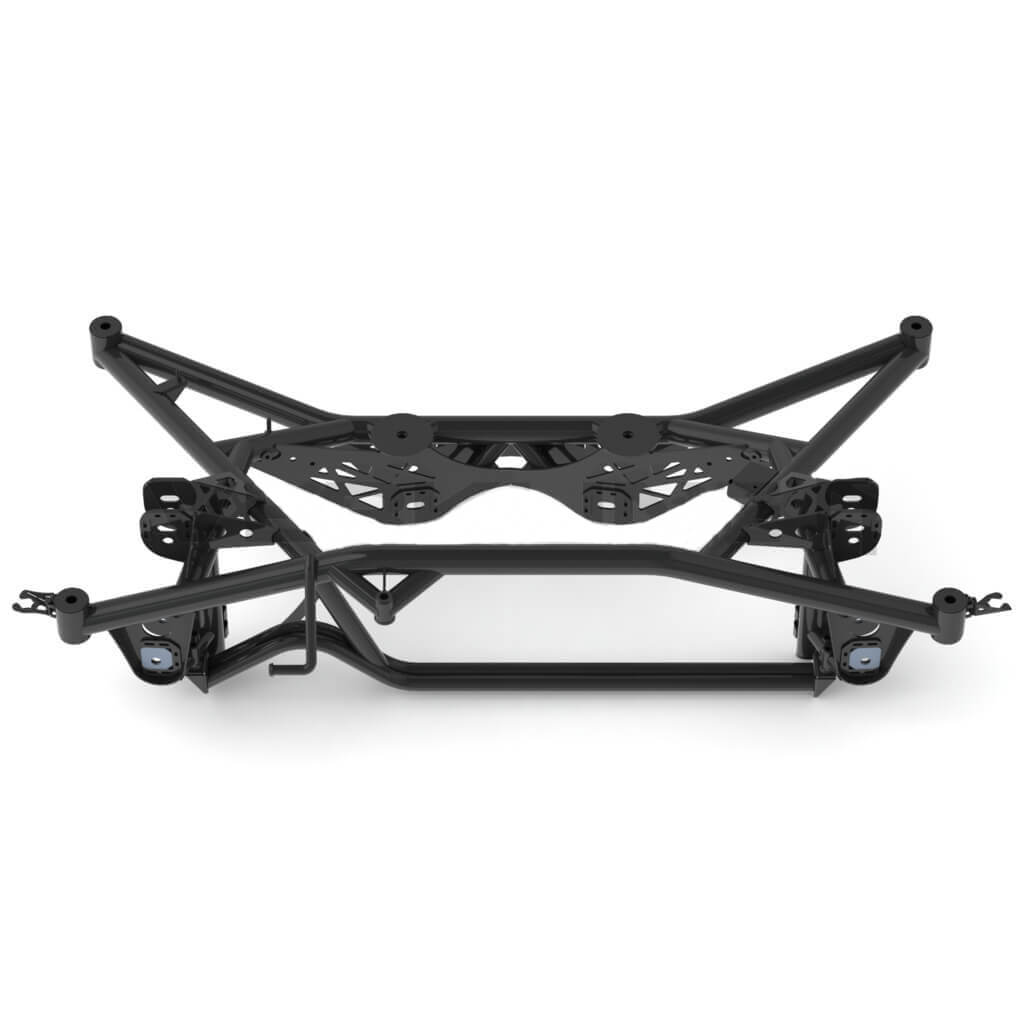

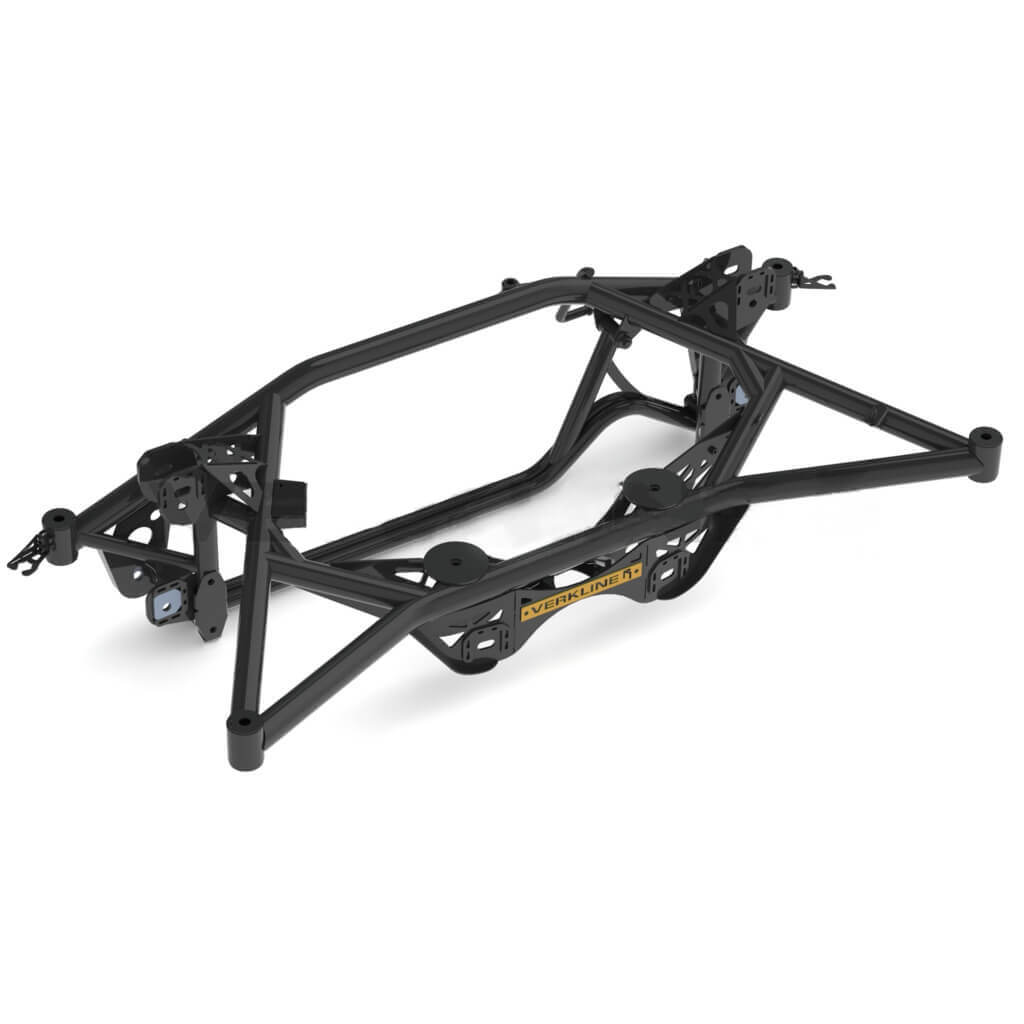

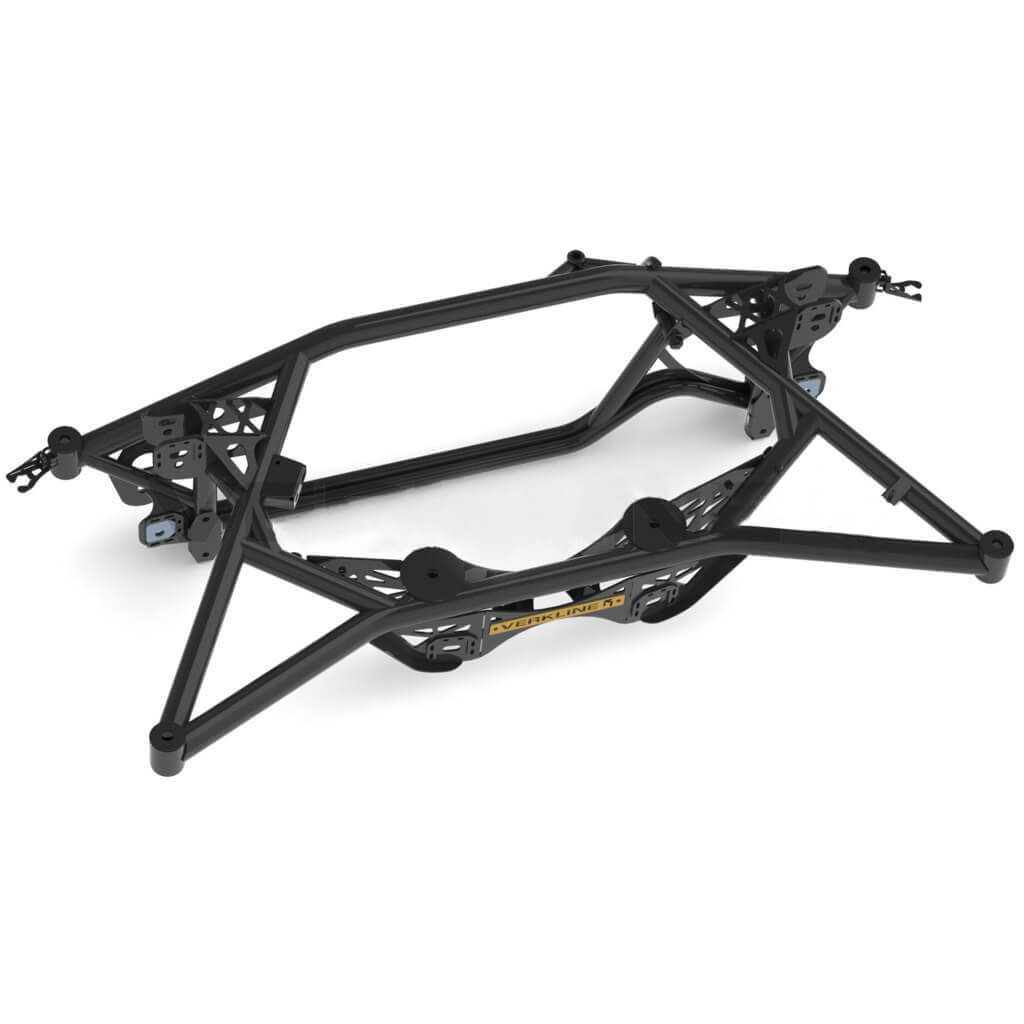

VERKLINE WAS-564 Rear Lightweight Tubular Subframe Track for AUDI RS3 (8V) / VW Golf (Mk7 / Mk8)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
VERKLINE WAS-564 Rear Lightweight Tubular Subframe Track for AUDI RS3 (8V) / VW Golf (Mk7 / Mk8)
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
This version is designed for cars that require additional chassis rigidity with reinforcement of the rear axle crossmember. The cars are most often used on race tracks (road).
Advantages
- 13.6 kg. This is 4.5 kg less than the MQB steel subframe or 5 kg more than the PQ35 steel subframe.
- Possibility to adjust camber, pitch and roll.
- Optional upper control arm mount for track mounting - provides better camber and roll center reinforcement (requires adjustable arm to maintain camber adjustment).
- Single subframe position, eliminates subframe misalignment under the vehicle.
- Increases chassis rigidity for improved handling.
- Additional rear axle cross member.
Features
- Improved underbody access and the ability to replace the cross arms without removing the subframe.
- T45 tubing (BS4T45 to BS4T100) imported from the UK and S355 sheet metal.
- All components are TIG welded.
- Supplied painted (powder coated) in black.
- Can be used with standard crossmembers or our adjustable crossmembers.
- Mounts to the vehicle body and requires no other modifications to install the subframe.
- Includes mounts for two OEM xenon rear light sensors.
- Can be used with exhaust pipes up to 4\" with the OEM exhaust manifold centered.
- No need for subframe inserts or aluminum subframe bushings as the subframe comes with solid mounts to the vehicle body.
What's included
- Powder coated rear subframe.
- Rear axle lower cross member reinforcement bar.
- Set of 3 mm diameter metal adjustable cross arm position shims for positioning at -5, -4, -3, -2, -1, 0, 0, 1, 2, 3, 4, 5 mm.
- Printed installation instructions.
Replaces
- 5Q0505235E
- 5Q050505235J
- ZAW071151DDSP (rear axle cross member reinforcement)
Note: Sold for off-road, track and racing use only. Installing a subframe may result in increased noise, vibration and harshness (NVH) in the vehicle.
Note 2: Not suitable for Audi RS3 8P and VW Golf R32. The battery is located under the vehicle behind the rear subframe. The VERKLINE subframe can be used, but the battery compartment will have to be relocated.
