VERKLINE WAS-560 Front Tubular lightweigth Subframe for AUDI TTRS (8J)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
VERKLINE WAS-560 Front Tubular lightweigth Subframe for AUDI TTRS (8J)
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine

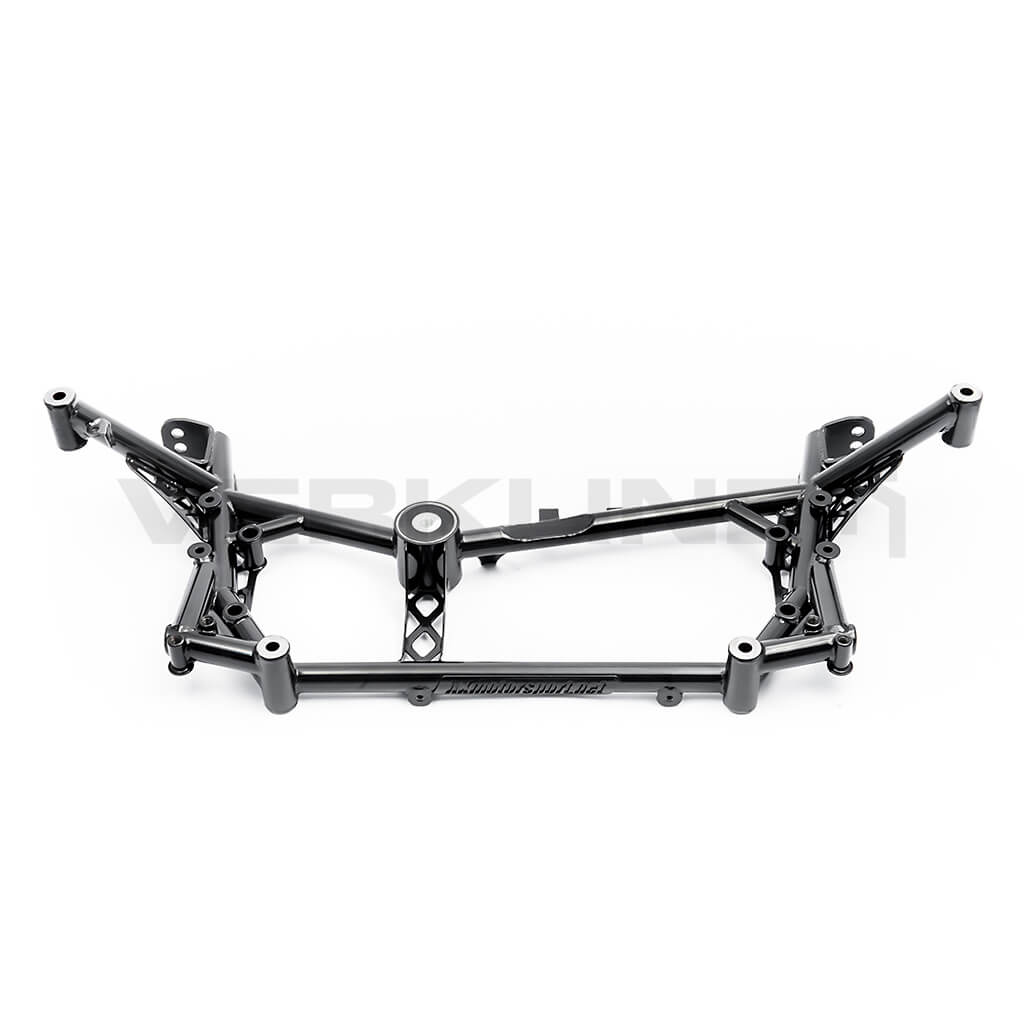

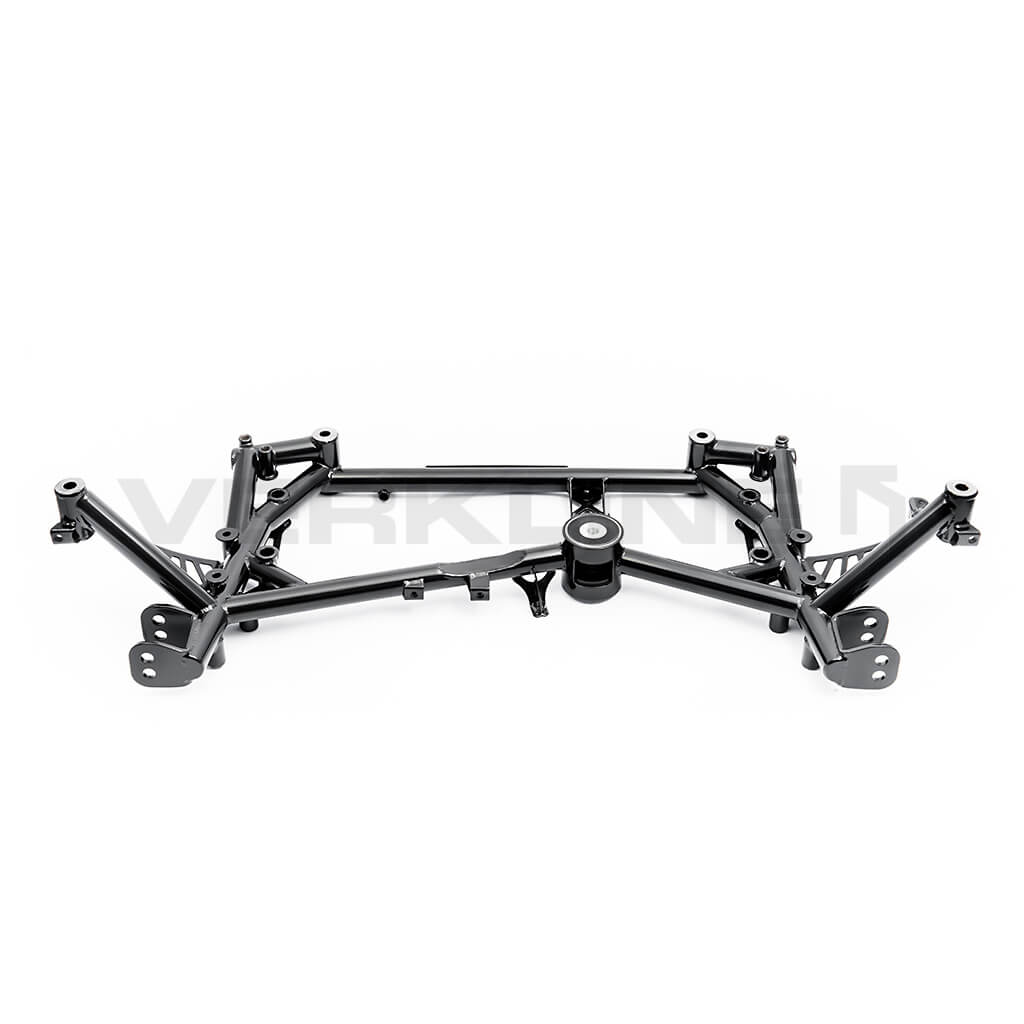

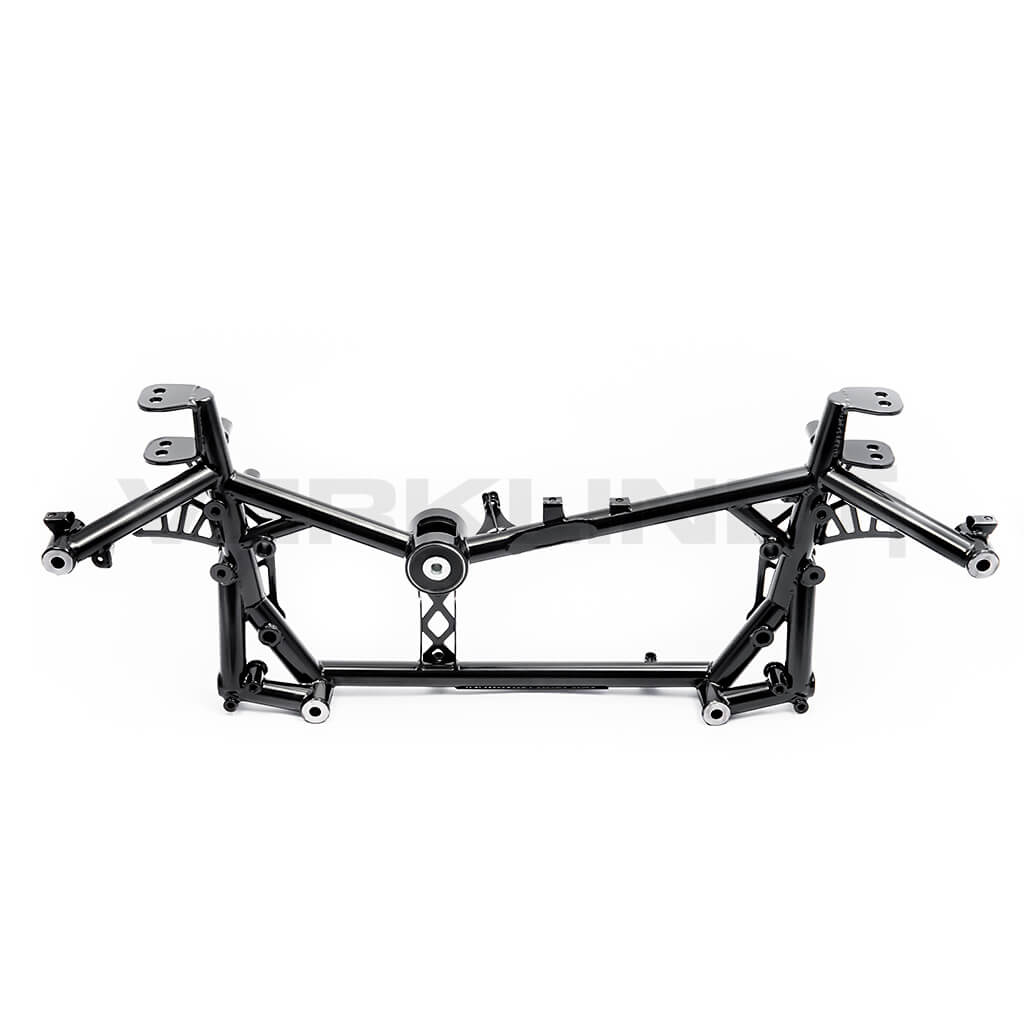

Using same T45 tubing as in WRC cars, this subframes provide increased stiffness and mass reduction. All factory parts bolt up to this unit, no other modifications are necessary.
Features
- Better access to car under body and enables wishbones change with out subframe removal.
- T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets.
- All components TIG welded.
- 6 kg (13 lbs), it is 4 kg (8.8 lbs) saving over OEM subframe. It is 40% savings.
- Delivered painted (powder coated) black.
- Can be used with OEM wishbones.
- Mounts to the OEM car body and no other modifications are needed to fit the subframe.
- Includes two xenon lights mounts.
- Can be used with OEM undertray.
- Can be used with OEM or aftermarket dogbone support (mounts).
What is included
- Front subframe painted with black polyurethane dogbone mount.
- Printed install instructions.
Replaces
- 1K0199313AL / 1K0 199 313AL
Notice: Sold for off road, track and racing applications only. Installation of this product will introduce some additional NVH (noise, vibration, and harshness) transfer into the cabin.
