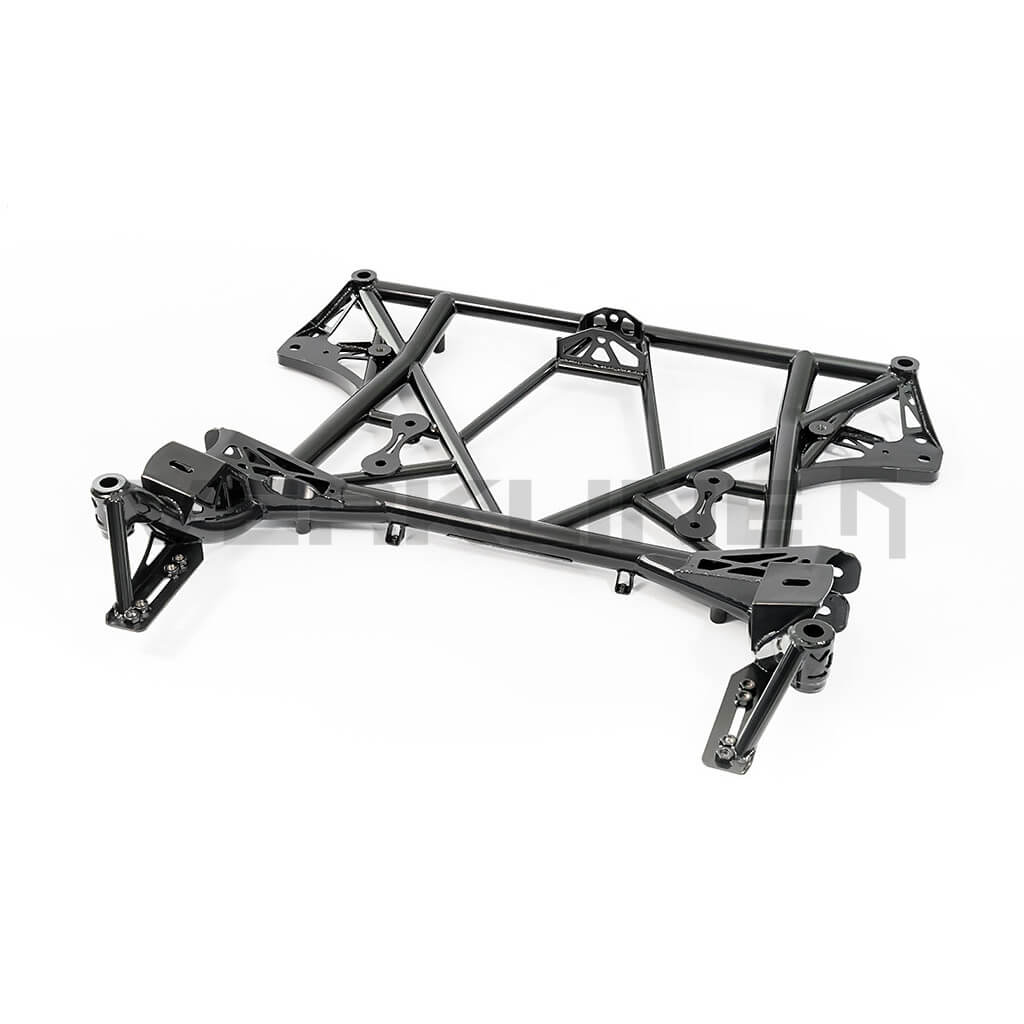

Lightweight tubular subframe with a -40% weight reduction from the 48.20 lbs (21.85 kg) that the front OEM subframe weighs.
The tubular lightweight subframe is based on a 3D scan of the stock subframe, fully CAD designed, finite element method (FEM) tested, made from T45 tubing (full name: BS4 T45 - BS5T100 / BS6S100 ).
The crossmember is fully hand TIG welded to ensure absolute quality control with a special Lincoln Electric tig wire that matches the tensile and yield properties of the pipe.
Replaces:
- 54401-62B0B
- 54401-38B0A
Features
- Weight 13.1 kg / 28.88 lbs, which is -40% (8.75 kg / 19.3 lbs) more economical than the standard subframe.
- T45 tubes (BS4 T45 to BS5T100 / BS6S100) imported from the UK, as well as S355 sheet metal.
- Supplied painted (powder coated) black.
- Two attachment points for the front anti-skid bar. An additional 20 mm at the front are the second attachment points to make room for the dry oil pan piping.
- Extra space for easy removal of extended oil pans.
- Works with Magnus dry sump kit.
- Makes maintenance easier with better access to the underbody
- OEM or aftermarket pan mounts
- OEM or aftermarket cross arms can be used.
What's included:
- Front subframe, painted black.
- Printed installation instructions.
Important information
T45 pipe is a unique seamless carbon steel pipe that is used in many industries. It is stronger than Co-Mo 4130 (chromoly) pipe, which is also used in motorsports. T45 is widely used in the aerospace sector in equipment such as pilot and crew seats, due to the material's ability to withstand high G forces without seizing or splitting. This material has a carbon-manganese base and meets all aerospace specifications set by British Standards.
Properties for T45 are as follows:
- Tensile: 700 - 900 MPa, 0.2% yield 620 MPa minimum.
- Hardness test: 201min - 262 max HB or 210min - 275max HV.
S355 metal sheets are also used in the subframe.
The size of the subframe is 964.8 x 844.5 x 168.8 mm (length x width x height).
Note: Sold for off-road, race track and racing use only. If the purchaser wants to use the parts elsewhere, he/she must file the appropriate paperwork.
