VERKLINE WAS-003 Replica Wishbone Full Set for AUDI S2 (B4)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
VERKLINE WAS-003 Replica Wishbone Full Set for AUDI S2 (B4)
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine

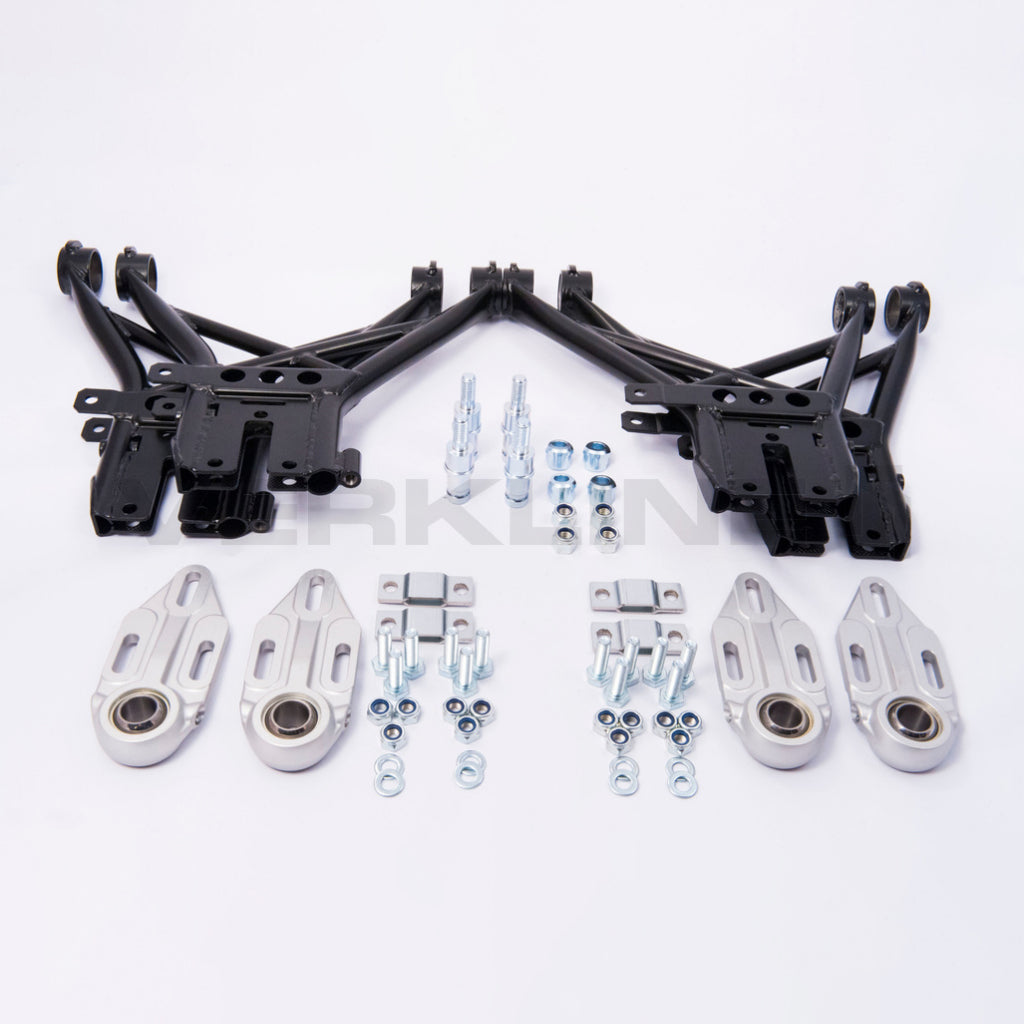

What’s Included

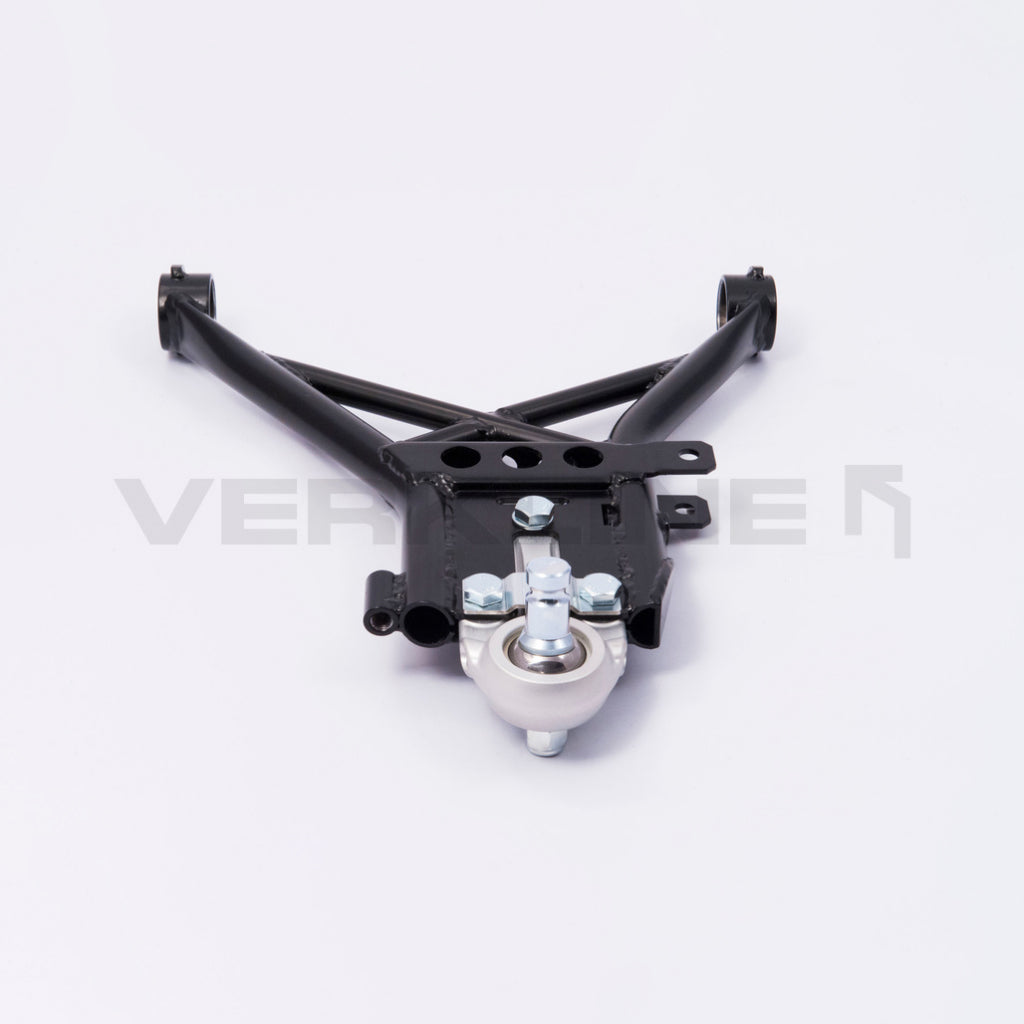

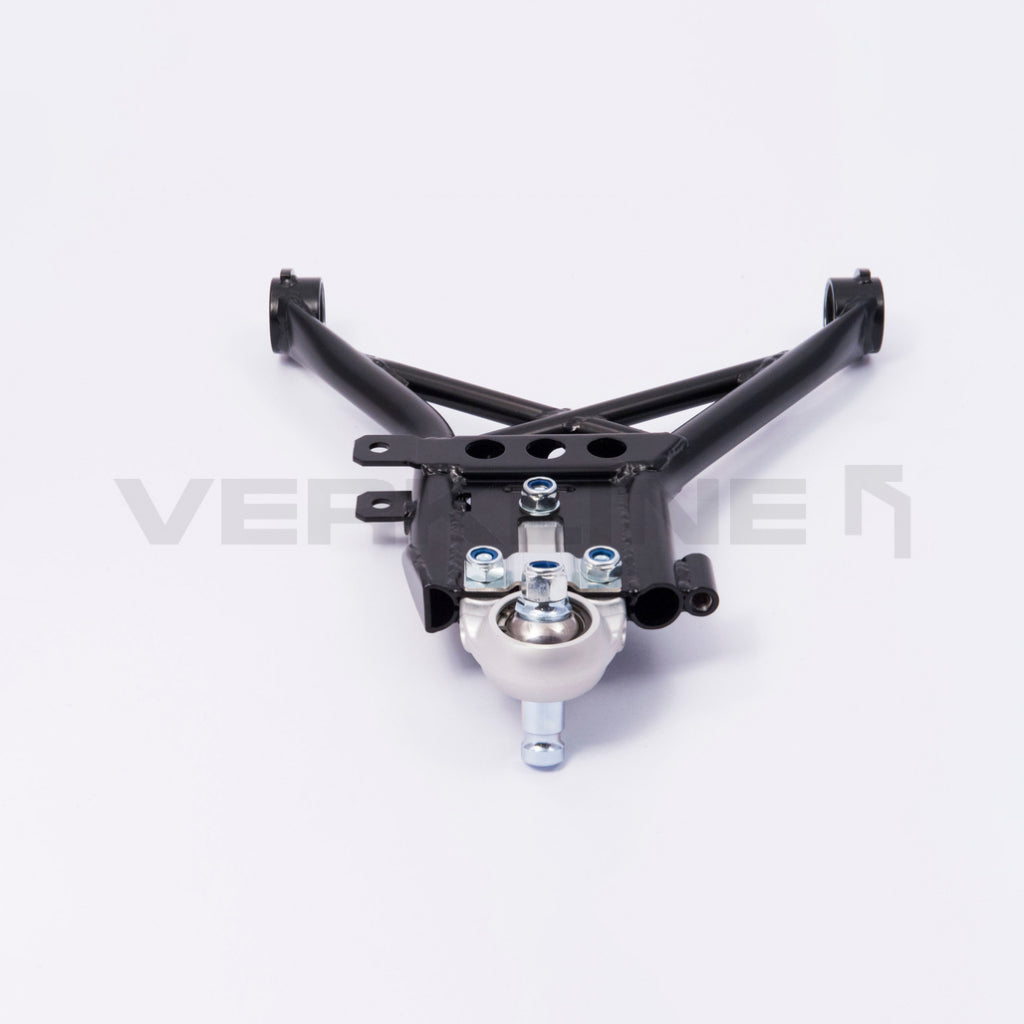

- Two wishbones (E355 N / St 52.4 steel) for front axle.
- Two wishbones (E355 N / St 52.4 steel) for rear axle.

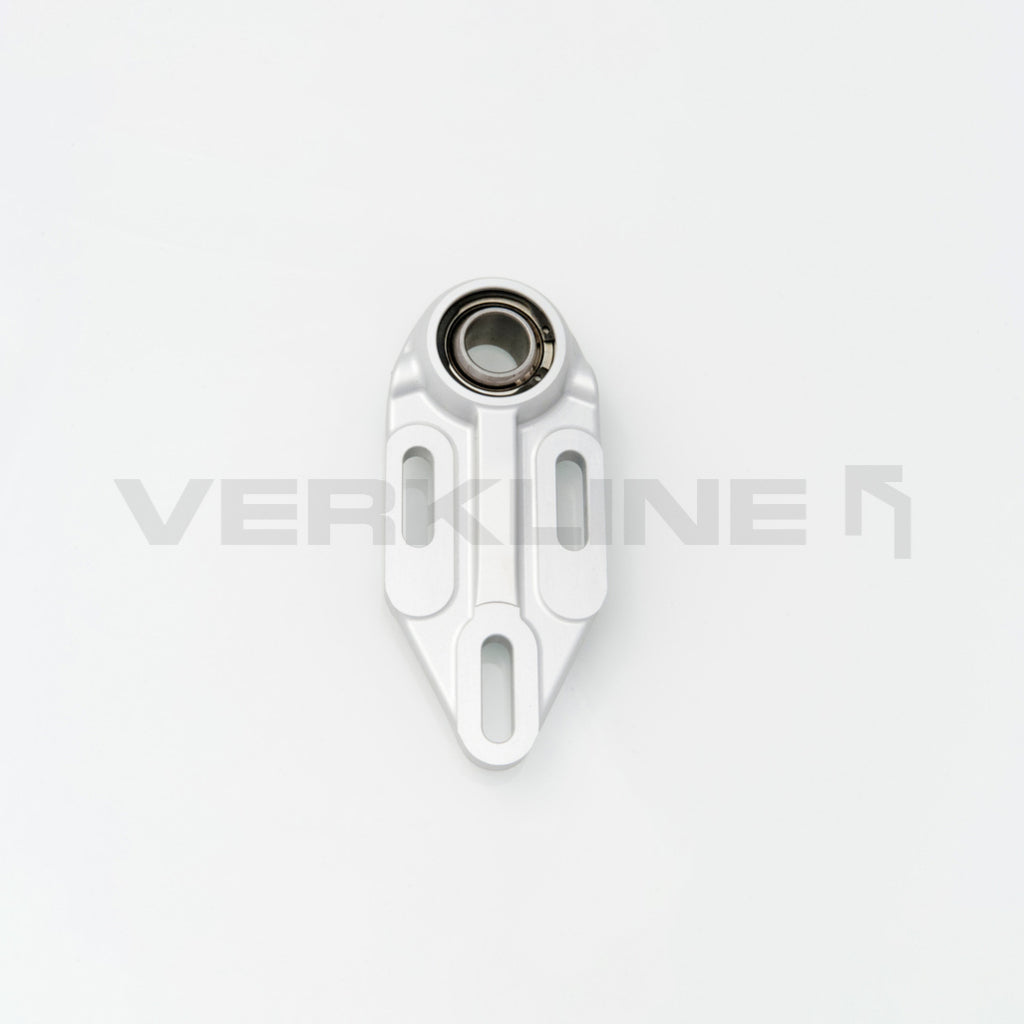

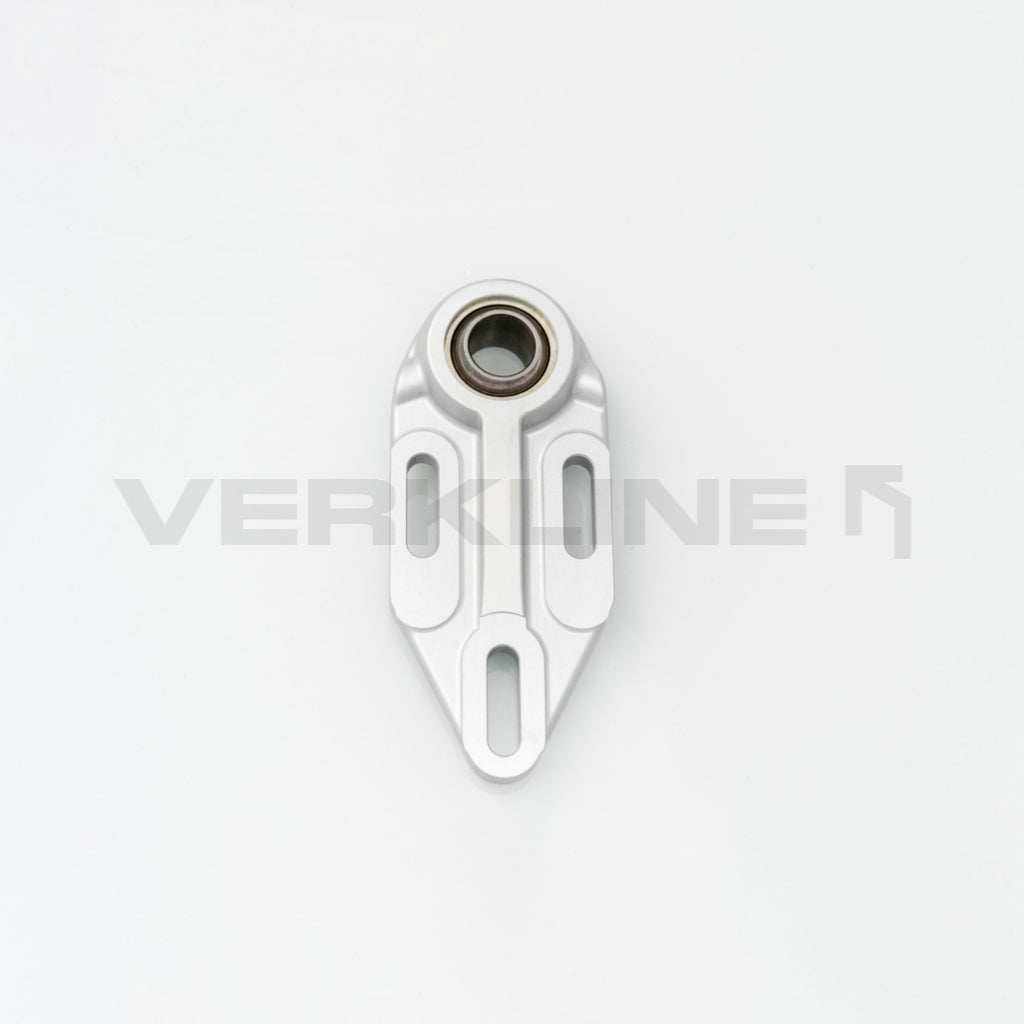

- Four aluminum (PA9 / 7075) ball joint carriers milled on CNC machine and anodized in silver.
- Four maintenance free sport Fluro bearings (22 mm hole).

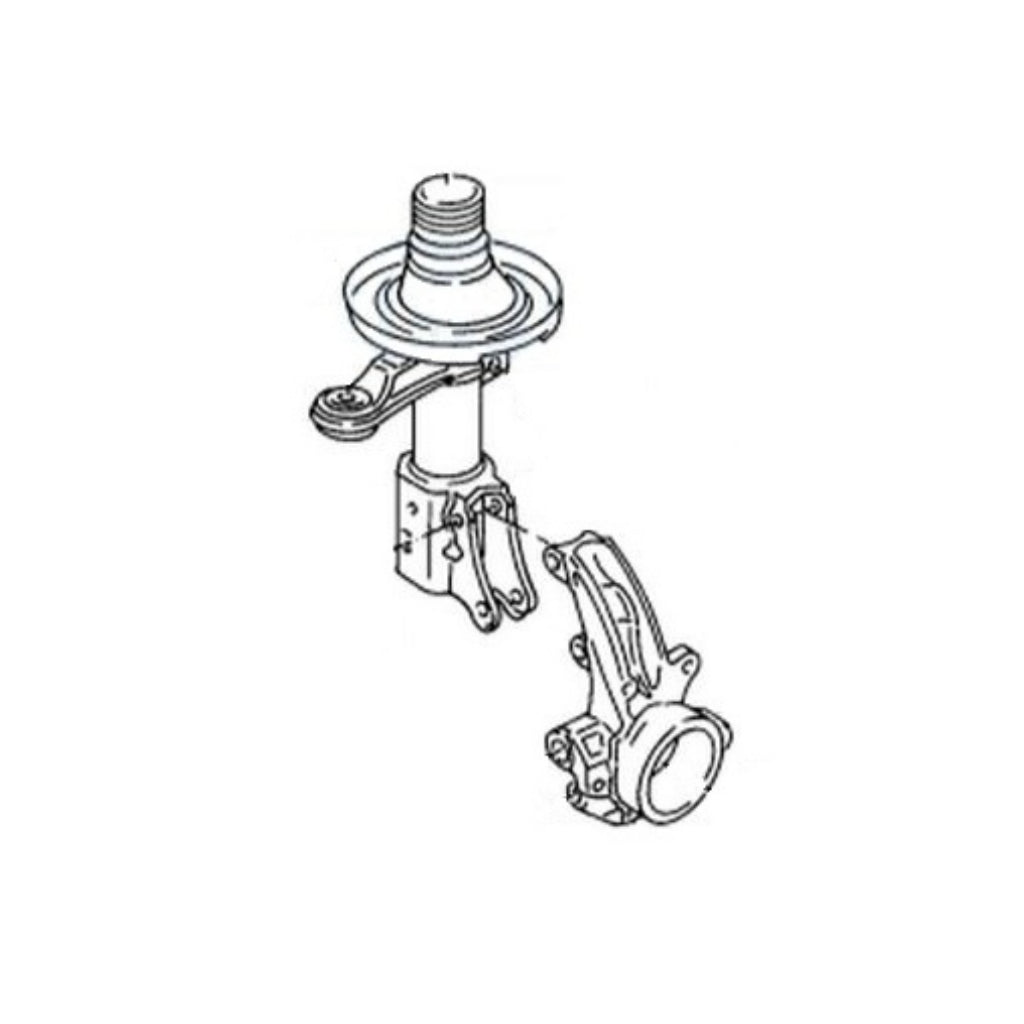

- Four steel pins (EN C45) to connect with OEM struts (front and rear – B3/B4 divided type uprights).
- Eight steel galvanized locking plates for securing aluminum ball joint carriers.
- All necessary screws for mounting ball joint carriers and steel pins.
Features
- Can be used in conjunction with the standard front/rear sub-frame.
- Made to work with OEM uprights (quattro).
- Allows for massive camber adjustment (up to 25mm more versus OEM) and wider track.
- Gives additional caster. Audi B4 OEM caster is 2 and with our wishbone it is 2.65.
- Works fine with Audi Sport blade type anti roll bars.
- Works with Audi Sport uprights (22 mm bolt).
- Prepared to work with additional trailing arm (both in front and rear).
- Possible to use with “turn stop” on Audi Sport uprights.
- On the contact area between aluminum ball joint carrier and inside of the wishbone the area is knurled for better grip of the carrier.
- To be used with 37mm diameter bushes for mounting the wishbone to the subframe.
Notice: Instructions are provided to the customer on the installation of the kit. Front wishbones increase significantly caster angle.
