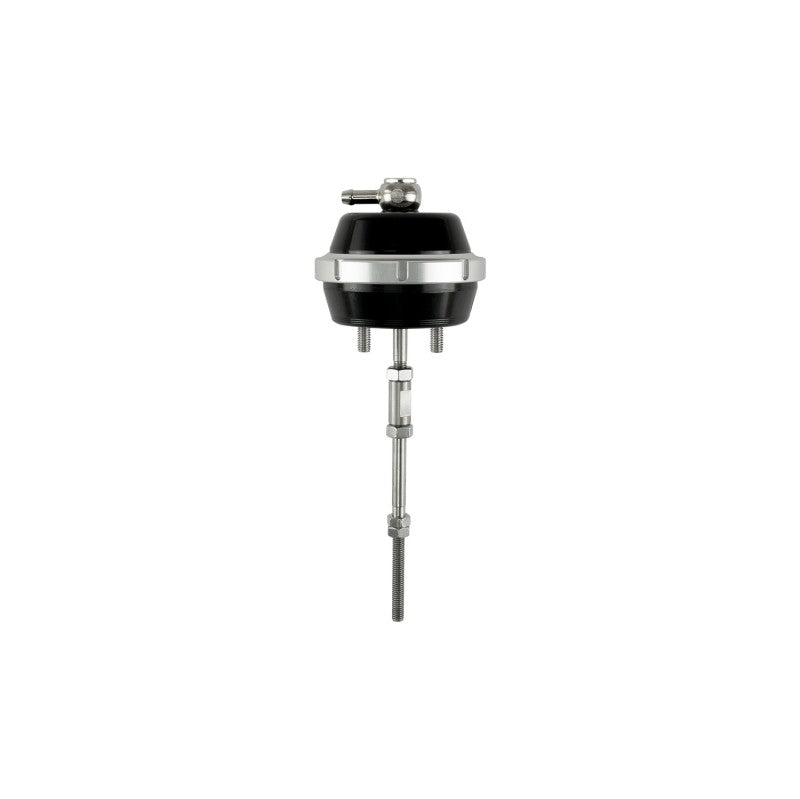

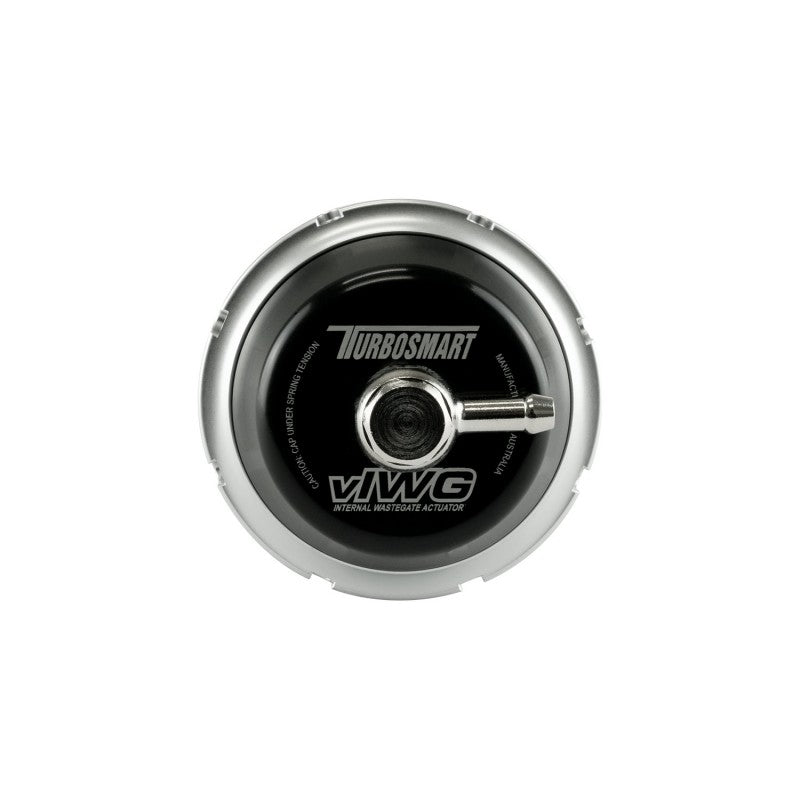

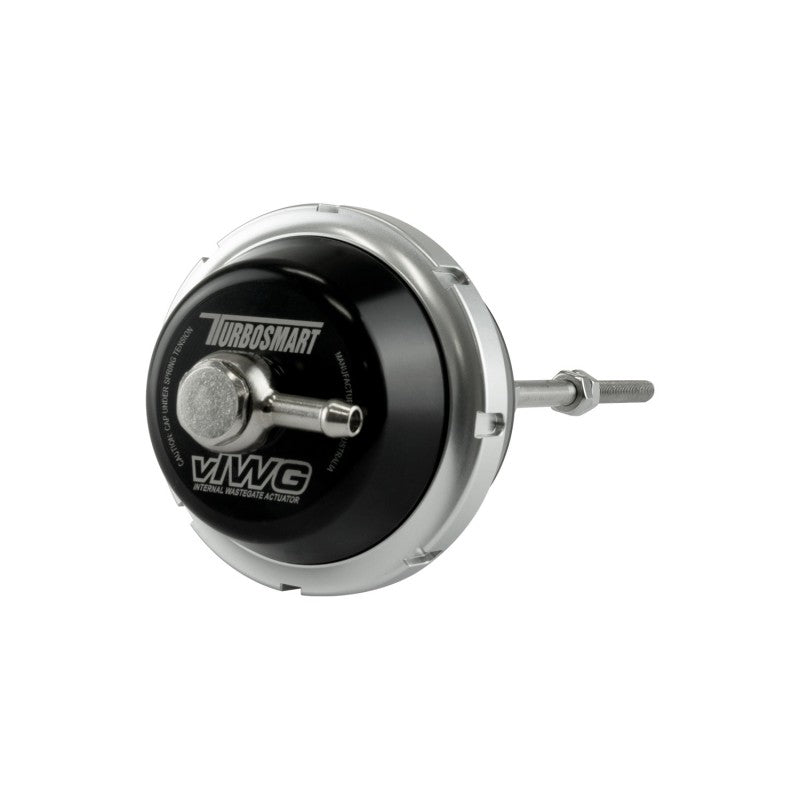

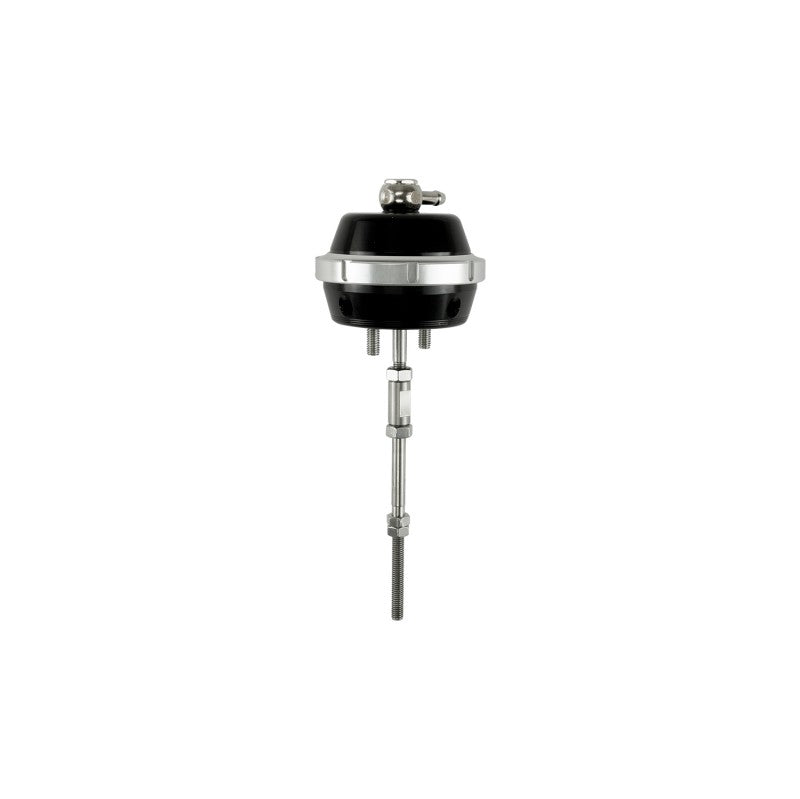

TURBOSMART TS-0620-1065 Wastegate Actuator 57mm Diaphragm

Turbosmart Upgraded Vacuum-operated Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart vIWG Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning & recalibration is recommended for optimal performance.

Features

• Proprietary Silicon Nomex Diaphragm
• High-Grade Billet Aluminum Construction
• Stainless Steel Rod
• Turbosmart Unique Locking Collar System

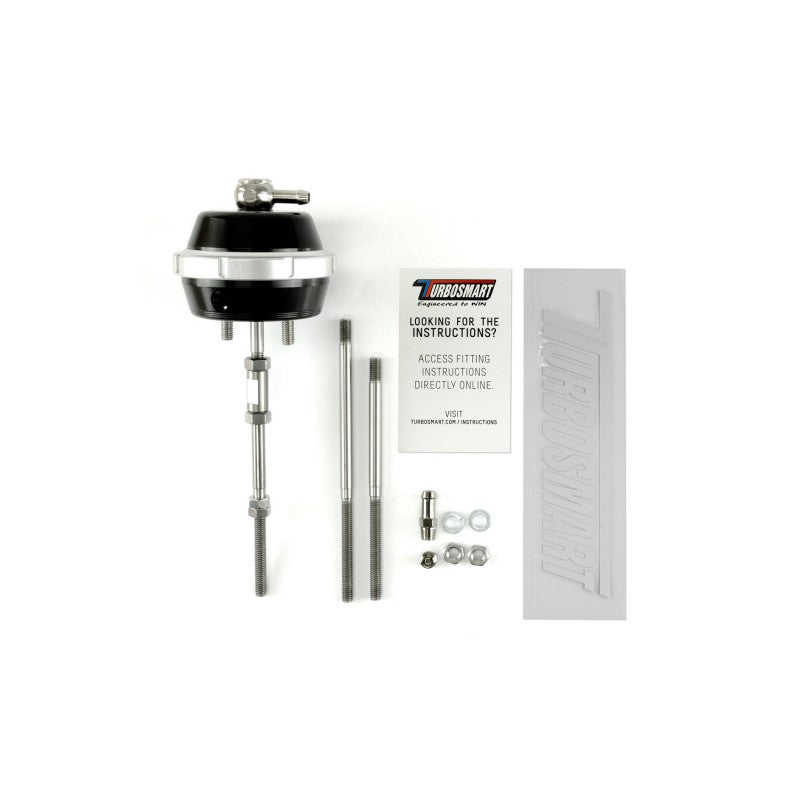

• 3 Secondary rods are included ensuring fitment to all B1 & B2 single & twin scroll EFRs

This is a Borg Warner turbo-specific Vacuum operated vIWG Actuator with a 57mm diaphragm, supplied with 3 Secondary rods to ensure fitment to all B1 & B2 single & twin scroll EFRs.
