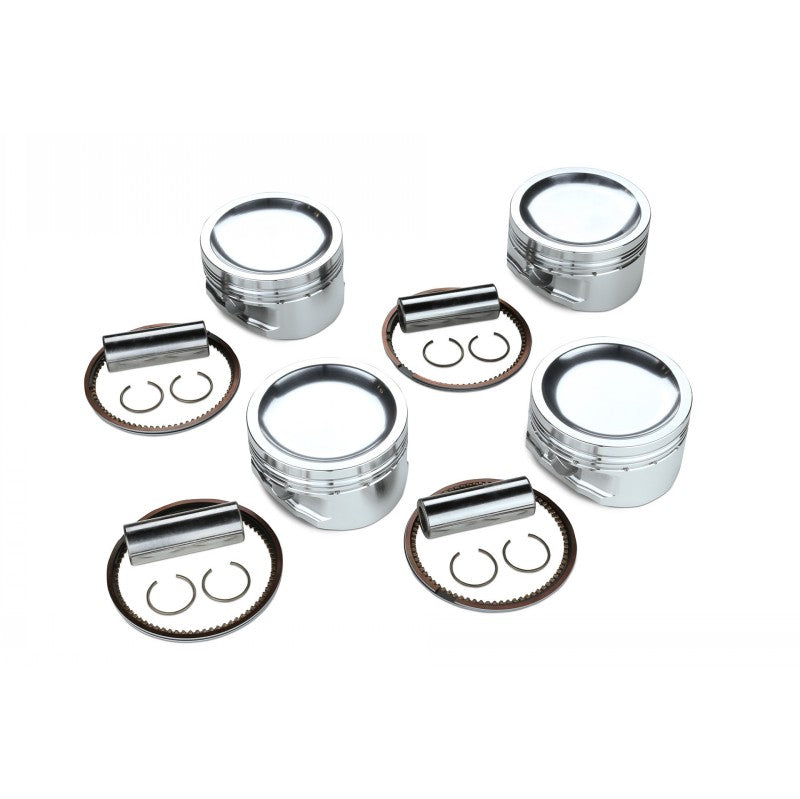

TOMEI TA202A-NS08C Forged Piston Kit 86.50 mm for SR20DET 2.2 L
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
TOMEI TA202A-NS08C Forged Piston Kit 86.50 mm for SR20DET 2.2 L
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles. Taking advantage of high temperature strength and high strength, weight reduction is achieved by making the walls thinner.
| Application | SR20DET |
| Type | TOMEI |
| Bore (mm) | 86.50 (OEM +0.5) |
| Pin Diameter (mm) | 22.0 |
| Pin Length (mm) | 60.0 |
| Circlip Inner Diameter (mm) | 22.0 |
| Valve Recess | WITHOUT |
| Compression Height (mm) | 29.50 (OEM -2.5) |
| Piston Volume (cc) | -18.0 |
| Piston Weight (g) | 311.2 |
| Pin Weight (g) | 121.5 |
| Total Weight (g) | 435.1 |
| Top Ring (mm） | 1.20 x 2.90 |
| Second Ring (mm） | 1.20 x 3.00 |
| Oil Ring (mm） | 2.50 x 2.60 |
| Piston Material | A2618 |
| Compatibility |
