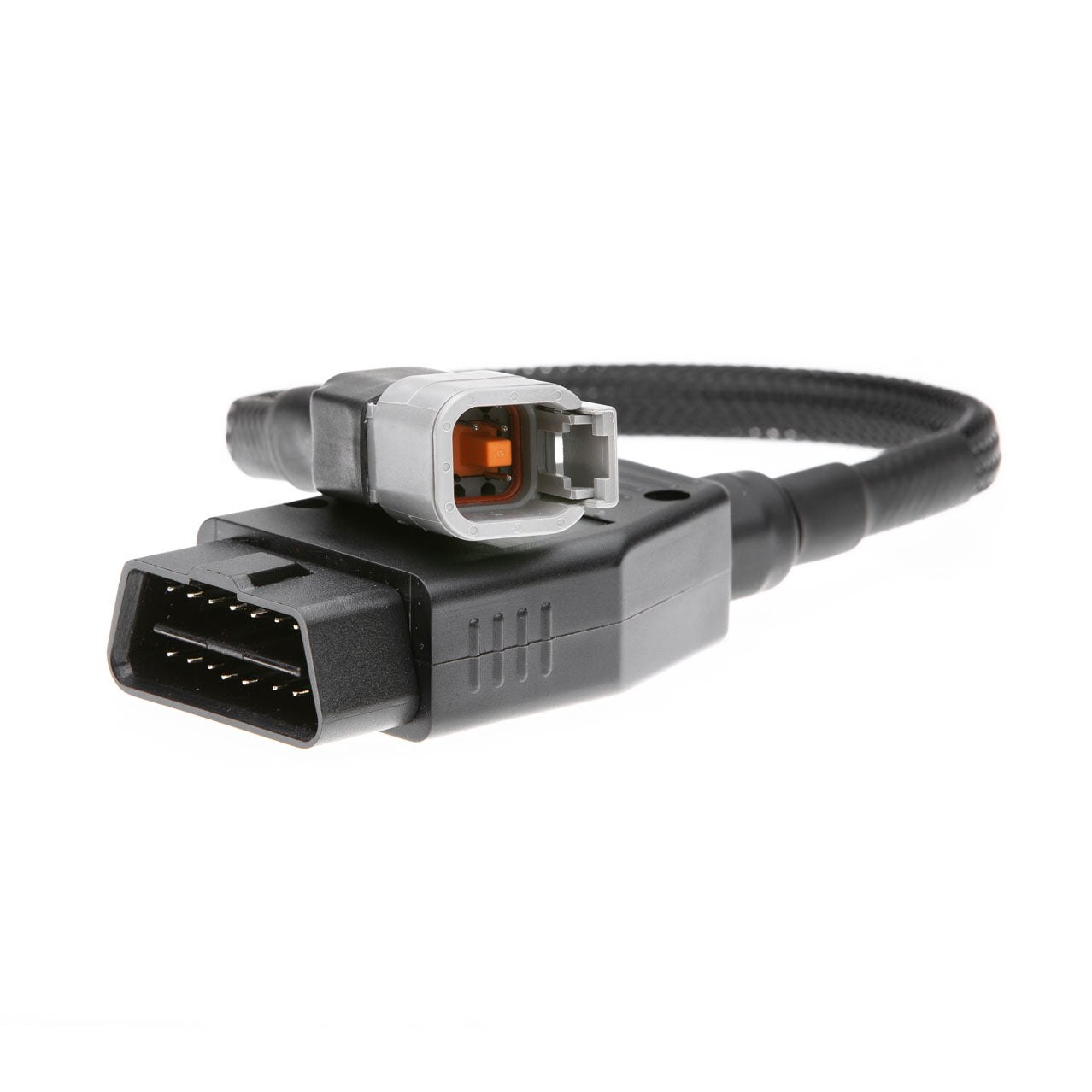

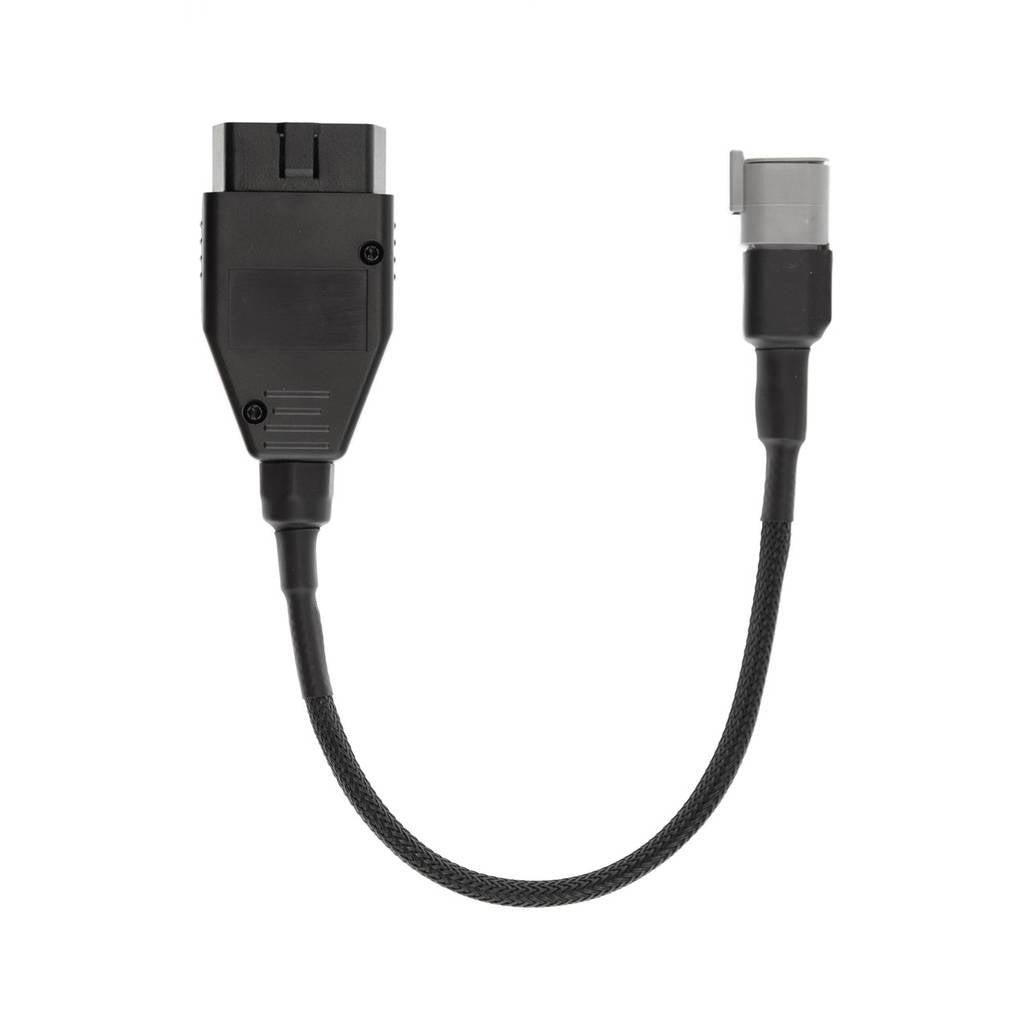

CAN loom for OBD (straight connector)
CAN loom for OBD-II diagnostics port with straight connector.
Please note: This CAN Adapter will only work in combination with the 12V CAN Cable. One end the 12V CAN Cable is connected to the Race Navigator, while the other end is connected to this CAN Adapter. The 12V CAN Cable is not included in this article and must be ordered separately.
Technical data:
Pinout DTM04-6P
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: Ground -
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low
Pinout OBD2
PIN 16: Brown Signal: 12V +
PIN 4: Blue Signal: Ground -
PIN 6: Red Signal: Can High
PIN 14: Black Signal: Can Low
