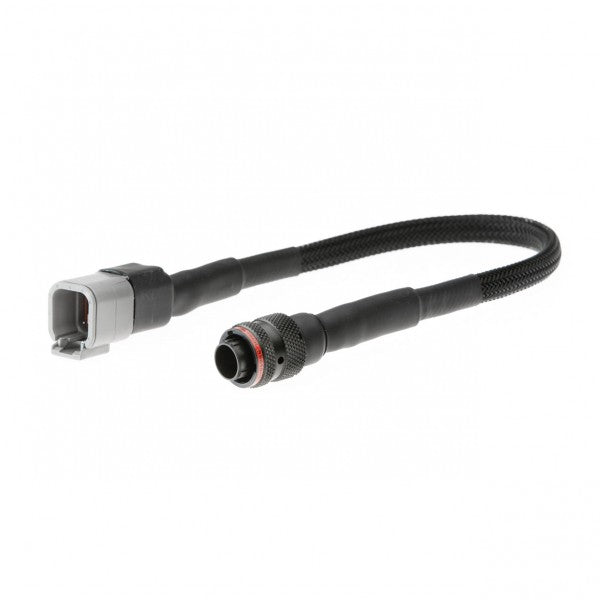

RN VISION P-LOO-CAN-BMW-M4-GT4 CAN loom for BMW M4 GT4
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Allows to read additional data via the car's CAN Bus.
Please note: This CAN Adapter will only work in combination with the 12V CAN Cable. One end the 12V CAN Cable is connected to the Race Navigator, while the other end is connected to this CAN Adapter. The 12V CAN Cable is not included in this article and must be ordered separately
Technical data:
Pinout DTM04-6P
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: System GND
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low
Pinout AS 6 10-98PN
PIN A (4): Brown Signal: 12V +
PIN B (1): Blue Signal: System GND
PIN F (5): Red Signal: Can High
PIN E (6): Black Signal: Can Low
