RADIUM 20-0747-203 Датчик рівня палива 0-90 Ом, 8,0 дюймів Photo-1

RADIUM 20-0747-203 Fuel Level Sender 0-90 ohm, 8.0in

₴5,391.68

Shipping calculated at checkout

RadiumP/N: 20-0747-203
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

RADIUM 20-0747-203 Fuel Level Sender 0-90 ohm, 8.0in

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611

This fuel level sensor uses the standart
\"\"
Full stainless steel sealed construction with magnetic float.
Resistance: 0 ohm empty, 90 ohm full
\"\"
Suitable for use with gasoline, diesel, water, and all alcohol based fuels including methanol, ethanol, E85, etc.
\"\"
NOTES:
-All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
-Radium does not sell fuel level gauges, but a popular option is this
-To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.
-If purchased with a Radium Fuel Cell Surge Tank (FCST), the sender will come pre-installed.
-If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter,
   (Radium Engineering does not have experience with this product, contact Classic Instruments for more information)
\"\"

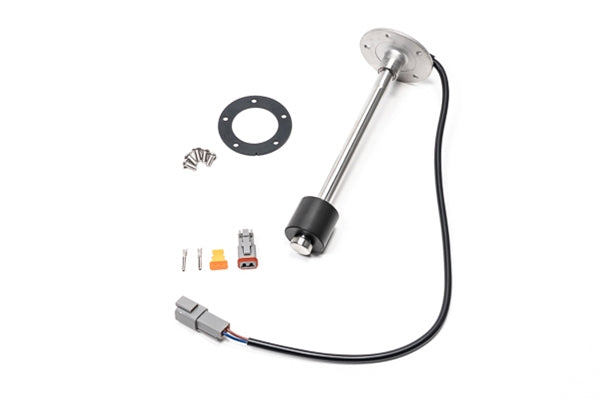

WHATS INCLUDED:
-Level Sensing Probe
-SAE 5-Bolt Gasket
-Stainless Bolts 10-32 (x5)
-Deutsch DT 2P Connector
-Deutsch DT Sockets (x2)
\"\"
SPECIFICATIONS:
PROBE MATERIAL: 304 Stainless Steel
FLOAT MATERIAL: Plastic Buna-N
MOUNTING FLANGE: 5-Bolt SAE
MOUNTING GASKET: FKM
RESISTANCE: 0 (Empty)-90 (Full) Ohms
PVC WIRES: 18\" (460mm) with PA Cover
CONNECTORS: Deutsch DT, 2P
OPERATING TEMP: -40F to +185F
