RADIUM 20-0220-03 Fuel Filter Kit, Stainless Steel, 10 Micron

Description RADIUM 20-0220-03 Fuel Filter Kit, Stainless Steel, 10 Micron

The RADIUM Engineering 20-0220-03 fuel filter kit is a high-performance filtration solution designed for motorsport and high-flow fuel system applications. Featuring a CNC-machined 3-piece housing constructed from 6061 aluminum and treated with Type-II anodizing, this filter offers excellent corrosion resistance and mechanical strength. Both end caps include large -10AN ORB female threads, supporting high-flow plumbing configurations. The 10-micron stainless steel internal element delivers exceptional filtration without compromising flow performance, even under fuel pressures approaching 150 psi.

Preassembled with chemically resistant FKM O-rings, the unit is fully compatible with a wide range of fuels, including gasoline, diesel, ethanol, methanol, and alcohol-based blends such as E85. The oversized 4.2\" × 1.75\" element enables extended service life by accommodating greater contaminant volume while maintaining low pressure drop. Flow testing confirms stable performance across various flow rates, making this filter ideal for demanding motorsport environments.

• 3-piece anodized aluminum body for maximum corrosion resistance
• -10AN ORB threaded end caps for high-volume fuel systems

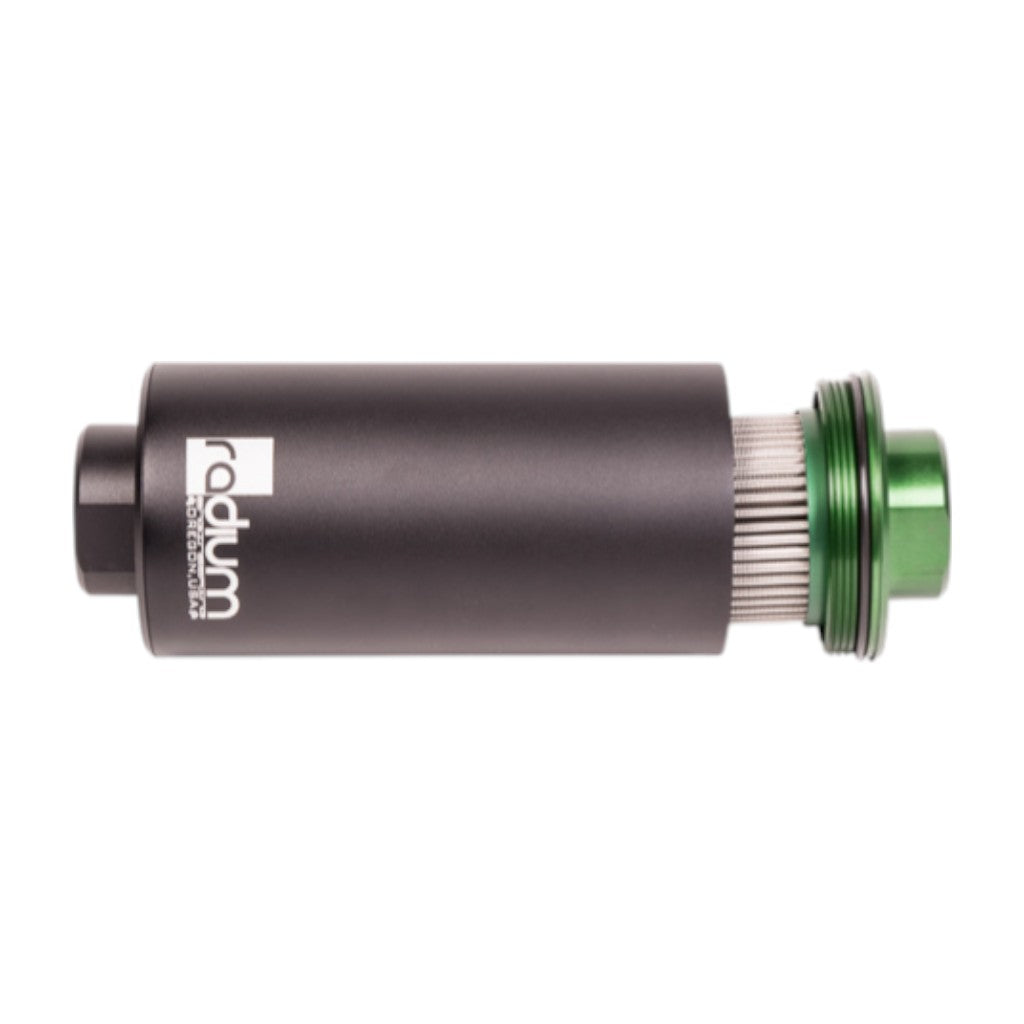

• 10-micron stainless steel filter element for fine filtration
• Compatible with all fuel types including E85, methanol, and diesel
• Low pressure drop at high flow rates (<150 psi)
• Long-lasting filter media with large contaminant holding capacity

Specifications:

• Housing Material: CNC-machined 6061 aluminum, Type-II anodized
• Filter Element: 10-micron stainless steel
• Port Size: -10AN ORB (O-ring Boss)
• Element Dimensions: 4.2 in × 1.75 in
• Seal Material: FKM O-rings
• Operating Pressure: Up to 150 psi
• Fuel Compatibility: Gasoline, diesel, methanol, ethanol, E85, alcohol blends
