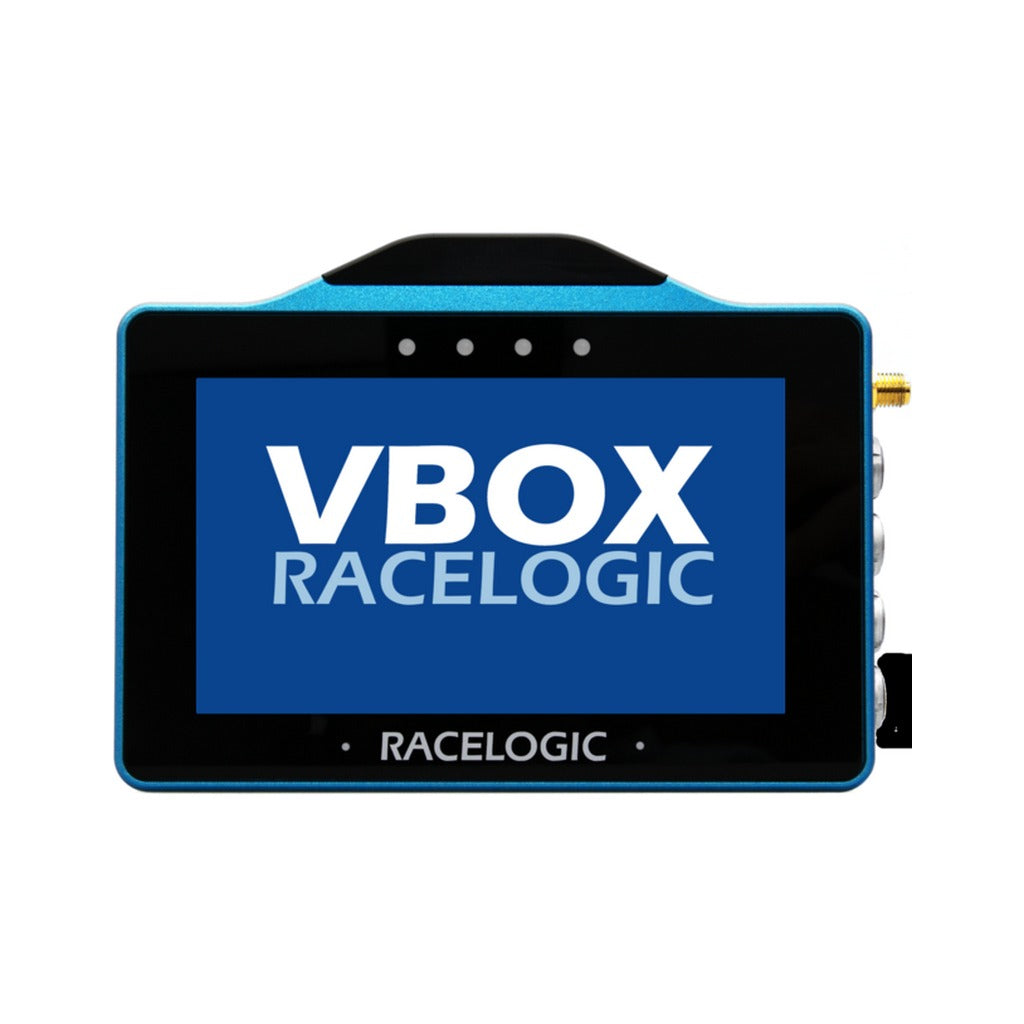

RACELOGIC RLVBTOUCH-V2 Data Logger VBOX Touch 25 Hz

The VBOX Touch features a 25 Hz GNSS receiver, responsive colour touchscreen and the ability to run multiple applications on the same hardware. Built on a platform that allows functionality to be expanded through future software and firmware upgrades, the VBOX Touch is an extremely versatile data logger.

Applications are written in Python script enabling users to create their own, including custom CAN Based applications to solve specific testing needs. New applications can be loaded by inserting an SD card containing the new script and it is just as quick to revert to the standard functionality of the VBOX Touch, by inserting the SD card containing the original data. Other features include the ability to connect to a vehicle’s CAN Bus, capture screenshots and see live test results.

Features

• 4.3\" TFT daylight readable capacitive touch screen
• 4 x high brightness LED indicators
• Wi-Fi connectivity
• 25 Hz GNSS receiver with internal patch antenna
• Python-based applications; ideal for solving userspecific testing needs
• Log up to 64 CAN channels across two CAN Bus interfaces
• Removable protective rubber cover included
• SMA connector for external GNSS antenna (overrides the internal antenna when connected)

Package Contents

• VBOX Touch Unit including Rubber Cover
• Cigar Plug Power Supply Cable (2 m)
• 8 GB SD Ultima Pro UHS-1 Memory Card
• GNSS antenna
• Windscreen Suction Mount
• Plastic Carry Case for VBOX Touch
• Calibration Certificate
