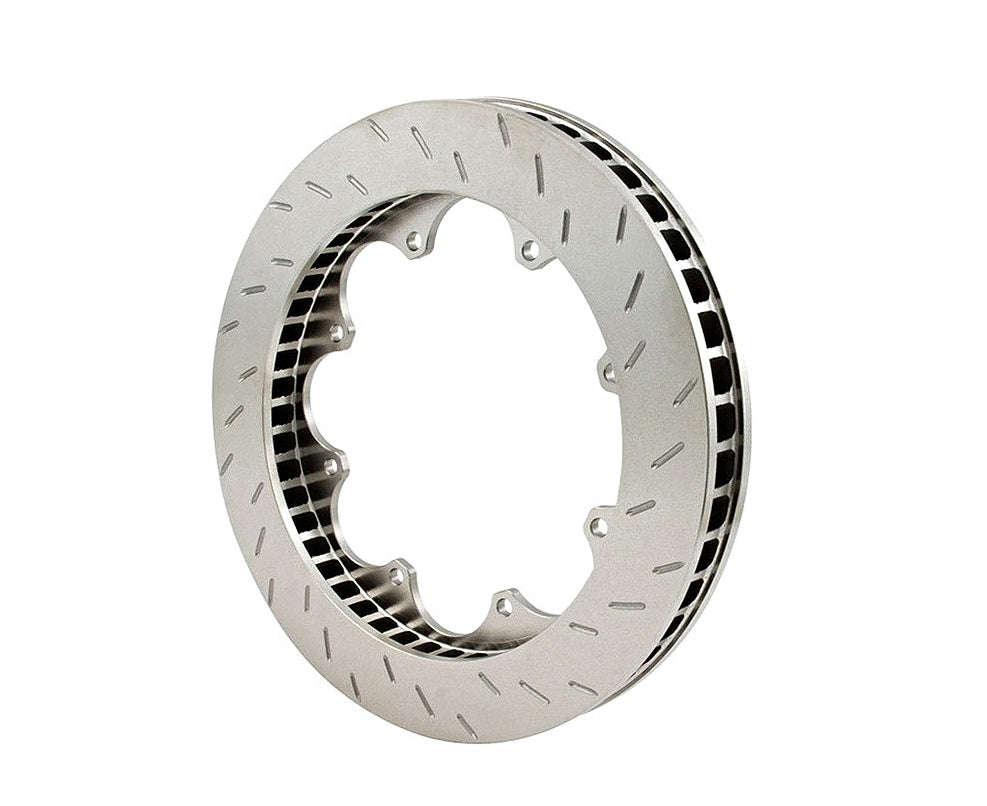

PFC 304.28.0049.01 Replacement Left Brake Rotor 304x28 mm

Description PFC 304.28.0049.01 Replacement Left Brake Rotor 304x28 mm

The PFC replacement brake rotor is a high-performance component engineered for motorsport and demanding track-day applications. Recognized worldwide for exceptional quality, Performance Friction brake discs have been integral to numerous championship victories. This rotor incorporates PFC’s patented two-piece floating Direct Drive design, which allows the disc flange to float within the mounting structure. This configuration enables both radial and axial expansion during extreme thermal loads, preventing distortion and maintaining braking consistency. The result is enhanced pedal feel, reduced vibration, and reliable performance under sustained high-temperature operation.

• Two-piece floating Direct Drive assembly for superior thermal expansion control
• Patented design developed through extensive racing research and testing
• Minimizes brake pulsation and vibration during aggressive use
• Proven in professional motorsport with multiple championship applications

Specifications:

• Disc Diameter: 304 mm
• Disc Thickness: 28 mm
• Weight: 6.39 kg
• Radial Depth: 51.3 mm
• Mounting Type: 12
• Eye Diameter: 201.4 mm
• Bolt Circle Diameter (PCD): 177.8 mm
• Flange Step: 0.25 mm
• Flange Thickness: 5.5 mm
• Position: Left
• Popular Applications: AP replacement, Escort tarmac rally.
• Use AP fitting kit if necessary.
