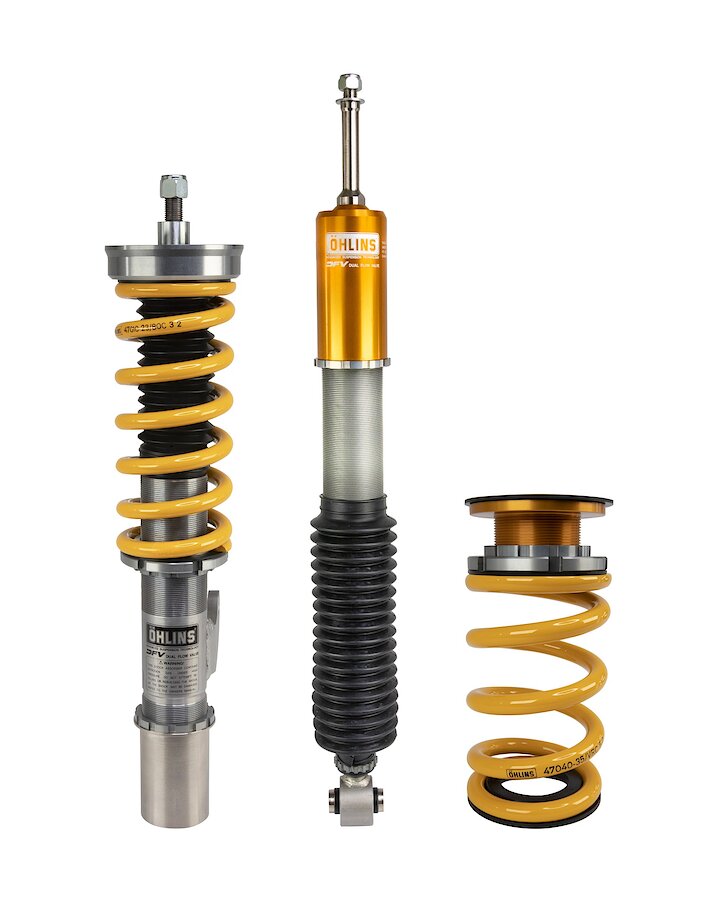

OHLINS MES MV10S1 Road & Track (DFV) Damper kit for MERCEDES-BENZ A45 AMG W177, set with springs

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

• Patented DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty
• Approx. 10 kgs less weight compared to standard suspension

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate length adjustment
• Approx. 20 mm lower than standard with recommended setup
• Spring rate 80 N/mm
• Use with original top mounts

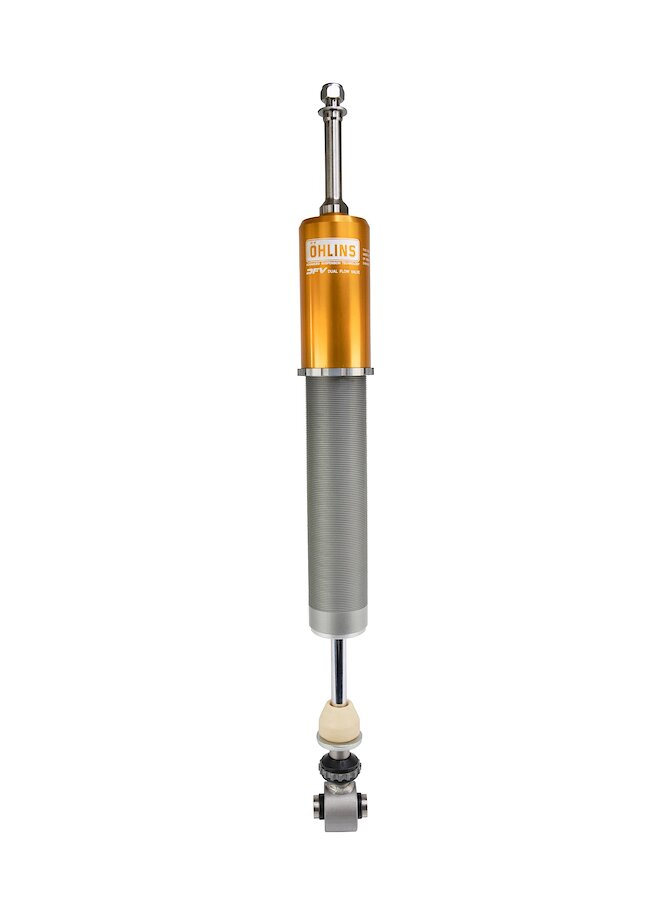

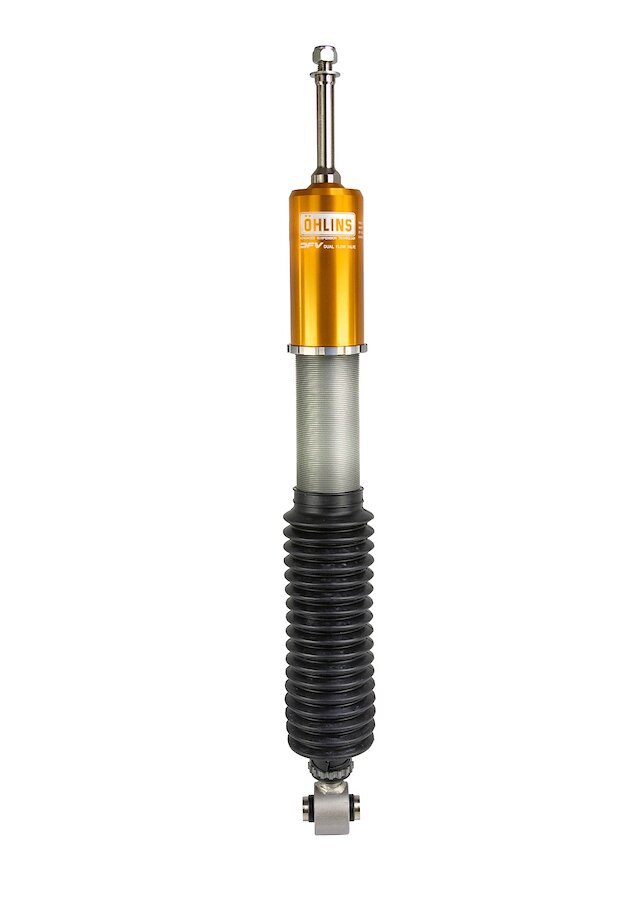

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate length adjustment
• Approx. 15 mm lower than standard with recommended setup
• Spring rate 110 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

EDC Cancellation Kit:

• 35020-35: A45 AMG (W177)

Cancellation kits are not included and need to be ordered separately.

Fits the following vehicles

• AMG A35 (W177), year 2018

• Mercedes-Benz A35 AMG (W177), year 2018

• AMG A45 (W177), year 2019

• Mercedes-Benz A45 AMG (W177), year 2019

Owners Manual Öhlins Automotive Road Track (English) (2.333,41 KB)

Mounting Instruction Öhlins Automotive MES MV10S1 (English) (2.464,41 KB)
