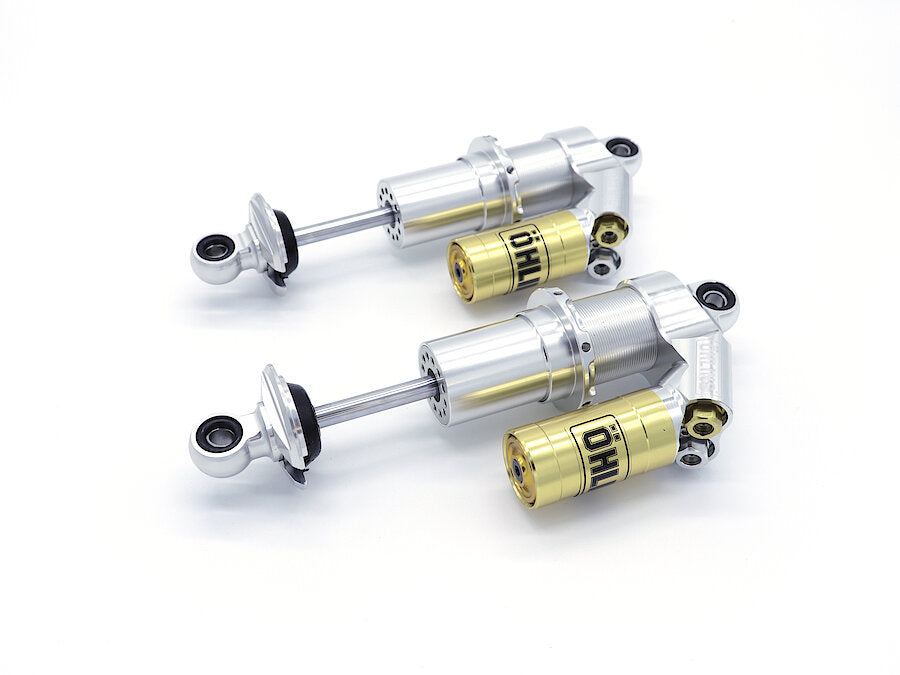

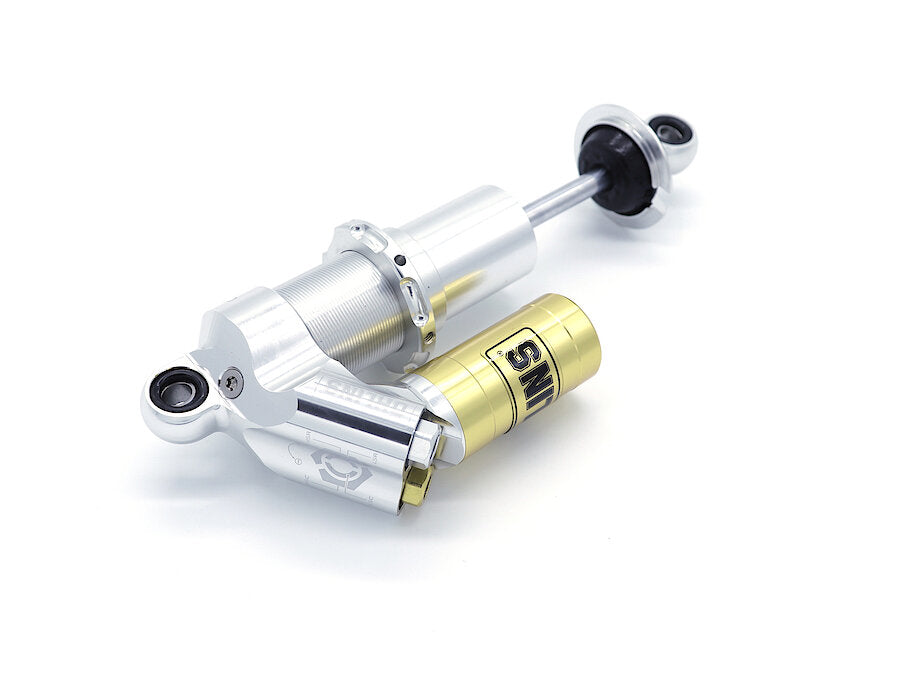

OHLINS GTTX25 FORMULA STUDENT Damper TTX 25 MkII 200/57
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
OHLINS GTTX25 FORMULA STUDENT Damper TTX 25 MkII 200/57
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
Öhlins understands the importance of relationships from beginning to end, from racers in training to experienced veterans. It’s for this reason that we developed the TTX 25 MkII FSAE - a shock absorber specifically for Formula SAE/Formula student racing.
The TTX 25 MkII FSAE uses our well-proven twin tube technology, in a small package. The 4-way externally adjustable damper is completely serviceable and offers the possibility for setting changes. With a wide range of springs together with dynamometer plots, CAD models, and other technical information, the TTX25 FSAE provides the perfect package for Formula Student racing teams.
Technical Specifications
- Overall length: 200 mm (center to center of spherical bearings, fully extended)
- Stroke: 57 mm
- Weight: 394 g (without spring)
Spherical Bearing dimensions
- Inner diameter: 8 mm
- Ball width: 8 mm
- Outer diameter: 15 mm
Available Spring Rates
- 150 lb/in
- 175 lb/in
- 200 lb/in
- 225 lb/in
- 250 lb/in
- 300 lb/in
- 350 lb/in
- 400 lb/in
- 450 lb/in
- 500 lb/in
- 550 lb/in
- 600 lb/in
- 650 lb/in
