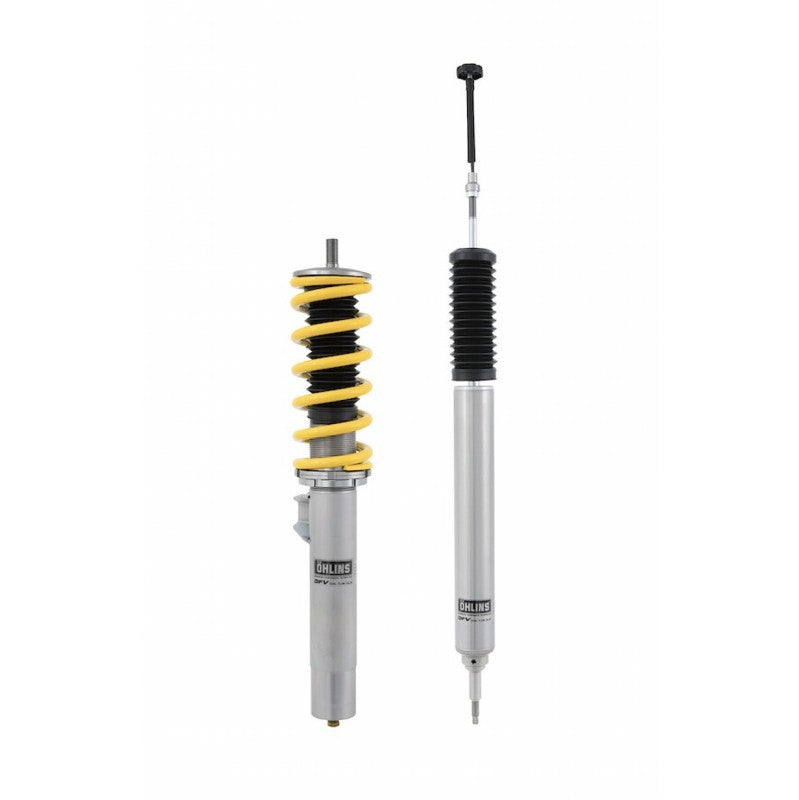

OHLINS BMS MI01S1 Coilover Kit ROAD & TRACK for BMW 1-series E81/E82/E87/E88, 3-series E90/E91/E92/E93 2004-2013

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

Features Front:

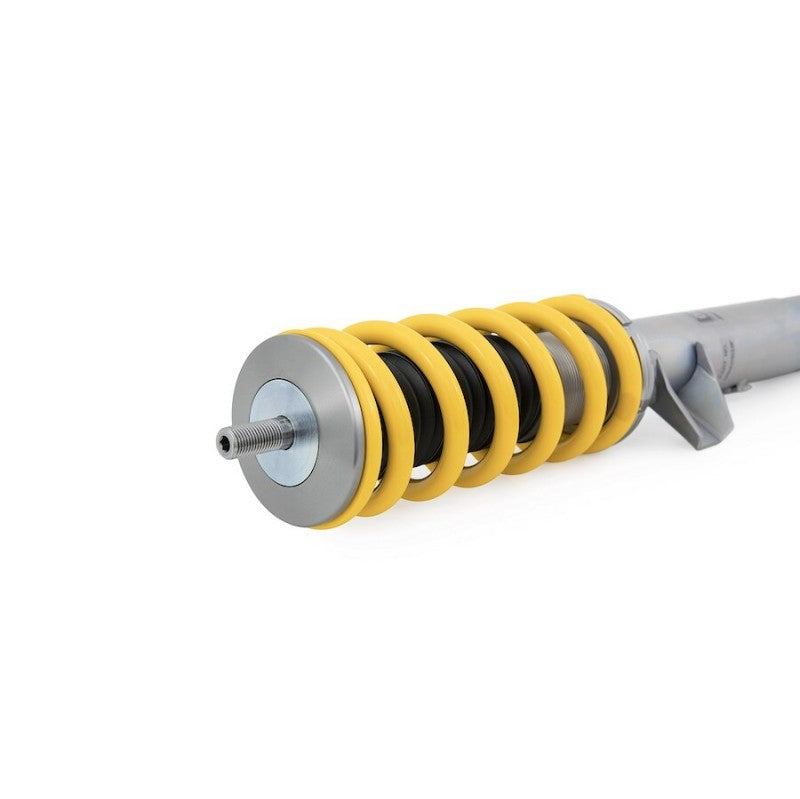

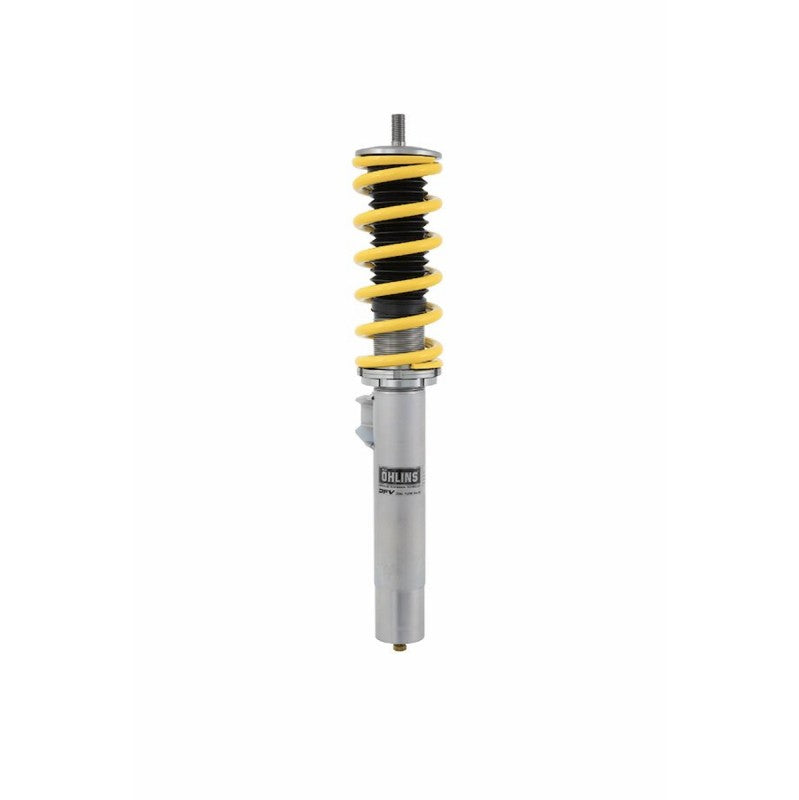

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 5 - 20 mm lower than standard with recommended setup
• Spring rate 70 N/mm
• Use with original top mounts

Features Rear:

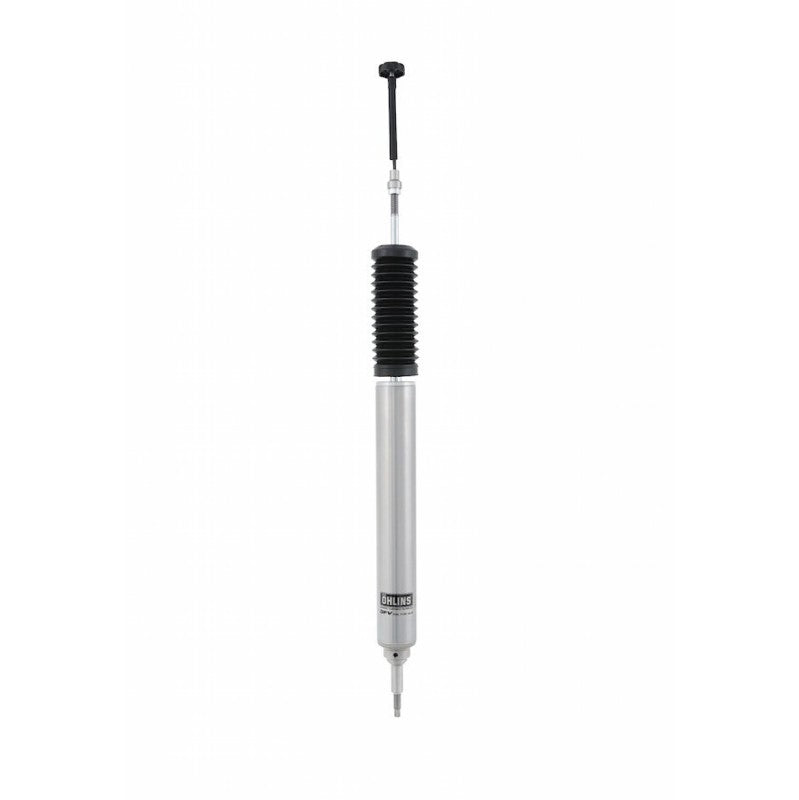

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 10 - 40 mm lower than standard with recommended setup
• Spring rate 120 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coilover kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set
