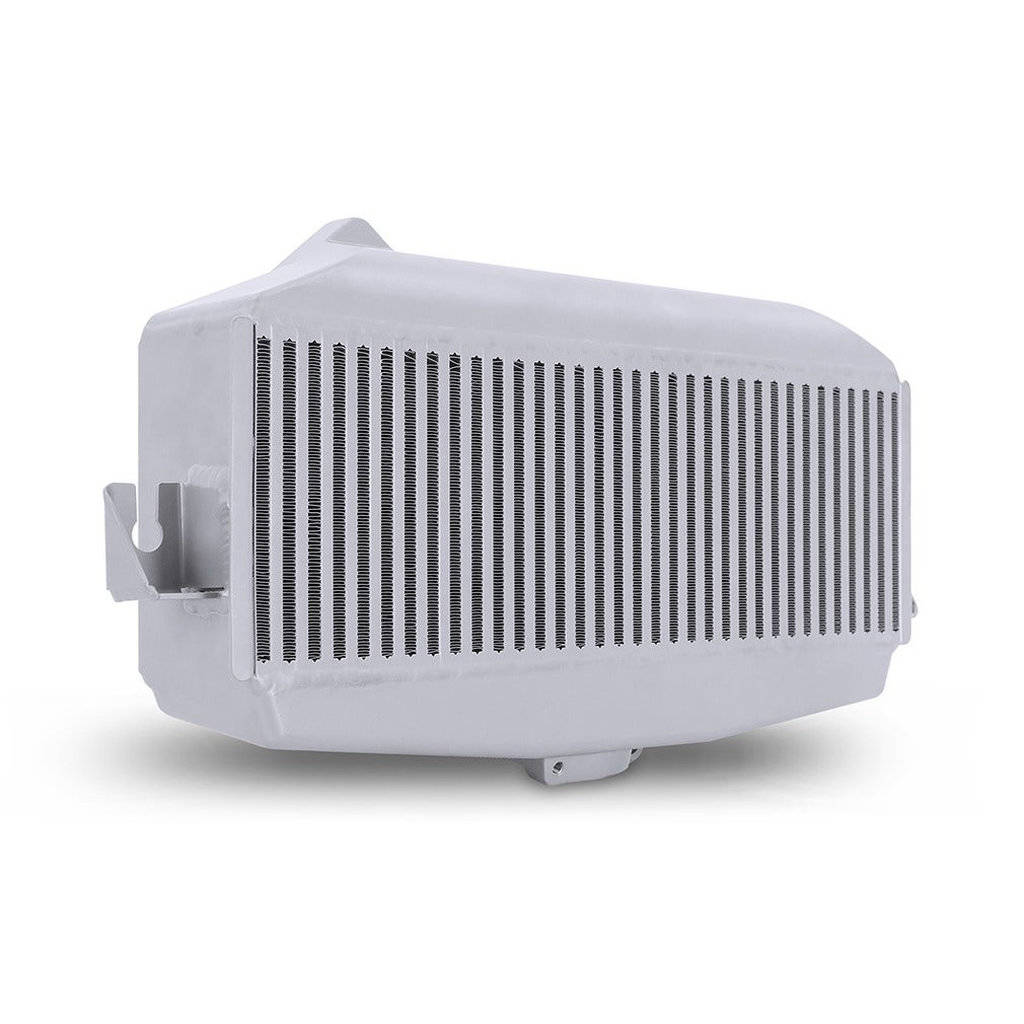

MISHIMOTO MMTMIC-WRX-22SL Top-Mount Intercooler, Silver for SUBARU WRX 2022

Description MISHIMOTO MMTMIC-WRX-22SL Top-Mount Intercooler, Silver for SUBARU WRX 2022

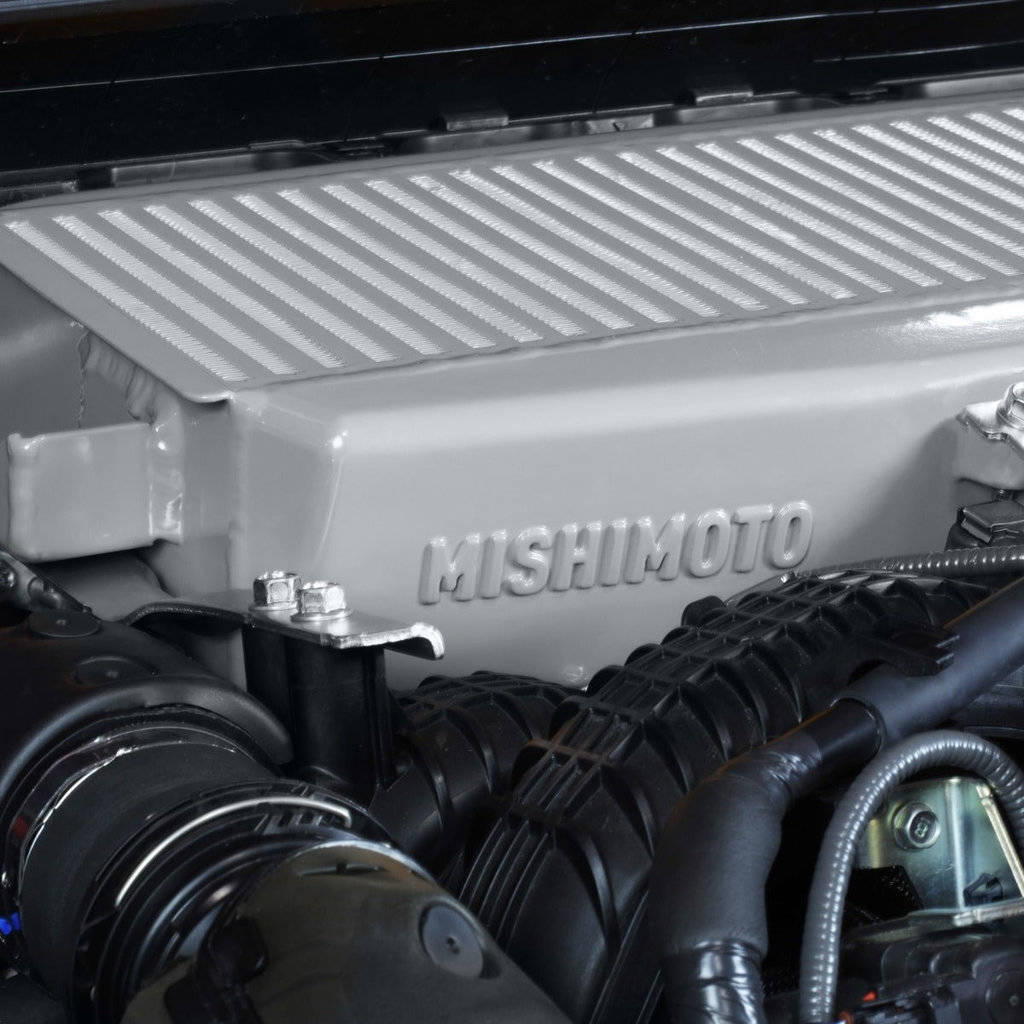

The Mishimoto performance top-mount intercooler is designed to enhance the capabilities of the 2022+ Subaru WRX. This intercooler allows the FA24 engine to benefit from increased airflow and improved cooling efficiency.

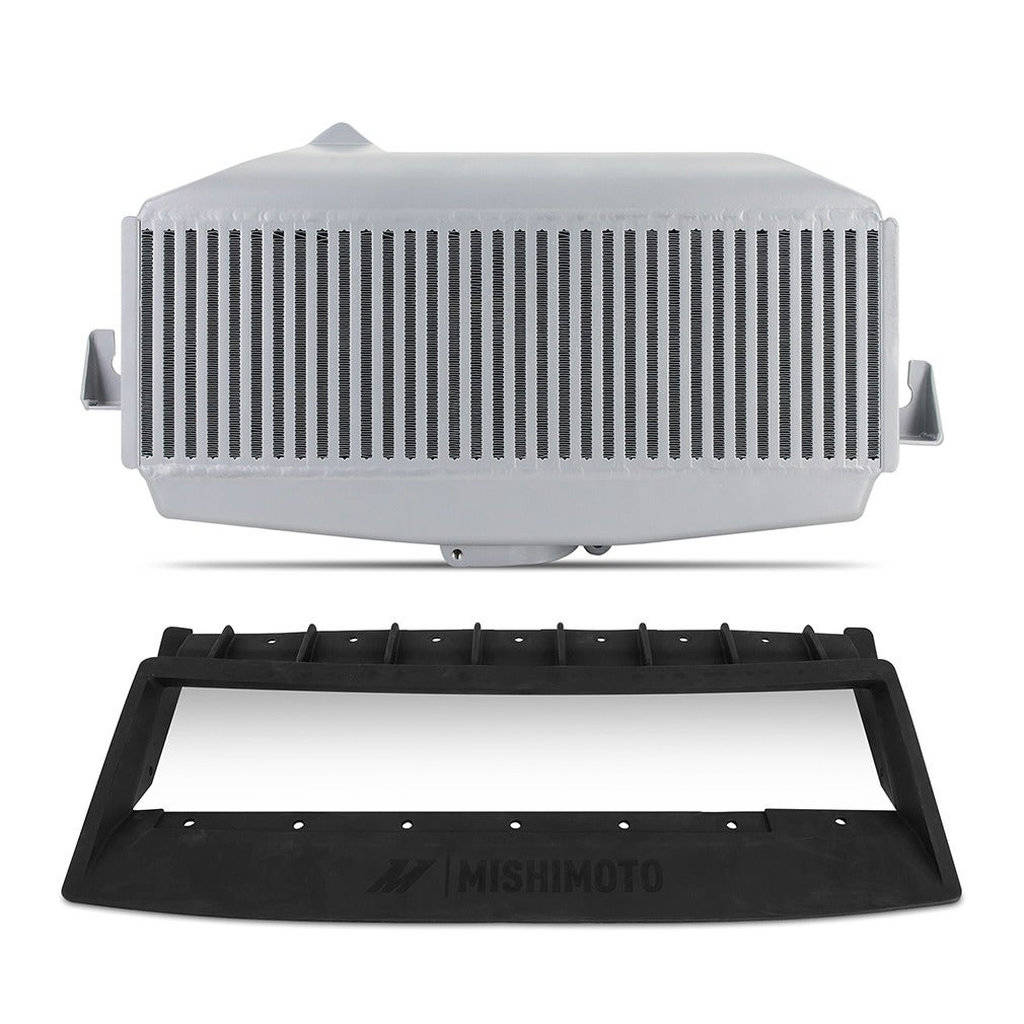

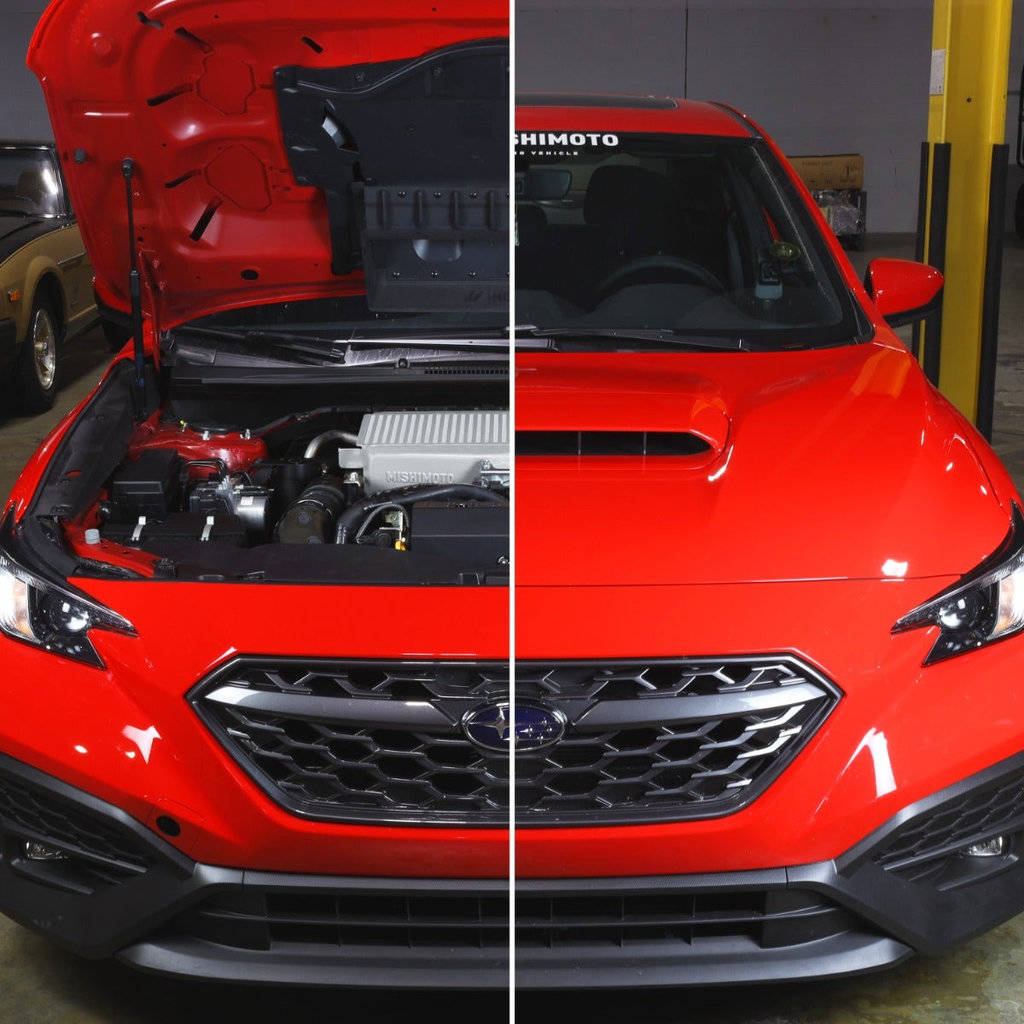

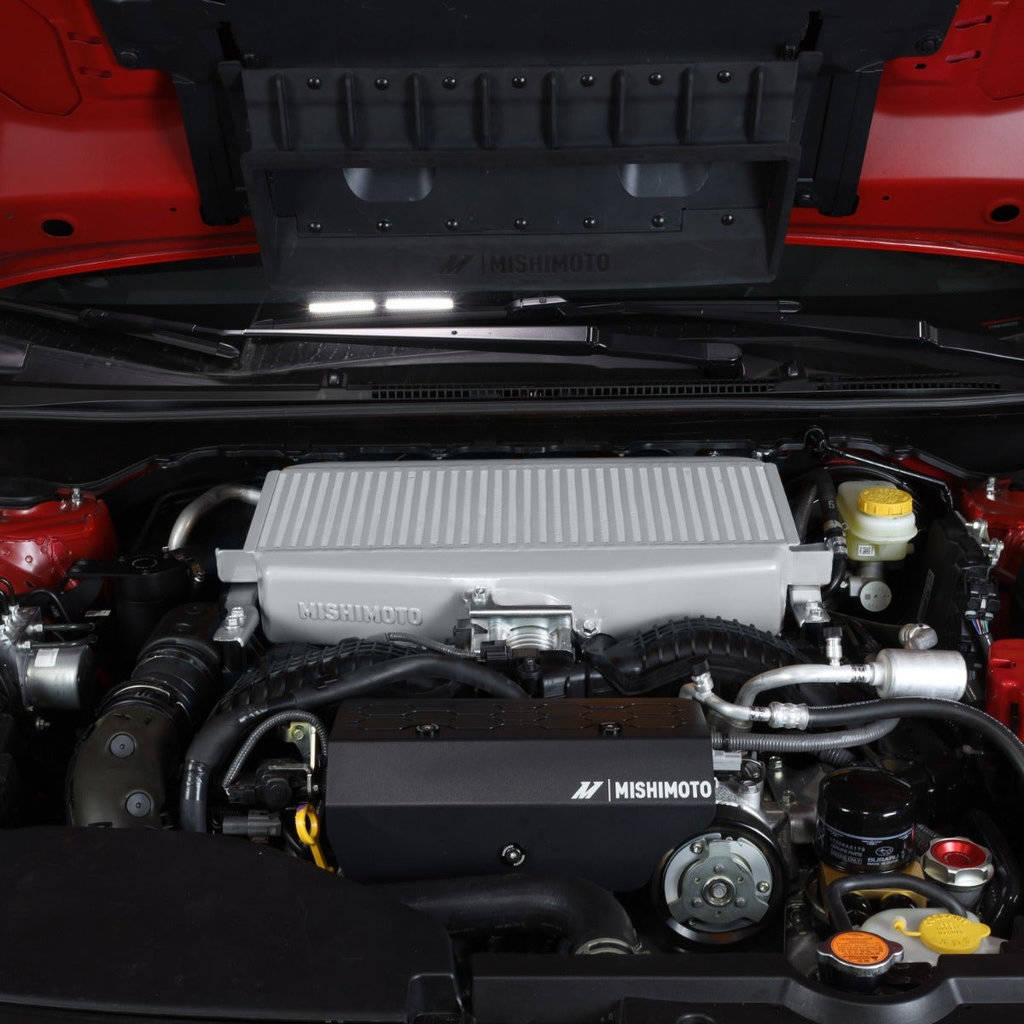

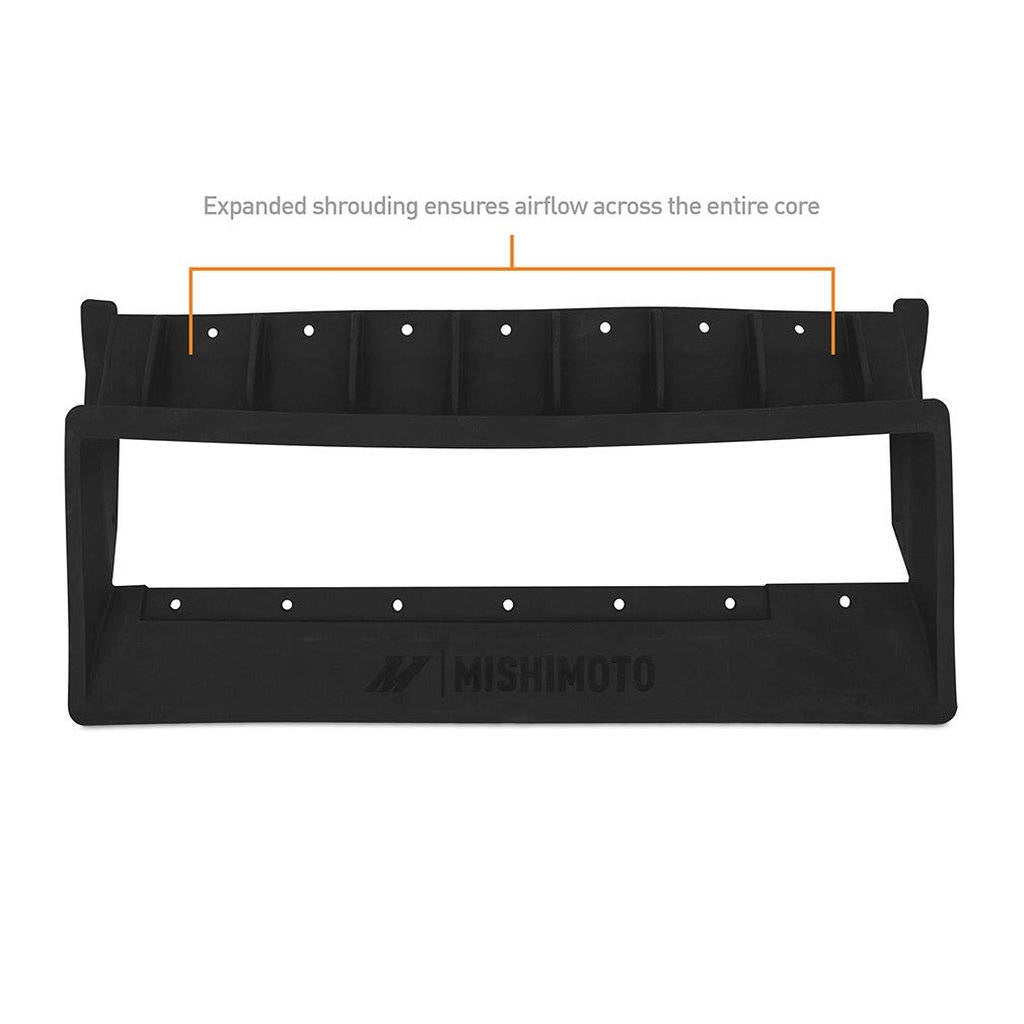

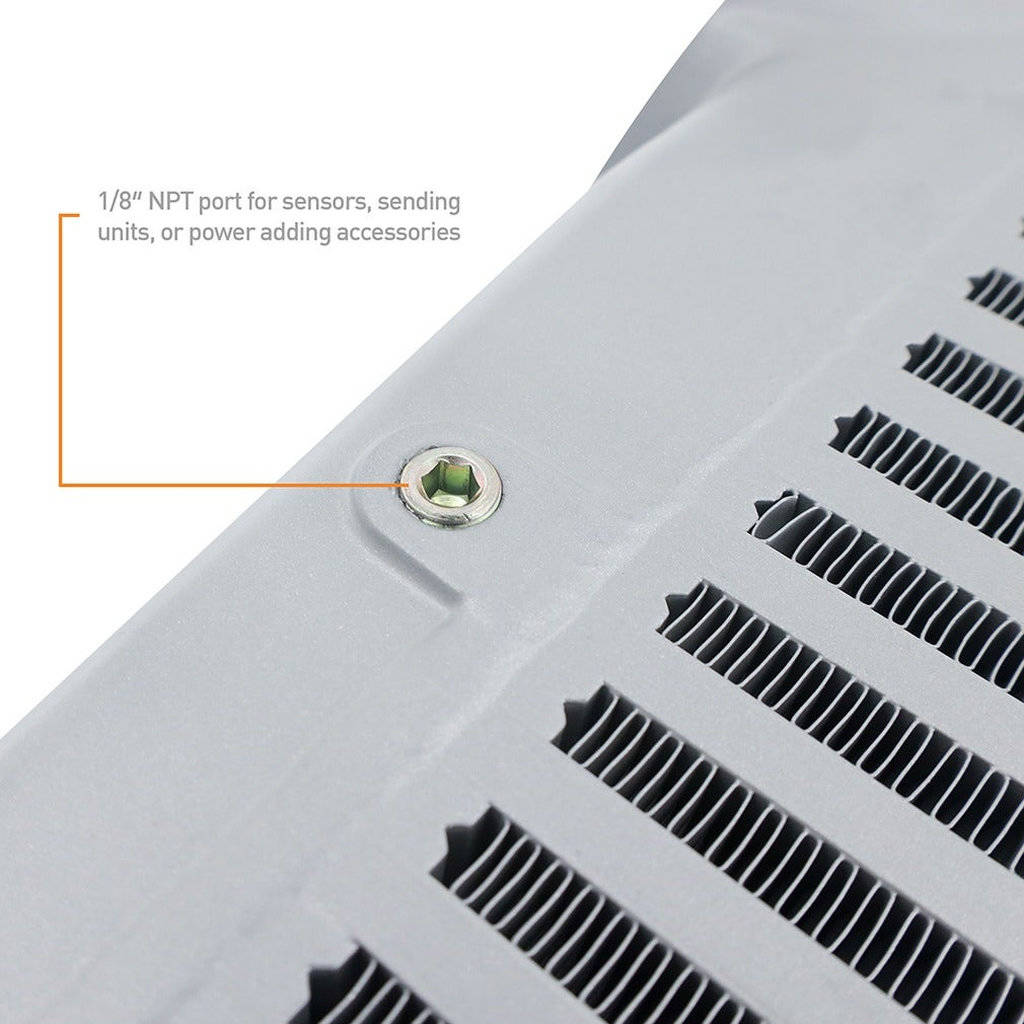

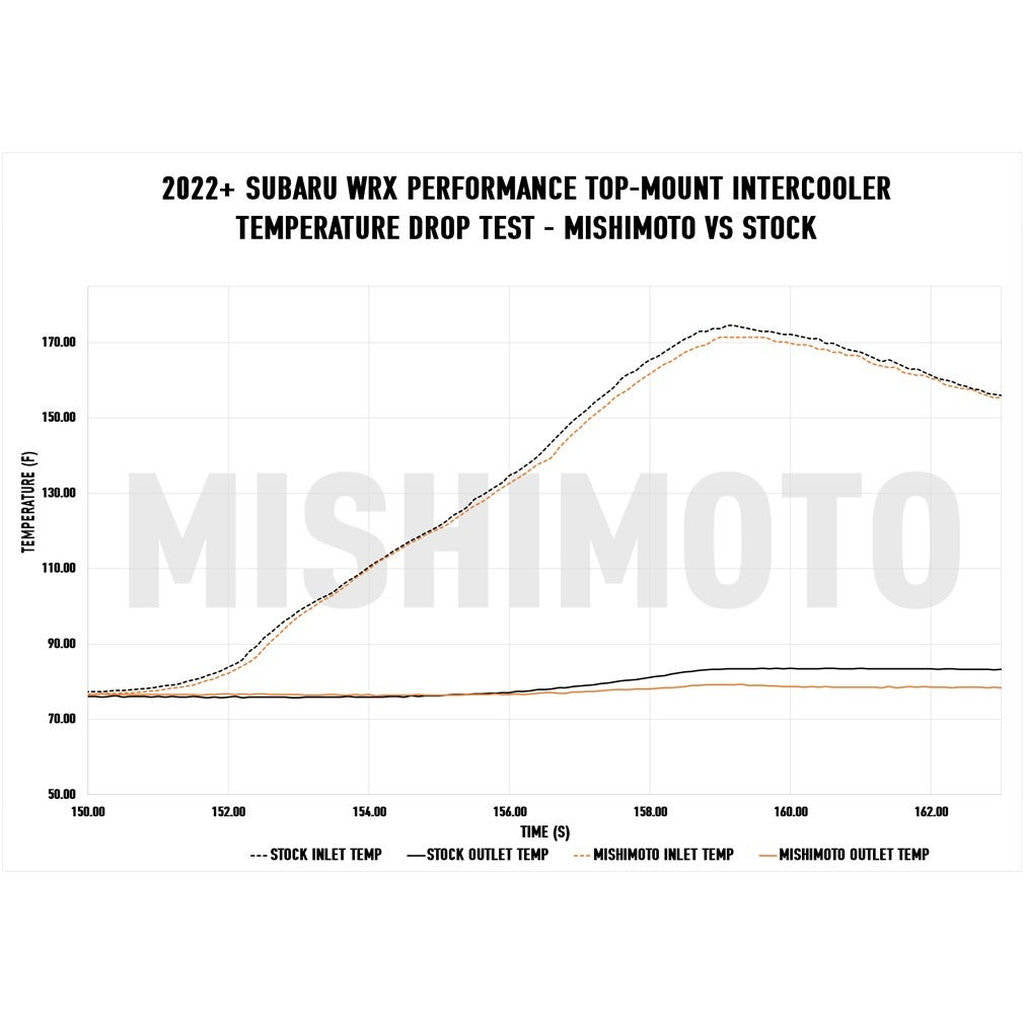

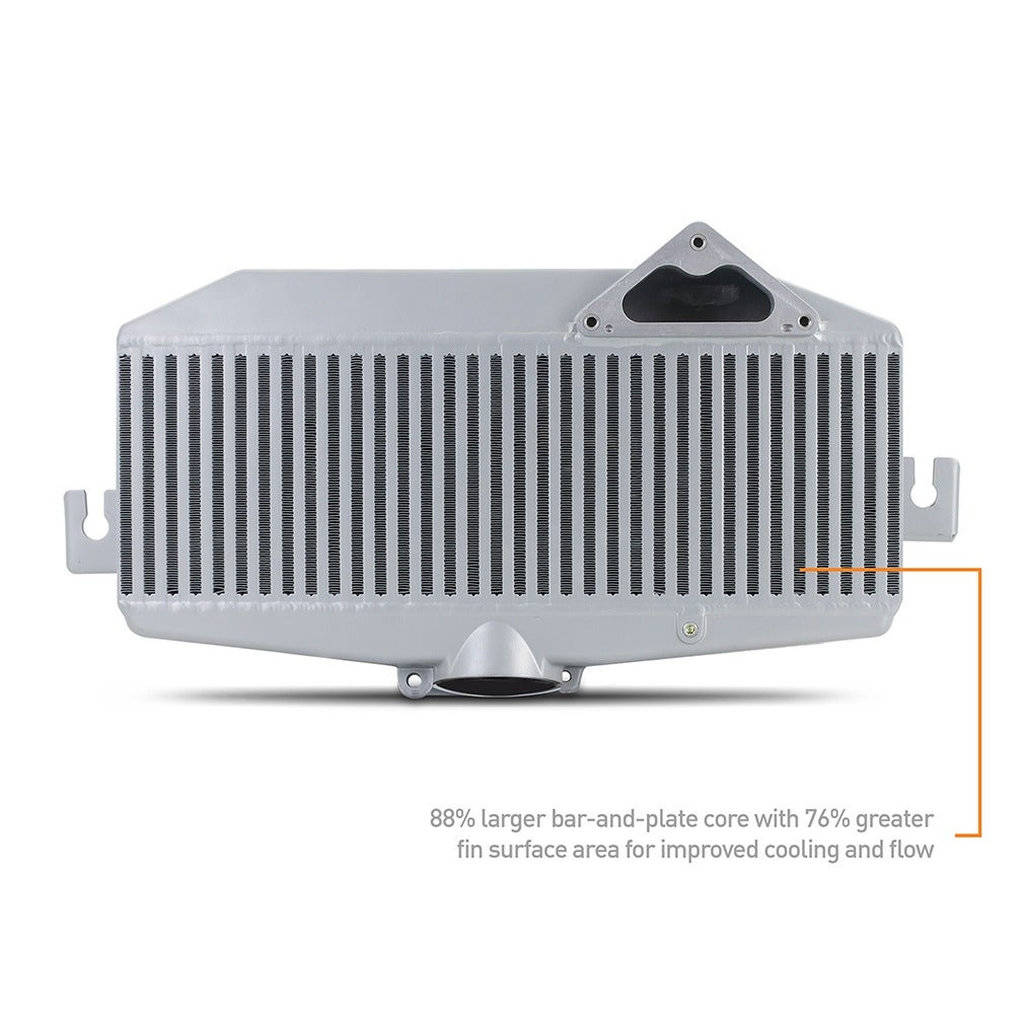

The kit features a significantly upgraded top-mount intercooler and shroud, replacing the stock plastic end tank intercooler with cast-aluminum end tanks and a high-flow core that is 88 percent larger than the original. The larger core volume provides over 40 percent better flow than stock, reducing strain on the turbo and increasing cold air delivery to the engine. The core also features 76 percent more fin surface area, improving heat transfer and maintaining outlet temperatures within 10 degrees of ambient. The shroud is scaled up to expose the entire core to fresh air from the WRX's hood scoop. A pre-drilled, tapped, and plugged 1/8-NPT port is included for easy addition of temperature or boost pressure sensors.

Installation Notes: Upon removal of factory intercooler, inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped.

• Cast-aluminum end tanks and high-flow core
• Core is 88 percent larger than stock

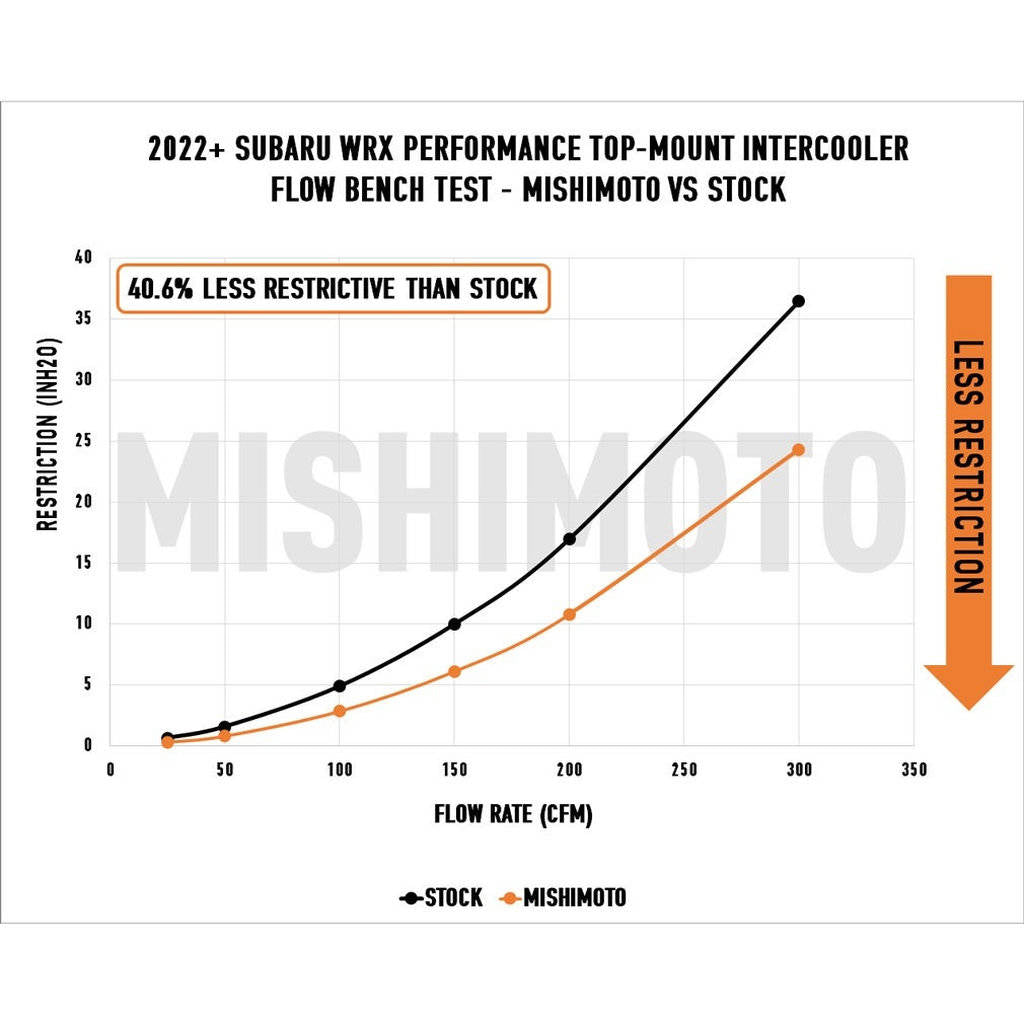

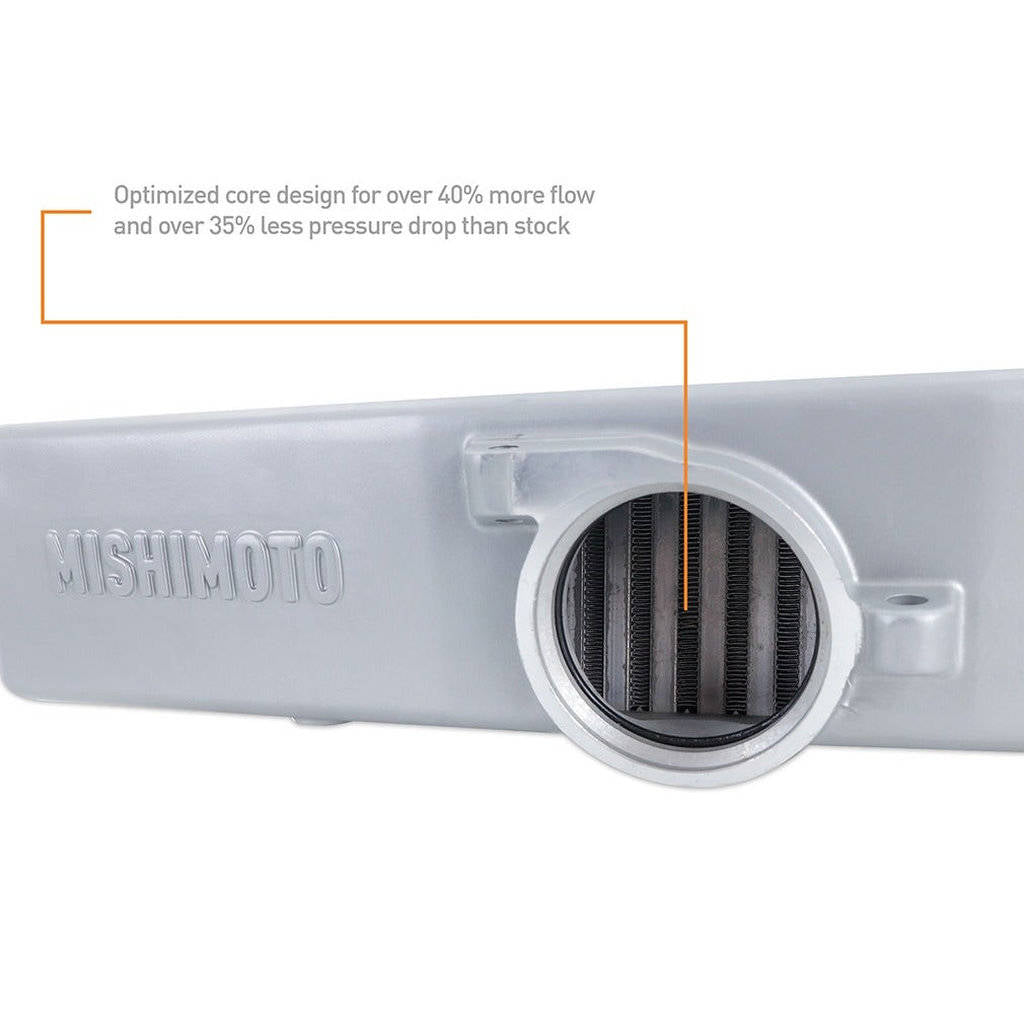

• Over 40 percent better flow compared to stock intercooler
• 76 percent more fin surface area for improved heat transfer

Specifications:

• Engine Codes: FA24DIT
• Chassis Codes: VB
• Maximum Recommended Boost Pressure (PSI): 100
• Maximum Recommended Horsepower: 600
• Overall Length (in): 24.51
• Overall Height (in): 12.96
• Overall Width (in): 4.38
• Core Type: Bar-and-Plate
• Core Thickness (in): 4
• Core Length (in): 20.5
• Core Height (in): 7

Kit comes with::

• Mishimoto Performance Intercooler
• Mishimoto Intercooler Shroud

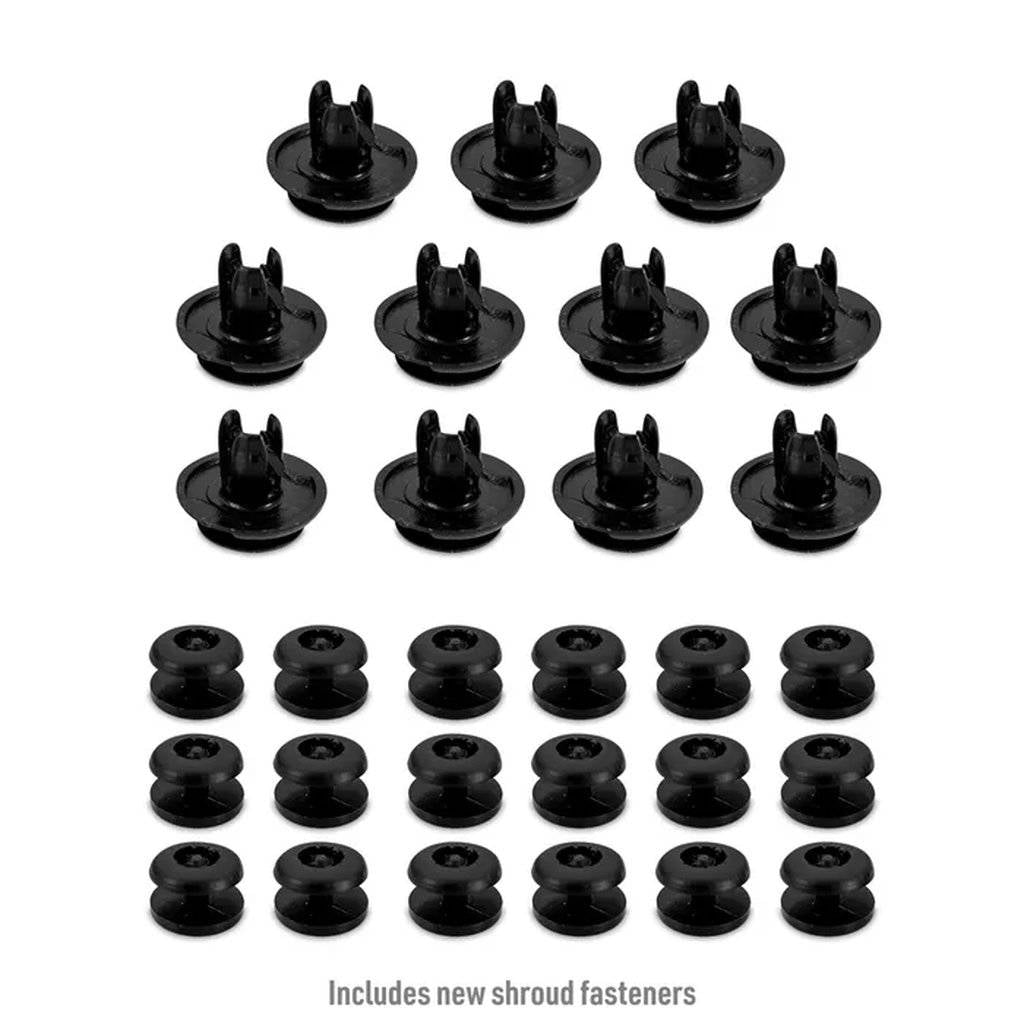

• 36 Shroud Plastic Rivets
• 11 Shroud Mount Panel Clips
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2022+ Subaru WRX H4 2.4L Turbo (FA24DIT, Chassis Code: VB)
