MISHIMOTO MMTMIC-WRX-22KSLRD Top Mount Intercooler Kit, Silver Core, Red Pipes for SUBARU WRX 2022

Description MISHIMOTO MMTMIC-WRX-22KSLRD Top Mount Intercooler Kit, Silver Core, Red Pipes for SUBARU WRX 2022

The Subaru WRX is designed for spirited driving, and its performance potential can be further enhanced with select upgrades. The Mishimoto performance top-mount intercooler kit is engineered to elevate the capabilities of the 2022+ WRX.

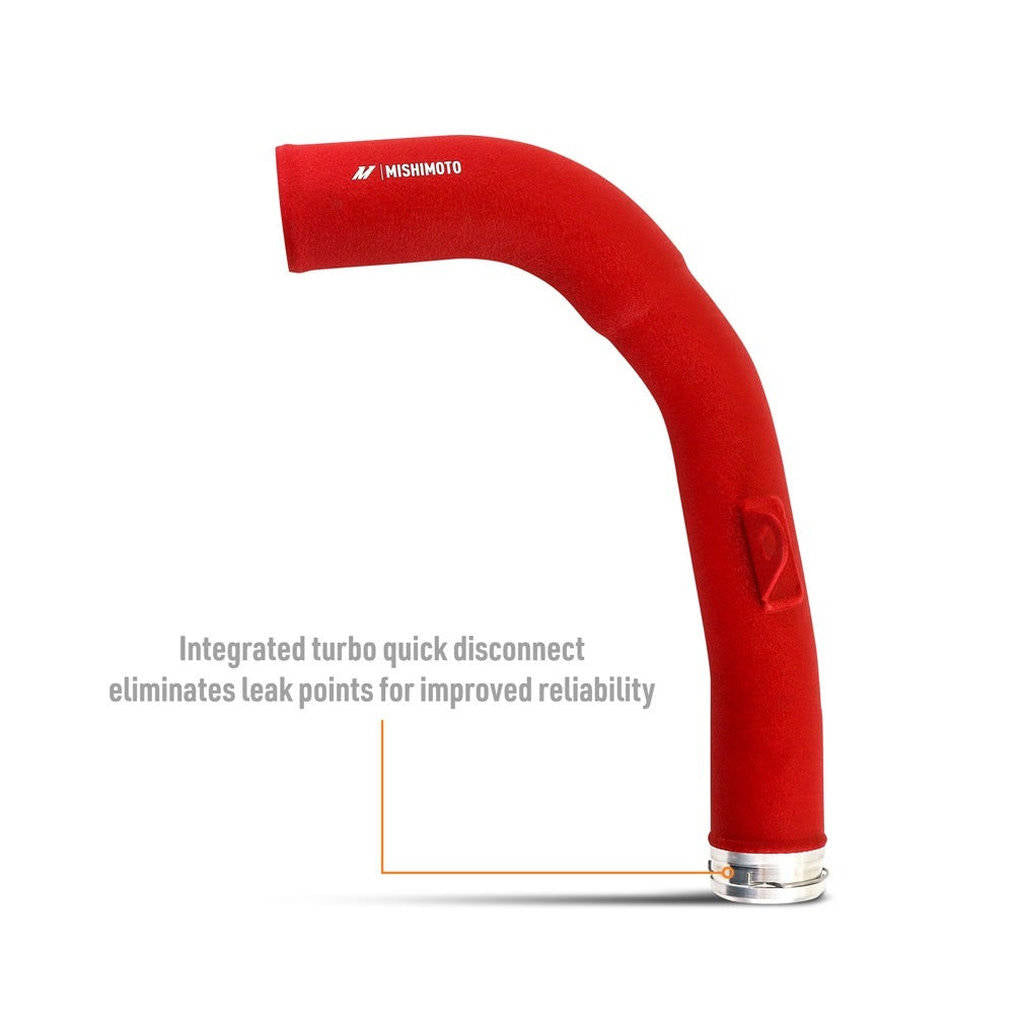

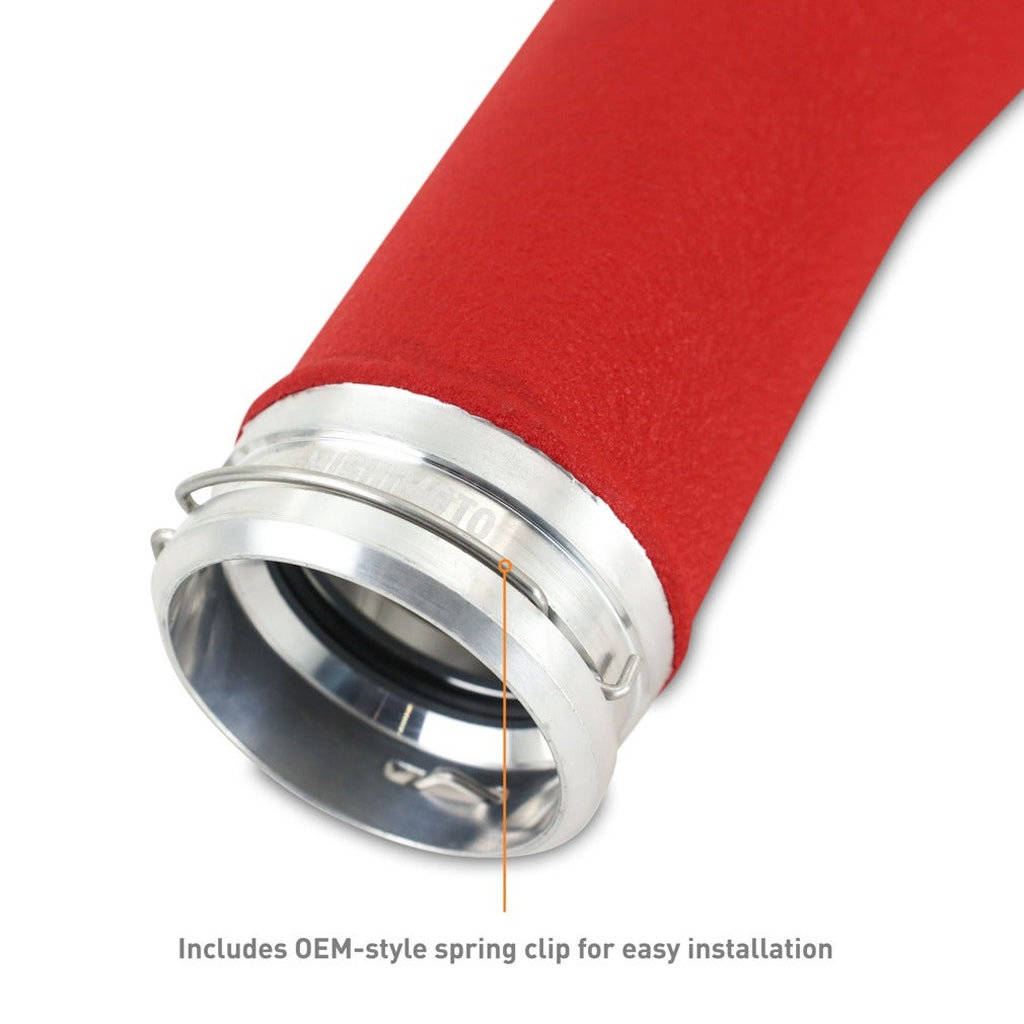

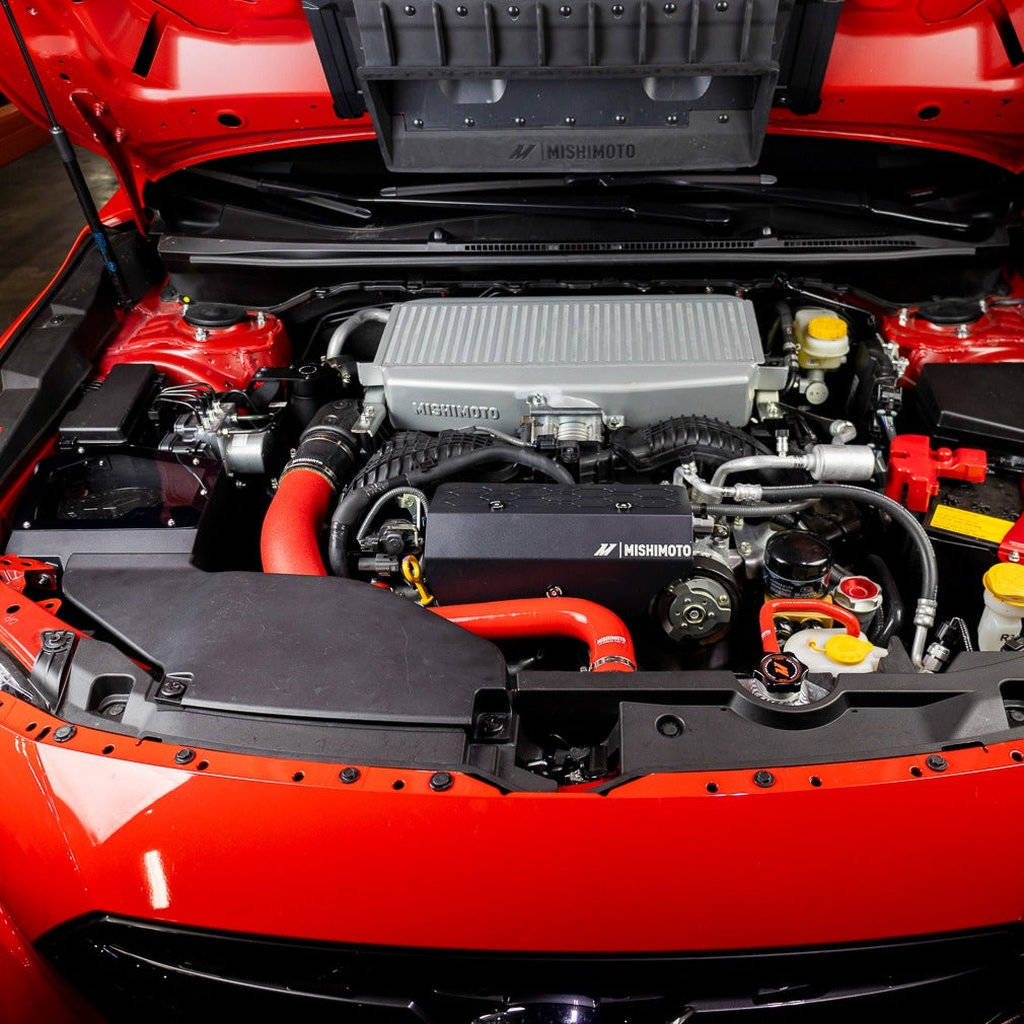

This kit replaces the stock plastic charge pipe with mandrel-bent and CNC-machined aluminum, improving flow by 20 percent over stock. The integrated turbo quick disconnect reduces failure points, and the all-aluminum construction offers greater resistance to high boost pressures. The upgraded top-mount intercooler features cast-aluminum end tanks and a high-flow core that is 88 percent larger than stock, providing over 40 percent better flow and 76 percent more fin surface area for improved heat transfer. The enlarged shroud exposes the entire core to fresh air from the WRX's hood scoop, optimizing cooling performance.

All necessary components for installation are included, with options for black or silver intercoolers and black or red pipes. The kit is covered by the Mishimoto Lifetime Warranty.

Installation Notes: Upon removal of factory intercooler, inspect the OEM inlet gasket and replace with Subaru part number 21896AA150 if any areas appear damaged or warped.

• Mandrel-bent and CNC-machined aluminum charge pipe improves flow by 20 percent over stock

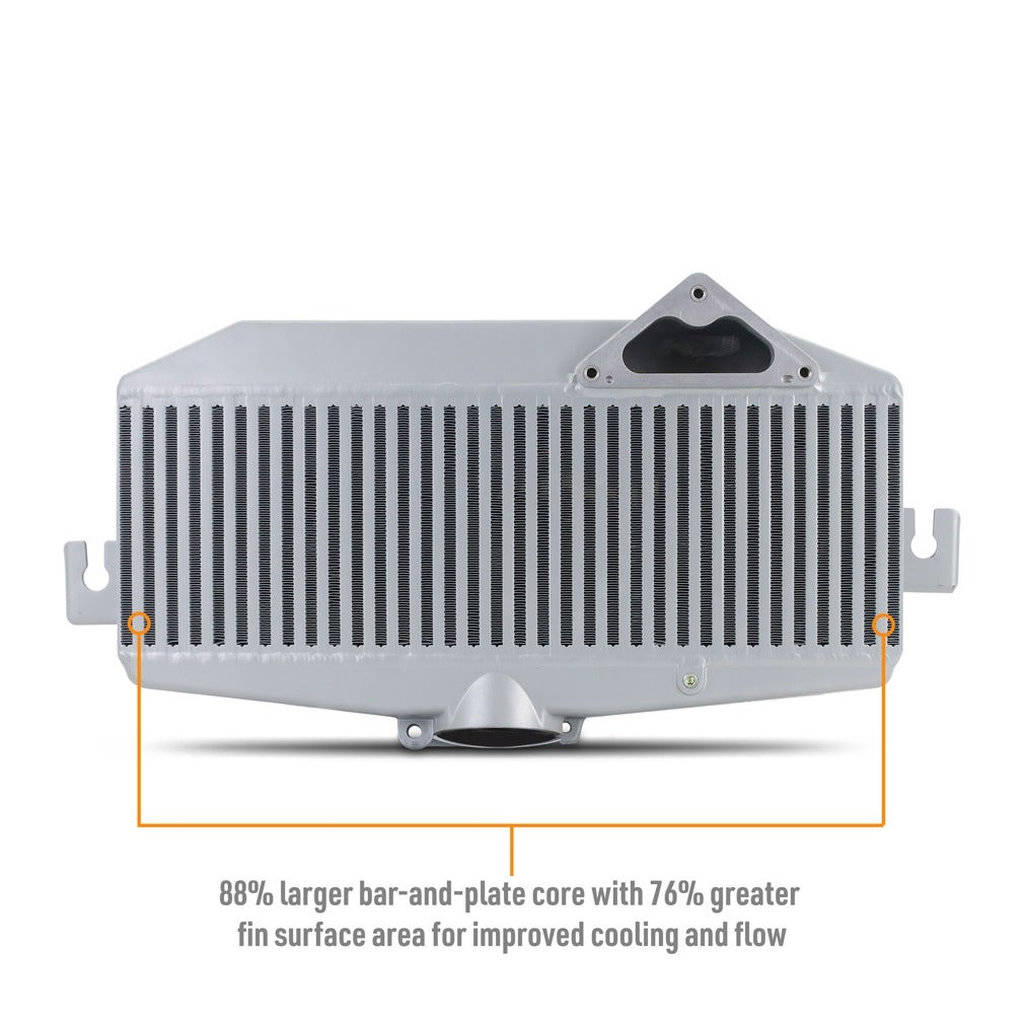

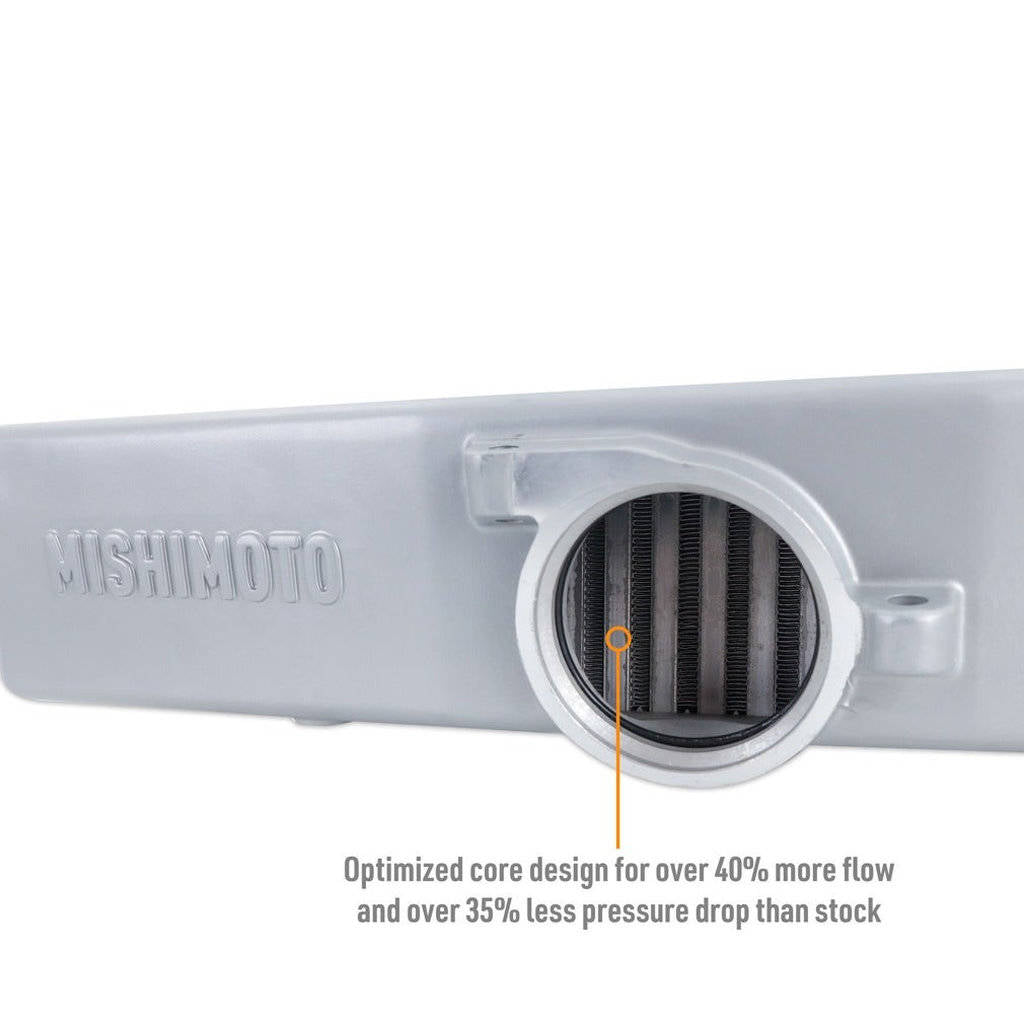

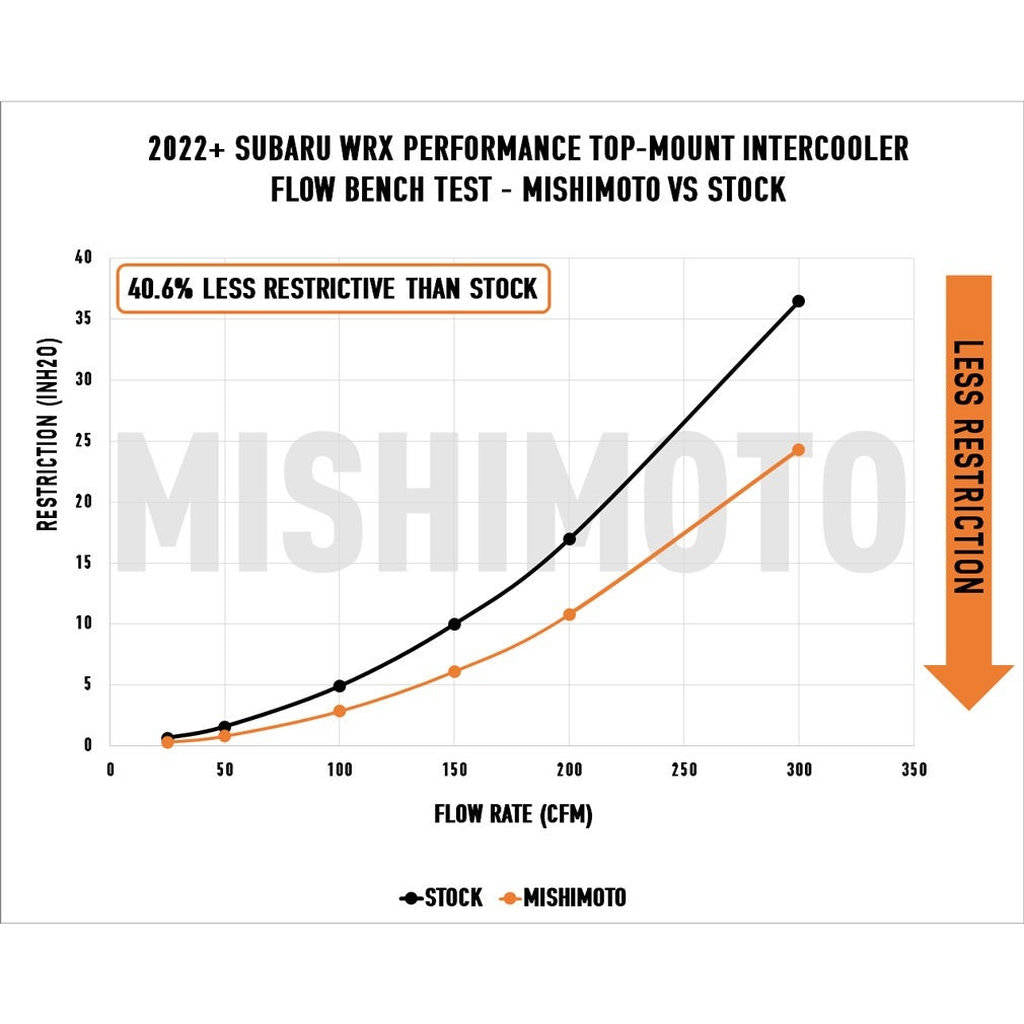

• Intercooler core is 88 percent larger and flows over 40 percent better than stock
• 76 percent more fin surface area for improved heat transfer
• Includes all components needed for installation

Specifications:

• Engine Codes: FA24DIT
• Chassis Codes: VB
• Maximum Recommended Boost Pressure (PSI): 100
• Maximum Recommended Horsepower: 600
• Overall Length (in): 24.51
• Overall Height (in): 12.96
• Overall Width (in): 4.38
• Core Type: Bar-and-Plate
• Core Thickness (in): 4
• Core Length (in): 20.5
• Core Height (in): 7

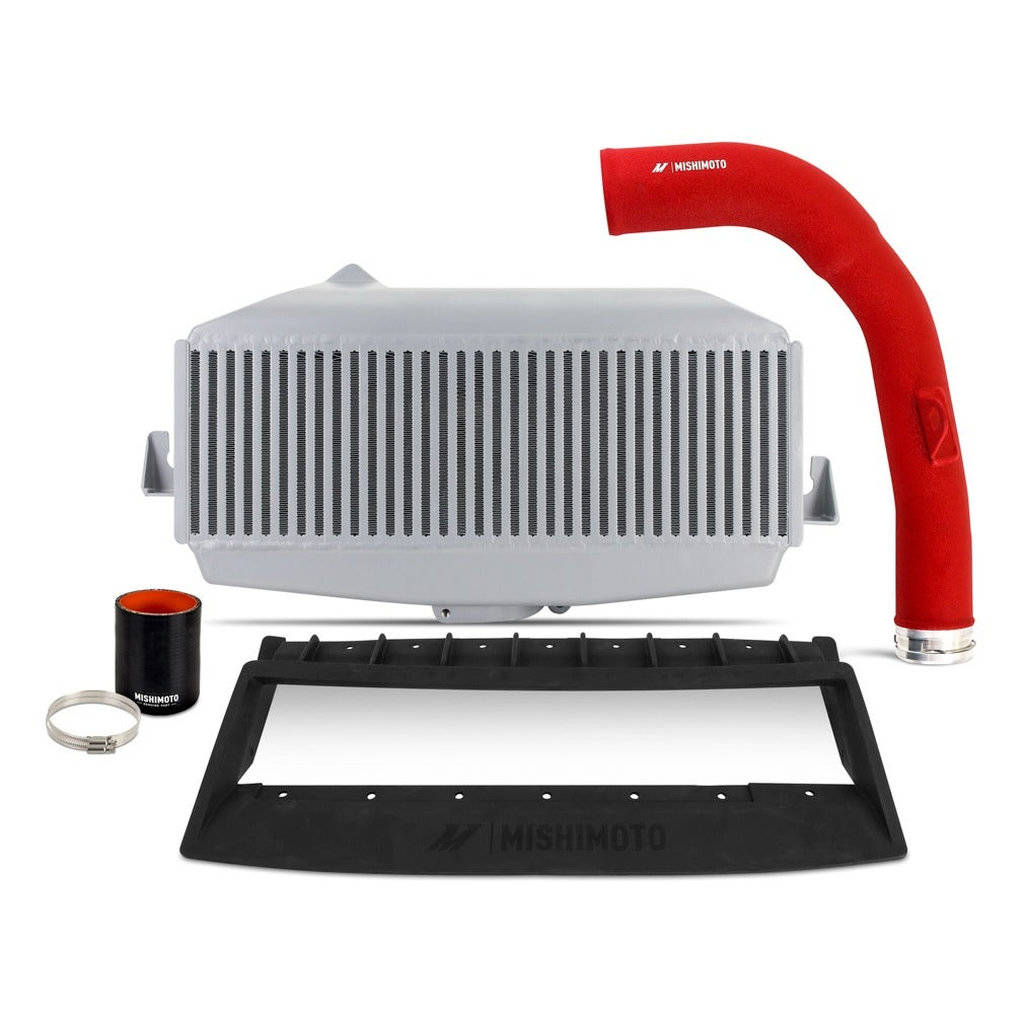

Kit comes with::

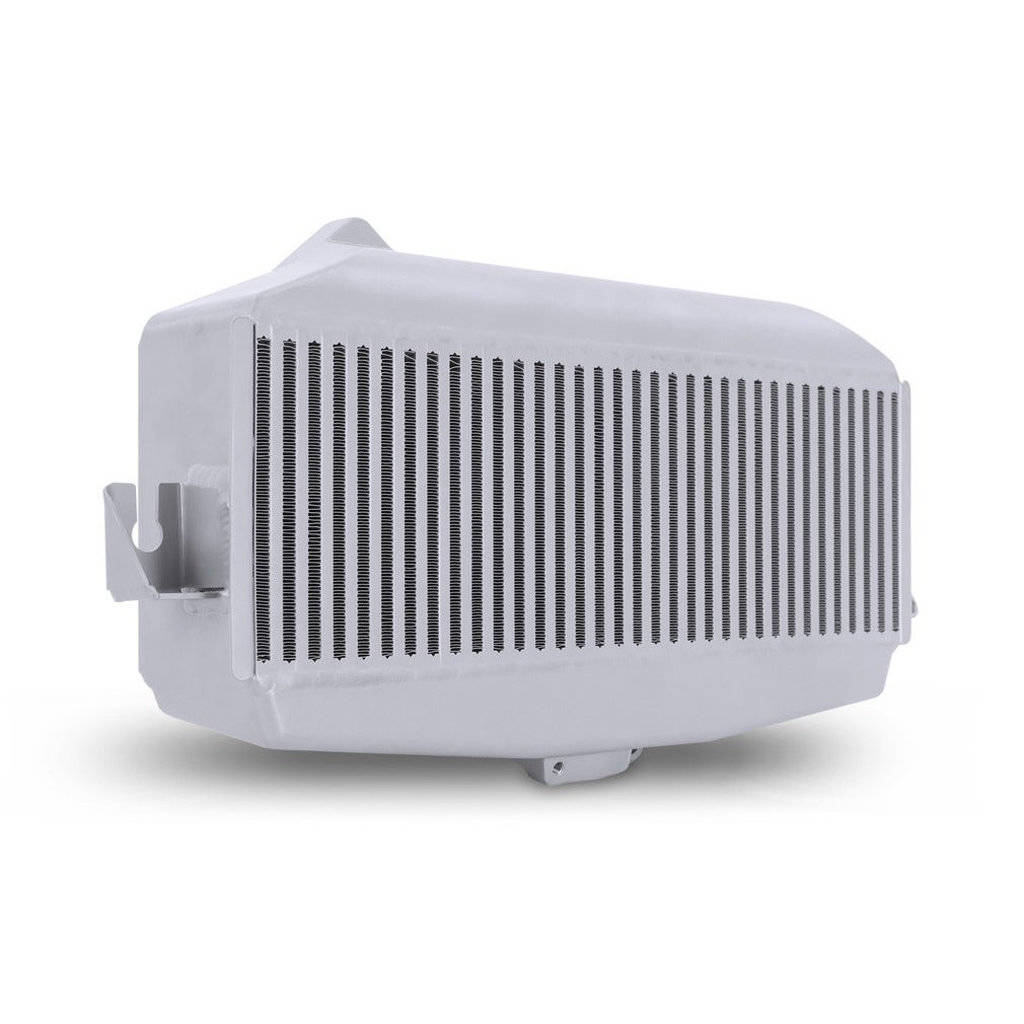

• Mishimoto Performance Intercooler

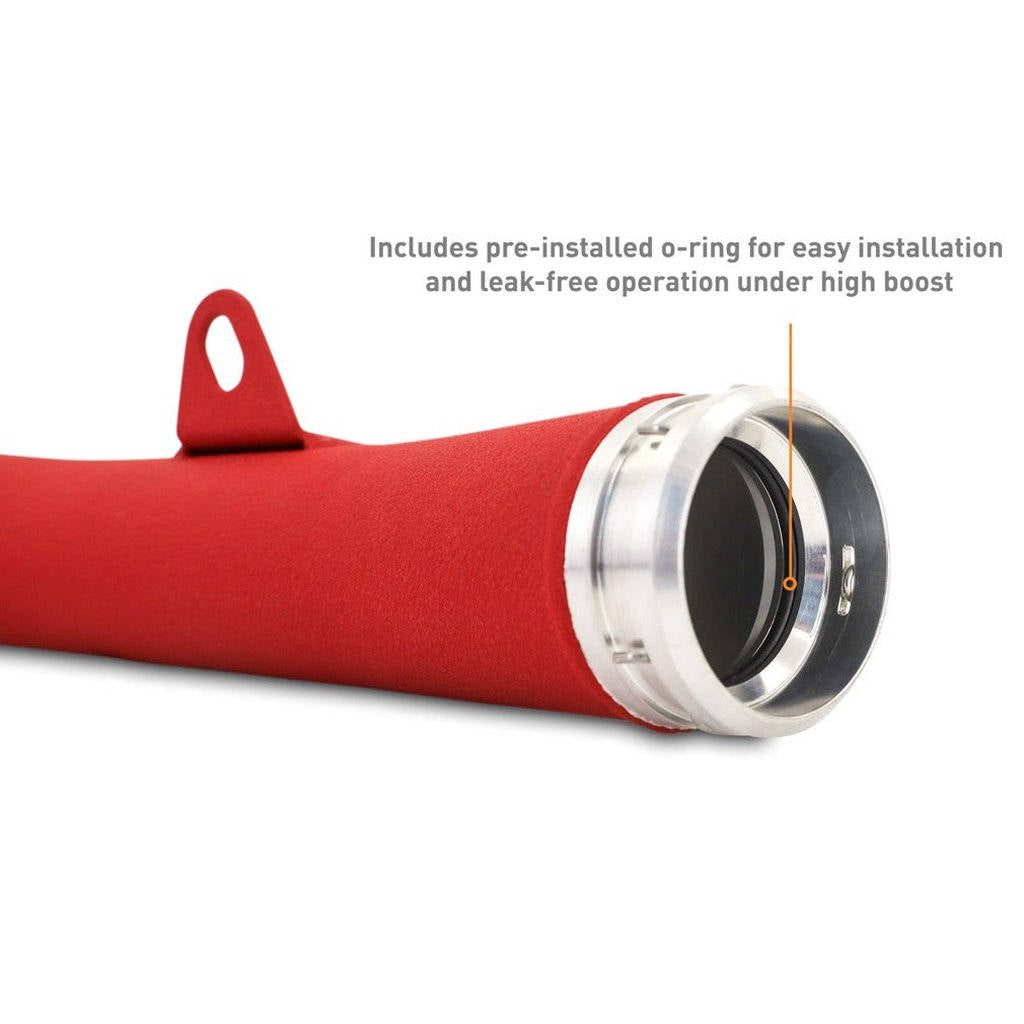

• Mishimoto Charge Pipe
• Mishimoto Intercooler Shroud

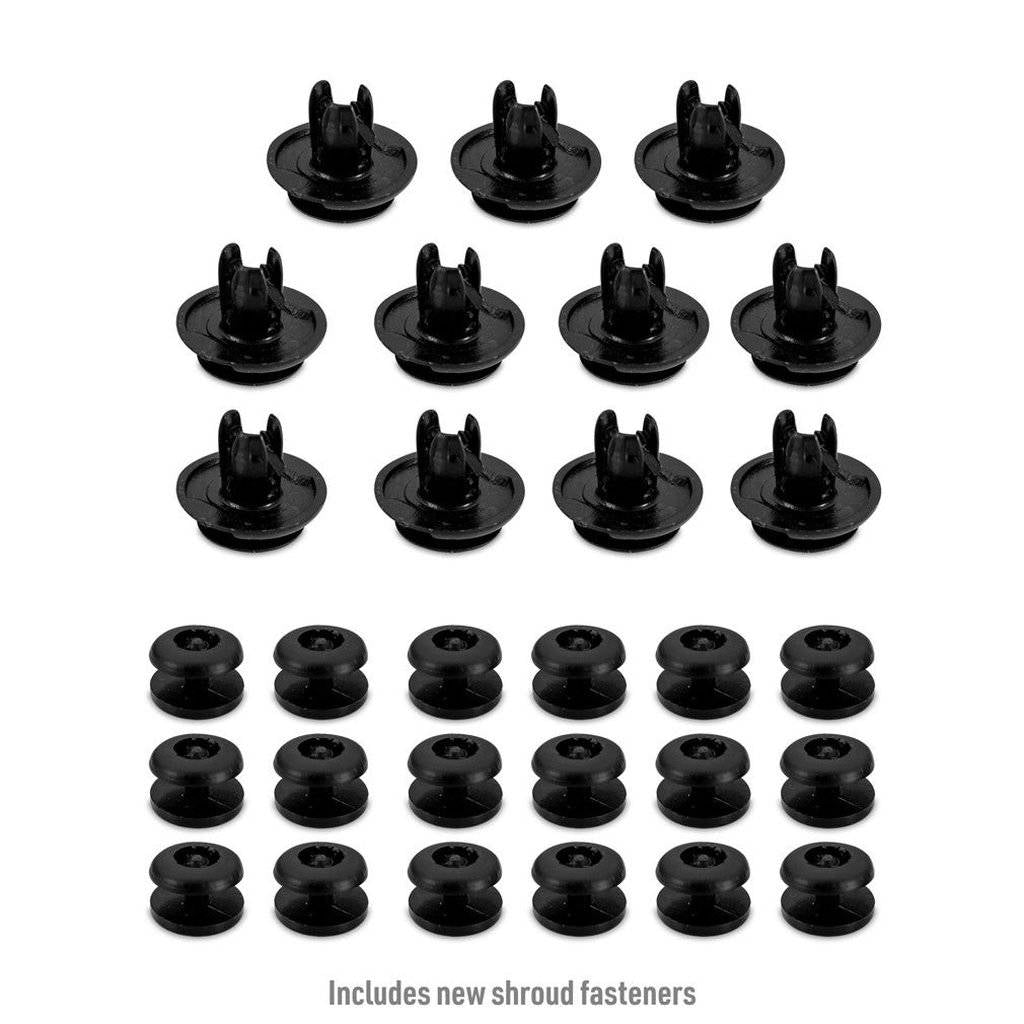

• 36 Shroud Plastic Rivets
• 11 Shroud Mount Panel Clips
• Silicone Coupler
• 2 Stainless-Steel Worm Gear Clamps
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2022+ Subaru WRX H4 2.4L Turbo
