MISHIMOTO MMTMIC-WRX-01BKBK SUBARU WRX/STI Performance Top-Mount Intercooler Kit, Black Intercooler,

Description MISHIMOTO MMTMIC-WRX-01BKBK SUBARU WRX/STI Performance Top-Mount Intercooler Kit, Black Intercooler,

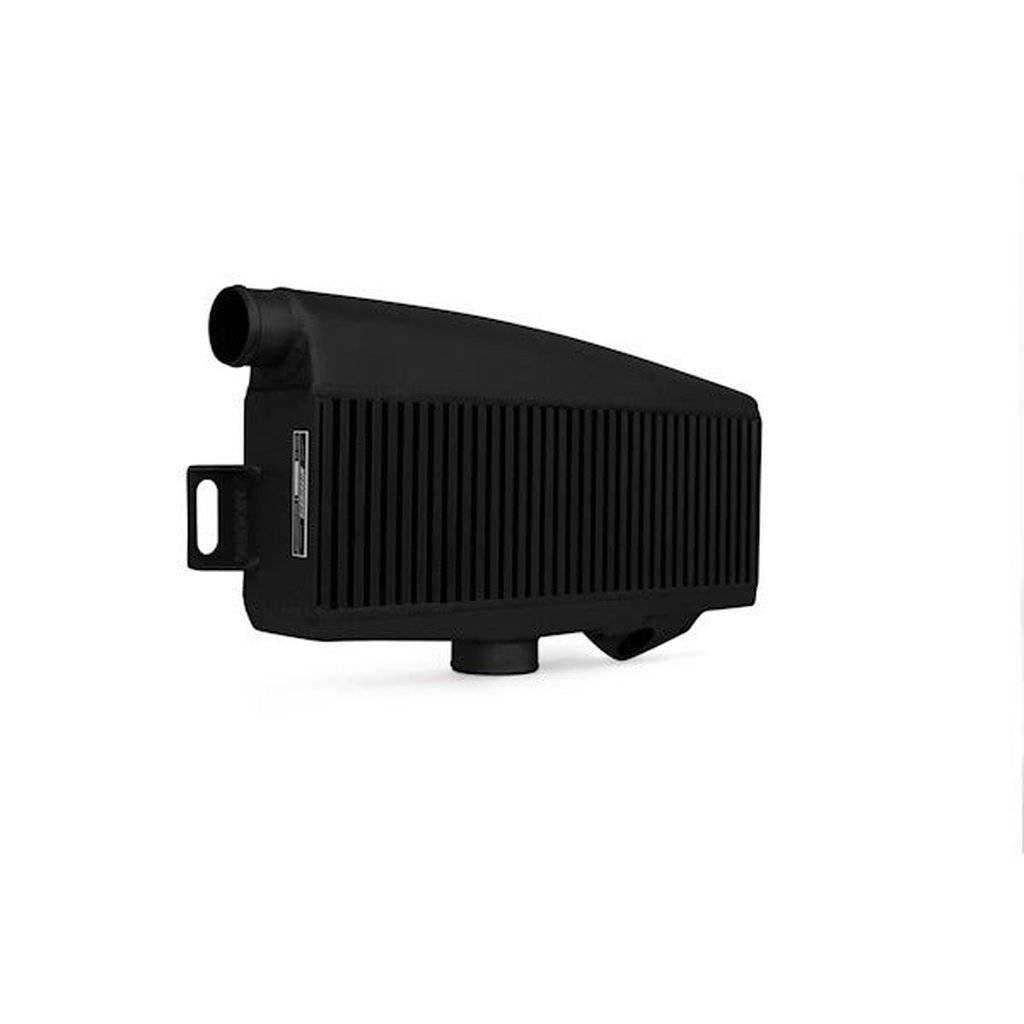

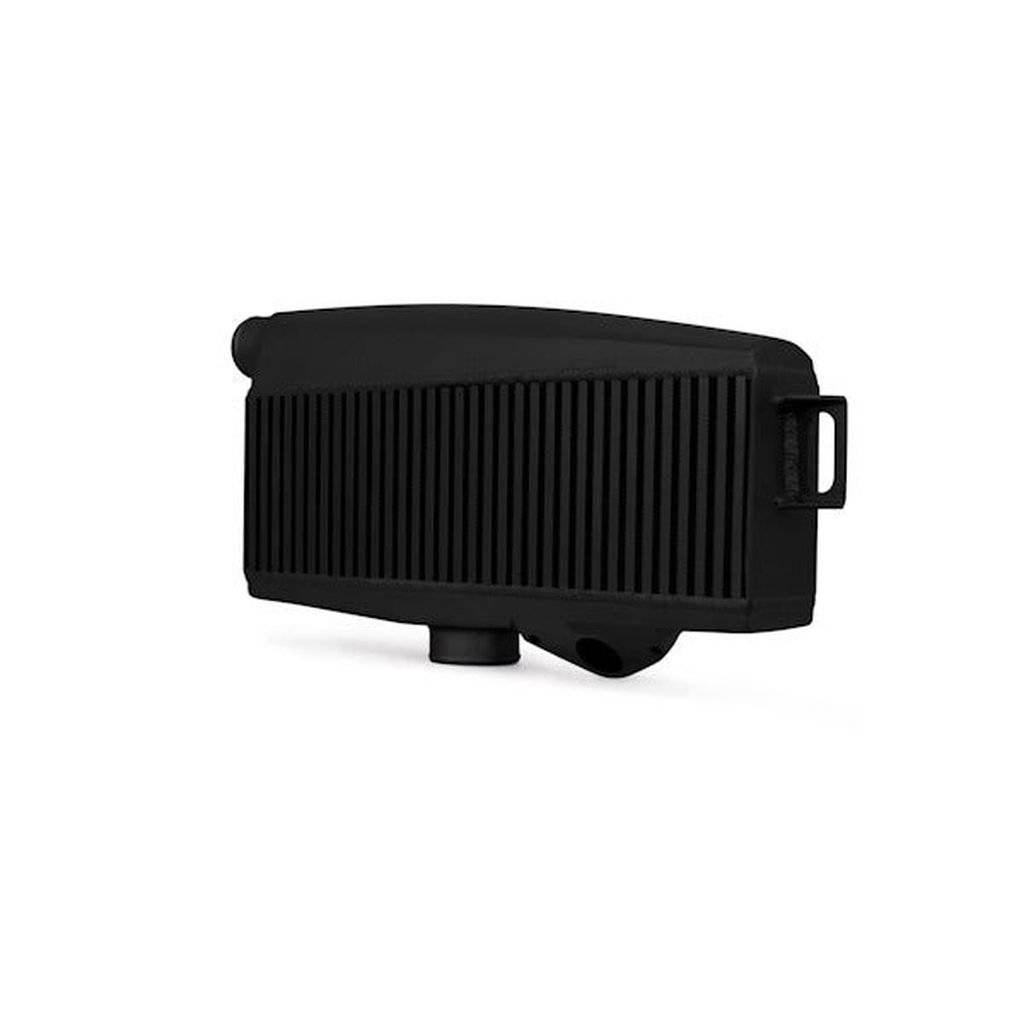

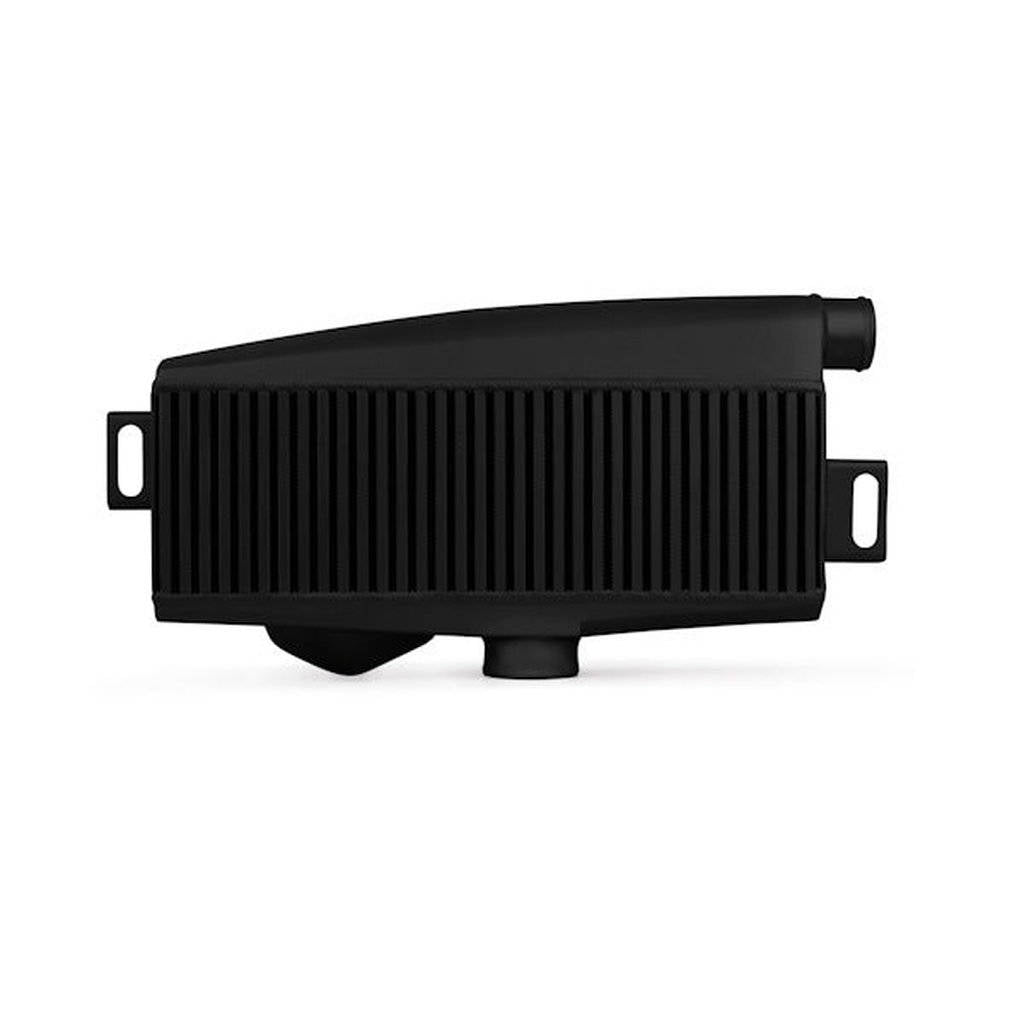

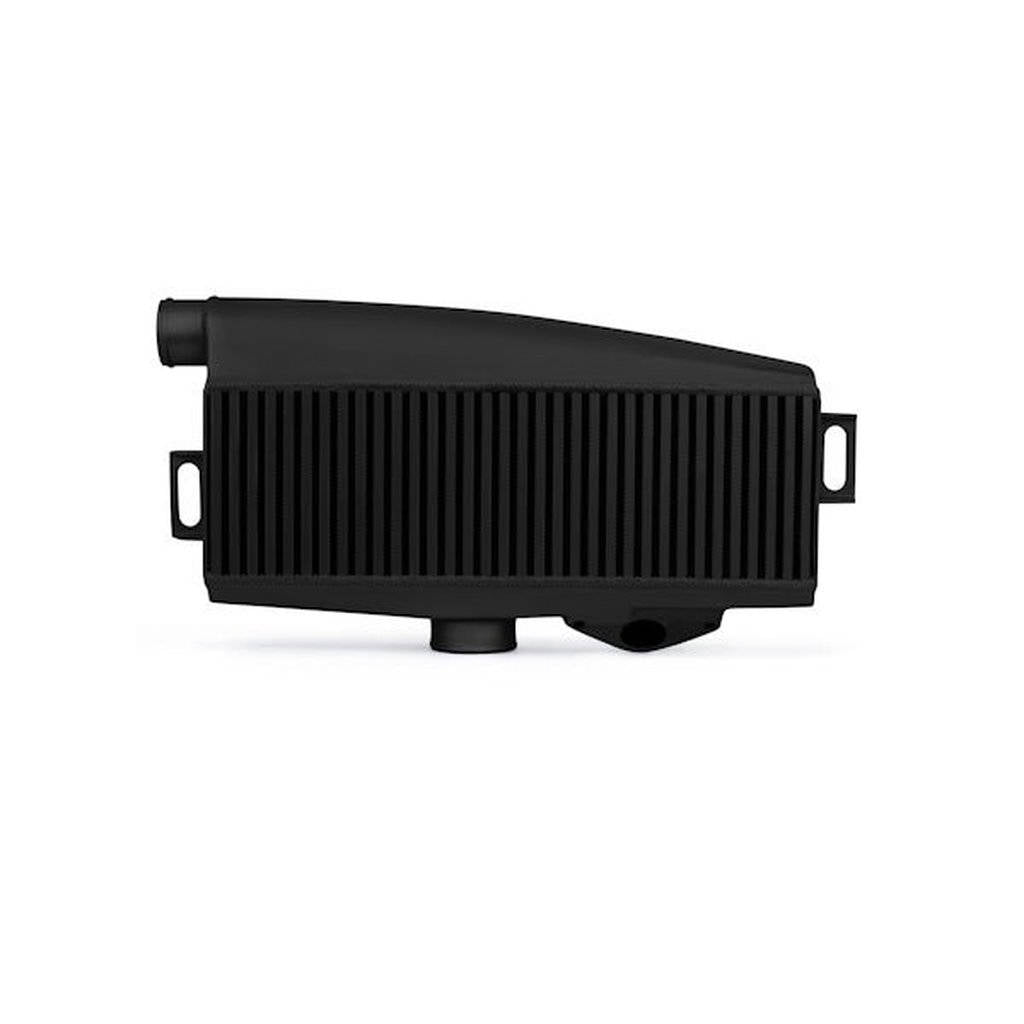

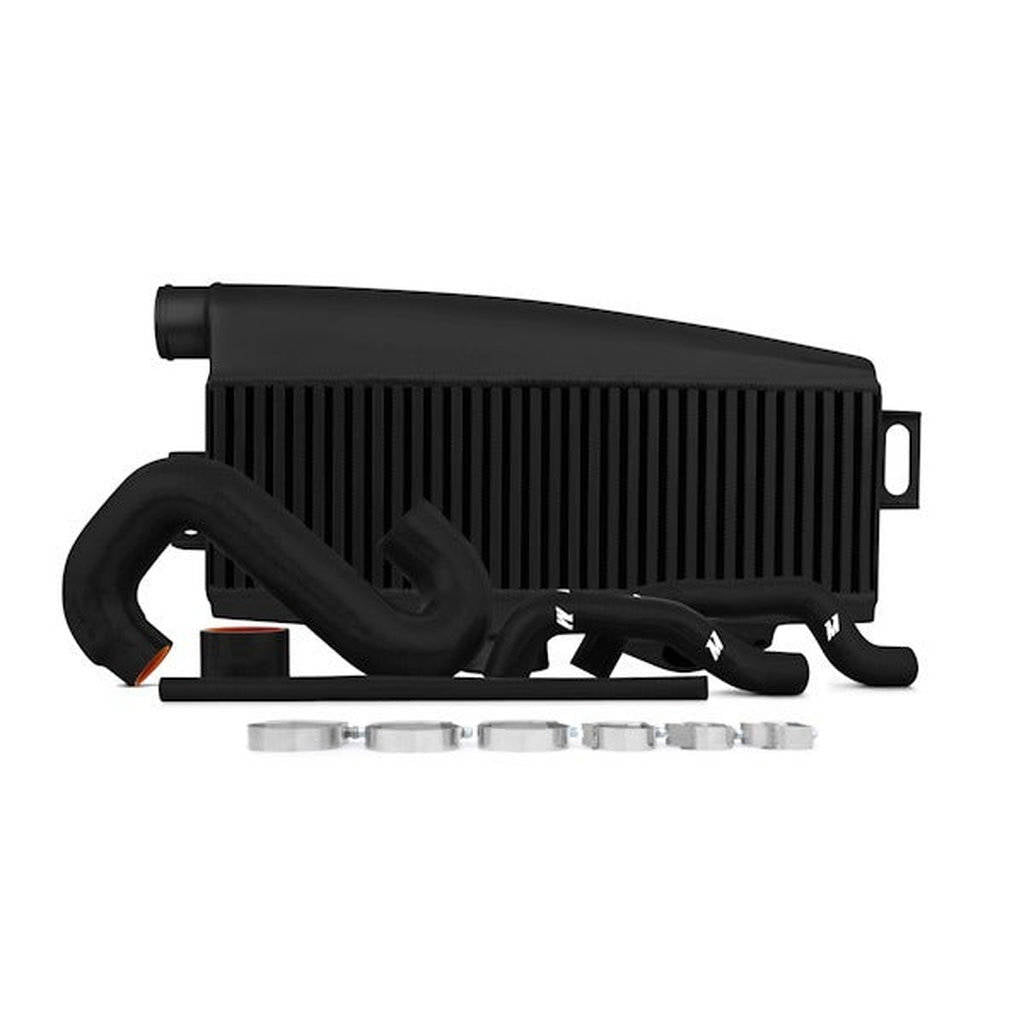

A top-mount intercooler upgrade is an effective way to provide the flat-four engine with a cooler charge of air. A cool, dense charge can enable more aggressive tuning and increased power. The Mishimoto Subaru WRX and STI TMIC Kit offers a unique solution for upgrading the charge air system.

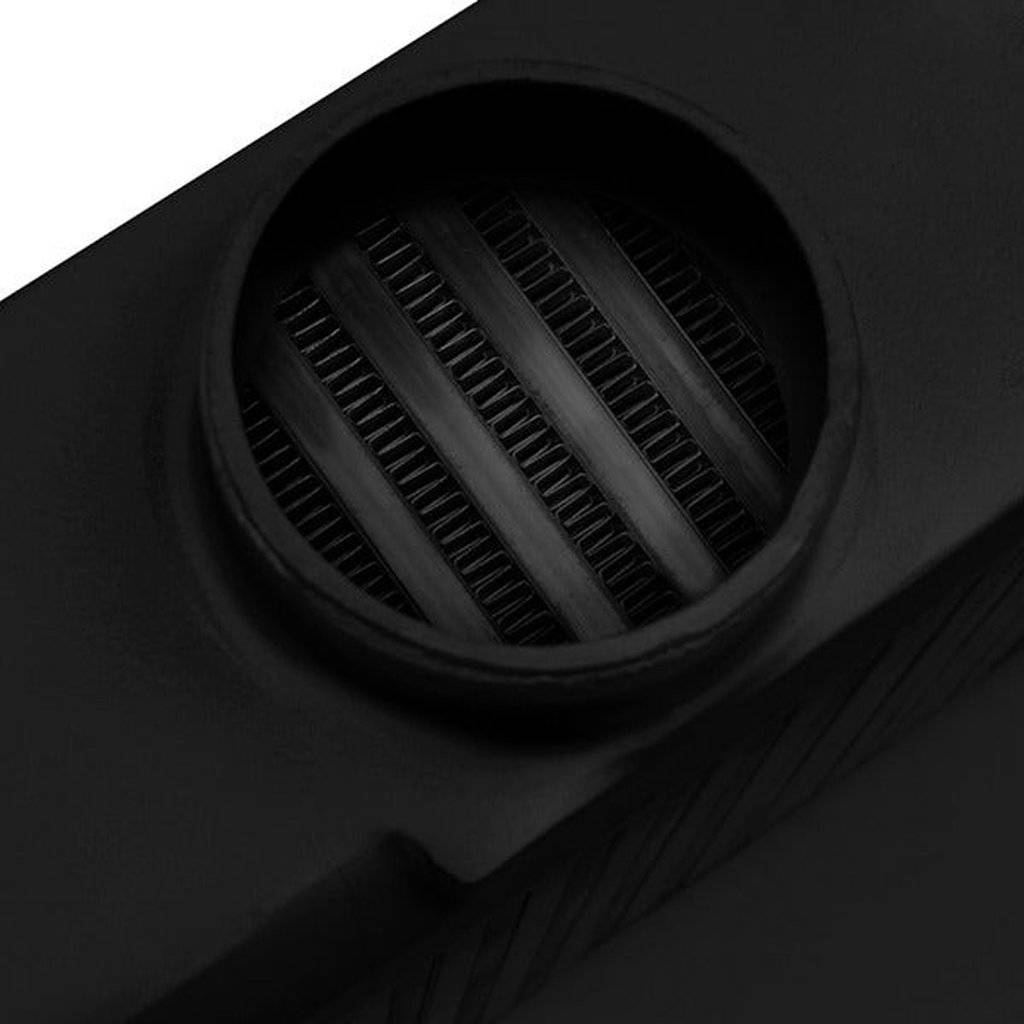

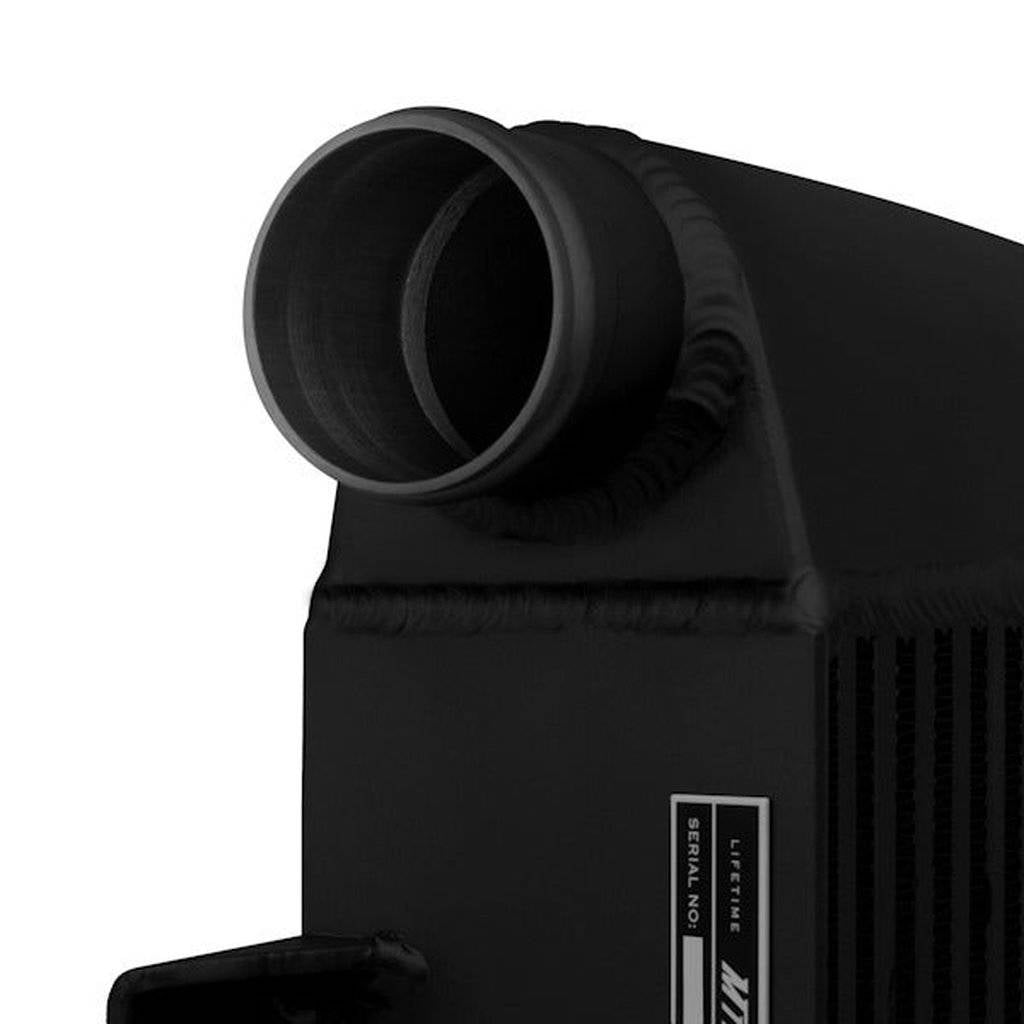

This top-mount intercooler kit features a single entry inlet, replacing the stock Y-pipe setup. The tank design maximizes airflow and improves air dispersion through the core, resulting in optimal air intake temperature reduction. The high-efficiency bar-and-plate core increases volume and enhances heat transfer. The kit is fully bolt-on and requires no modifications to the vehicle.

The Mishimoto top-mount intercooler kit includes silicone bypass hoses for both WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all necessary T-bolt clamps and hardware. Testing on both stock and modified vehicles has shown increased power and reduced air intake temperatures. On a 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30°F drop in air intake temperatures compared to the stock STI TMIC. The intercooler supports vehicles with up to 350 hp and is available in Stealth Black or Sleek Silver finishes.

Note: This kit is rated for approximately 350 whp, or 25 PSI of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler.

Note: This intercooler kit will not fit RHD vehicles.

• Single entry inlet design for maximum airflow and superior air dispersion
• High-efficiency bar-and-plate core for improved heat transfer
• Completely bolt-on installation with no modifications required
• Tested to increase power and reduce air intake temperatures

Specifications:

• Engine Codes: EJ20, EJ25
• Chassis Codes: GD6, GG6
• Overall Length (in): 22.25
• Overall Height (in): 11.25
• Overall Width (in): 3.625
• Core Thickness (in): 3.5
• Core Length (in): 19
• Core Height (in): 6
• Inlet (in): 2.5
• Outlet (in): 2.75

Kit comes with::

• Bar-and-Plate Intercooler

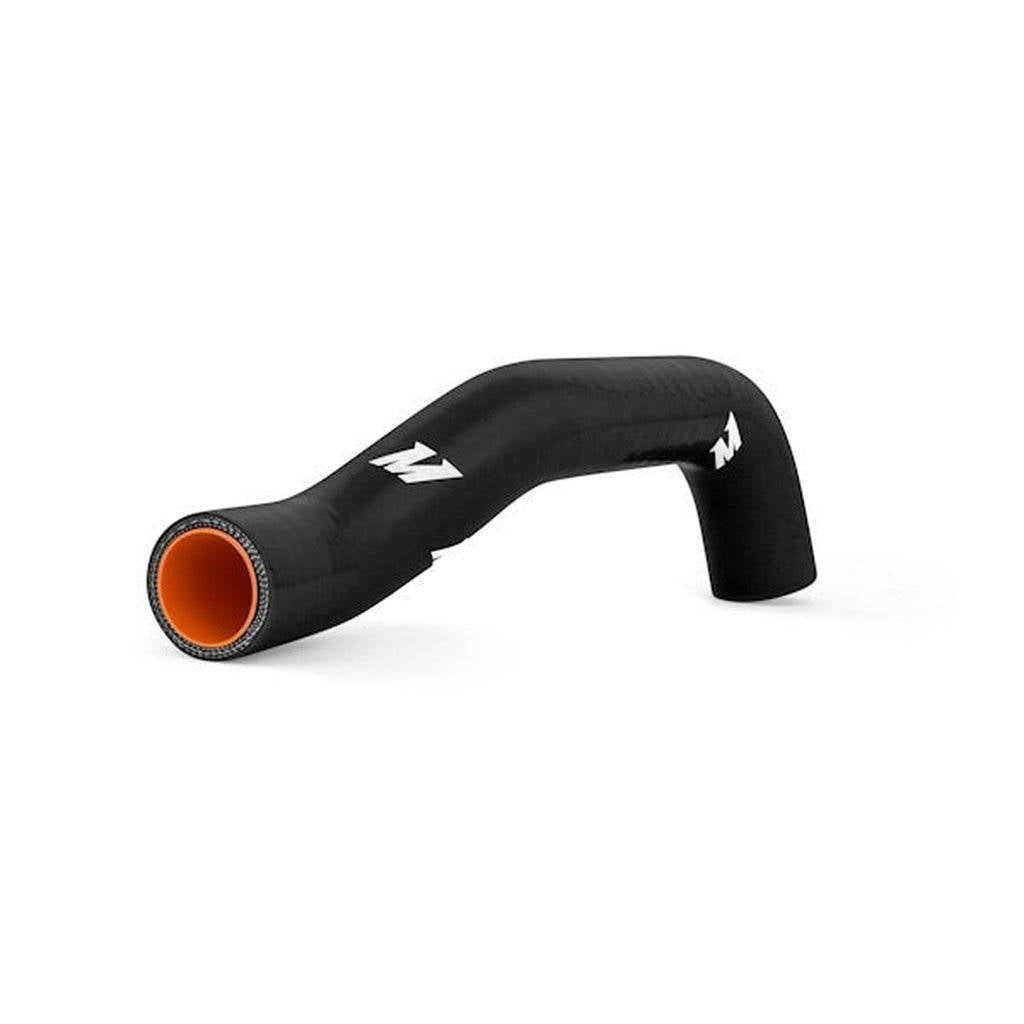

• Five Silicone Hoses and Couplers
• High-Temp Silicone Hose

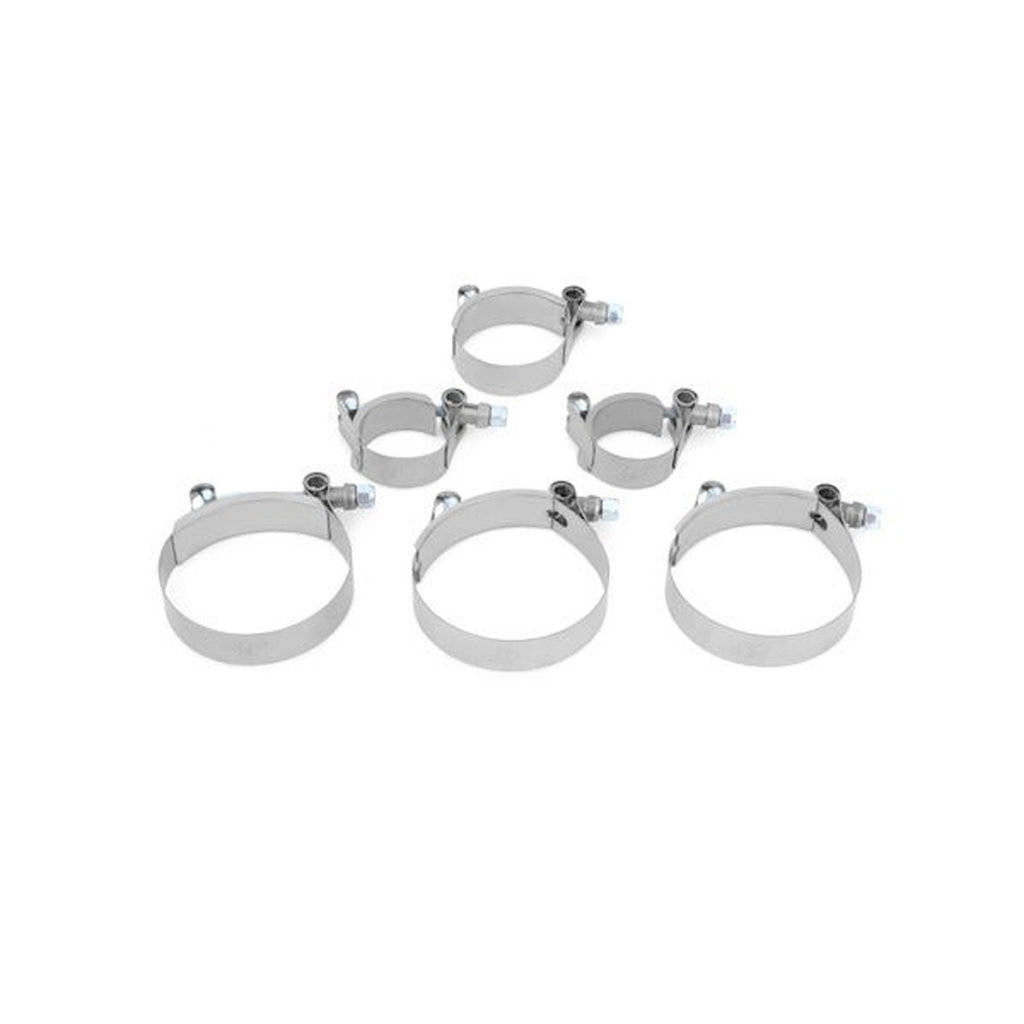

• Two 3-in T-bolt Clamps
• 2.75-in T-bolt Clamp
• 2.25-in T-bolt Clamp

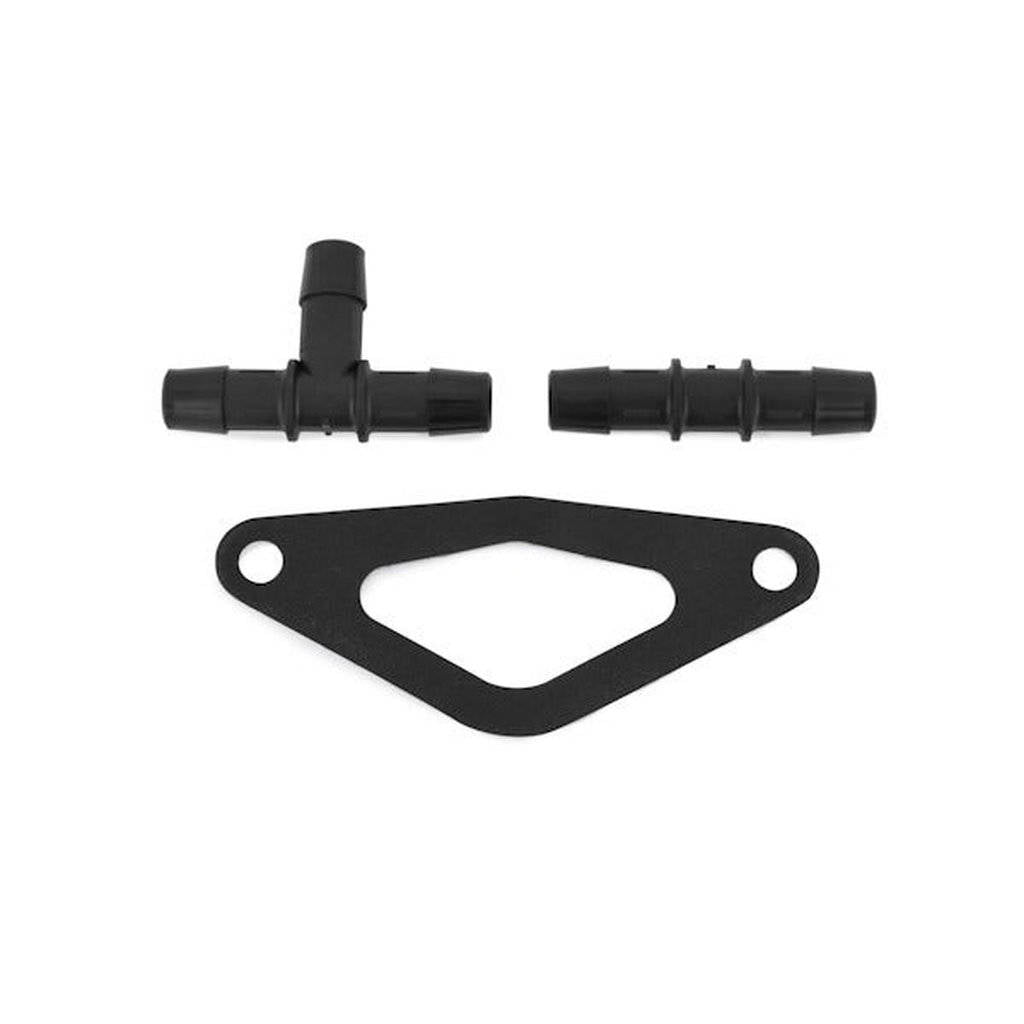

• Bypass Valve Gasket
• Black Nylon Hose Fitting, 3/4-in I.D.
• Black Nylon Tee Hose Fitting, 3/4-in I.D.
• WRX specific BPV hose
• STI specific BPV hose
• Intercooler to throttle body coupler
• PCV hose

Vehicle Compatibility:

• Saab 9-2X H4 (2.0L) 2005
• Saab 9-2X H4 (2.5L) 2006
• Subaru WRX H4 (2.0) 2002-2005
• Subaru WRX H4 (2.5) 2006-2007
• Subaru WRX STI H4 (2.5) 2004-2007
