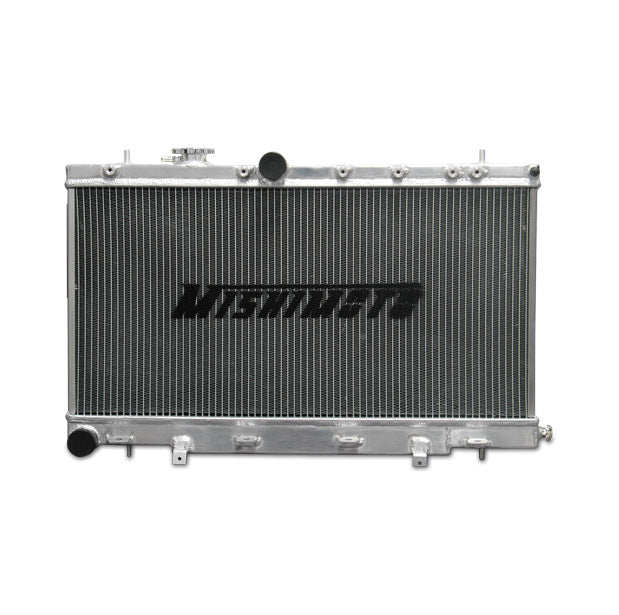

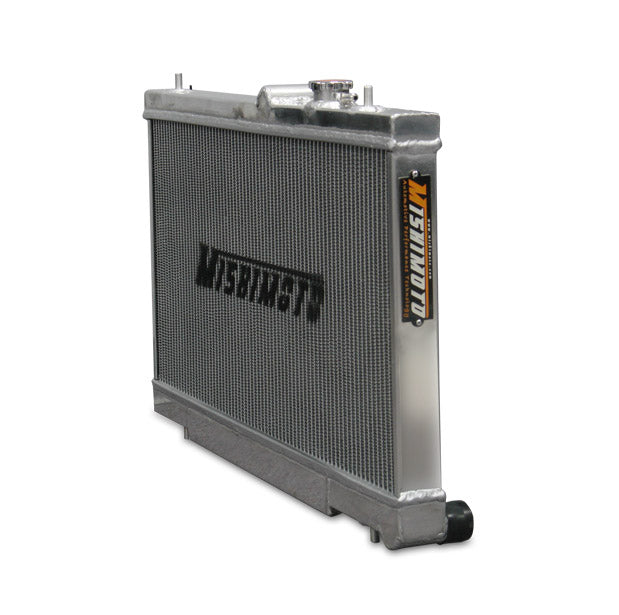

MISHIMOTO MMRAD-WRX-01 Radiator SUBARU IMPREZA WRX/STI 01-07 (Manual Transmission)

Description MISHIMOTO MMRAD-WRX-01 Radiator SUBARU IMPREZA WRX/STI 01-07 (Manual Transmission)

An efficient cooling system is essential for extending the life of the Subaru flat-four engine, whether the vehicle is daily driven or used in rallycross. The stock radiator's plastic end tanks are susceptible to cracking due to constant temperature changes, which can lead to overheating, head gasket failure, and engine damage.

The Mishimoto Performance Radiator is engineered for the 2001-2007 Subaru WRX and STI to address this weak point. It features an all-aluminum construction for increased heat and pressure tolerance, improved heat dissipation, and enhanced cooling efficiency. The 100% brazed aluminum core and TIG-welded end tanks offer optimal durability and reliable service. This radiator is a direct bolt-in replacement for the factory unit, requiring no modifications.

The radiator includes a high-pressure 1.3 bar cap to raise the coolant boiling point and a second cap for the expansion tank. It also provides a significant increase in coolant capacity, supporting aggressive driving while maintaining safe temperatures. The Mishimoto Subaru WRX and STI Performance Aluminum Radiator is covered by the Mishimoto Lifetime Warranty.

Caution: The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation.

• All-aluminum construction for improved heat and pressure tolerance
• 100% brazed aluminum core and TIG-welded end tanks for durability
• Direct bolt-in replacement with no modifications required
• Includes high-pressure radiator cap and expansion tank cap

Specifications:

• Overall Length (in): 28.4
• Overall Height (in): 17.2
• Overall Width (in): 2.15
• Core Length (in): 27.24
• Core Height (in): 13.54
• Core Thickness (in): 1.65
• Fluid Capacity (gal): 2.3
• Rows: 2
• Inlet (in): 1.5
• Outlet (in): 1.5
• Drain Plug Thread Size: M12 x 1.5
• DPI: 2703
• Engine Codes: EJ205, EJ255, EJ257
• Chassis Codes: GD
• Coolant Capacity: 2.3

Kit comes with::

• Mishimoto Radiator
• Mishimoto Radiator Cap
• 1/16-inch NPT Plug
• Fan Mounting Hardware
• Magnetic Drain Plug
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2005 Saab 9-2X H4 (2.0L)
• 2006 Saab 9-2X H4 (2.5L)
• 2002-2005 Subaru WRX H4 (2.0)
• 2006-2007 Subaru WRX H4 (2.5)
• 2004-2007 Subaru WRX STI H4 (2.5)

Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
