MISHIMOTO MMRAD-SS-14 Performance Aluminum Radiator for CHEVROLET SS 2014-2017

Description MISHIMOTO MMRAD-SS-14 Performance Aluminum Radiator for CHEVROLET SS 2014-2017

The 2014-2017 Chevy SS combines four-door practicality with impressive performance, featuring a 415 HP 6.2L LS3 engine capable of reaching 60 MPH in 4.5 seconds. Many owners enhance this platform with additional power, which can result in increased heat under the hood.

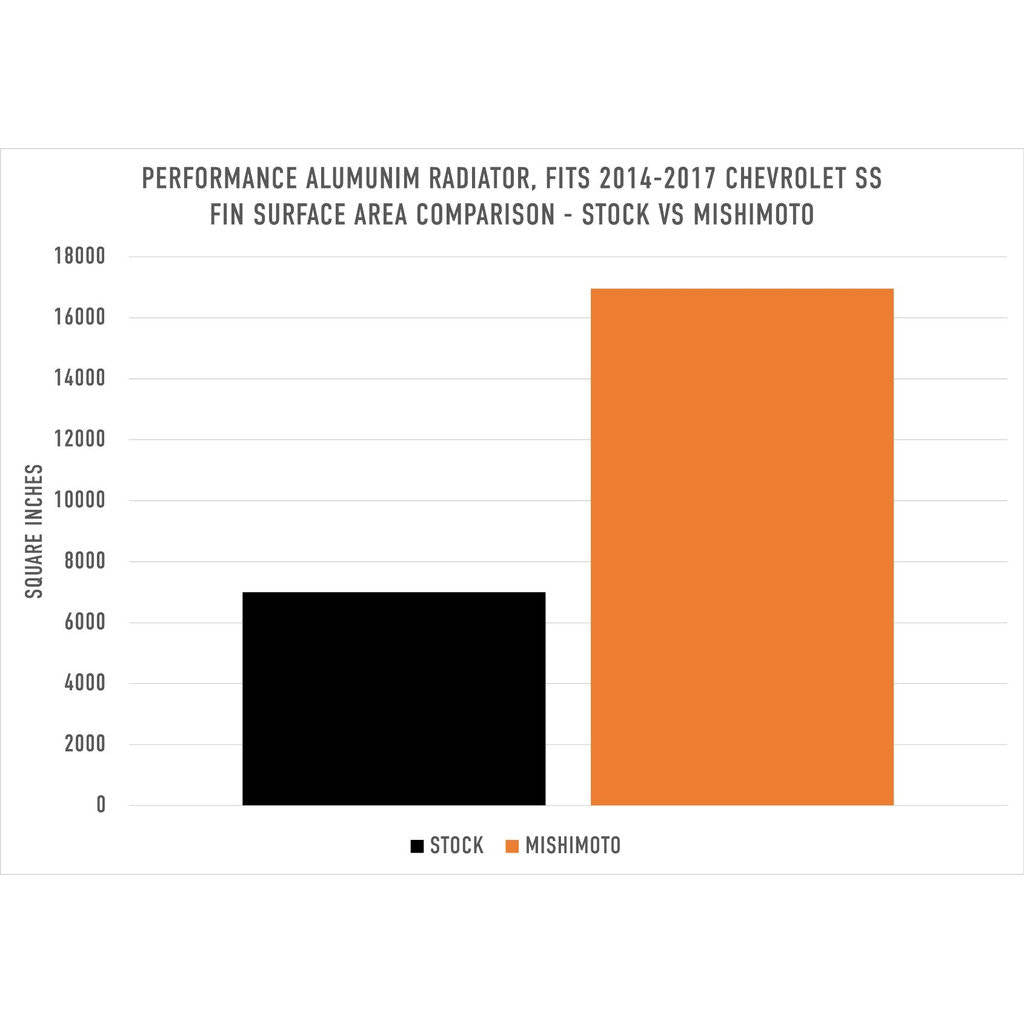

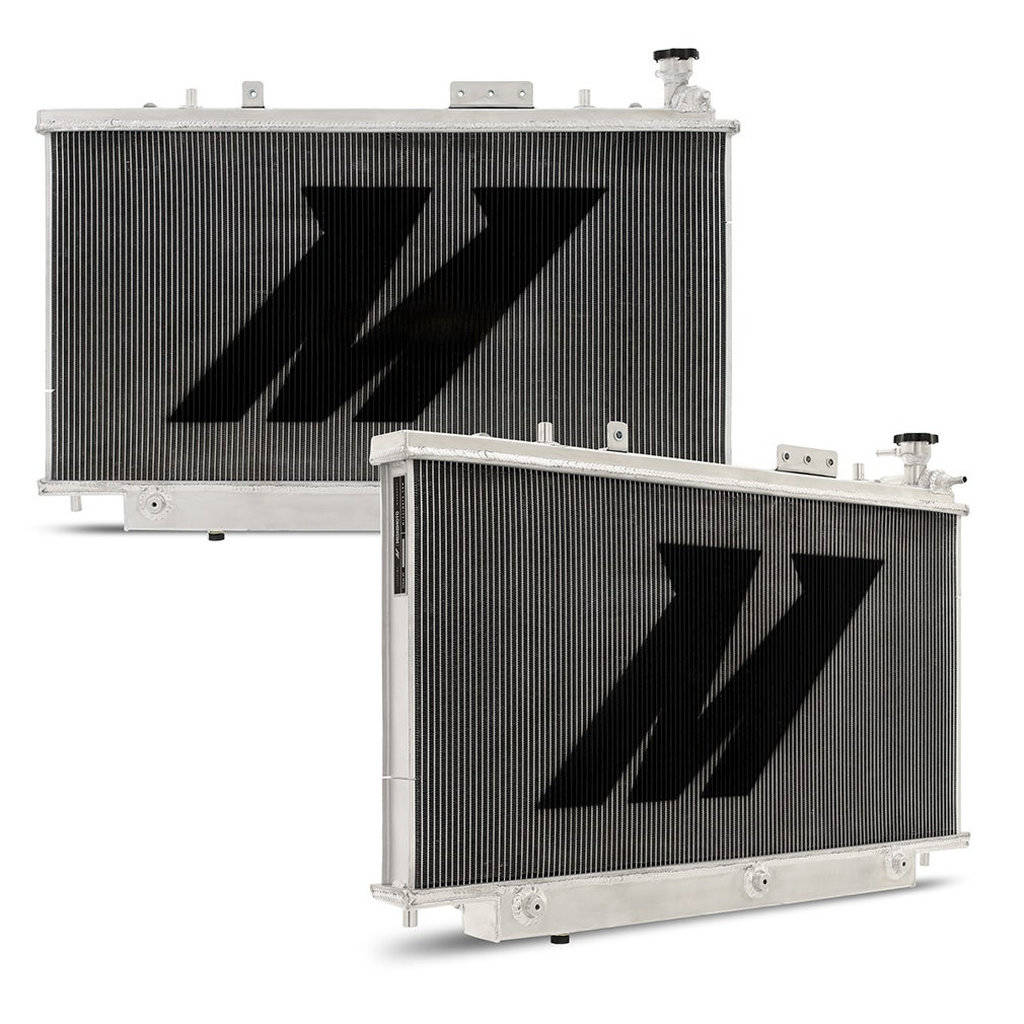

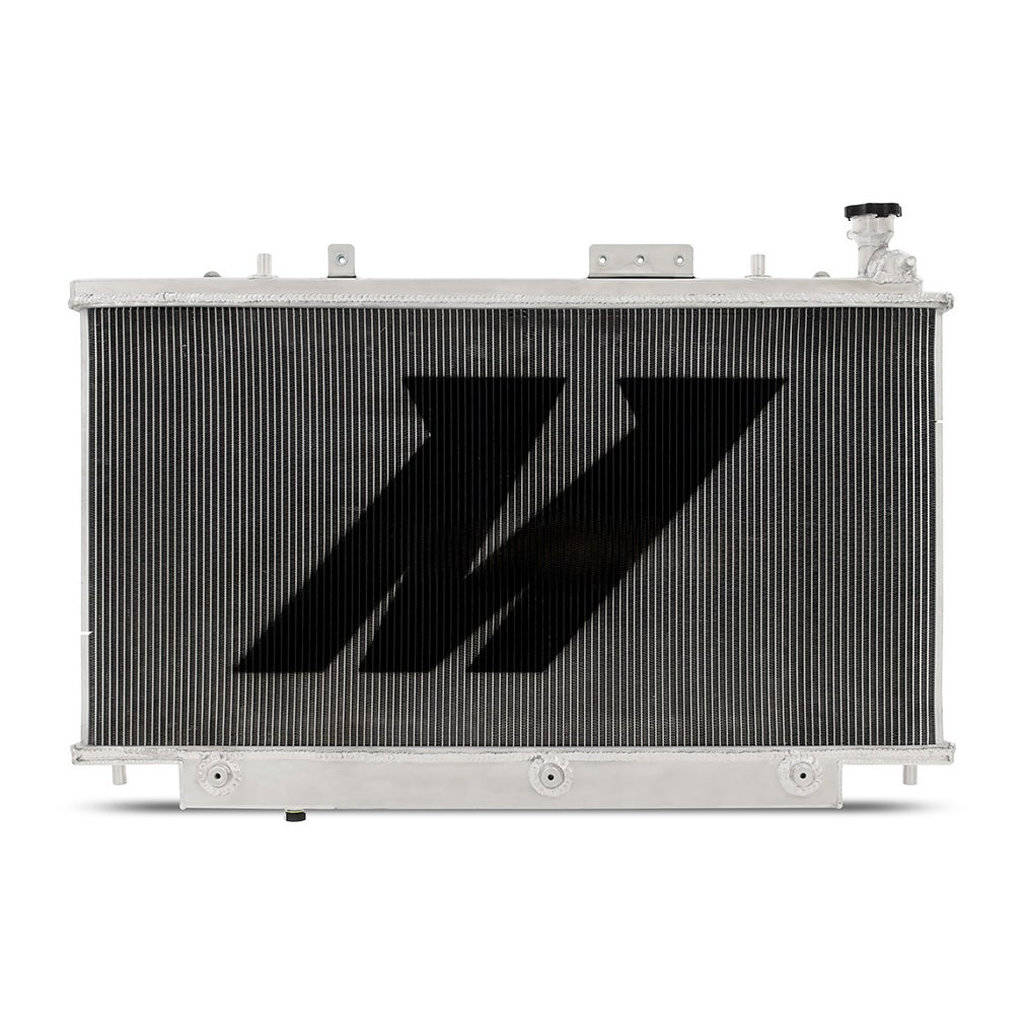

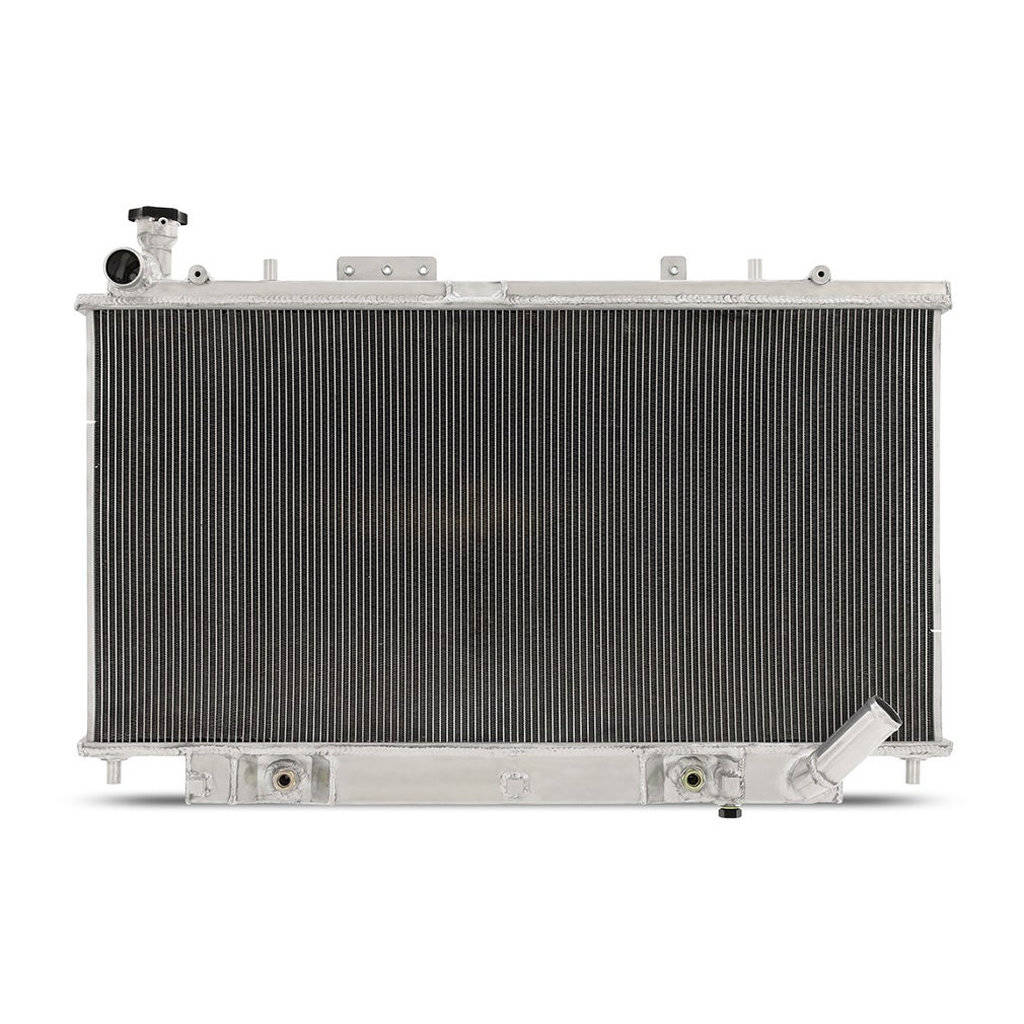

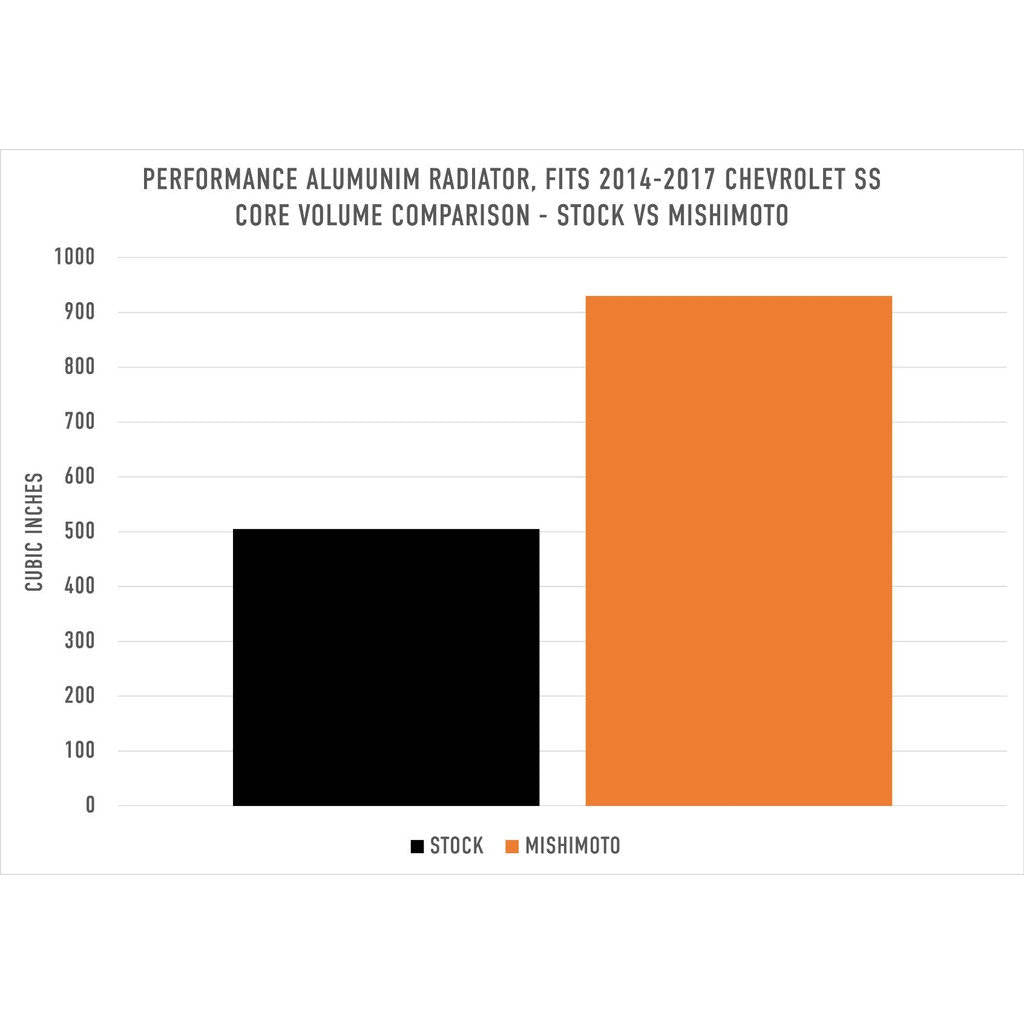

Mishimoto offers a significant upgrade for the stock radiator in the 2014-2017 SS. This all-aluminum radiator features a two-row, 55 mm-thick core, expanding core volume by 84 percent compared to the factory unit. Increased volume allows for extended spirited driving without concerns about rising coolant temperatures. The radiator also increases fin surface area by 143 percent to improve heat transfer from the coolant to the air.

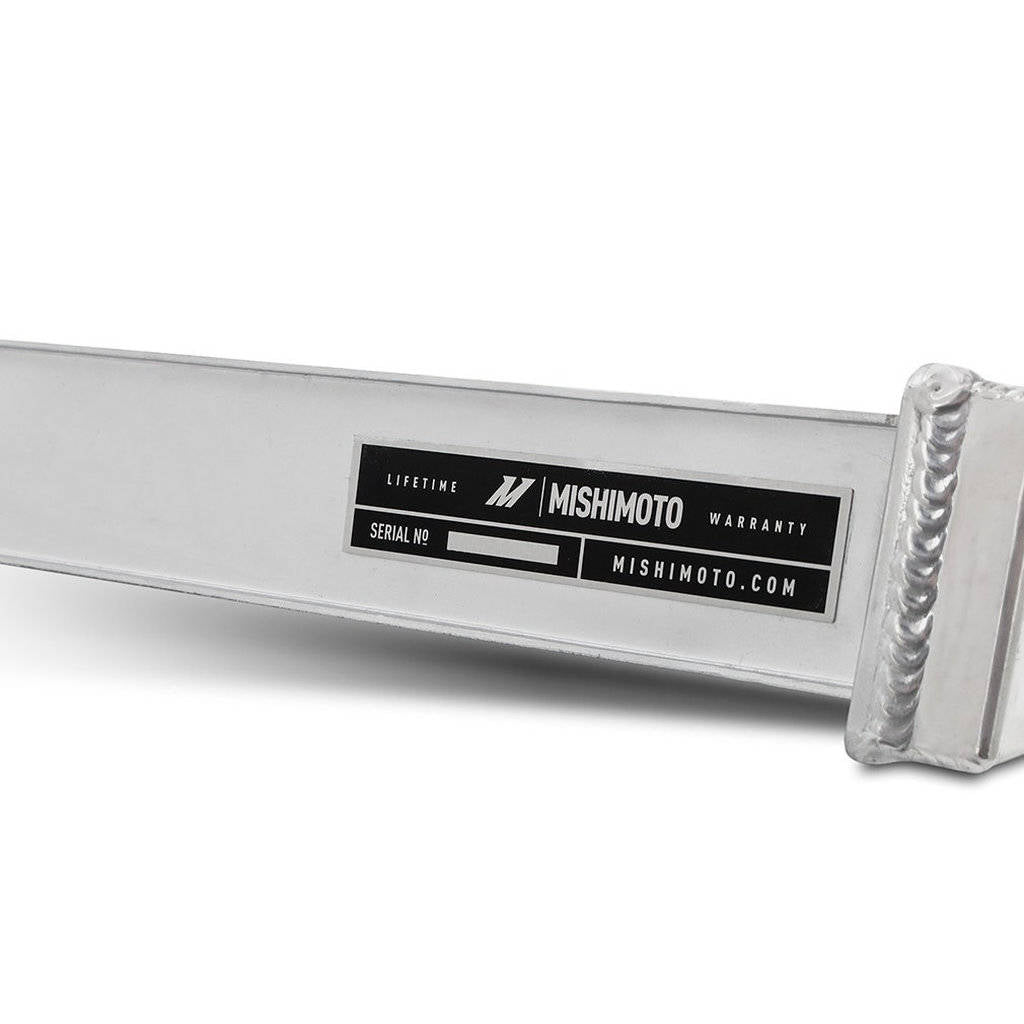

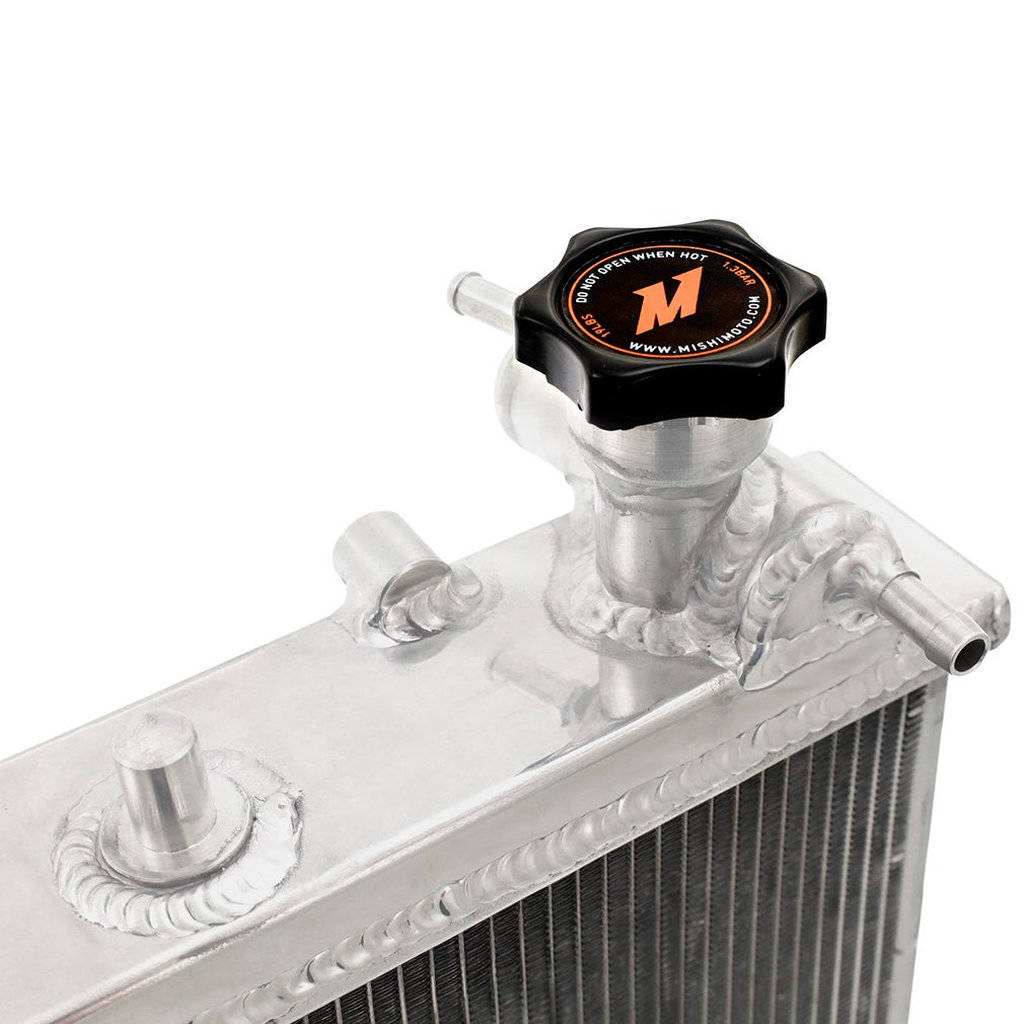

Durability is addressed with precision TIG-welded aluminum end tanks, designed to prevent cracking or splitting over time. A slotted drain plug is included for easier, mess-free maintenance.

• All-aluminum construction with TIG-welded end tanks
• Two-row, 55 mm-thick core increases core volume by 84 percent
• Fin surface area increased by 143 percent for improved heat transfer
• Slotted drain plug for easy maintenance

Specifications:

• Overall Length (in): 31.71
• Overall Height (in): 21.94
• Core Length (in): 30.39
• Core Height (in): 15.55
• Core Thickness (in): 1.97
• Fluid Capacity (gal): 1.27
• Rows: 2
• Inlet (in): 1.26
• Outlet (in): 1.26
• Drain Plug Thread Size: M12x1.5
• Engine Codes: LS3, L77
• Chassis Codes: VF, Zeta
• Coolant Capacity: 1.27

Kit comes with::

• Performance Aluminum Radiator
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2014-2017 Chevrolet SS V8 6.2L
• 2011-2017 Chevrolet Caprice PPV V8 6.0L
