MISHIMOTO MMOP-TPS Oil Sandwich Plate with 3pcs 1/8 NPT

Description MISHIMOTO MMOP-TPS Oil Sandwich Plate with 3pcs 1/8 NPT

The Mishimoto Oil Filter Sandwich Plate Adapters feature three NPT ports, allowing installation of an oil temperature sensor, oil pressure sensor, or a turbo oil feed. This adapter is designed for easy installation, eliminating the need to drill into the engine block by utilizing the engine oil filter mounting point.

Two adapters are included to ensure fitment with multiple applications.

Installation Notes: Sandwich Plate Adapter: 35 ft-lb

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that all connections be checked at regular intervals, especially during the first few miles after installation. For additional technical information, contact the customer experience team.

• Three NPT ports for sensors or turbo oil feed
• Eliminates the need to drill into the engine block
• Includes two adapters for multiple applications
• Easy installation using the oil filter mounting point

Specifications:

• Overall Height (in): 2.8
• Overall Length (in): 3
• Overall Width (in): 1.125

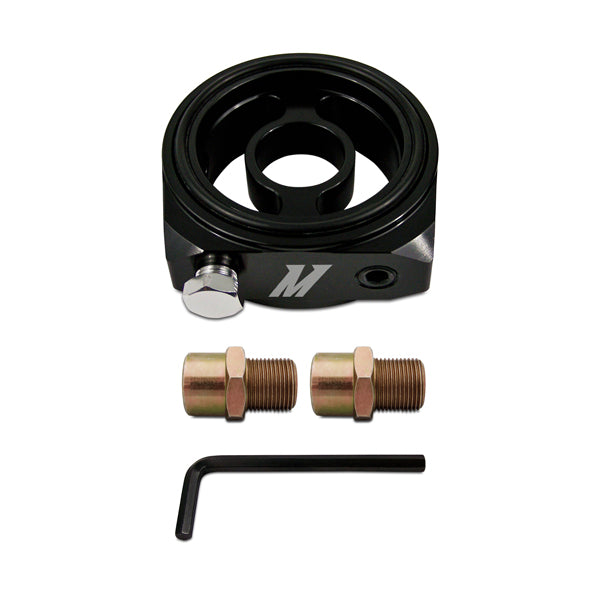

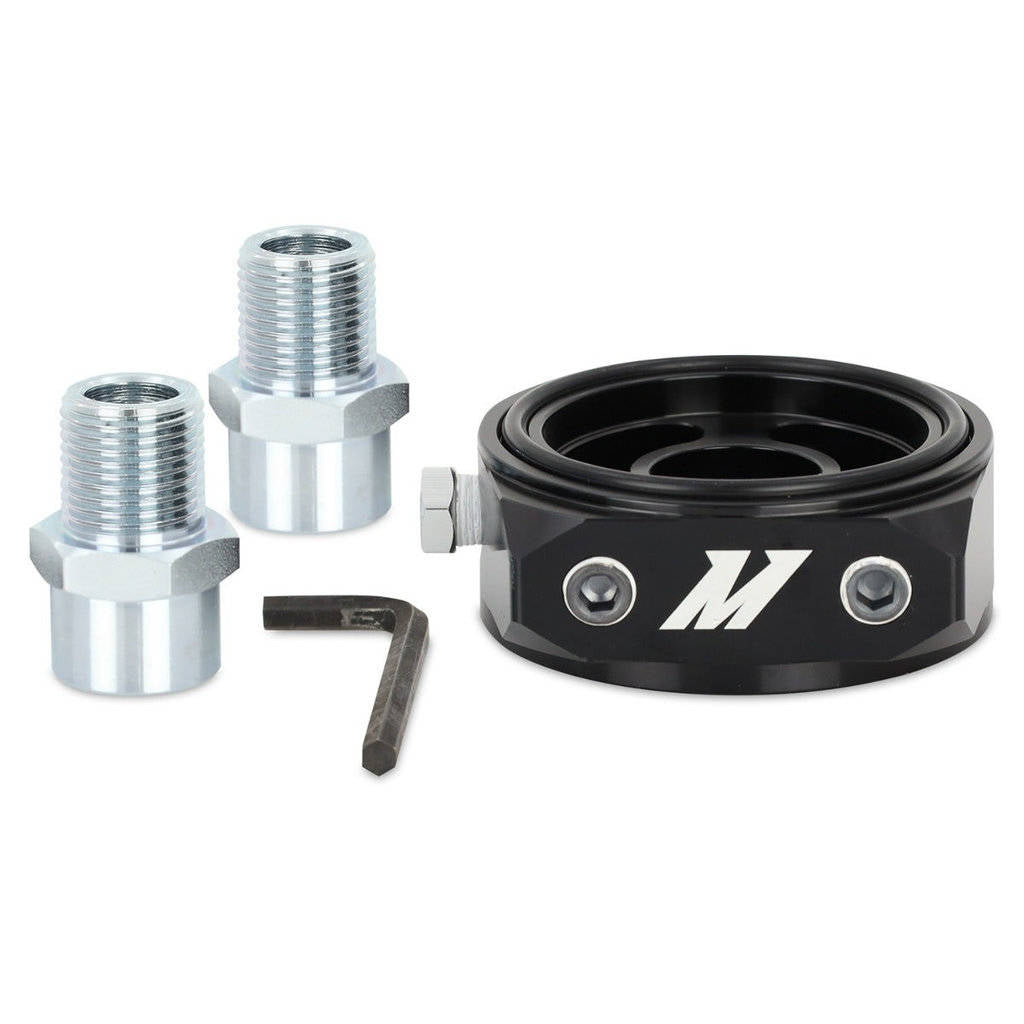

Kit comes with::

• Oil Plate Sandwich Adapter with 1/8-in NPT Ports
• Large O-ring
• Sandwich Plate Adapters
• Black Flush Fittings with Allen Key Bolt
• Allen Key
• Hex Head Fitting
• Installation Guide
