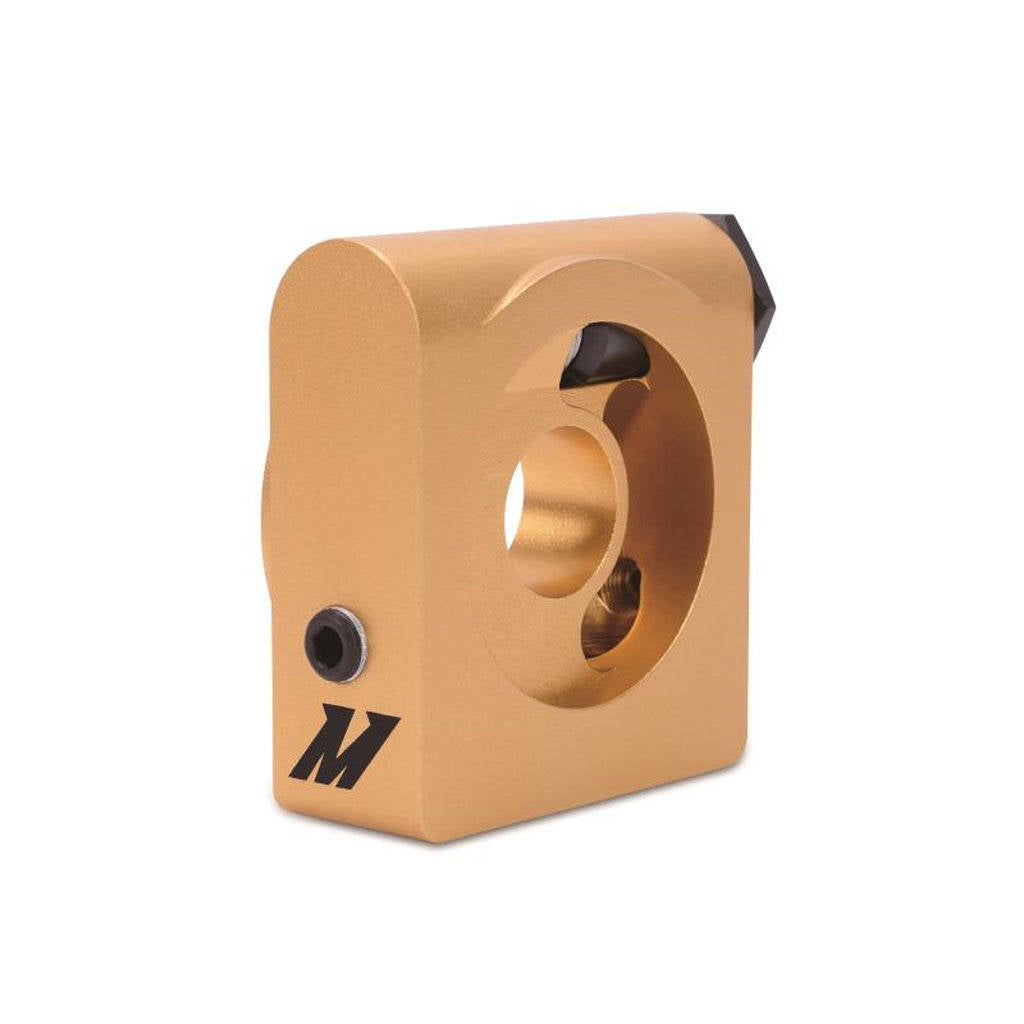

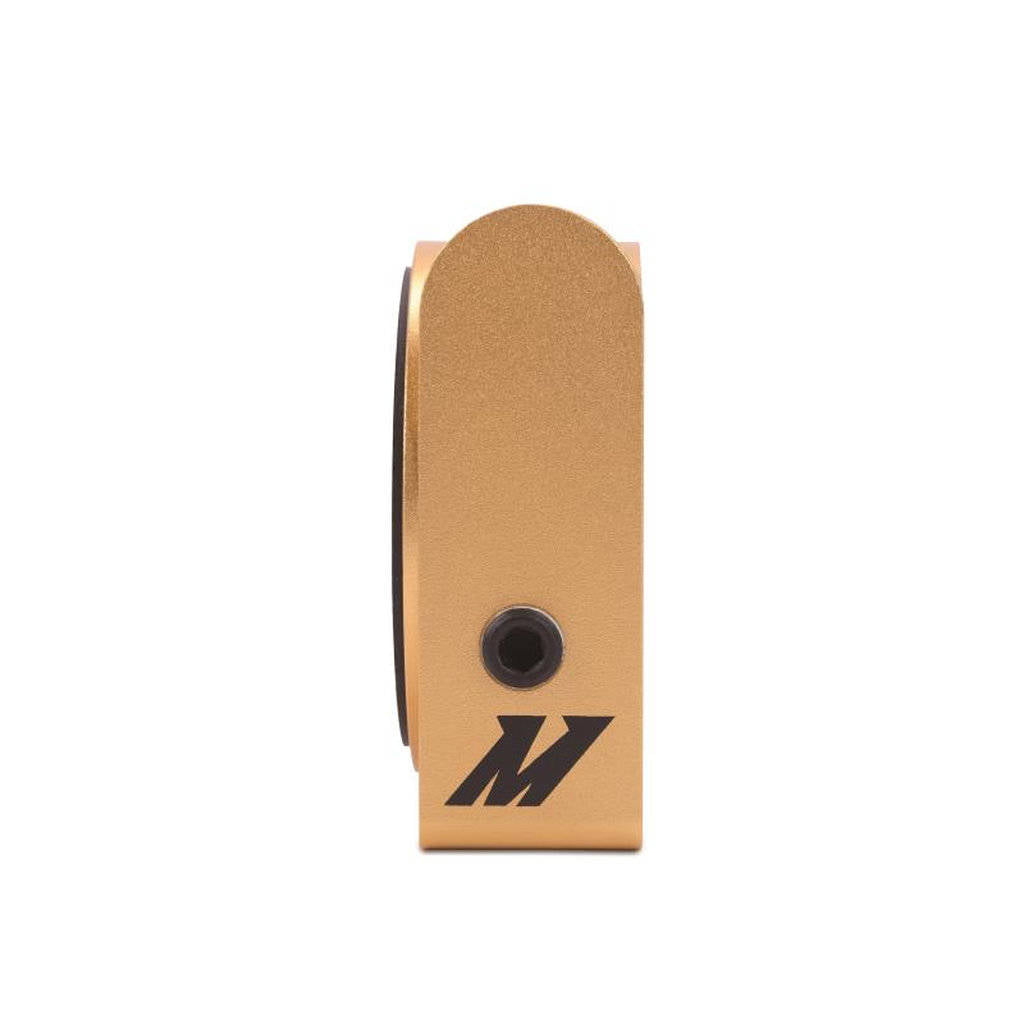

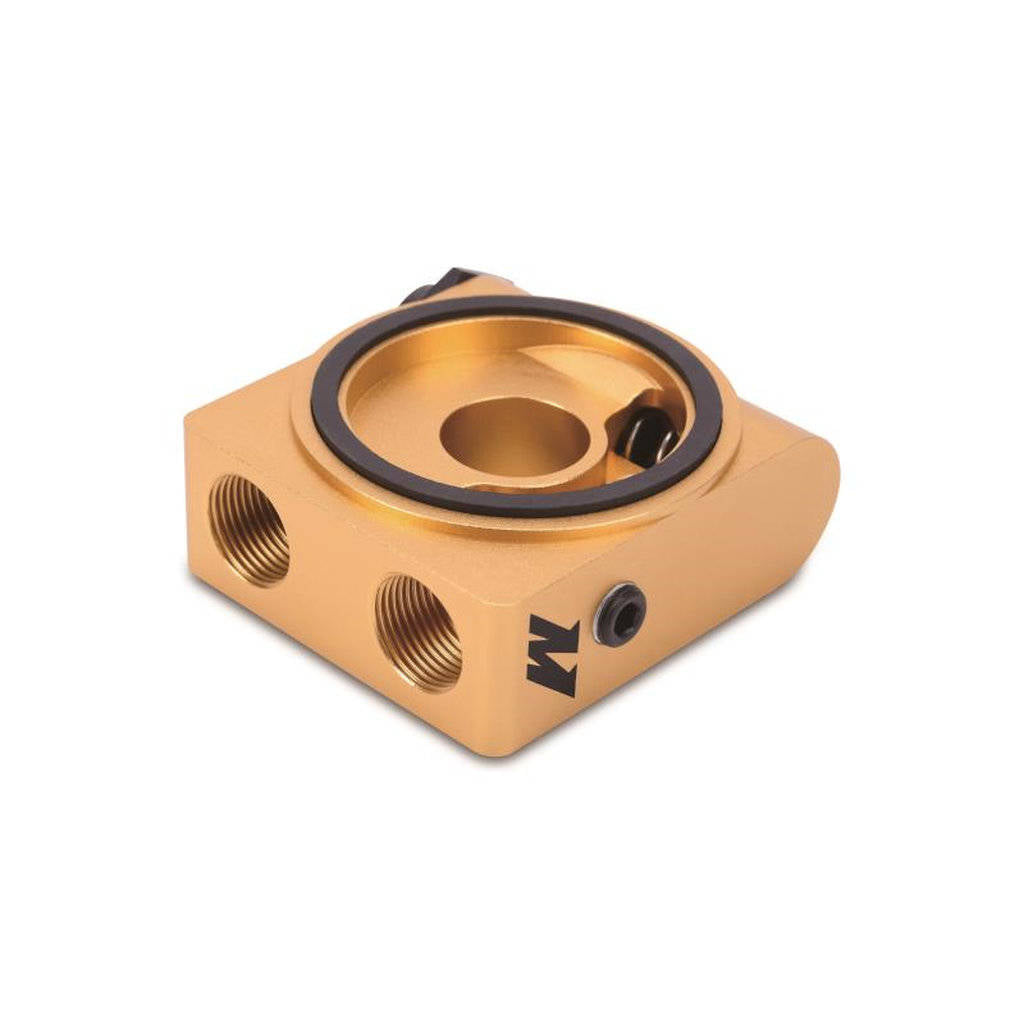

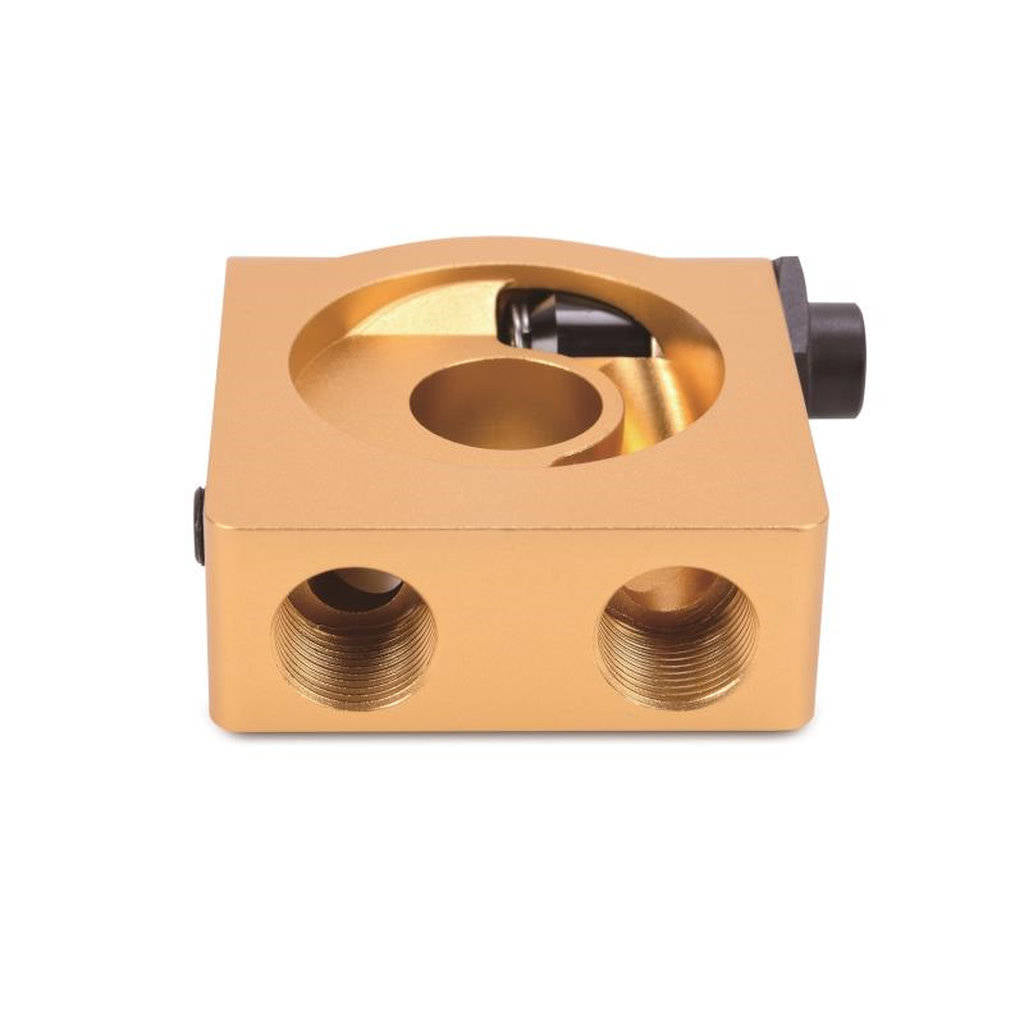

MISHIMOTO MMOP-SPTRM22 M22 X 1.5 Sandwich Plate with Rear-Mounted Thermostat

Description MISHIMOTO MMOP-SPTRM22 M22 X 1.5 Sandwich Plate with Rear-Mounted Thermostat

Proper oil temperatures are essential for engine longevity and performance, whether the vehicle is a daily driven Corvette or a built Mustang. The Mishimoto Oil Sandwich Plate with Rear-Mounted Thermostat helps maintain optimal oil temperatures. This high-flow sandwich plate is made from lightweight CNC-machined billet 6061 aluminum for precision and quality.

The internal oil thermostat restricts flow to the heat exchanger until the activation temperature is reached, improving warm-up while maintaining efficient cooling. Its compact design and rear-mounted thermostat allow installation in tight engine bays where space is limited by exhaust or other components. The sandwich plate features two 1/8-inch NPT ports for temperature or pressure sensors. The included M22 x 1.5 adapter allows fitment on various GM LSX vehicles and Ford V8 engines, including the 4.6L, 5.4L, and Coyote 5.0L.

Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb.

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact the customer experience team.

• High-flow sandwich plate constructed from CNC-machined billet 6061 aluminum
• Internal thermostat restricts oil flow until activation temperature is reached
• Compact design allows installation in tight engine bays
• Includes two 1/8-inch NPT ports for sensors

Specifications:

• Overall Height (in): 3.19
• Overall Length (in): 2.8
• Overall Width (in): 1.18

Kit comes with::

• Oil Sandwich Plate
• Rubber O-ring
• Built-in Thermostat
• Stainless Steel Sandwich Plate Adapter, M22 x 1.5
• Black 1/8-in NPT Plugs
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2008+ Chrysler/Dodge V8 Engines
• 1992+ Ford/Lincoln/Mercury 4.6L, 5.0L, 5.4L V8 Engines
• 1995+ Ford/Lincoln/Mercury 2.5L Engine
• 1995+ Ford/Lincoln/Mercury 3.0L (24V) Engine
• 1984-1987 Honda Civic / CRX
• 1986-1987 Acura Integra
• 1999+ Ford 6.8L V10 Engine
