MISHIMOTO MMOC-EVO-08 Oil Cooler for MITSUBISHI EVO X 2008+

Description MISHIMOTO MMOC-EVO-08 Oil Cooler for MITSUBISHI EVO X 2008+

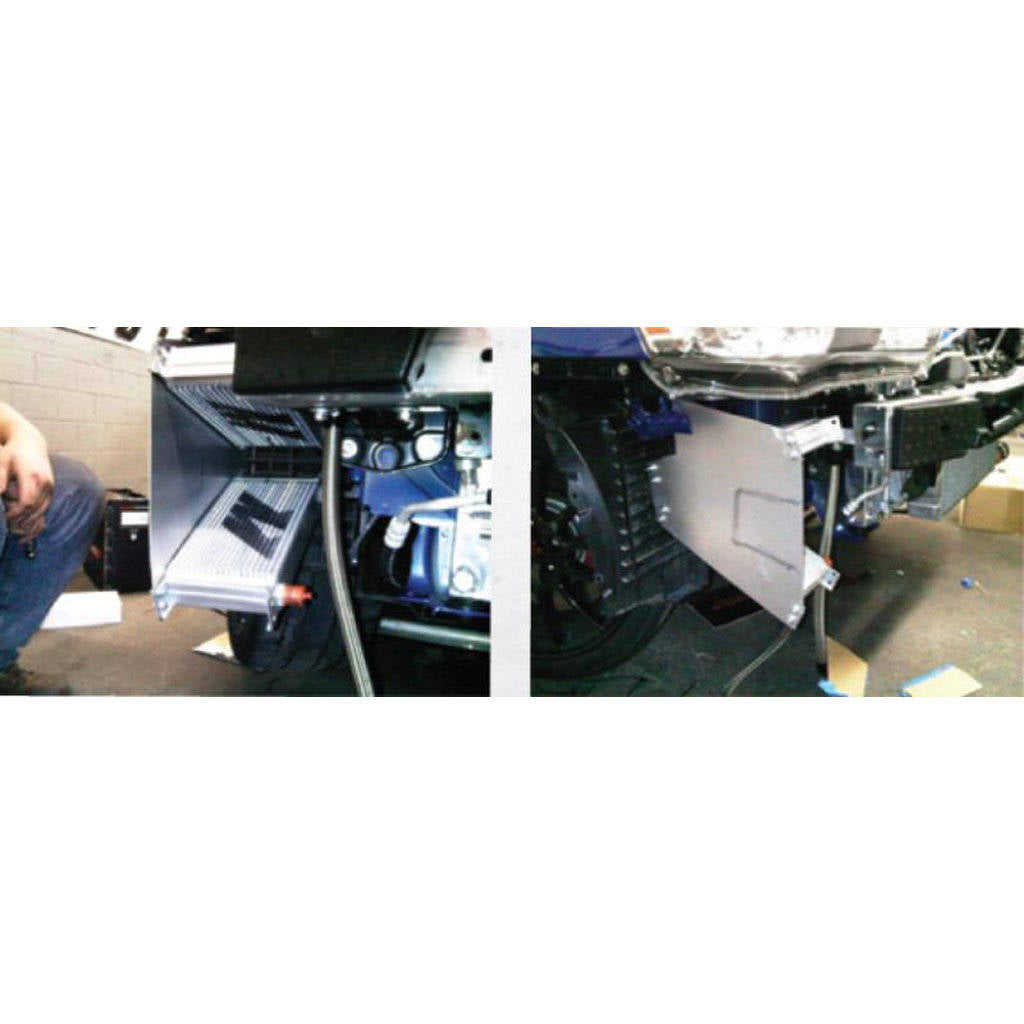

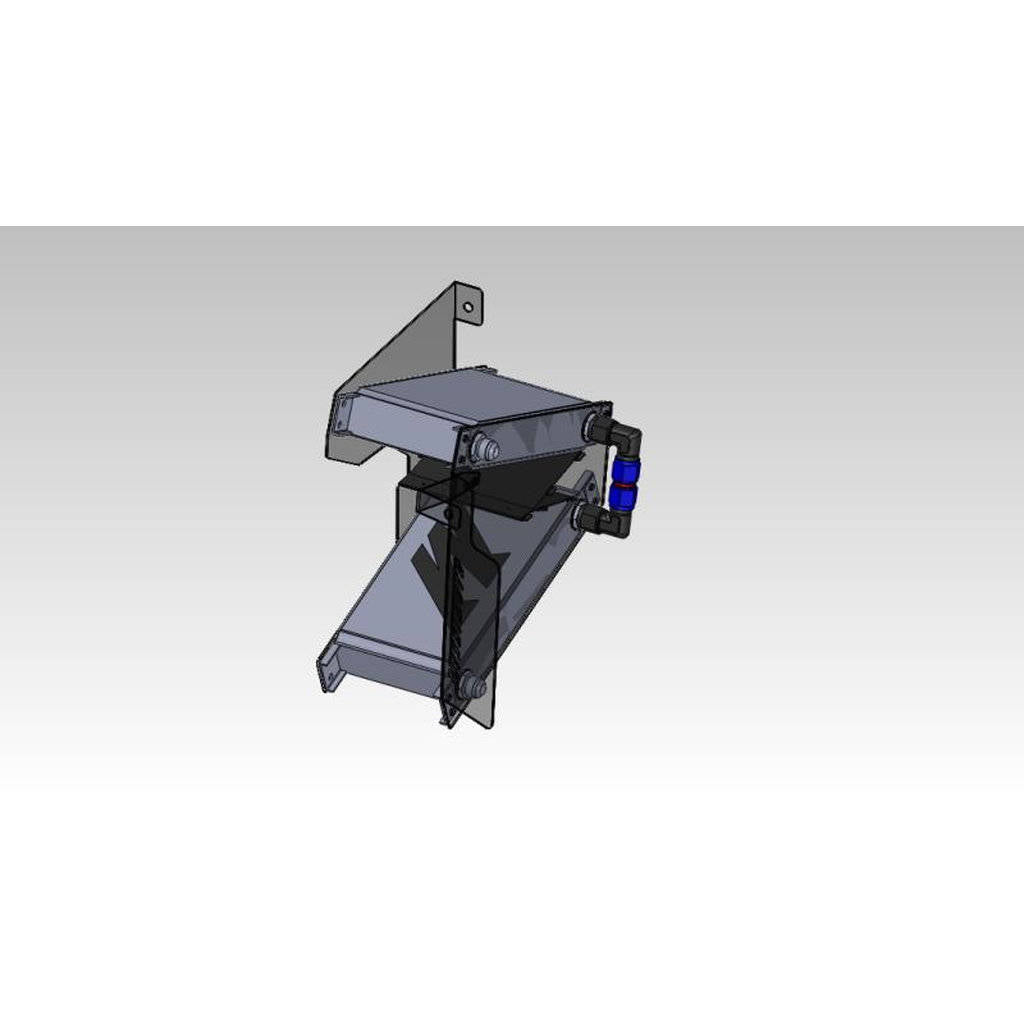

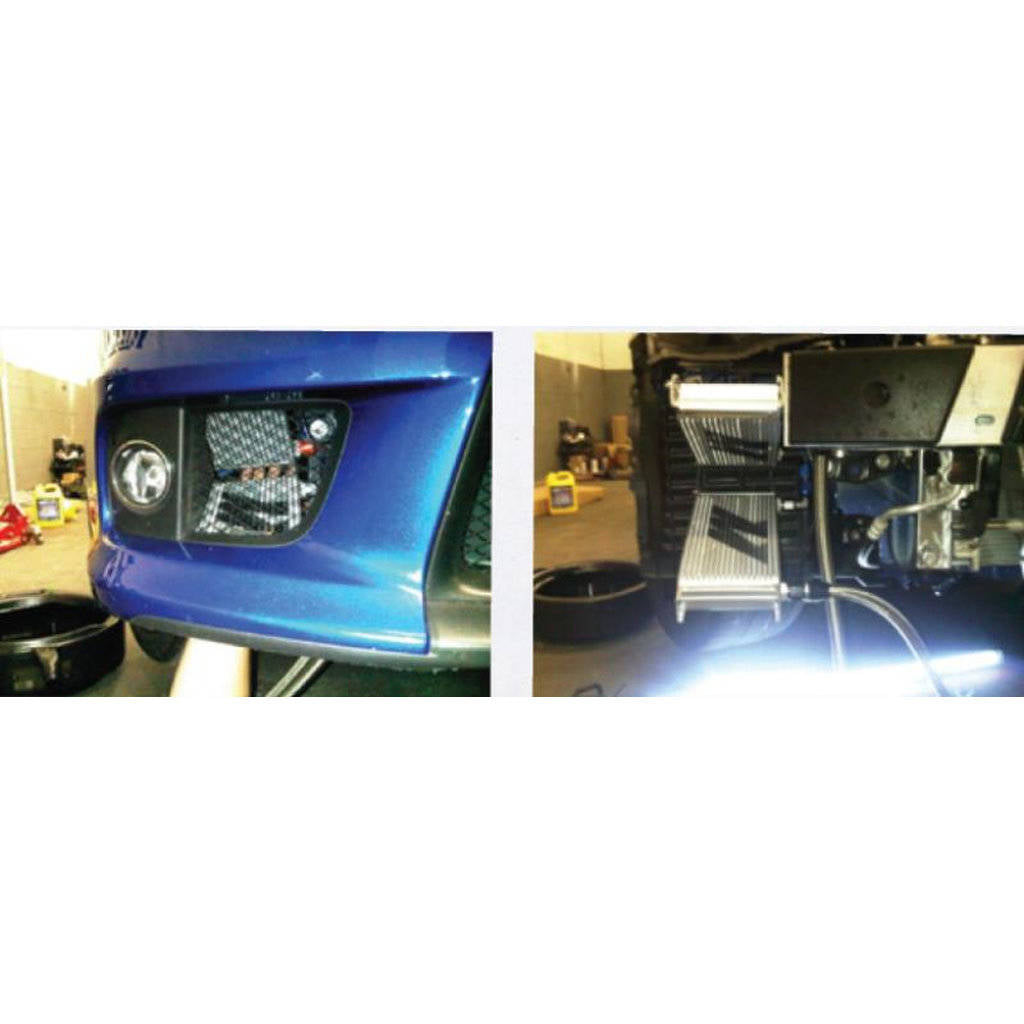

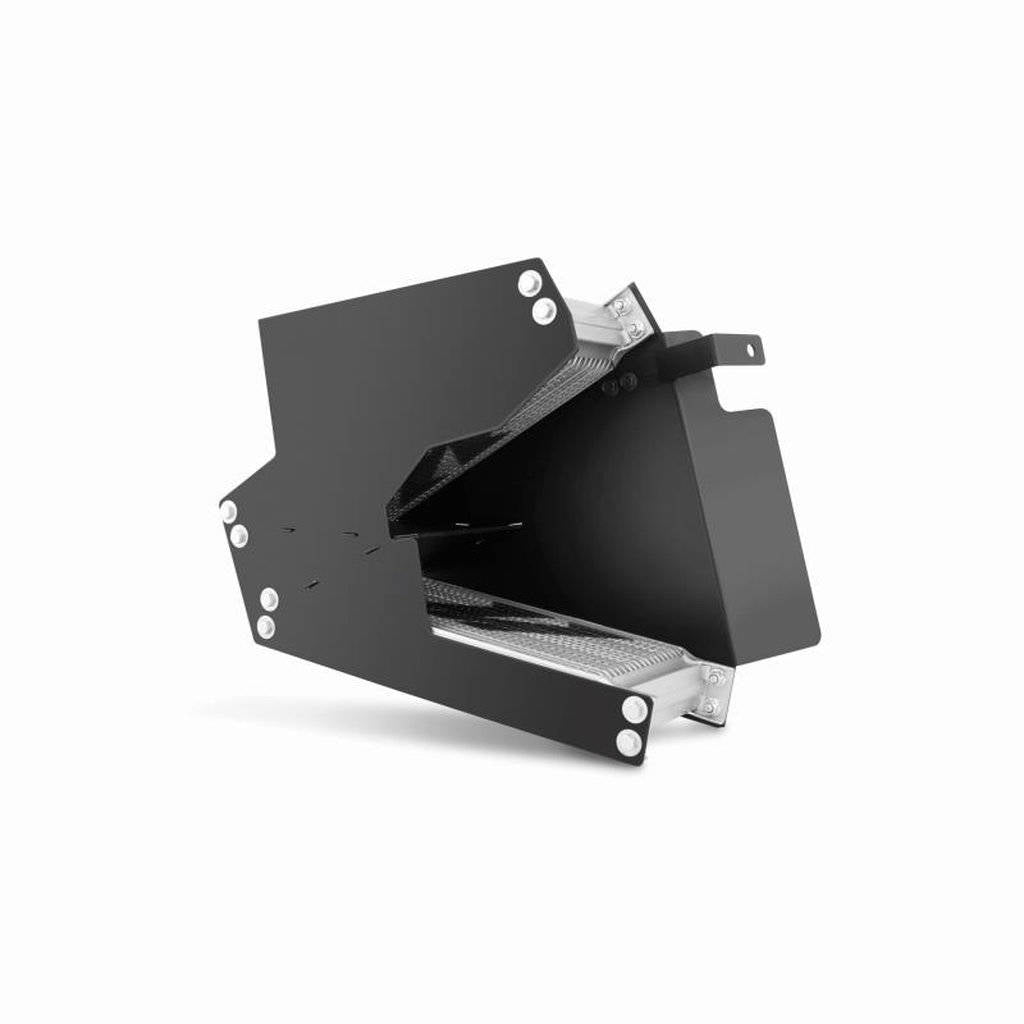

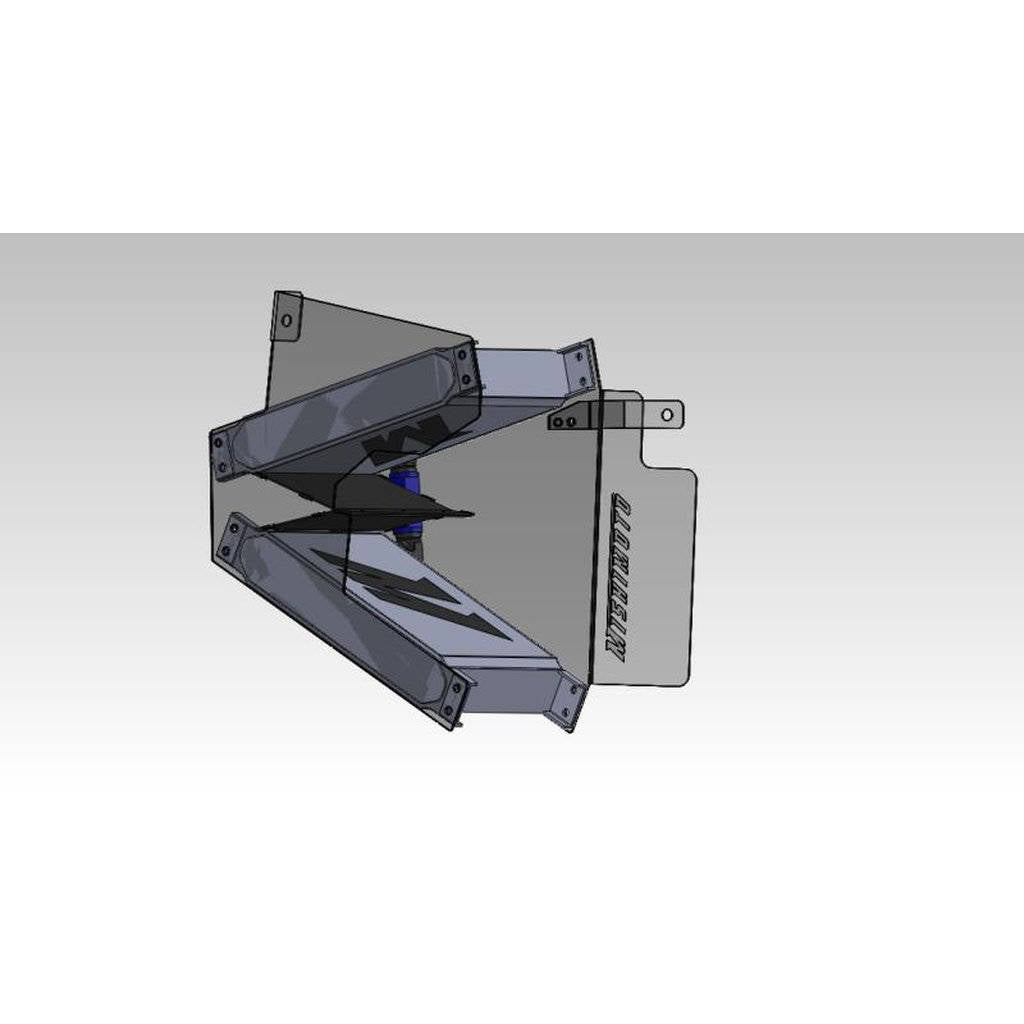

The Mishimoto 08+ Mitsubishi Evolution X Oil Cooler Kit is specifically designed for the Evo X. This kit features V-mounted dual oil coolers positioned behind the passenger side foglight, with a splitter engineered for optimal airflow.

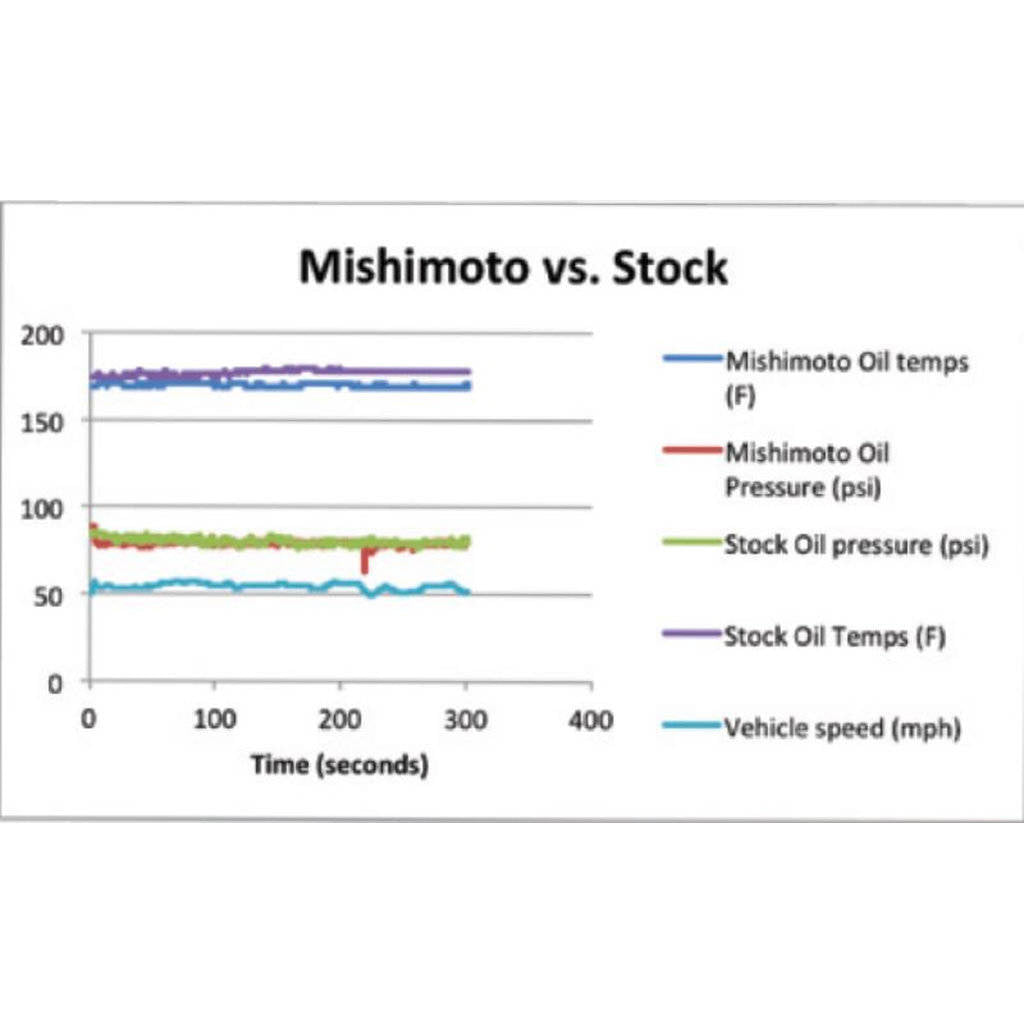

The Mishimoto Evolution X Oil Cooler Kit maintains optimal oil temperatures without any drop in pressure. The kit includes a lifetime warranty.

Installation Notes: Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ft. Do not exceed the maximum torque rating of 35 ft-lb.

Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to ensure they are fully tightened before operating the vehicle. Mishimoto recommends checking all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact the customer experience team.

Note: This intercooler is not compatible with JDM crash bars.

• V-mounted dual oil coolers for optimal airflow
• Maintains oil temperatures without pressure drop
• Application-specific mounting brackets included
• Lifetime warranty

Specifications:

• Rows: 19
• Core Length (in): 11
• Core Height (in): 5.43
• Core Thickness (in): 1.97
• Engine Codes: 4B11T
• Chassis Codes: CZ4A

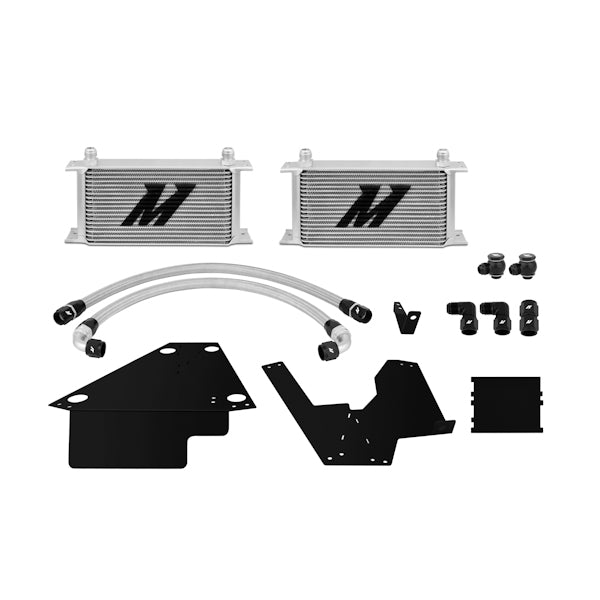

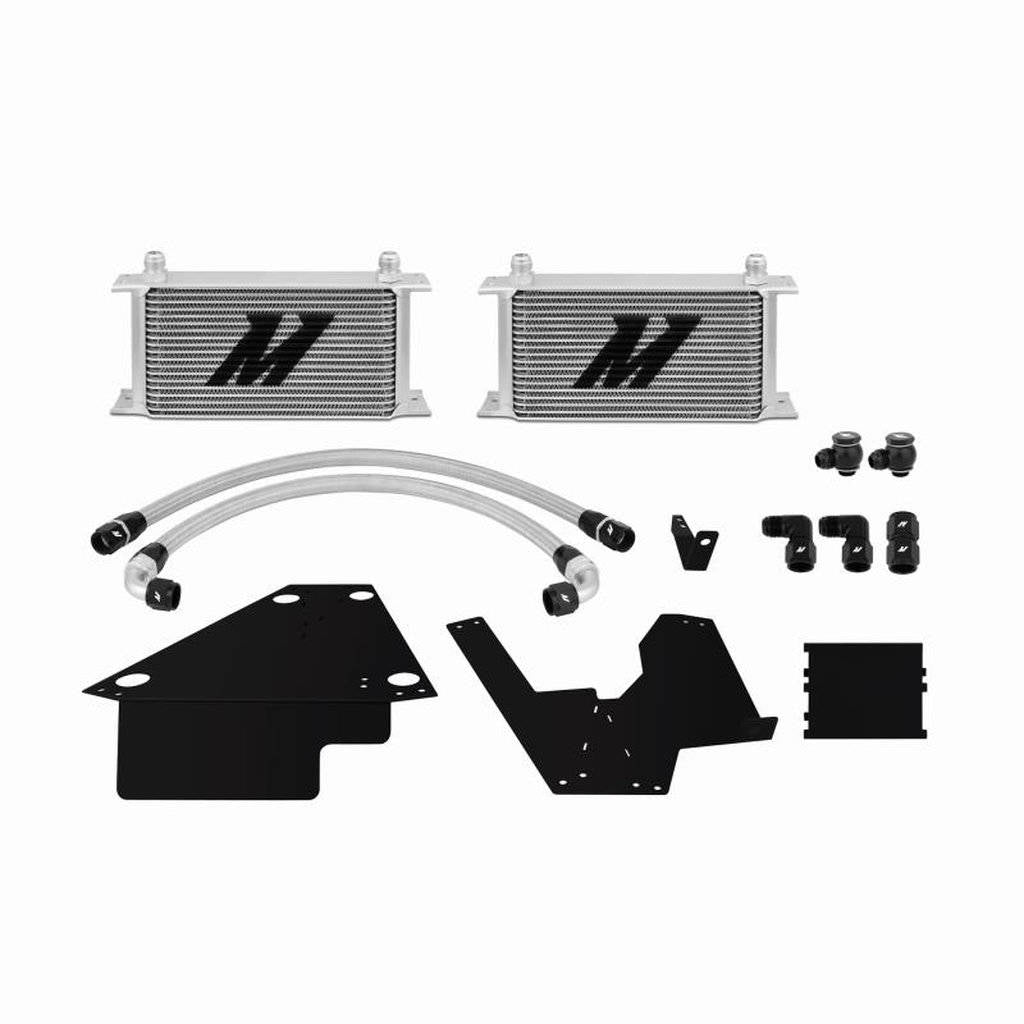

Kit comes with::

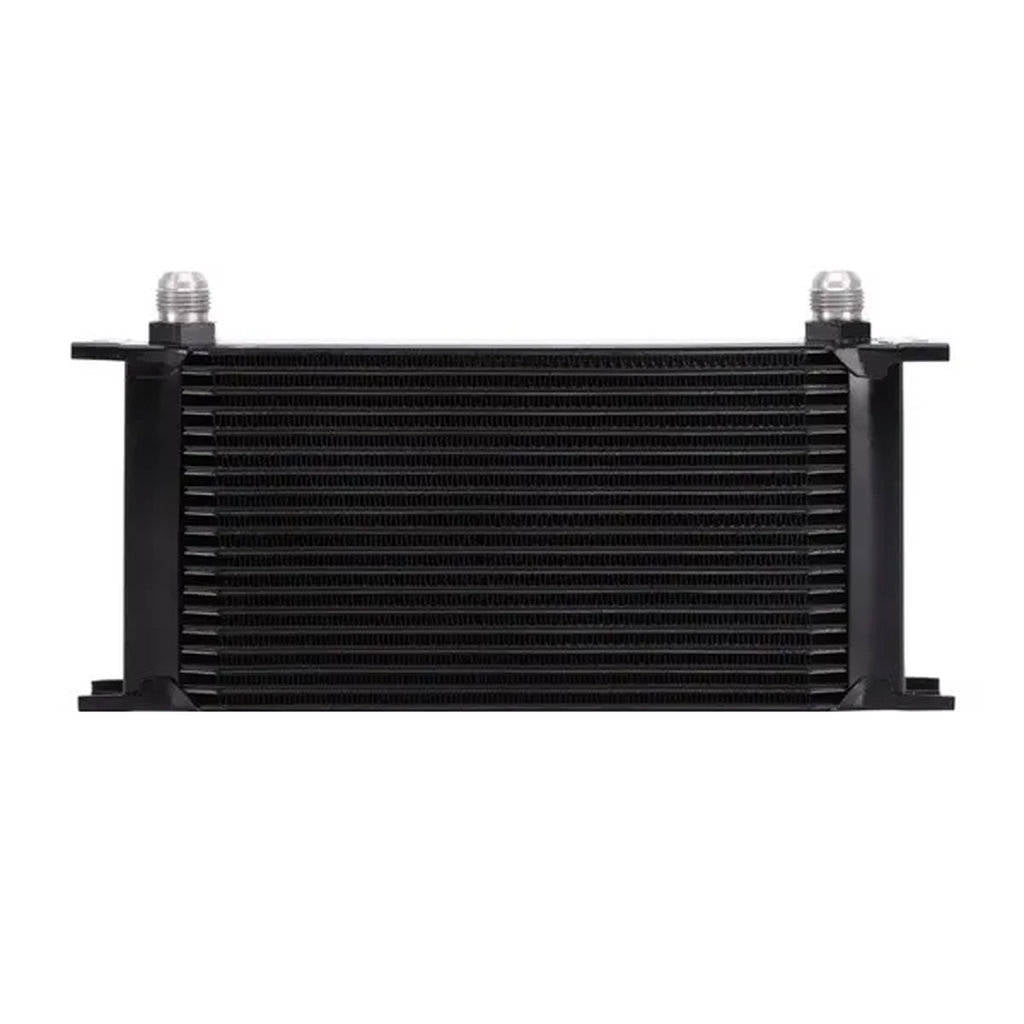

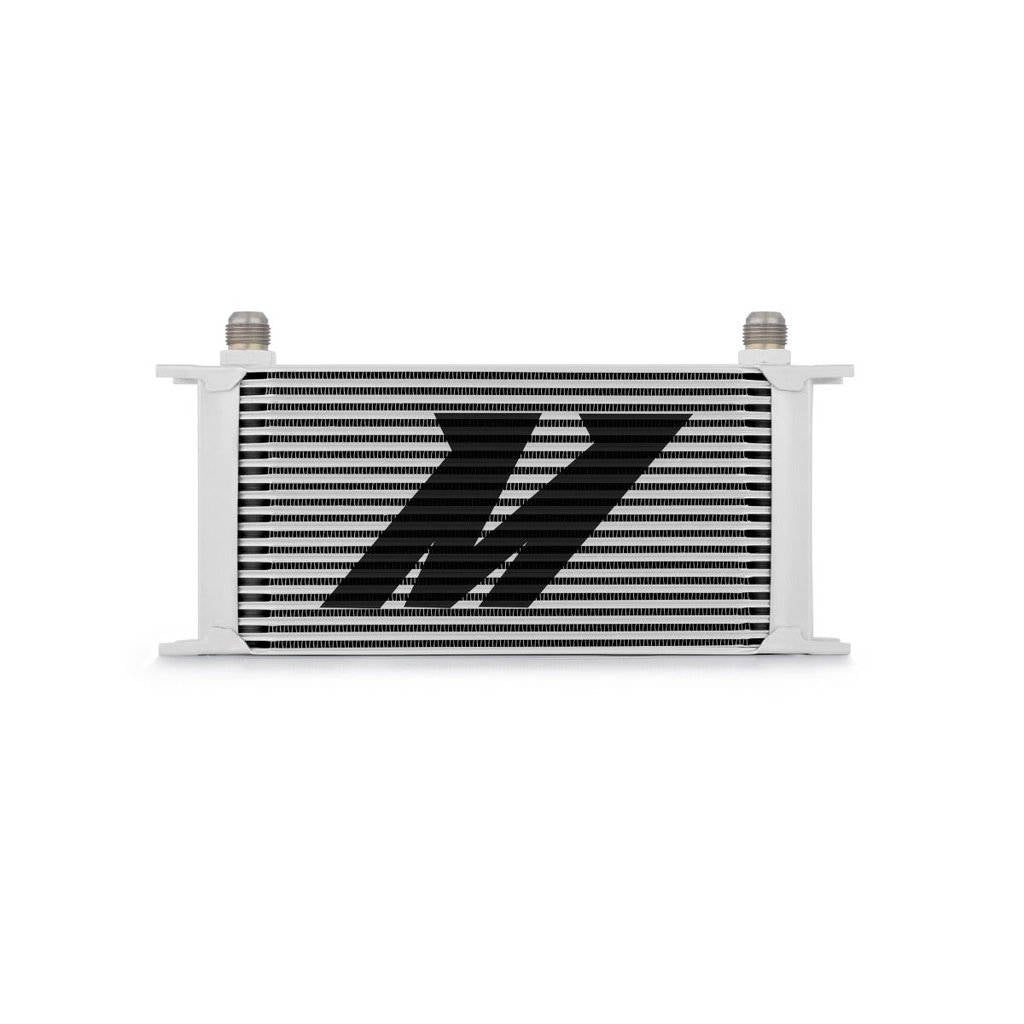

• 19-Row Oil Cooler

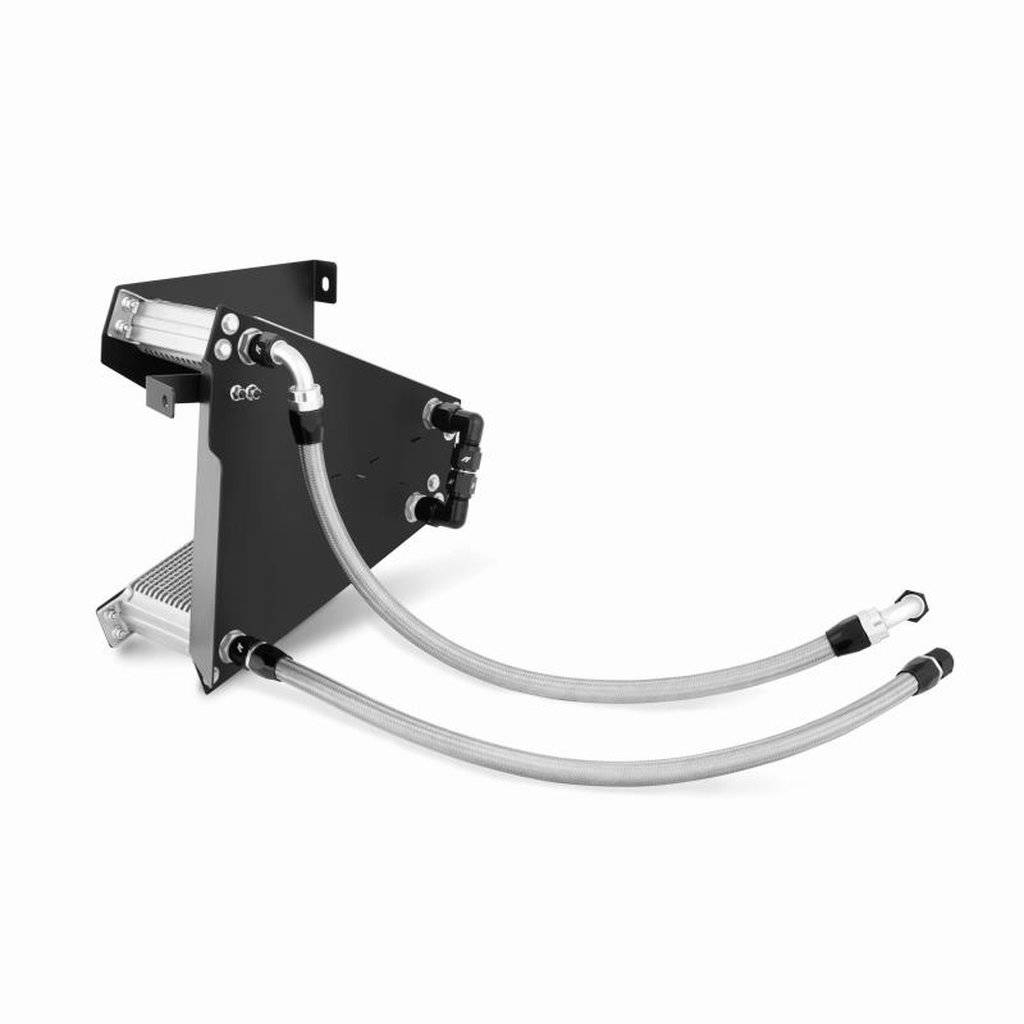

• 2ft Stainless Steel Braided Hose with -10AN Fittings
• 2ft 1.5in Stainless Steel Braided Hose with -10AN Fittings

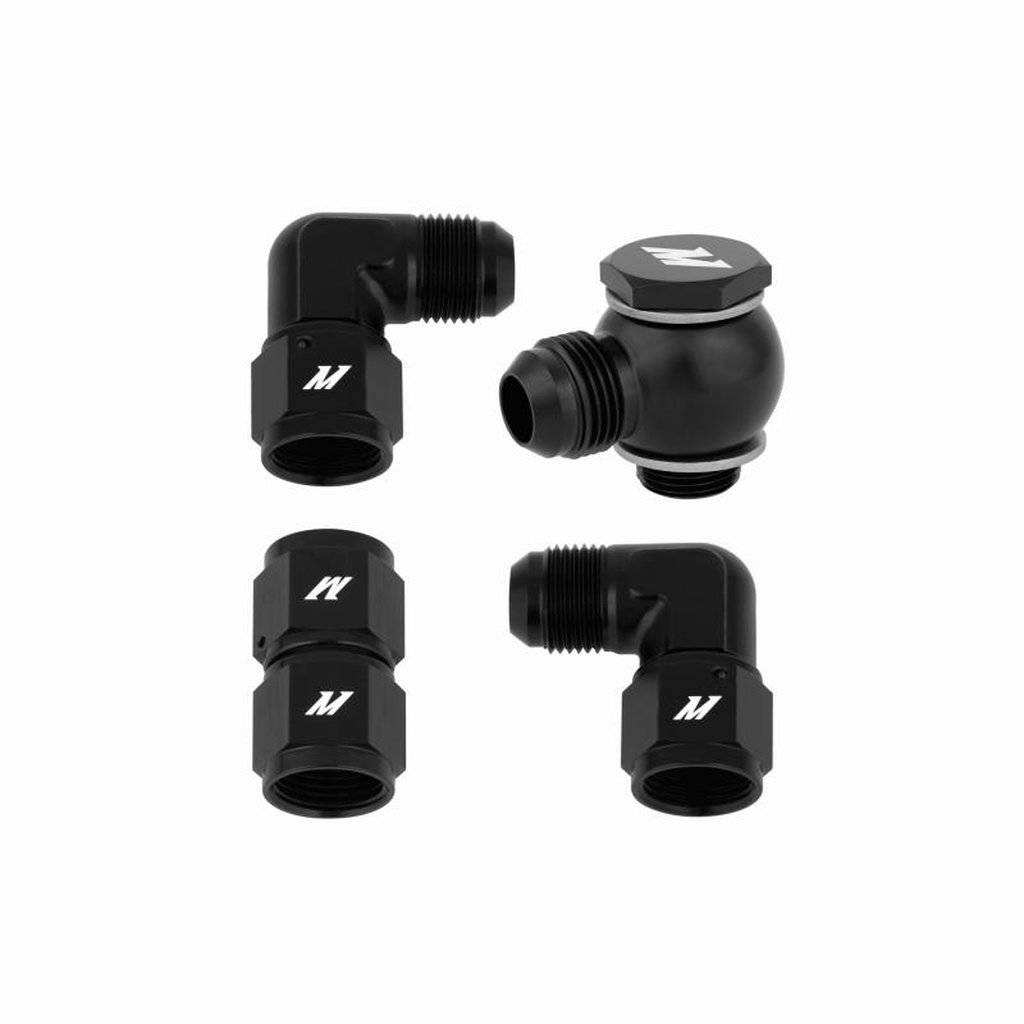

• 90 -10AN Female to Male Swivel Adapter
• Straight -10AN Female to Female Adapter
• Banjo Fitting with Bolt M18 x -10AN, Black

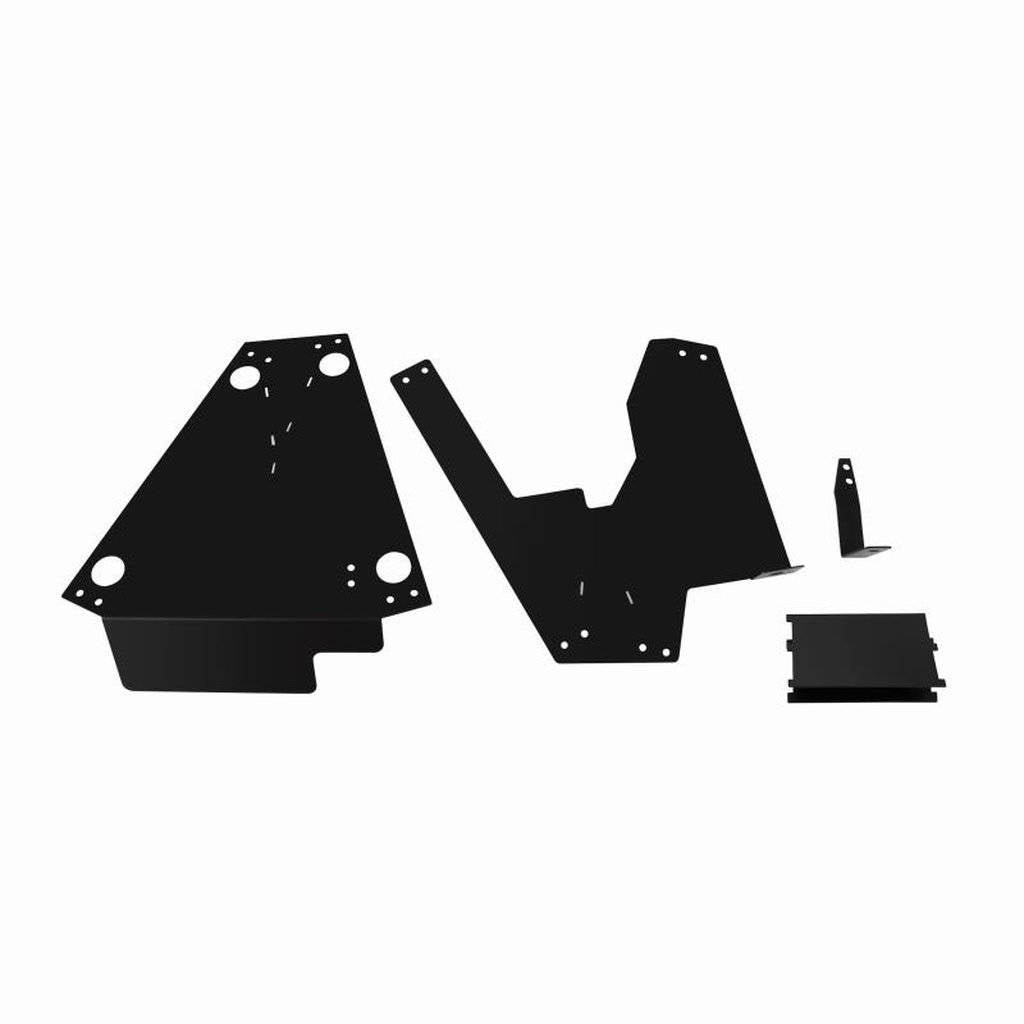

• Mounting Hardware Set
• Mishimoto Lifetime Warranty
