MISHIMOTO MMINT-RAM-13KBK DODGE 6.7L Cummins Intercooler Kit, 2013+, Black

Description MISHIMOTO MMINT-RAM-13KBK DODGE 6.7L Cummins Intercooler Kit, 2013+, Black

Mishimoto offers a performance intercooler kit for the 2013-2018 Dodge Ram 6.7L Cummins. This kit is designed to improve airflow, reduce charge-air temperatures, and support the truck at any power level.

The kit features the Mishimoto 6.7L Cummins intercooler piping kit, which eliminates restrictive bends for smooth airflow. The piping is made from mandrel-bent 3\" aluminum for durability and optimal flow. Mishimoto silicone boots with DuraCore technology and Constant Tension T-Bolt Clamps are included for consistent holding force. DuraCore technology provides enhanced resistance to heat, pressure, fuel, and oil, increasing boot lifespan and preventing leaks or blowouts.

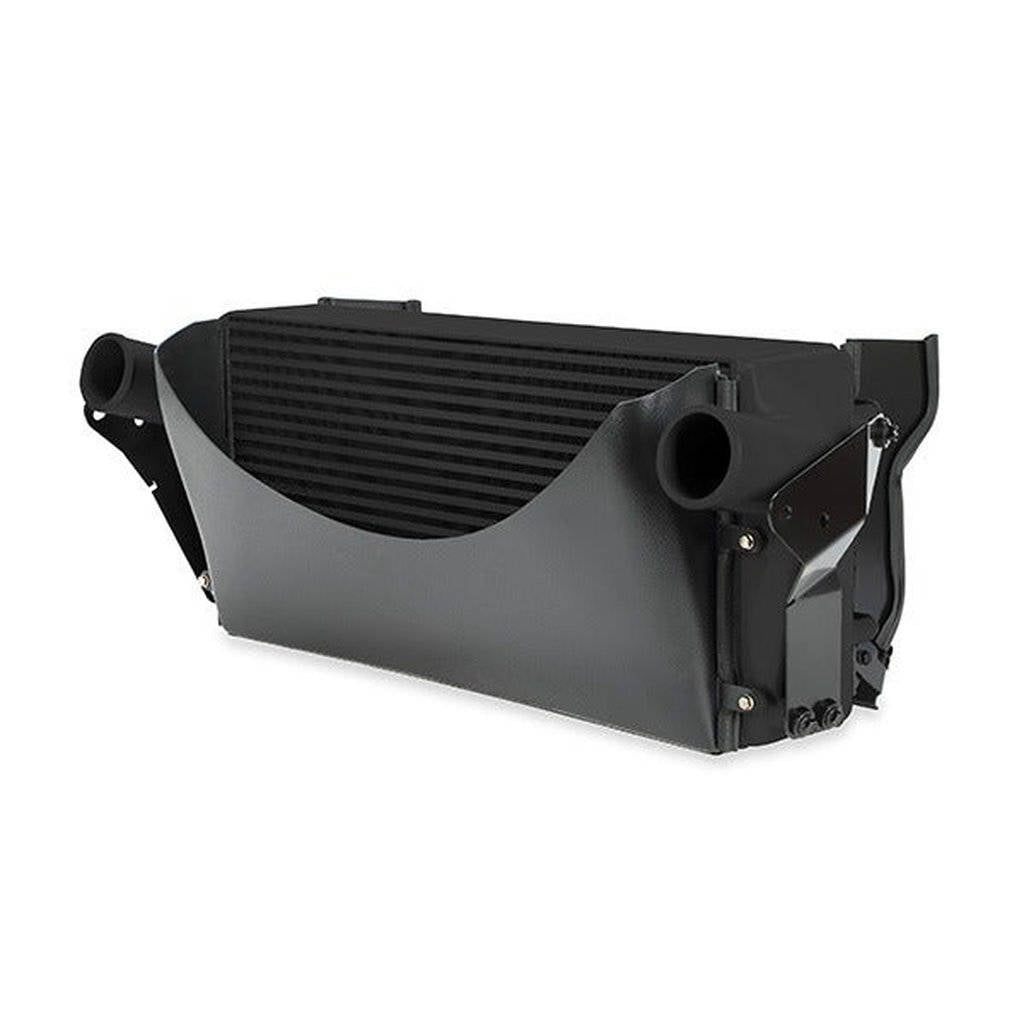

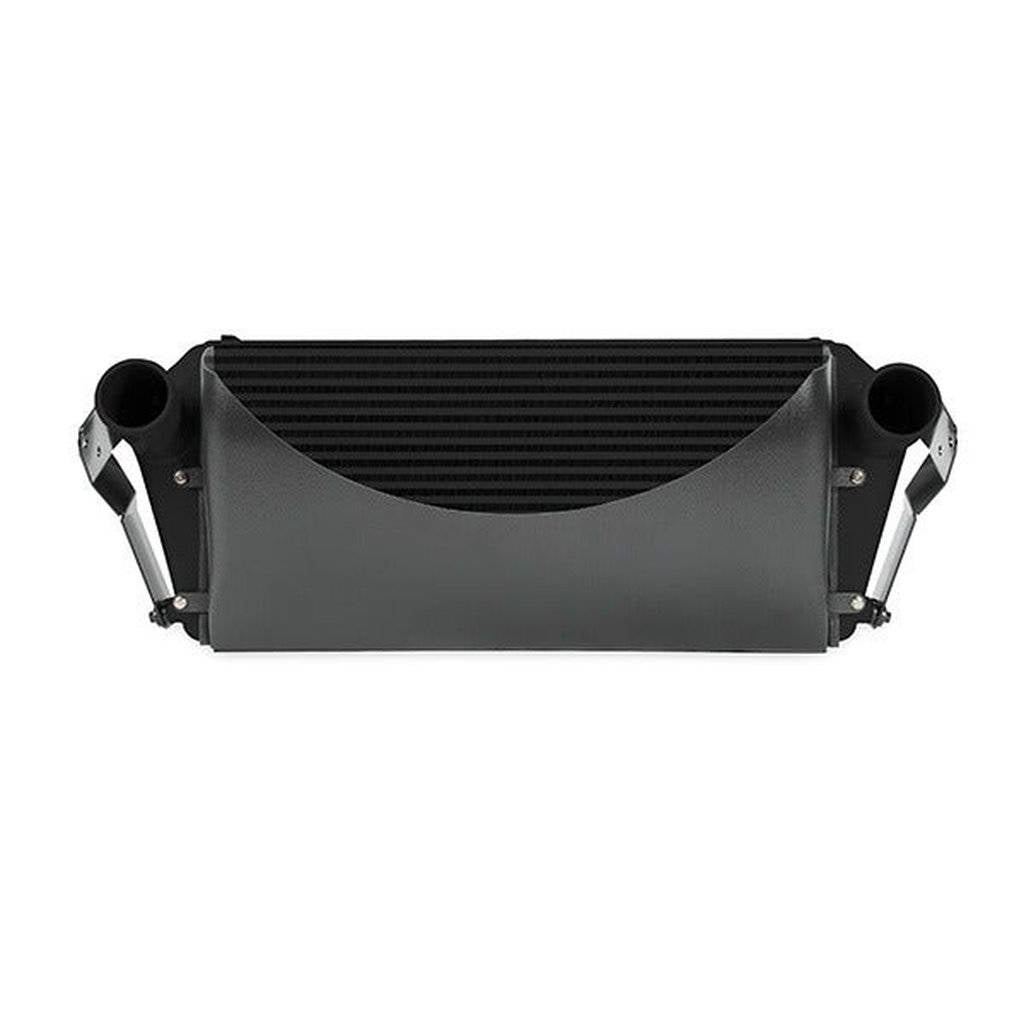

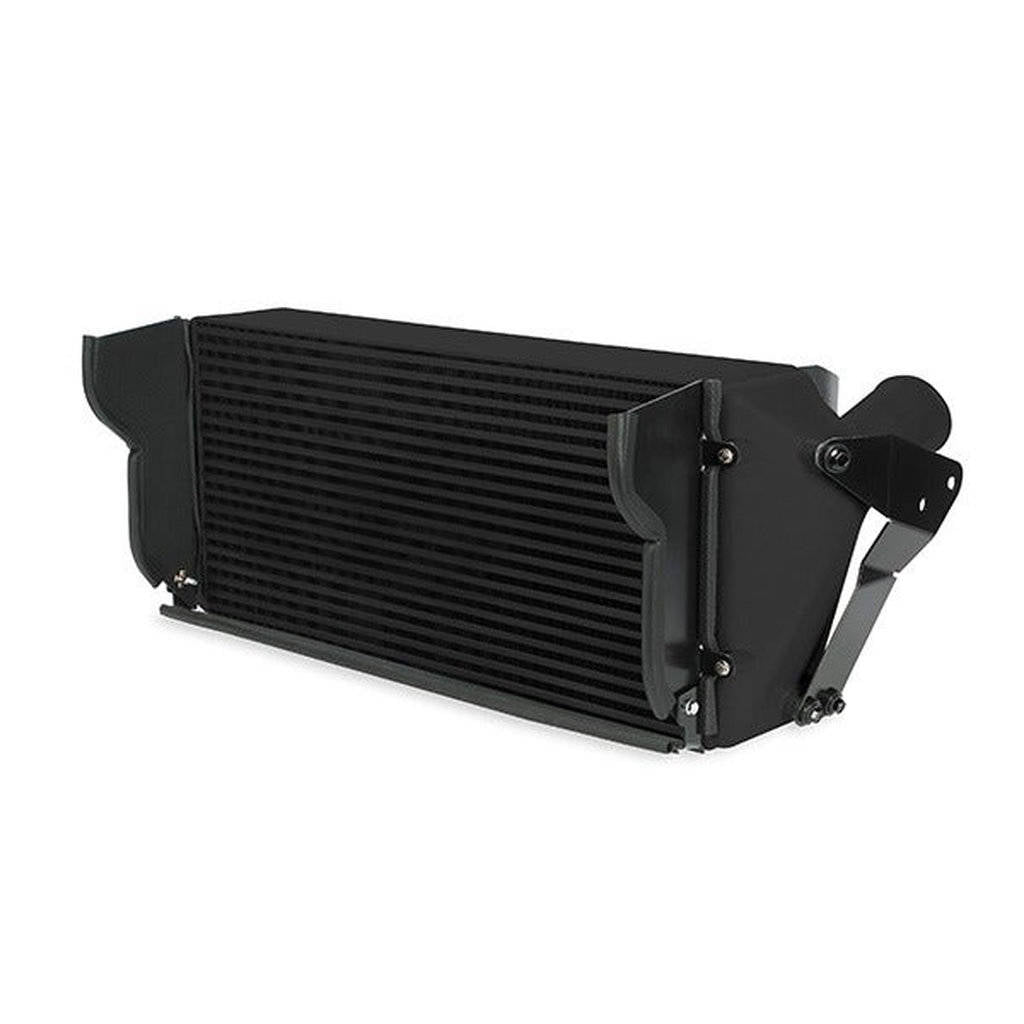

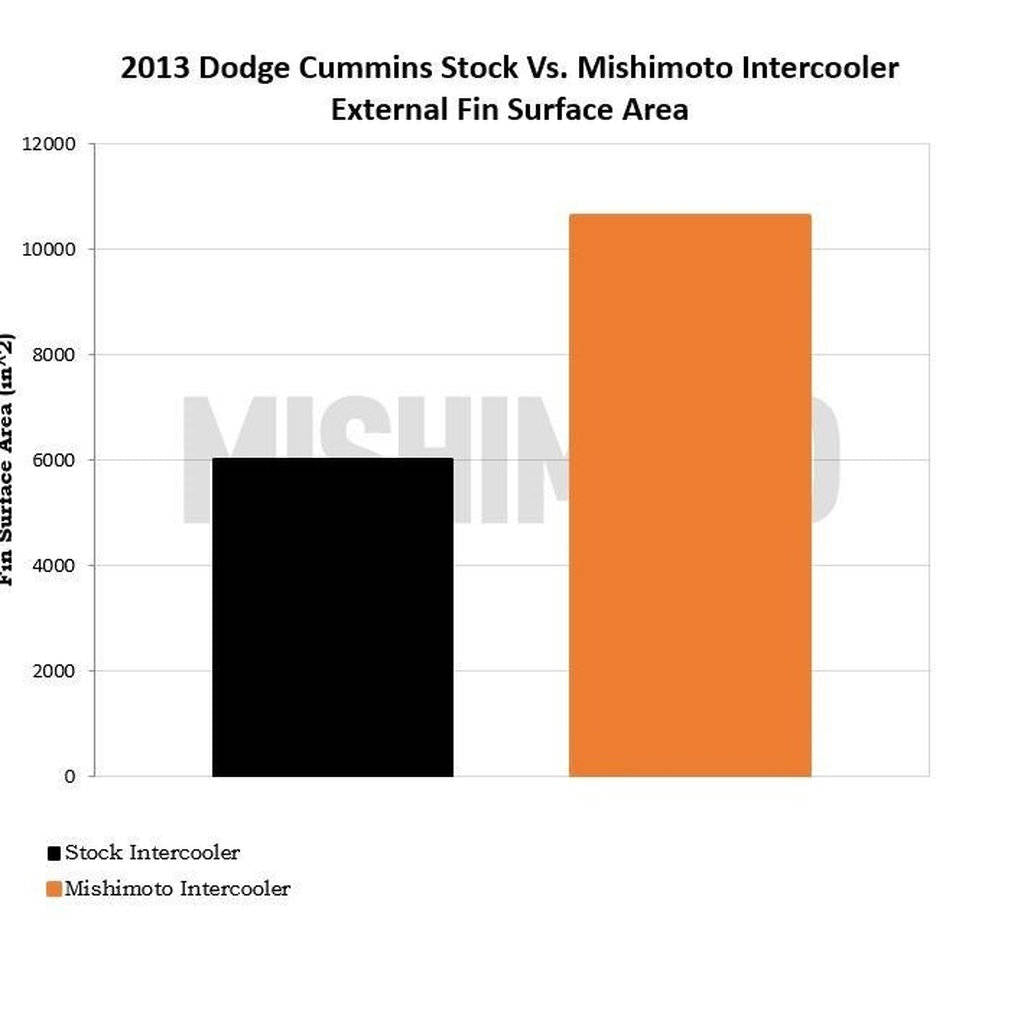

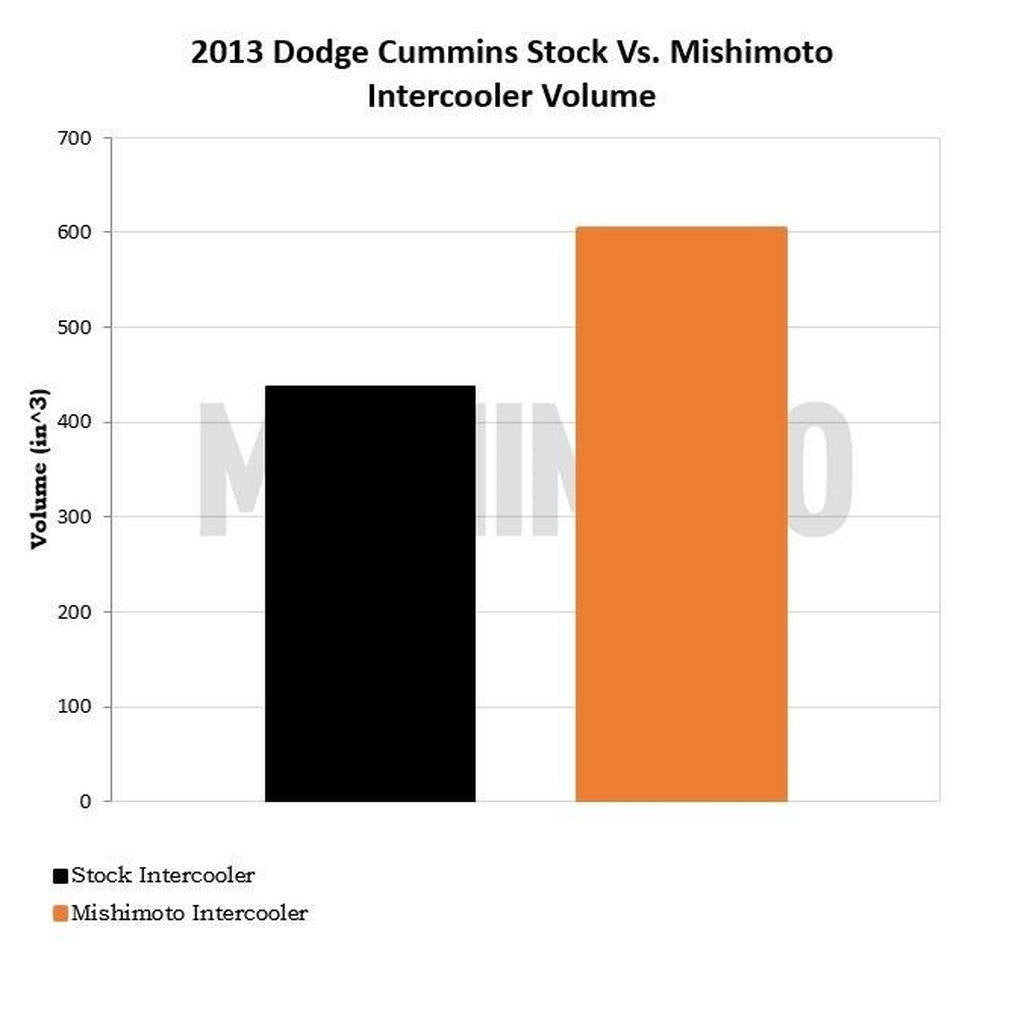

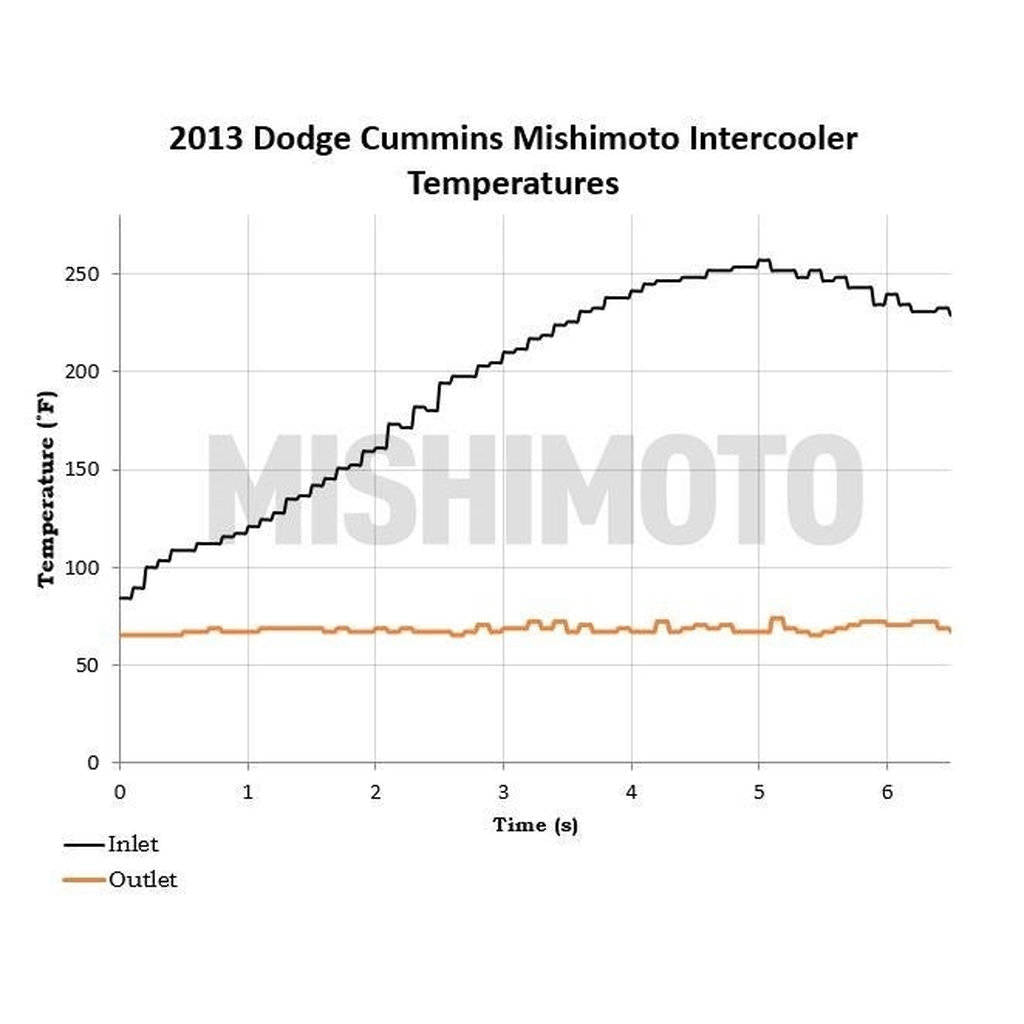

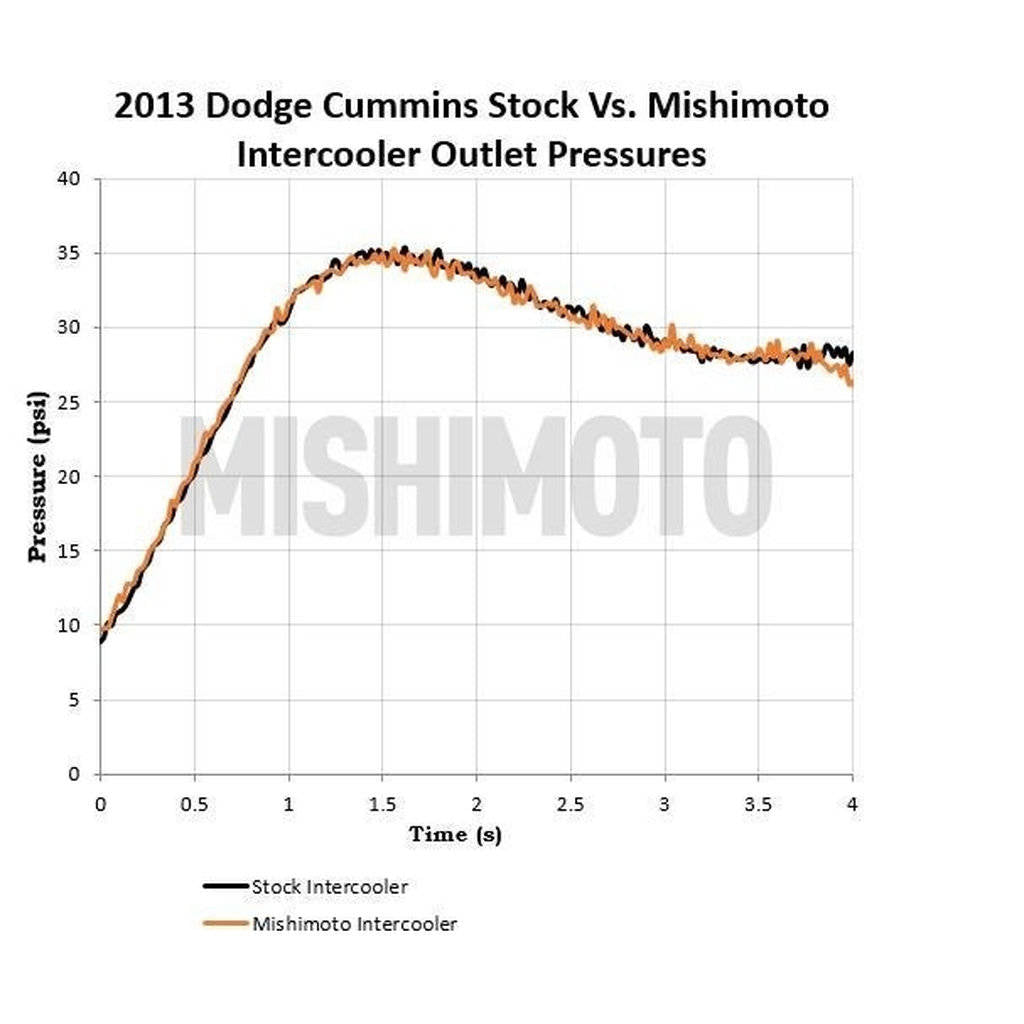

The package also includes the Mishimoto intercooler with cast aluminum end tanks and a bar-and-plate core, offering a 76.65% increase in external fin surface area and a 37.8% larger core. This results in a 12.5% reduction in intake air temperatures. The kit is available with a Sleek Silver or Stealth Black core and is covered by the Mishimoto Lifetime Warranty.

Installation Notes: 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).

Note: Vehicles with snowplow mounts installed may require trimming of the mounts to fit this intercooler.

• Mandrel-bent 3\" aluminum piping for smooth airflow and durability
• Silicone boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil

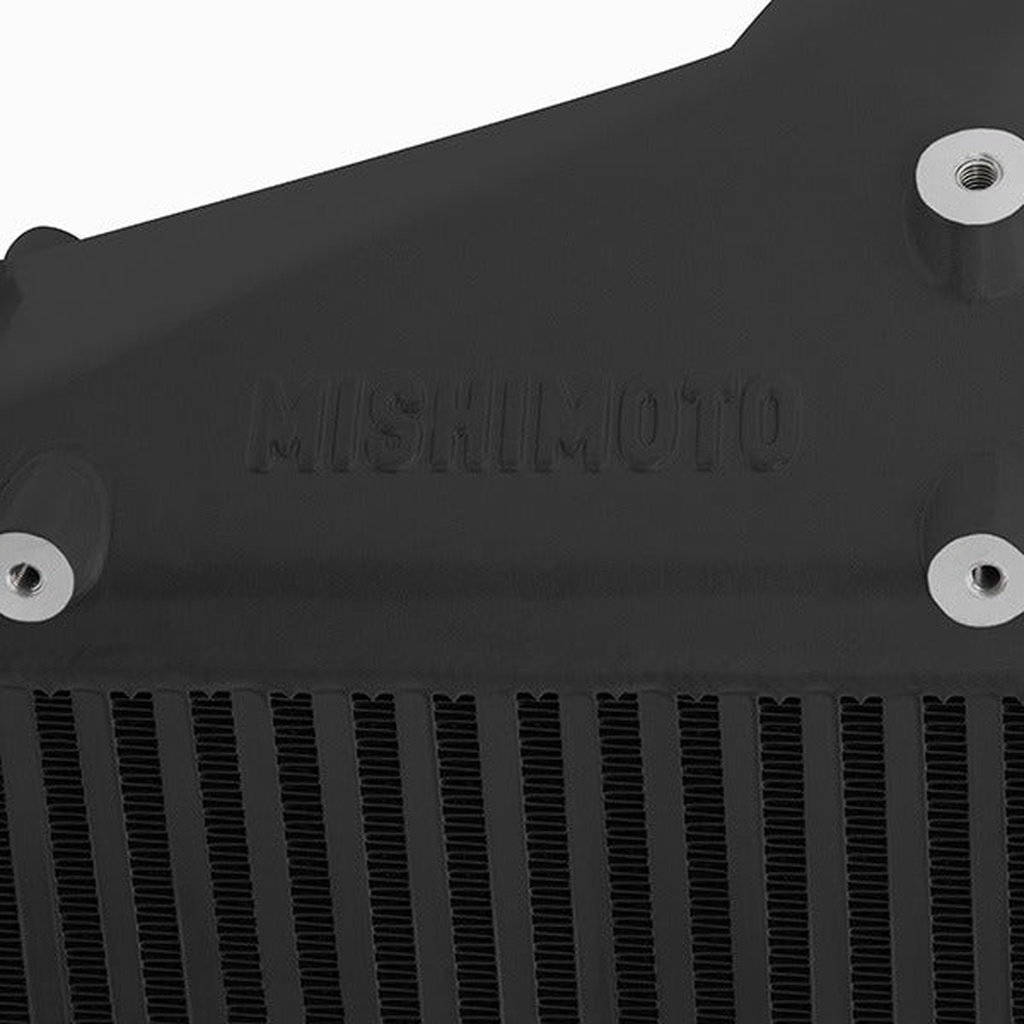

• Bar-and-plate intercooler core with cast aluminum end tanks
• Proven 12.5% reduction in intake air temperatures

Specifications:

• Overall Length (in): 33
• Overall Height (in): 12.5
• Overall Width (in): 10
• Core Length (in): 25.7
• Core Height (in): 12.5
• Inlet (in): 3
• Outlet (in): 3

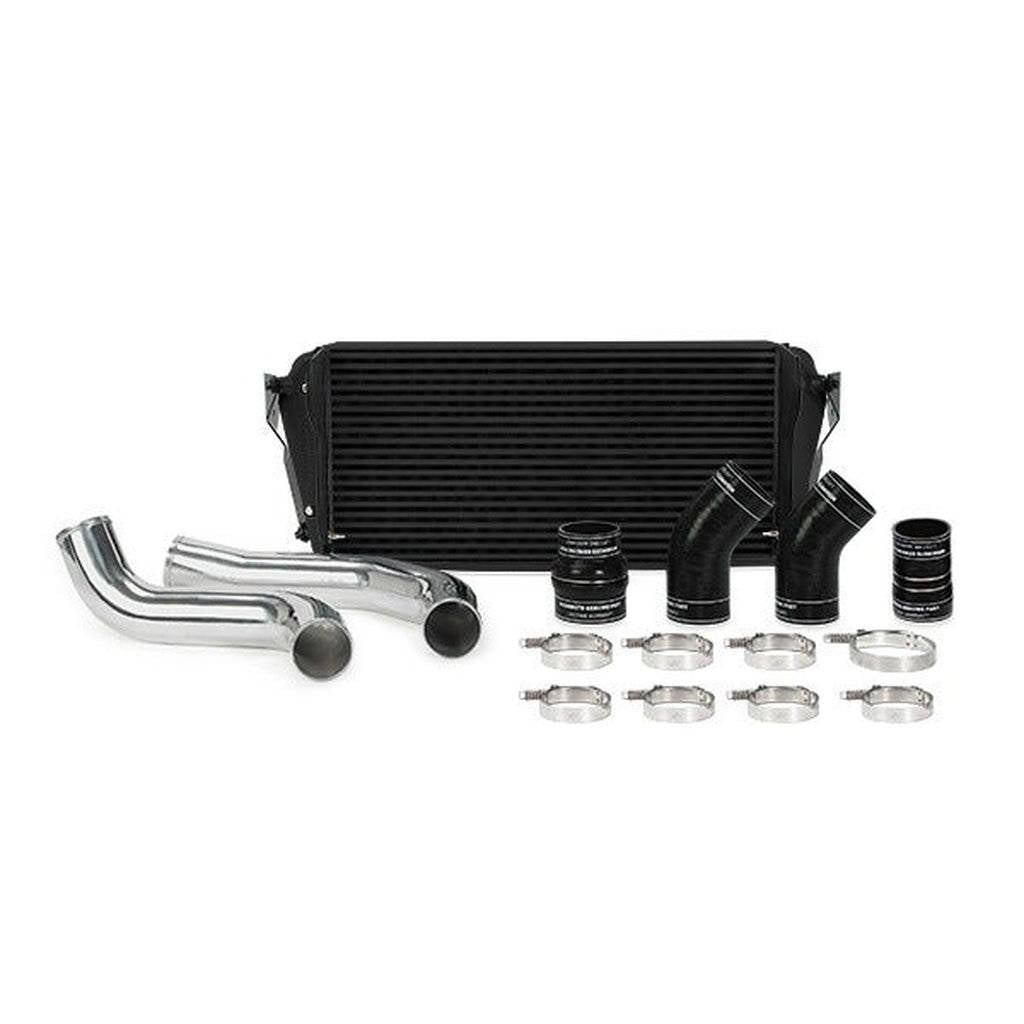

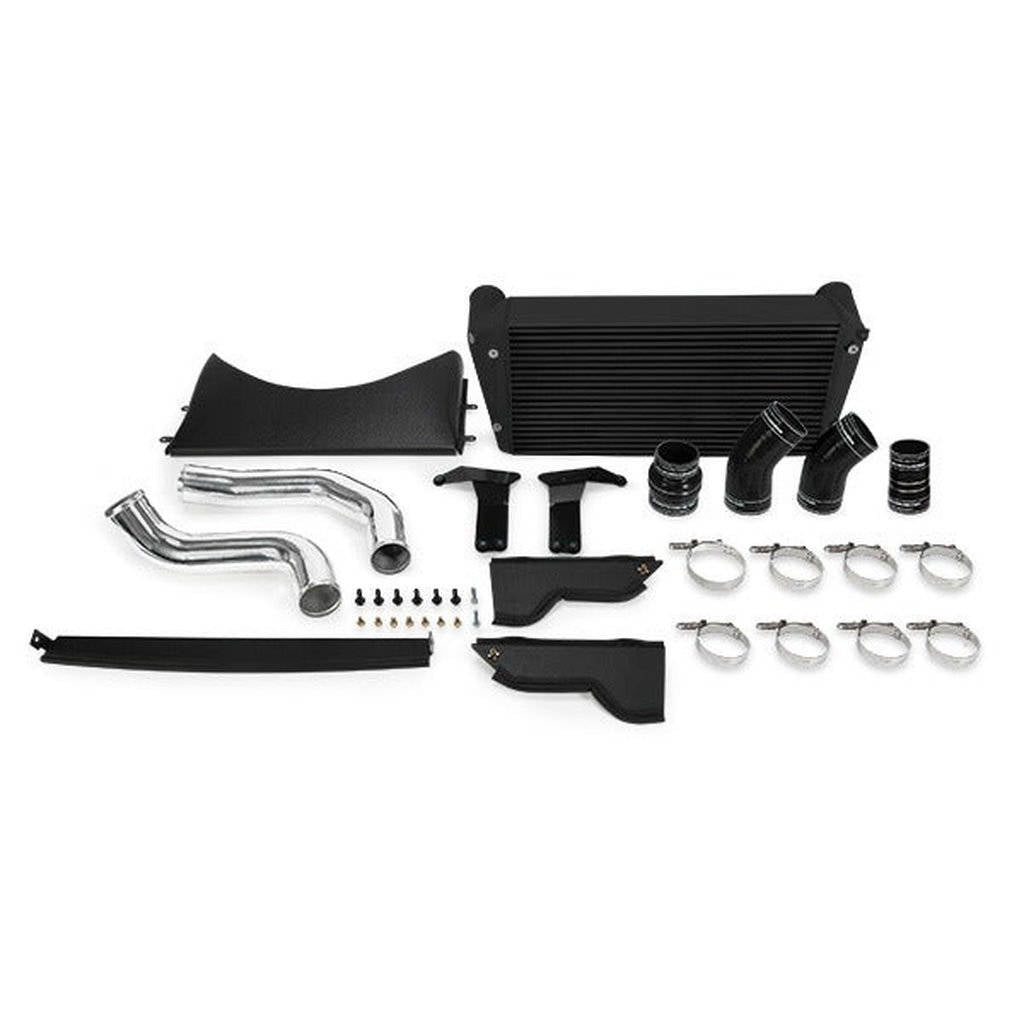

Kit comes with::

• Mishimoto Intercooler
• 3 Front Air Diversion Panels
• Replacement Lower Fan Shroud
• 2 Mounting Brackets with Rubber Isolators
• 2 Aluminum Pipes
• 4 Silicone Boots with Duracore Technology
• 8 Constant-Tension T-Bolt Clamps

Vehicle Compatibility:

• 2013-2018 Dodge Ram 6.7L Cummins
