MISHIMOTO MMINT-G80-21BK Performance Intercooler, Black for BMW G80 M3/ M4 2021

Description MISHIMOTO MMINT-G80-21BK Performance Intercooler, Black for BMW G80 M3/ M4 2021

The S58 engine in the 2021+ G80 M3 builds on over 45 years of M3 heritage. Like previous generations, the G80 M3 offers significant power potential, but increased power demands improved cooling. Mishimoto has developed a charge air cooler manifold designed for high-performance applications.

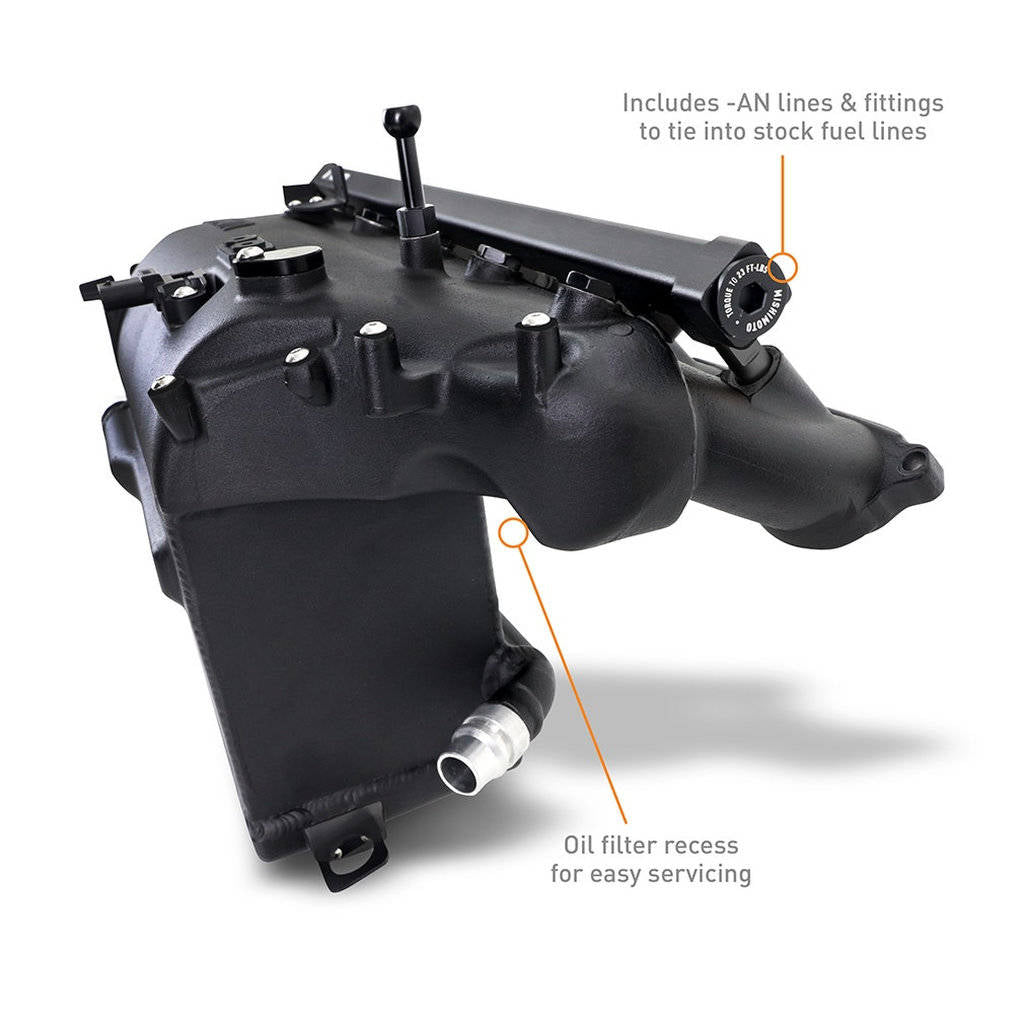

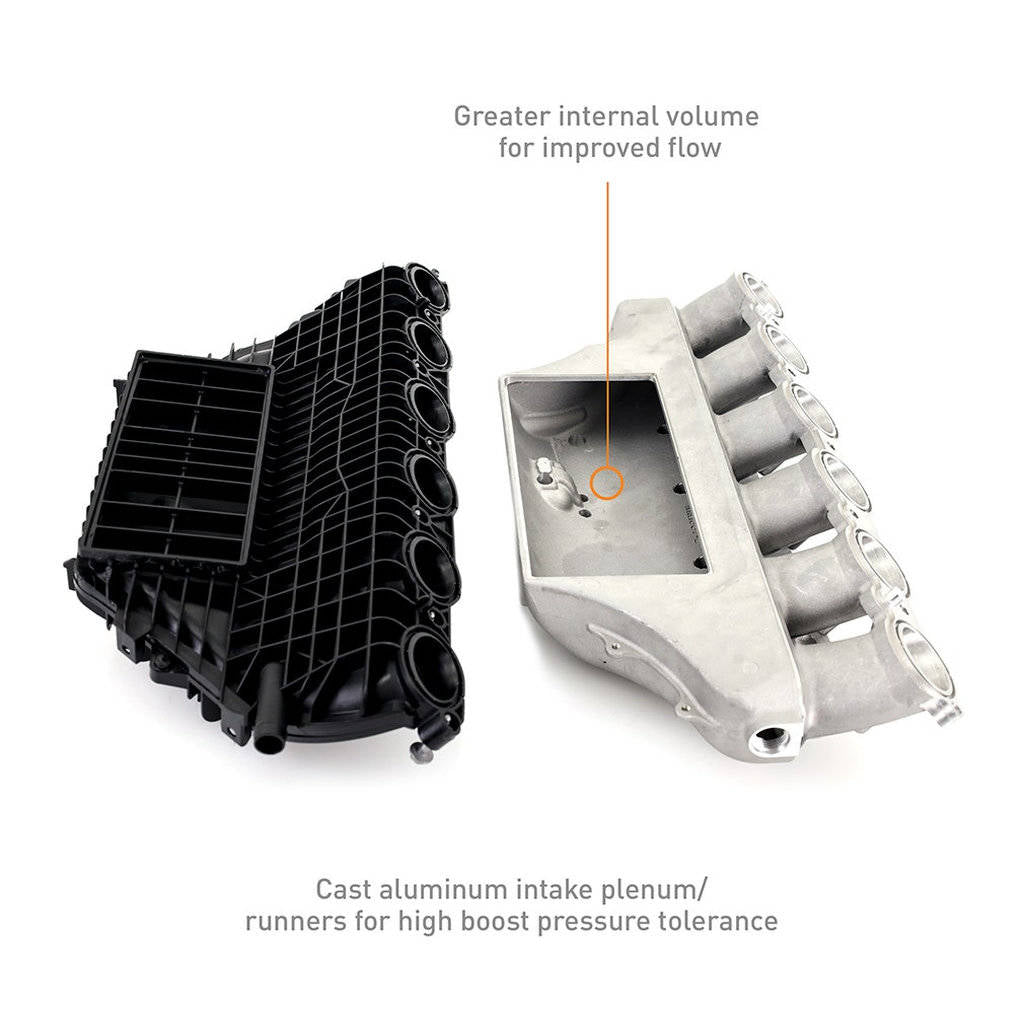

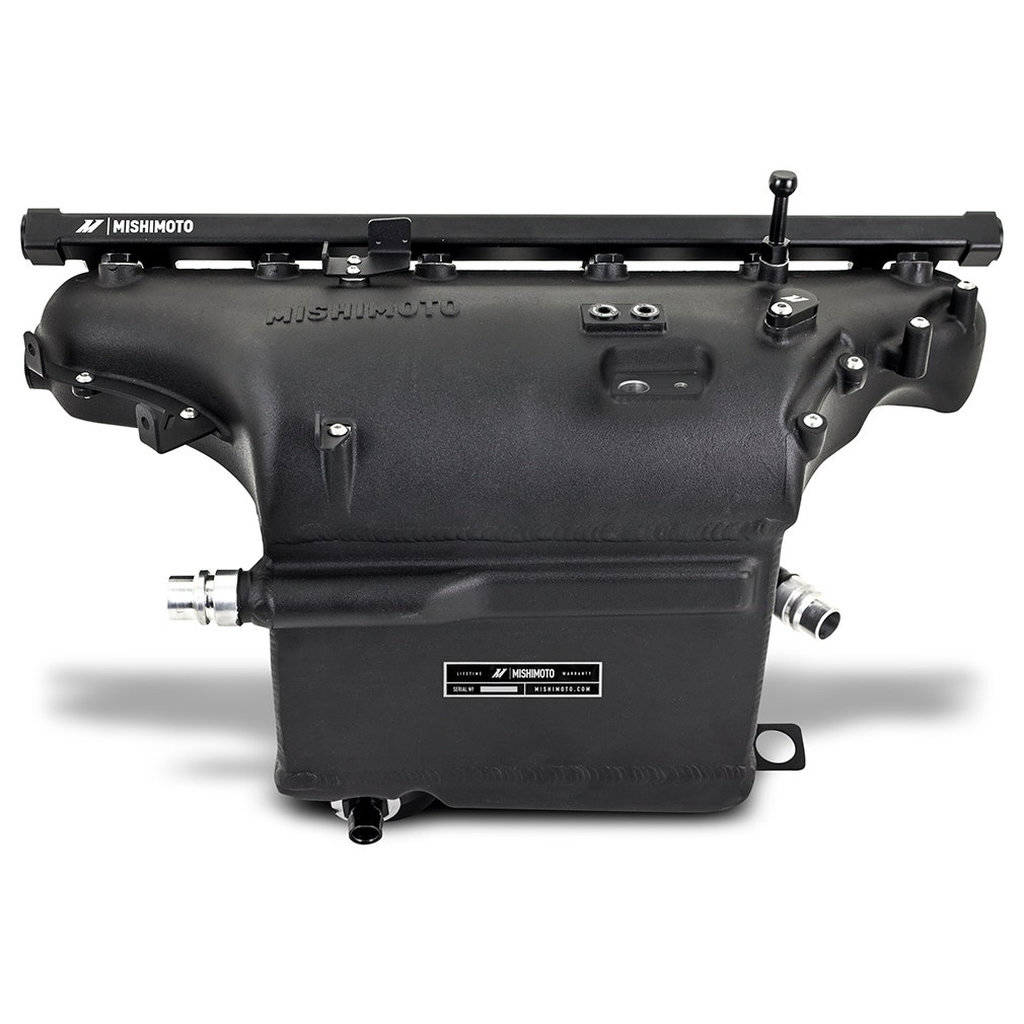

The factory G80 M3 charge air cooler combines an intercooler and intake manifold, but its tube-and-fin core crimped to a thermoplastic plenum is a known weak point, often failing with only 3 lbs. of additional boost. Mishimoto addresses this with a cast aluminum, TIG-welded manifold featuring a robust bar-and-plate core, engineered to handle boost pressures over 60 PSI.

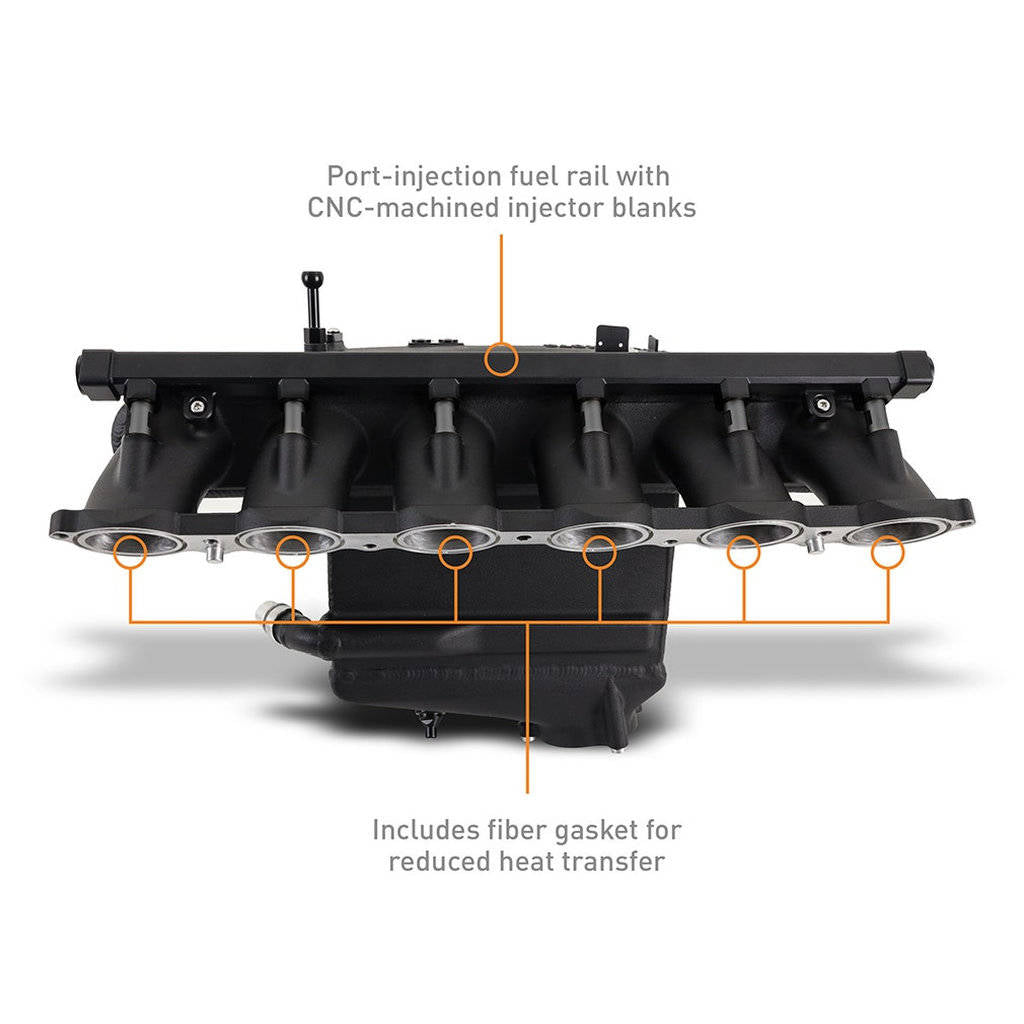

The Mishimoto charge air cooler offers a 33% larger core than stock and improves manifold flow by an average of 14% to each cylinder. The increased cooling capacity and optimized flow result in reduced pressure drop and intake air temperatures as low as 11 degrees above ambient under heavy load. The CFD-designed lower plenum includes an internal diverter for even flow distribution, and the cast, CNC-machined runners accept factory seals. A fiber gasket is included to insulate the runners from engine heat.

Note: Use of the included fuel rail is optional and for race-use only. The fuel rail has a tamper-proof sticker and may be removed only if the vehicle will no longer be used on the street or highway. Check local emissions regulations before removing.

• Cast aluminum and TIG-welded manifold with bar-and-plate core
• Core is 33% larger than stock and flows 14% better to each cylinder
• Designed to withstand boost pressures over 60 PSI
• CFD-designed lower plenum with internal diverter for even flow

Specifications:

• Engine Codes: S58B30
• Chassis Codes: G80, G82, G83, F97, F98
• Maximum Recommended Boost Pressure (PSI): 60
• Maximum Recommended Horsepower: 1150
• Overall Length (in): 11.5
• Overall Height (in): 13.1
• Overall Width (in): 21
• Core Type: Bar-and-Plate
• Core Thickness (in): 4.9
• Core Length (in): 9.8
• Core Height (in): 6.3

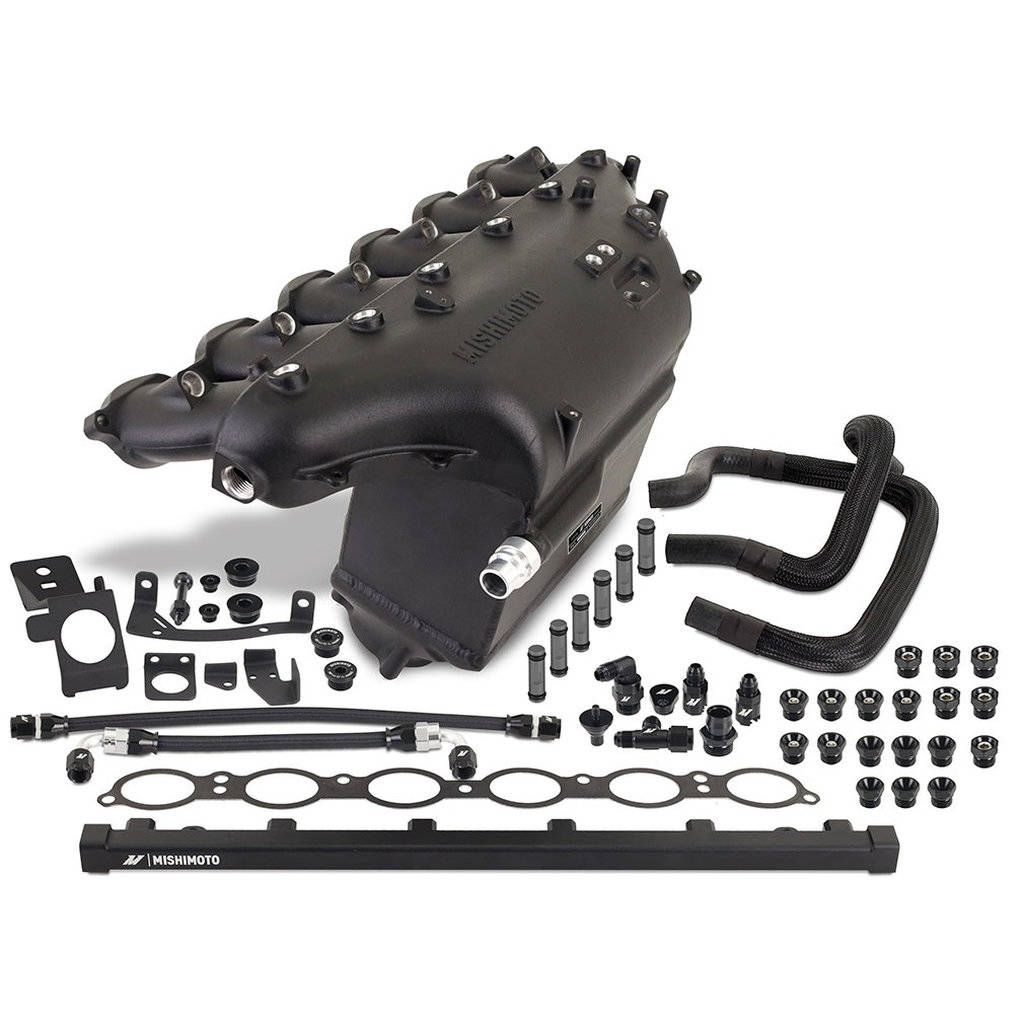

Kit comes with::

• (1) Mishimoto Charge Air Cooler Manifold
• (1) Intake Manifold Gasket
• (1) Manifold/Intercooler Accessory Bracket Set
• (6) -6 ORB Plugs
• (6) -6 ORB to 1/8-in NPT Adapters
• (6) -6 ORB to 1/16-in NPT Adapters
• (1) Fuel Rail
• (6) Fuel Injector Blanks
• (2) -8 ORB Plugs
• (1) -10 ORB Plug
• (2) 1/8-in NPT Plugs
• (2) EVAP System Hoses

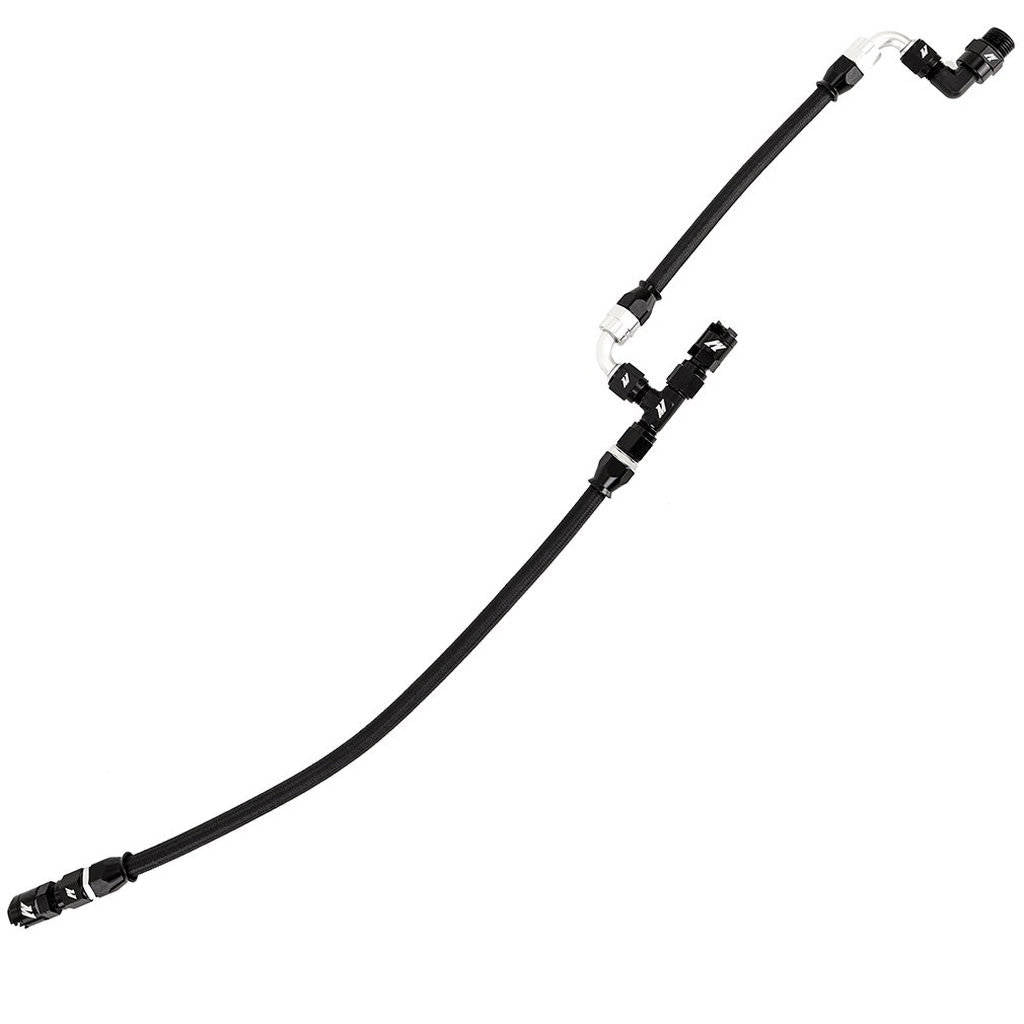

• (1) Port Injection Fuel Line Kit
• (1) Hardware Kit
• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2021+ BMW M3 I6 3.0L
• 2021+ BMW M3 Competition I6 3.0L
• 2021+ BMW M4 I6 3.0L
• 2021+ BMW M4 Competition I6 3.0L
• 2019+ BMW X3 M I6 3.0L
• 2019+ BMW X3 M Competition I6 3.0L
• 2019+ BMW X4 M I6 3.0L
• 2019+ BMW X4 M Competition I6 3.0L
