MISHIMOTO MMINT-FOST-13KBSL FORD Focus ST Intercooler Kit, 2013+

Description MISHIMOTO MMINT-FOST-13KBSL FORD Focus ST Intercooler Kit, 2013+

The Mishimoto Performance Intercooler Kit is designed to improve cooling for the 2013-2018 Ford Focus ST. The factory intercooling system on the 2.0T EcoBoost-powered Focus ST features restrictive piping and a turbo muffler, limiting performance potential.

This kit replaces the hot-side pipe with mandrel-bent aluminum, removes the muffler, and increases the diameter for a 26% improvement in flow on the hot-side. All rubber components are replaced with wire-reinforced silicone for durability and smoother flow on the cold-side. The result is a 21% increase in flow to and from the intercooler.

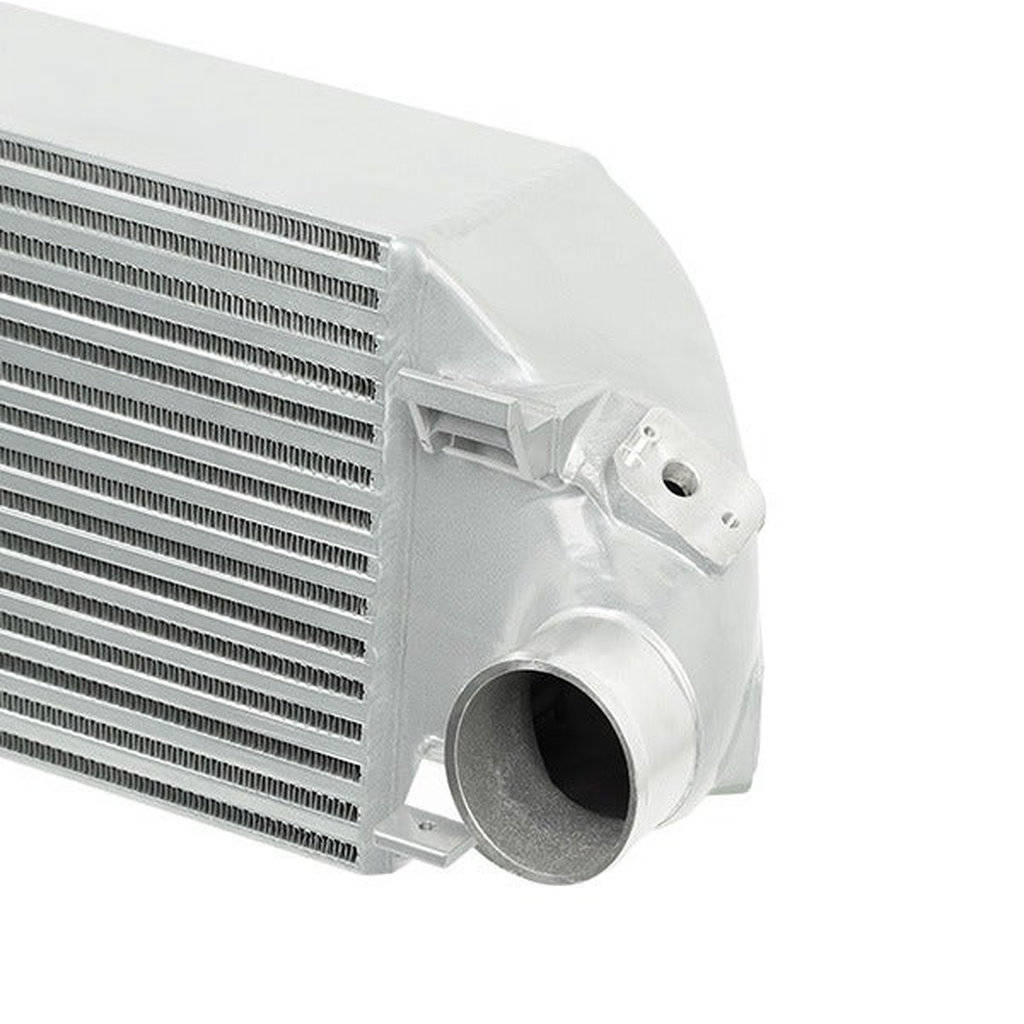

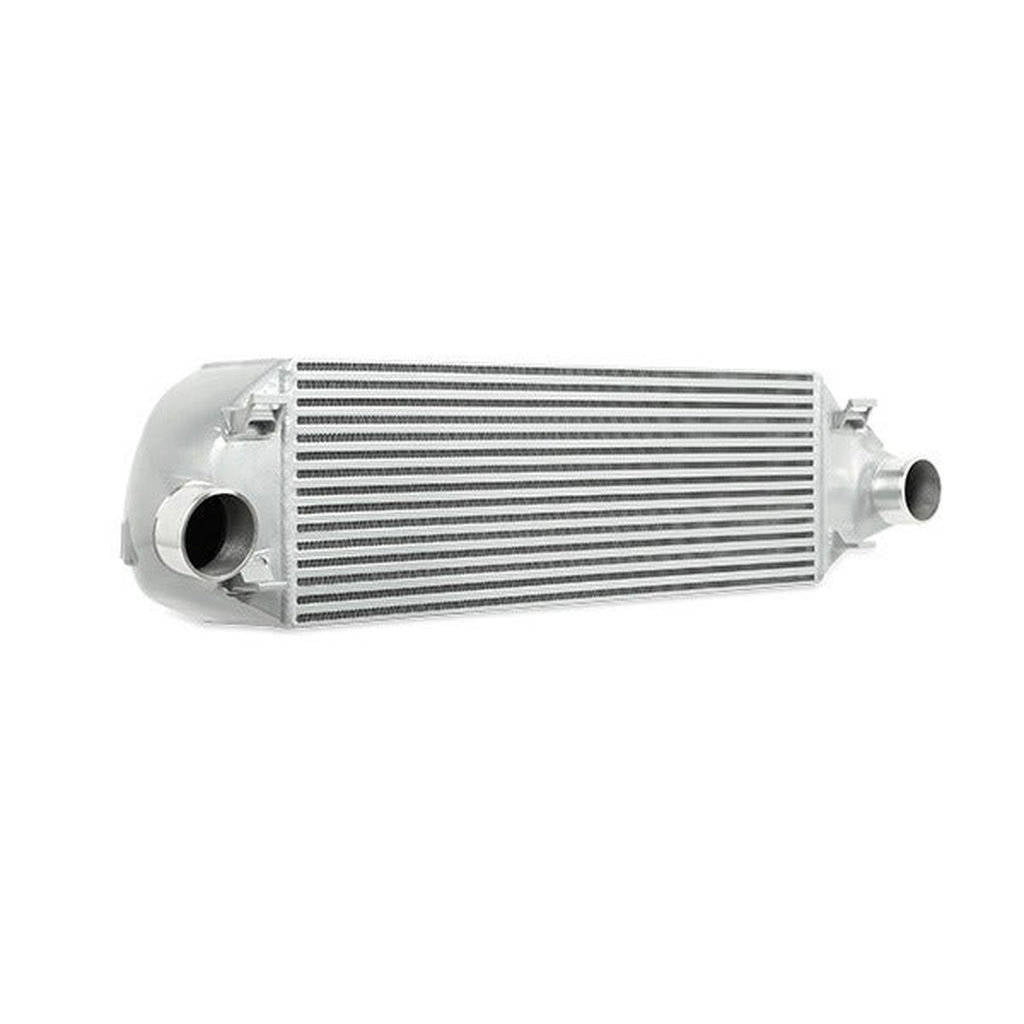

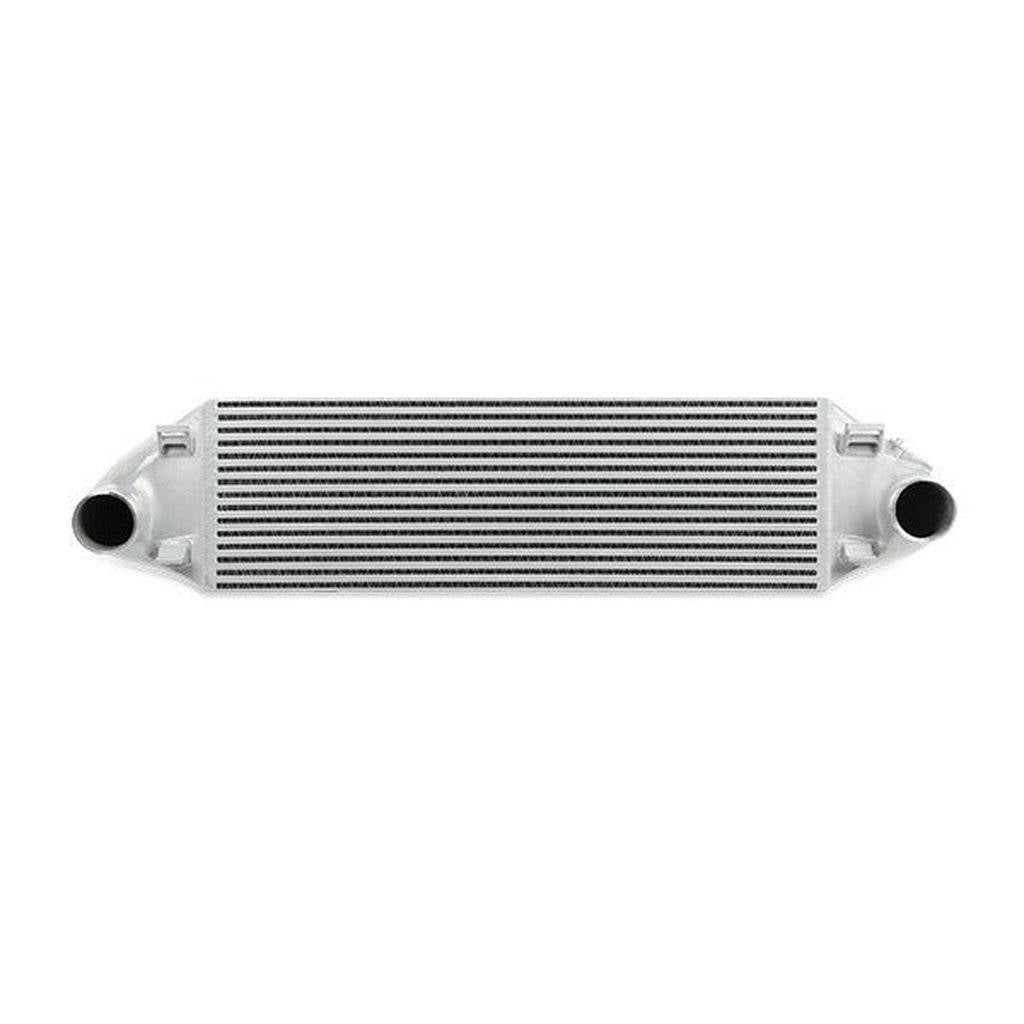

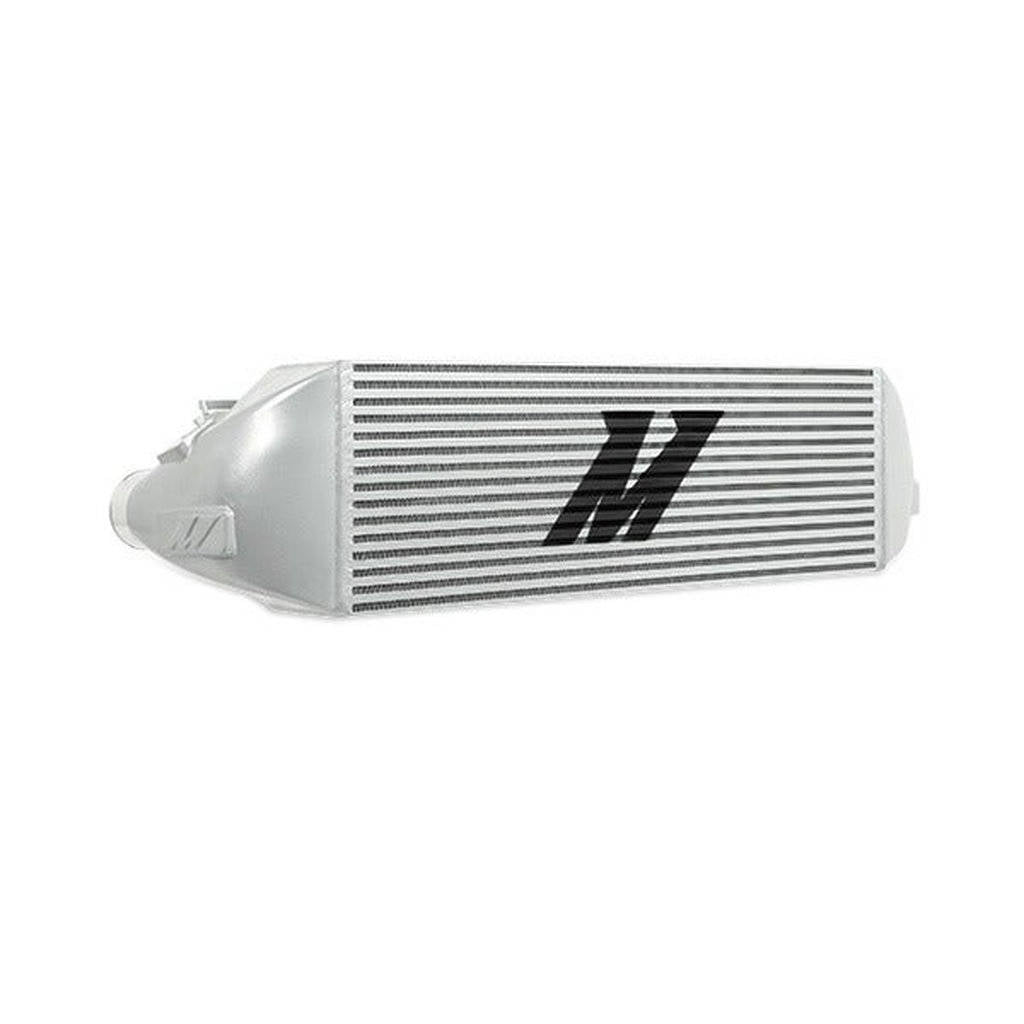

The bar-and-plate intercooler core allows for improved airflow and better heat dissipation compared to the stock core. The all-aluminum construction helps prevent heat-soak during demanding driving, delivering cooler air to the intake manifold. The kit adds 8 HP and 10 TQ, with a maximum horsepower rating of 550HP. Available in silver, black, or gold, with wrinkle black or polished piping options.

Installation Notes: 22 in-lbs (2.5NM) recommended for all worm gear clamps. These clamps have an operating range of 18-27 in-lbs (2-3NM). Do not exceed the maximum torque rating of 27 in-lbs (3NM).

• Mandrel-bent aluminum hot-side pipe increases flow by 26%
• Wire-reinforced silicone replaces all rubber for durability
• Bar-and-plate core improves airflow and heat dissipation
• Adds 8 HP and 10 TQ, maximum rating of 550HP

Specifications:

• Chassis Codes: C346
• Overall Length (in): 35.7
• Overall Height (in): 8.3
• Overall Width (in): 7.25
• Inlet (in): 2.5
• Outlet (in): 2.5

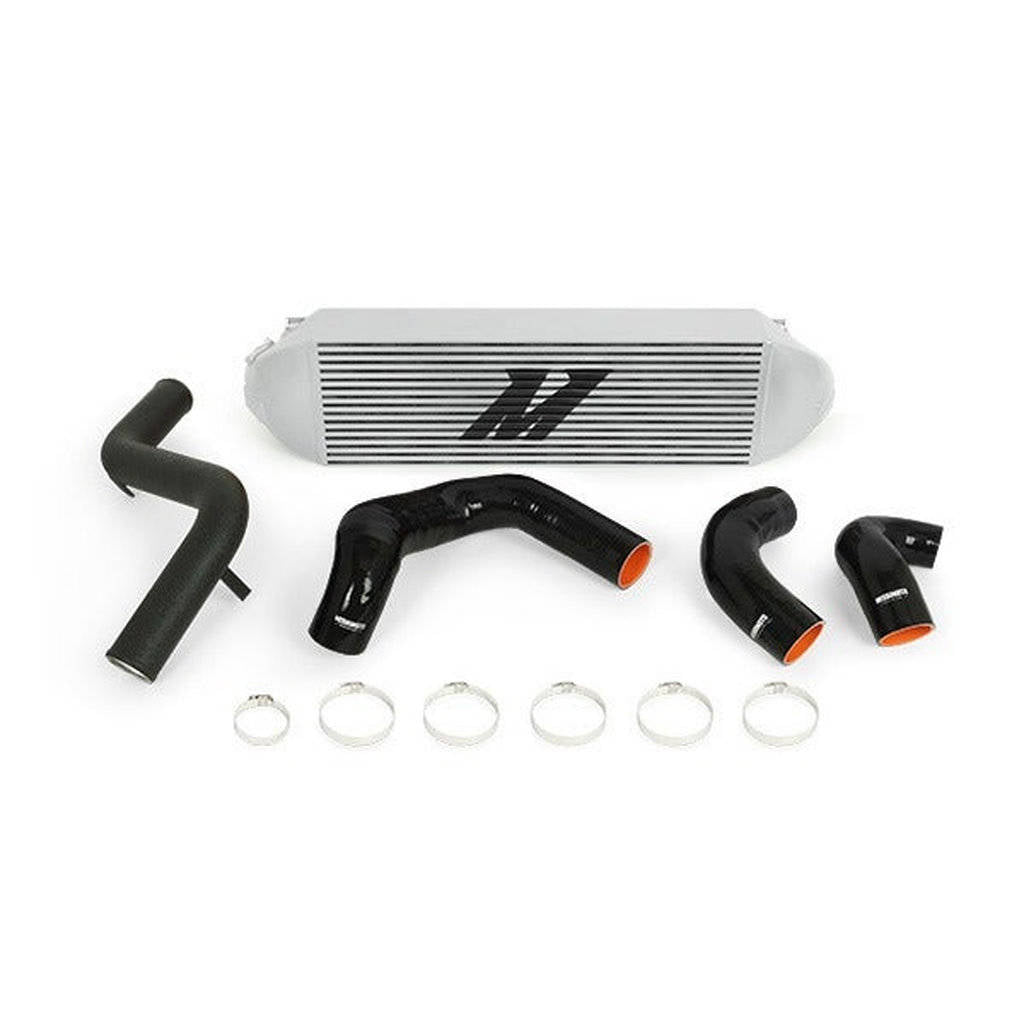

Kit comes with::

• (1) Mishimoto Intercooler
• (1) Aluminum Intercooler Pipe
• (2) Silicone couplers
• (1) Silicone Pipe
• (6) High torque Worm Gear clamps

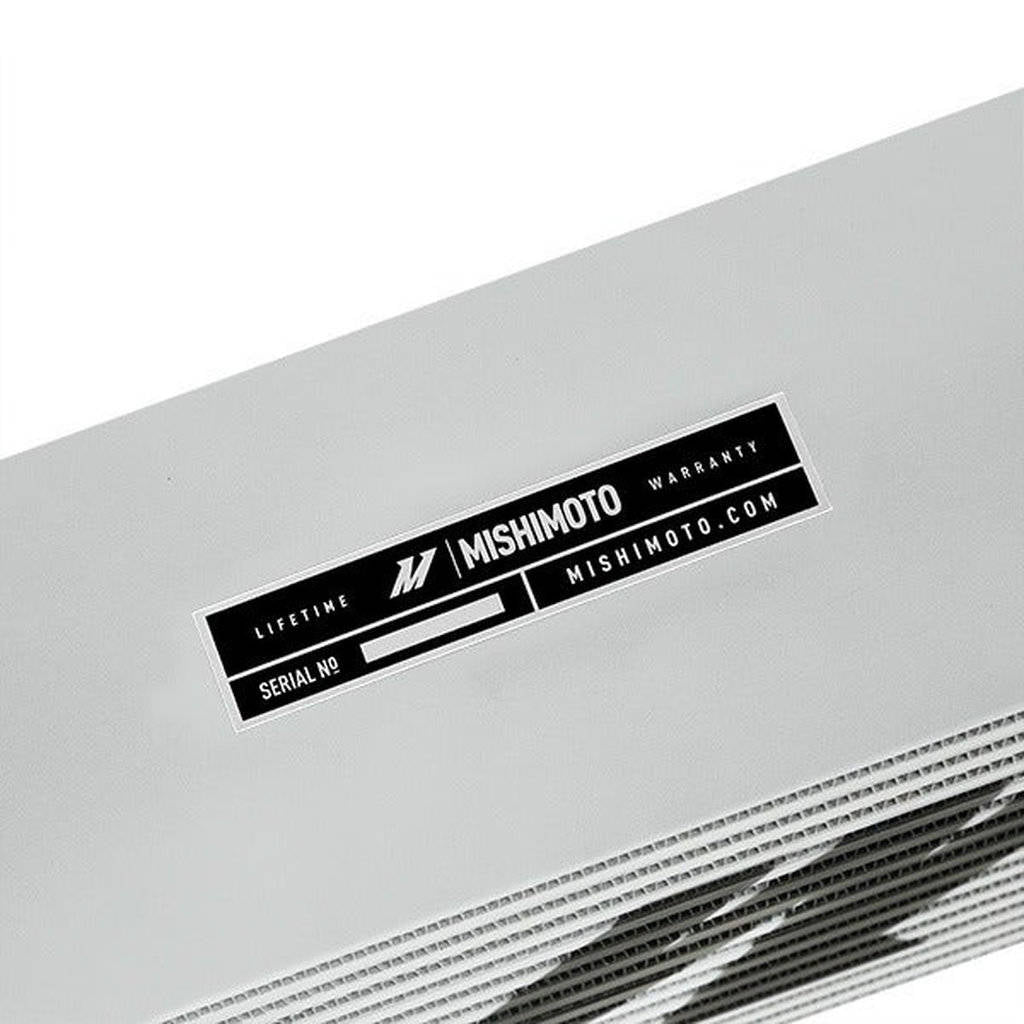

• Mishimoto Lifetime Warranty

Vehicle Compatibility:

• 2013-2018 Ford Focus ST
