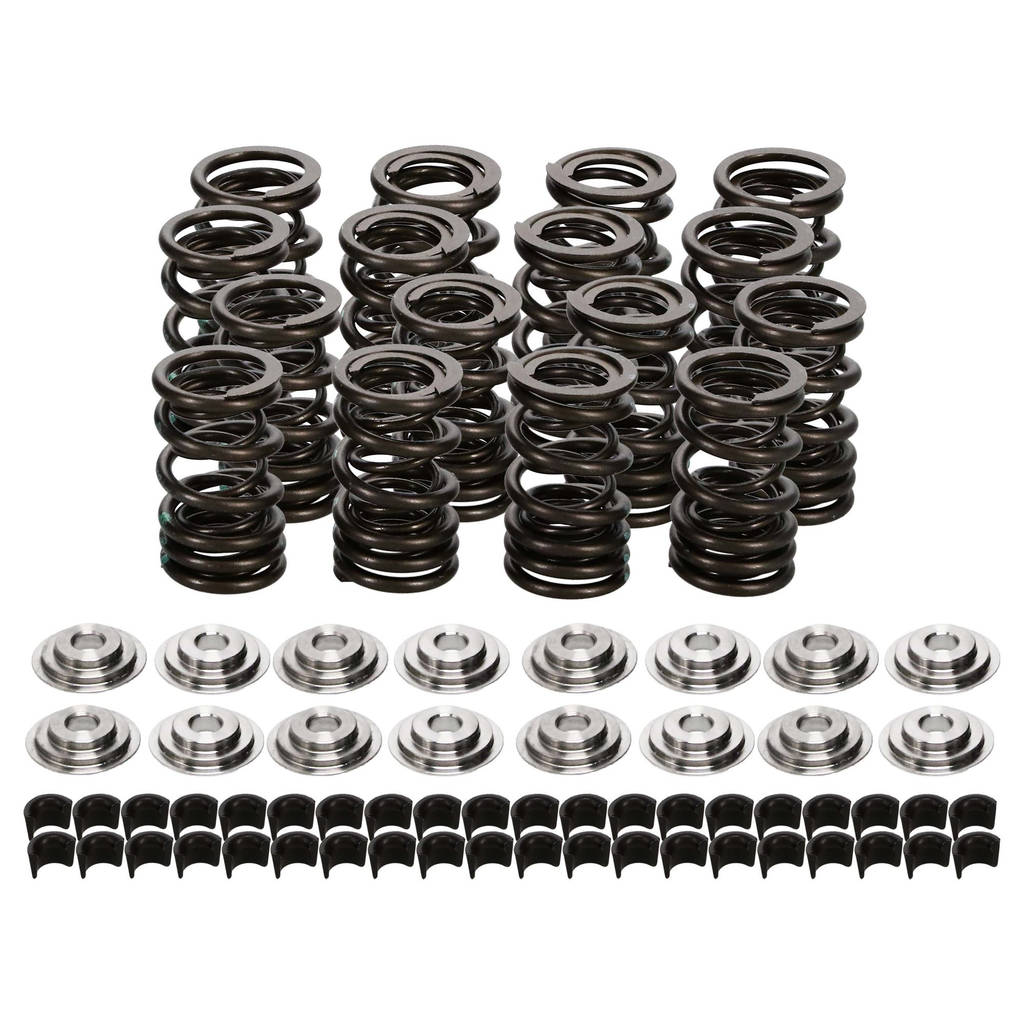

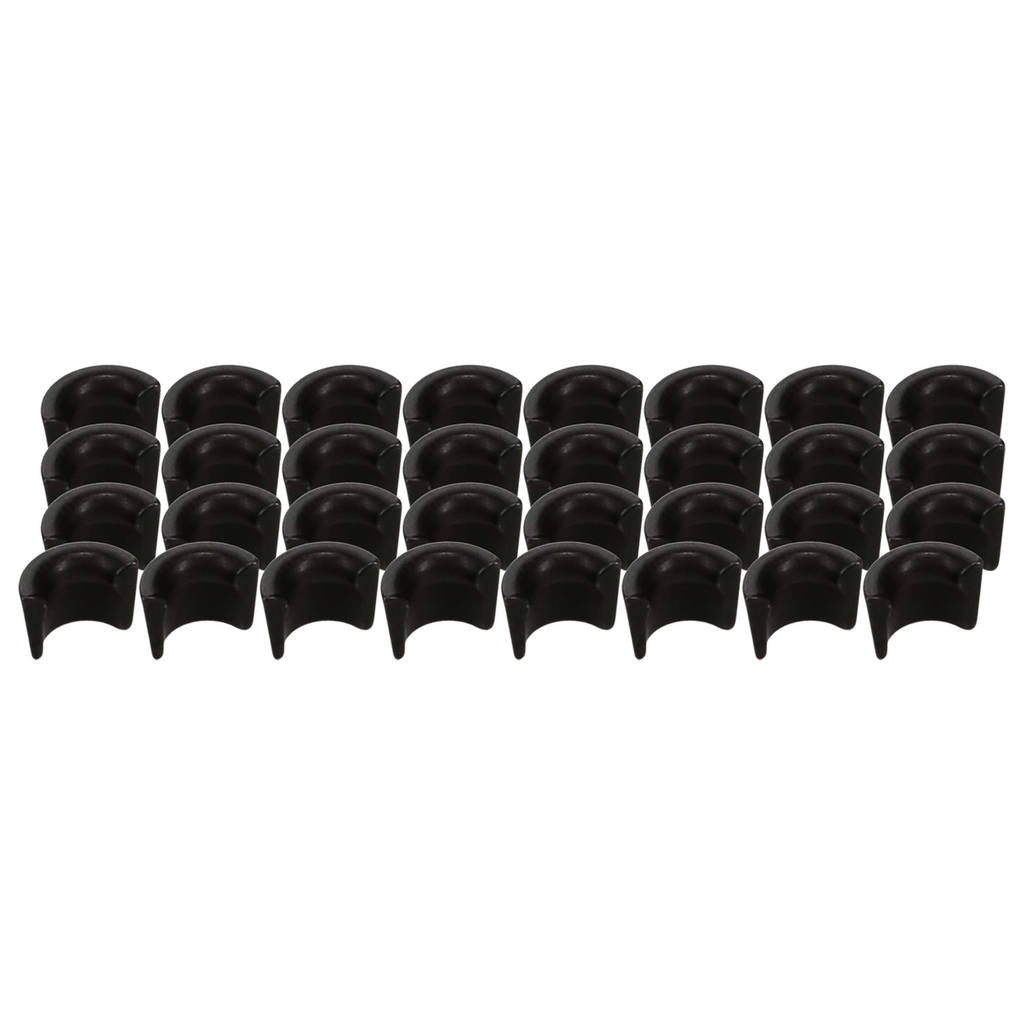

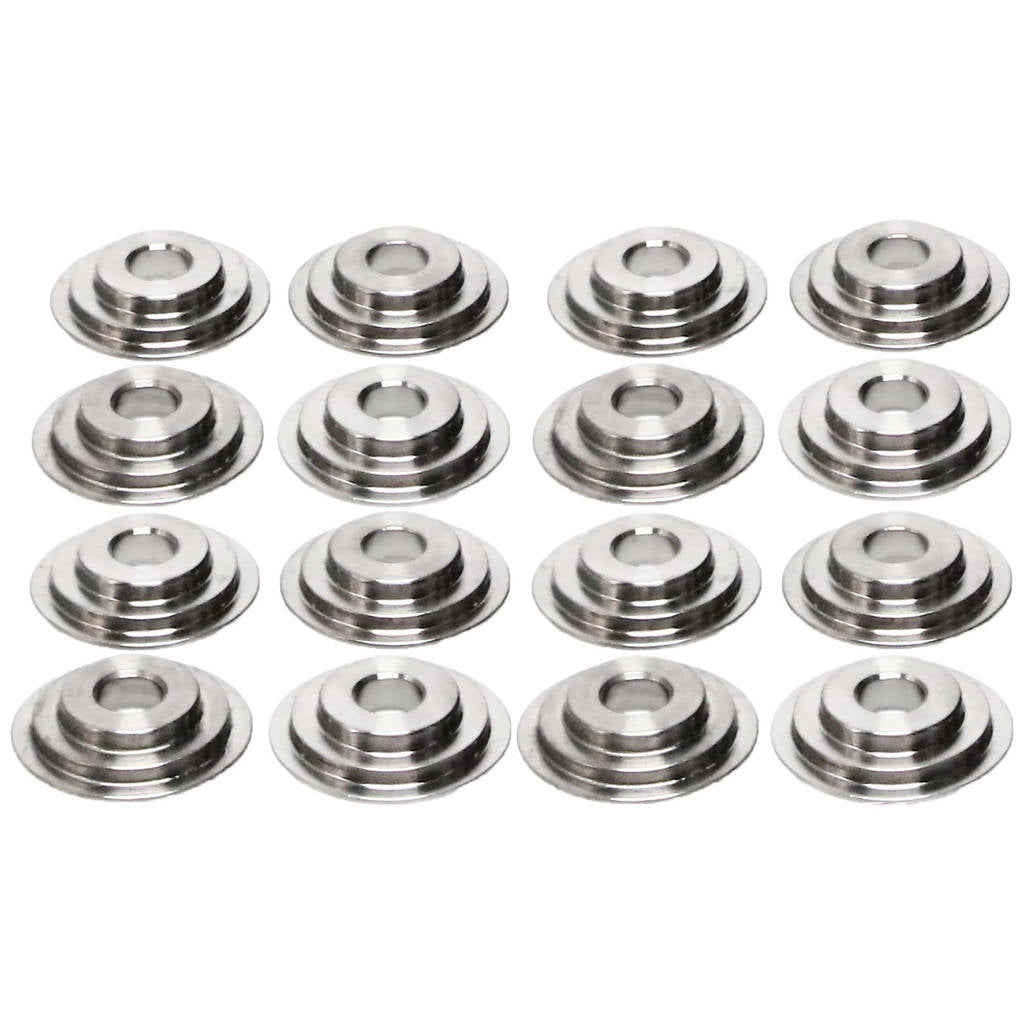

Description MANLEY 26140K Valve Spring and Retainer Kit (Valve Locks Included) for HONDA K20A/K20Z

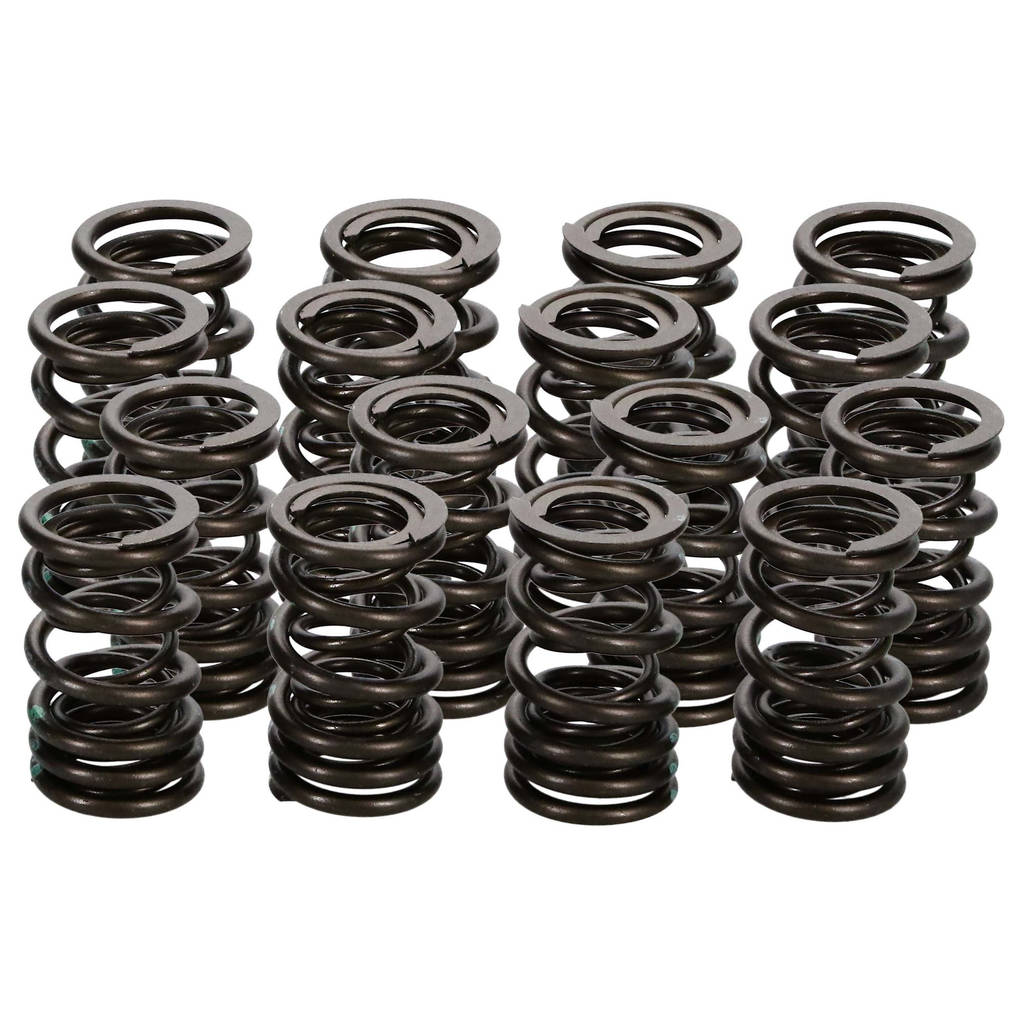

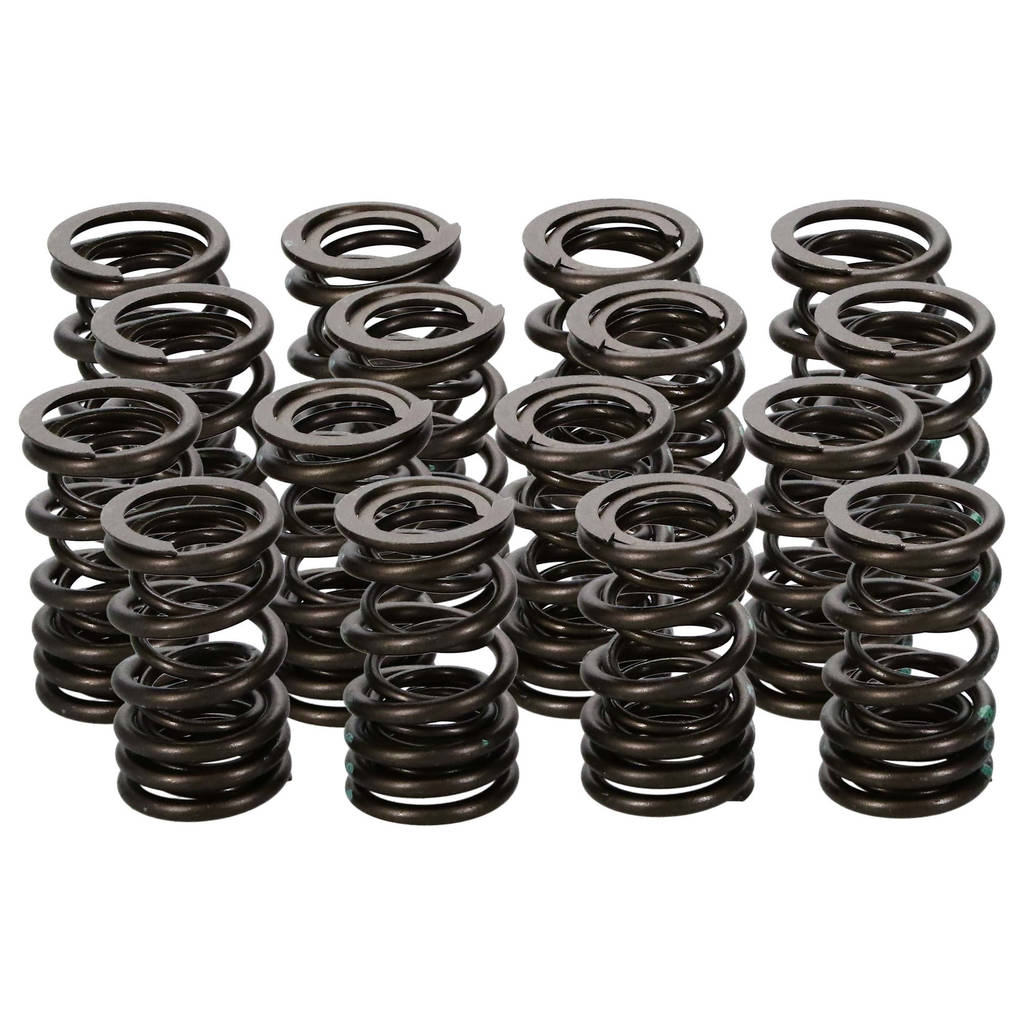

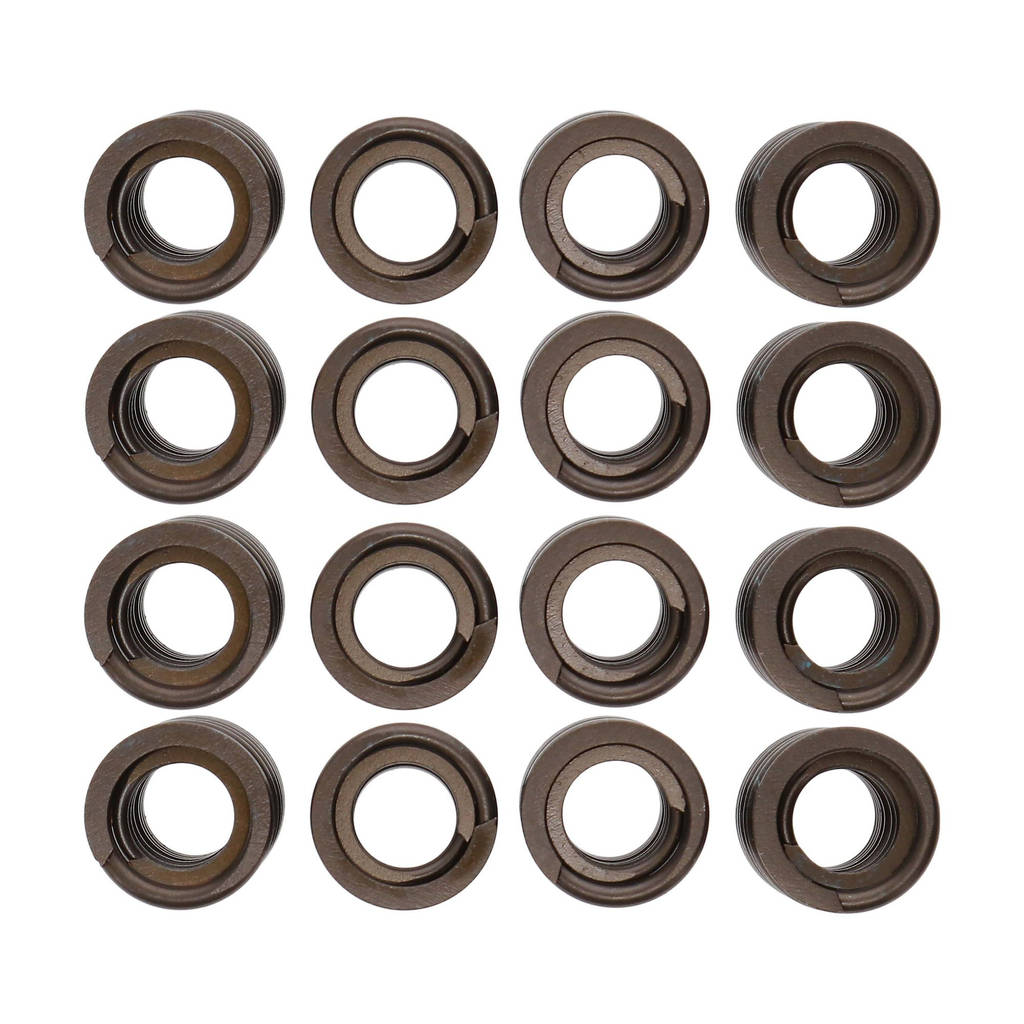

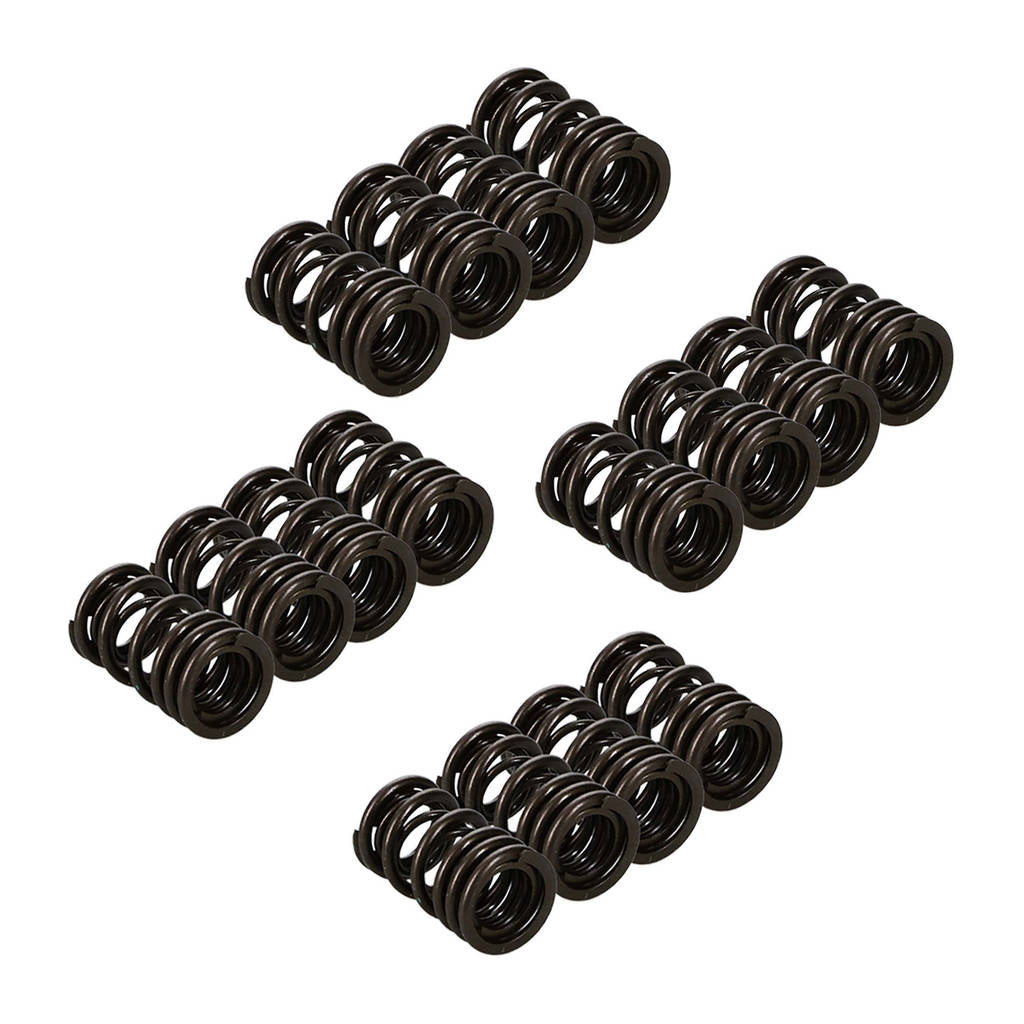

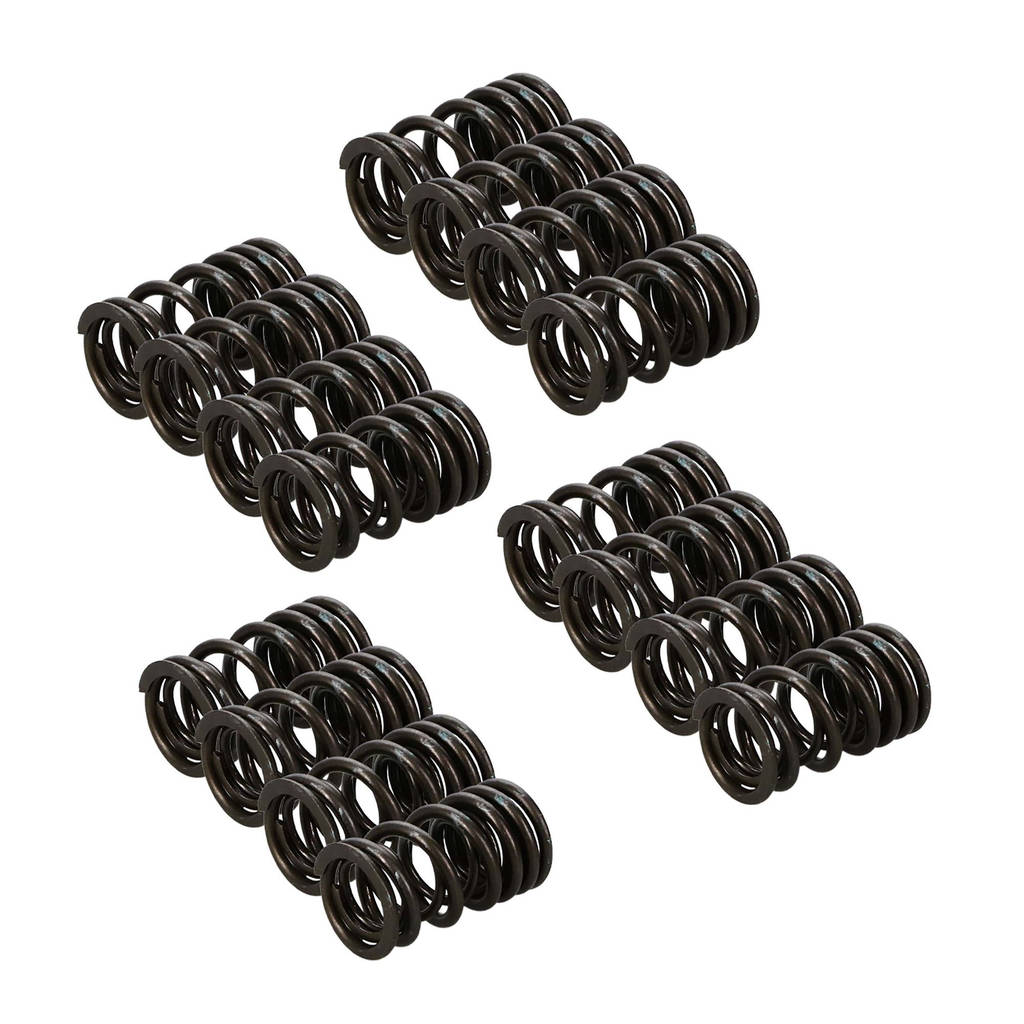

Manley Performance valve springs are engineered for maximum durability, stability, and precision in high-performance and racing applications.
Crafted from premium chrome-silicon alloys, these springs provide exceptional fatigue resistance and high-tensile strength, ensuring consistent valve control at extreme RPMs.
- Dual and triple valve spring designs
- Designed to handle aggressive cam profiles
- Helps prevent valve float
- Suitable for naturally aspirated and forced induction applications
Specifications:
- Product Market: Sport Compact
- Stem Diameter: 5.50 MM
- Valve Stem Diameter: 5.50 MM
- Emissions Code: 3
- Product Type: Valve Spring Kit
- Valve Spring Outer Diameter: 1.160/.870 IN
- Valve Spring Inner Diameter: .865/.660 IN
- Valve Spring Quantity: 16
- Valve Spring Coil Bind Height: 1.000 IN
- Valve Spring Rate: 375 PPI
- Valve Lift – Stock: 0.450 IN
- Installed Pressure and Height: 80 @ 1.590 PPI
- Open Pressure and Height: 283 @ 1.050 PPI
- Valve Lock Angle: 7 DEG
