RX7LINK (S6) - #RX7S6+
RX7Link (S6) - #RX7S6+ Free yourself from the constraints of the factory ECU.

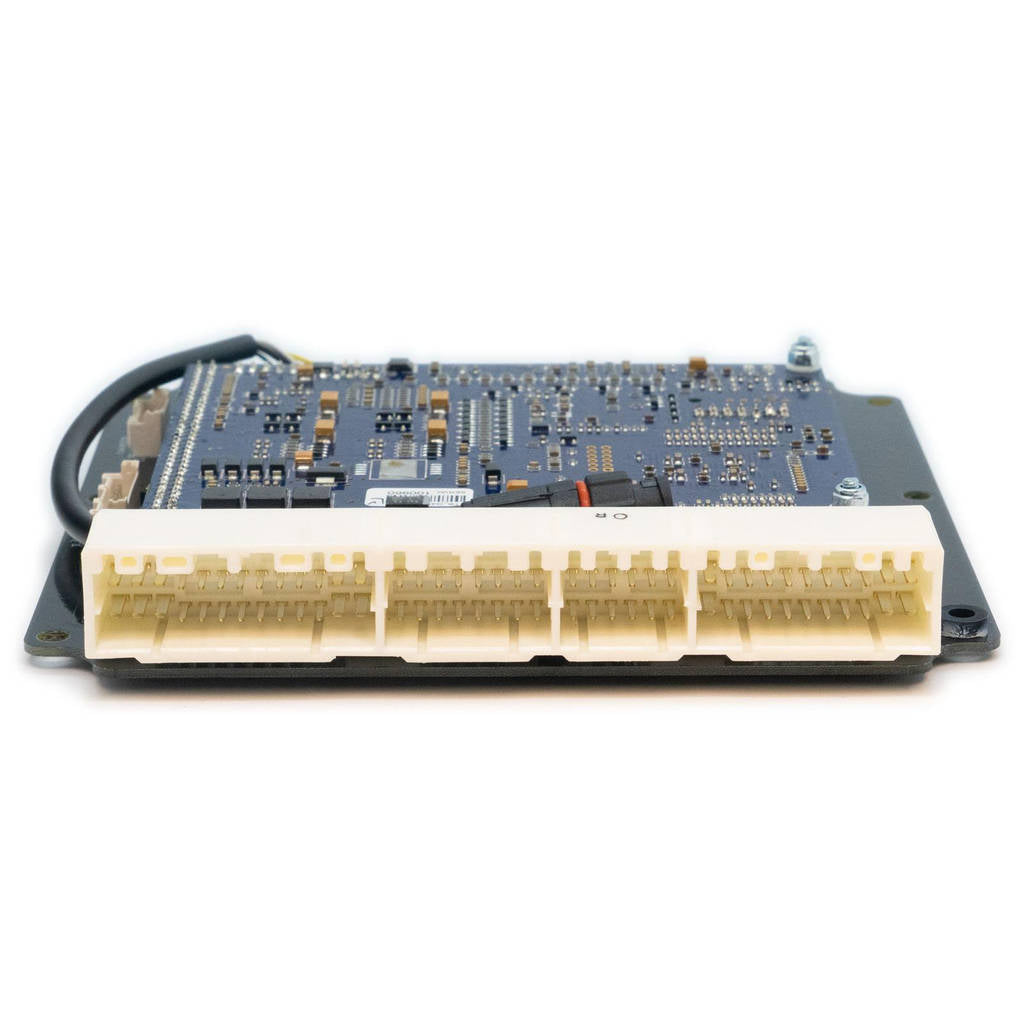

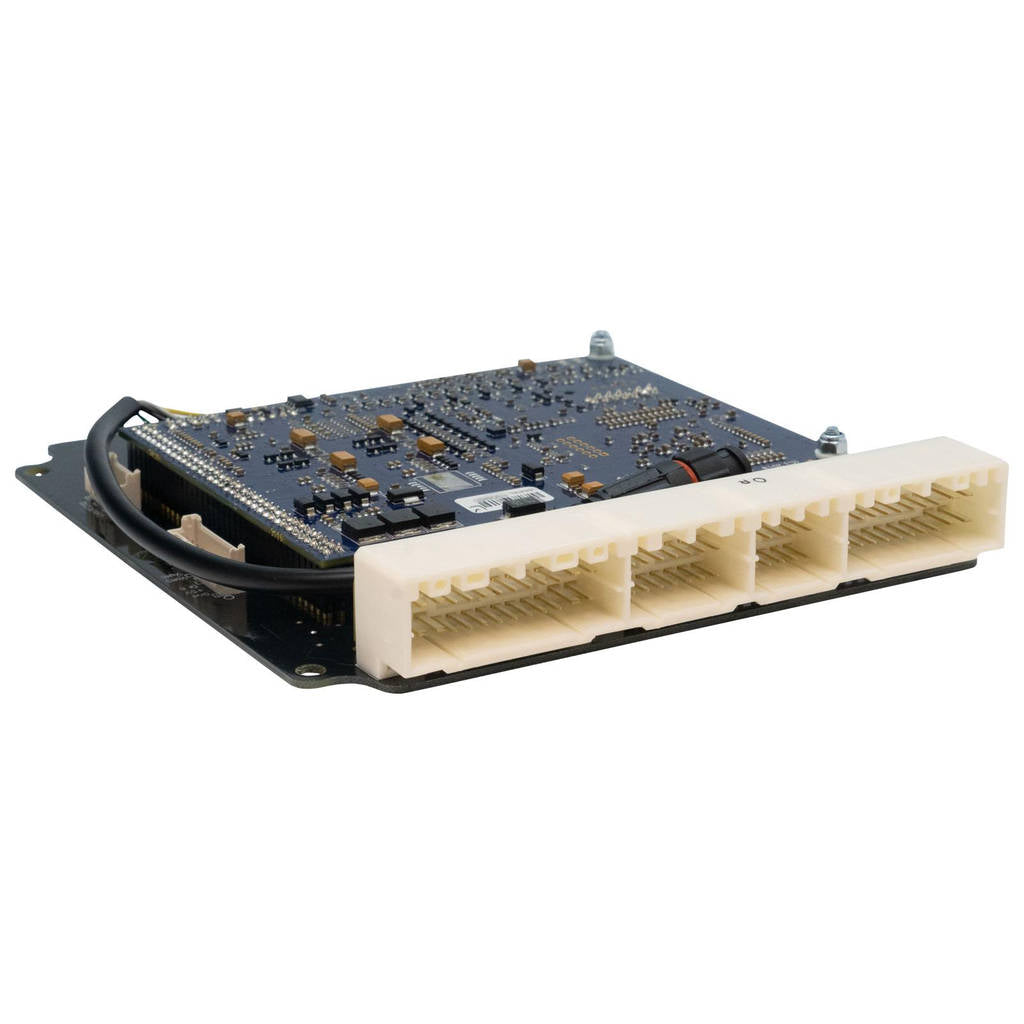

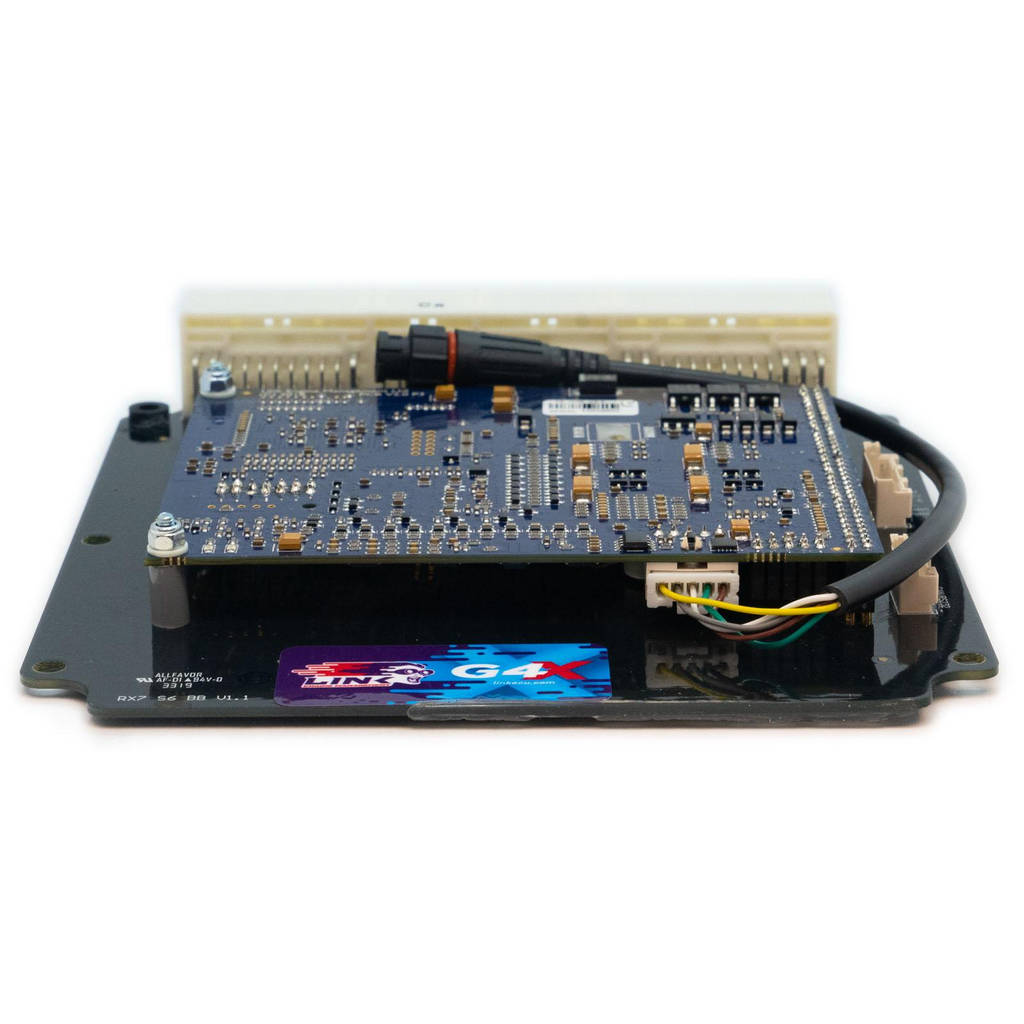

The Link G4+ RX7Link (S6) RX7S6+ PlugIn fits the Mazda RX7 Series 6. The ECU PCB fits discretely inside the original factory enclosure.
Installation of Link's RX7 ECU a breeze with no alteration of the factory wiring loom required.
A built-in connector (or pins in some models) provides additional inputs and outputs such as oil pressure inputs or anti-lag / logging switches.
Factory features are supported - see Features for any exceptions. Includes oil pump control, single turbo only.
Need more inputs and outputs?
The XS Expansion Loom offers the ability to add additional inputs & outputs on our range of plug-in ECUs.
MAP Sensor not included.
Specifications
Features
G4+ PlugIn Key Features (Where Applicable)
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
Rotary - up to four rotors, fully sequentially staged injection and sequential ignition
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
Up to 32Mbit internal logging memory
Staged injection
Knock with "windowing"
