JE JG1004-3465 Комплект поршневих кілець (діаметр 3.465″, верхнє 0.0394″ / друге 0.0472″ / маслознімне 0.110″, 4 циліндри) Photo-0

JE PISTONS

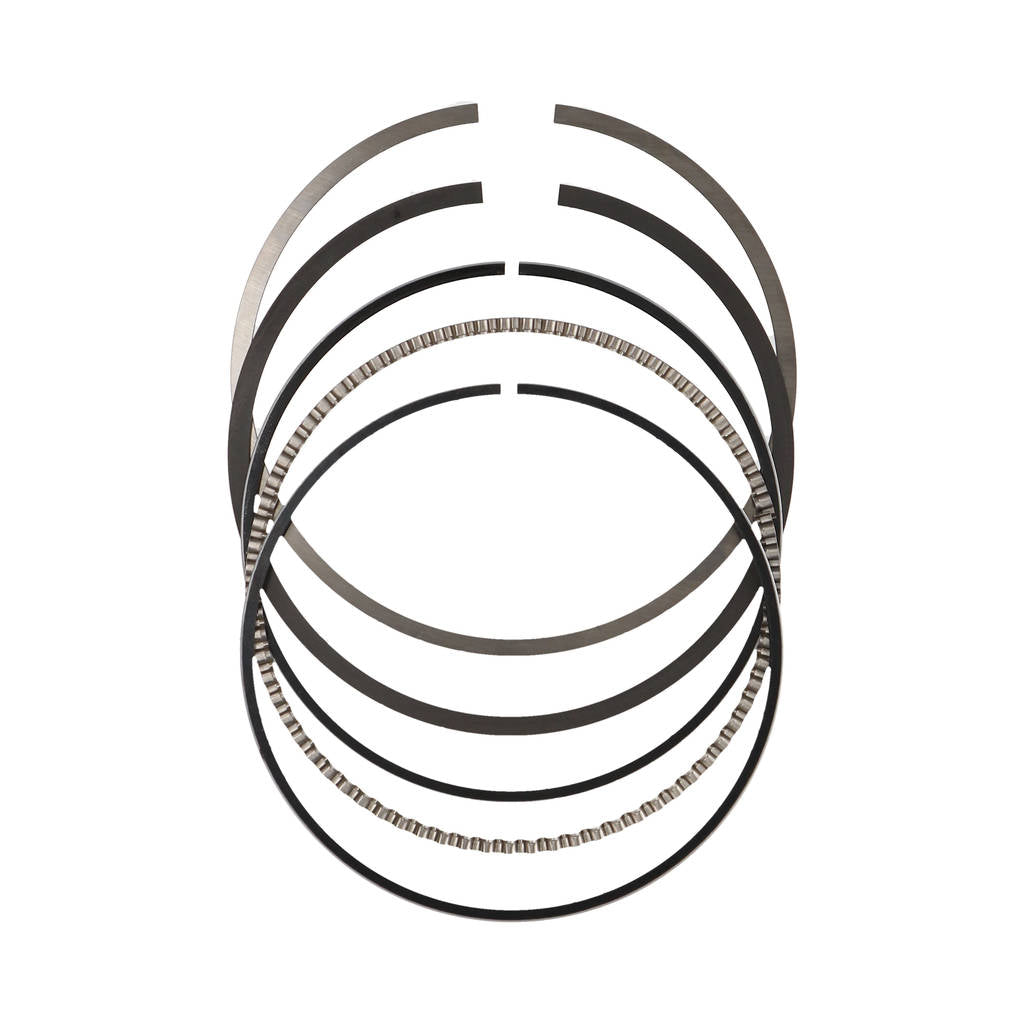

JE JG1004-3465 Piston Ring Set (3.465 in. Bore, 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil, 4 Cyl.)

₴8,279.55

Shipping calculated at checkout

P/N: JG1004-3465 GTIN: 193564241580
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 12.05.2026
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

JE JG1004-3465 Piston Ring Set (3.465 in. Bore, 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil, 4 Cyl.)

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611

Description JE JG1004-3465 Piston Ring Set (3.465 in. Bore, 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil, 4 Cyl.)

JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.

JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.

Specifications:

  • Bore Diameter: 3.465 | 88.01 MM
  • Ring Type: 3 Ring
  • File Fit: Yes
  • Top Ring Axial Height: 1.00 MM
  • Top Ring Radial Width: 0.134 IN
  • Top Compression Ring Thickness: 0.0394 IN
  • Top Ring Facing Material: Nitride
  • Top Ring Material: Carbon Steel
  • Top Ring Shape: Barrel Face, Back Cut, Neutral
  • Second Ring Axial Height: 1.20 MM
  • Second Ring Radial Width: 0.146 IN
  • Second Compression Ring Thickness: 0.0472 IN
  • Second Ring Facing Material: Phosphate
  • Second Ring Shape: Napier, Back Cut, Neutral
  • Oil Ring Axial Height: 2.80 MM
  • Oil Ring Radial Width: 0.128 IN
  • Oil Ring Thickness: 0.110 IN
  • Third Ring Facing Material: Carbon Steel
  • Third Ring Material: Carbon Steel
  • Third Ring Shape: Flex Vent
  • Ring Set Thickness: 0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
  • Product Type: Engine Piston Ring Set
