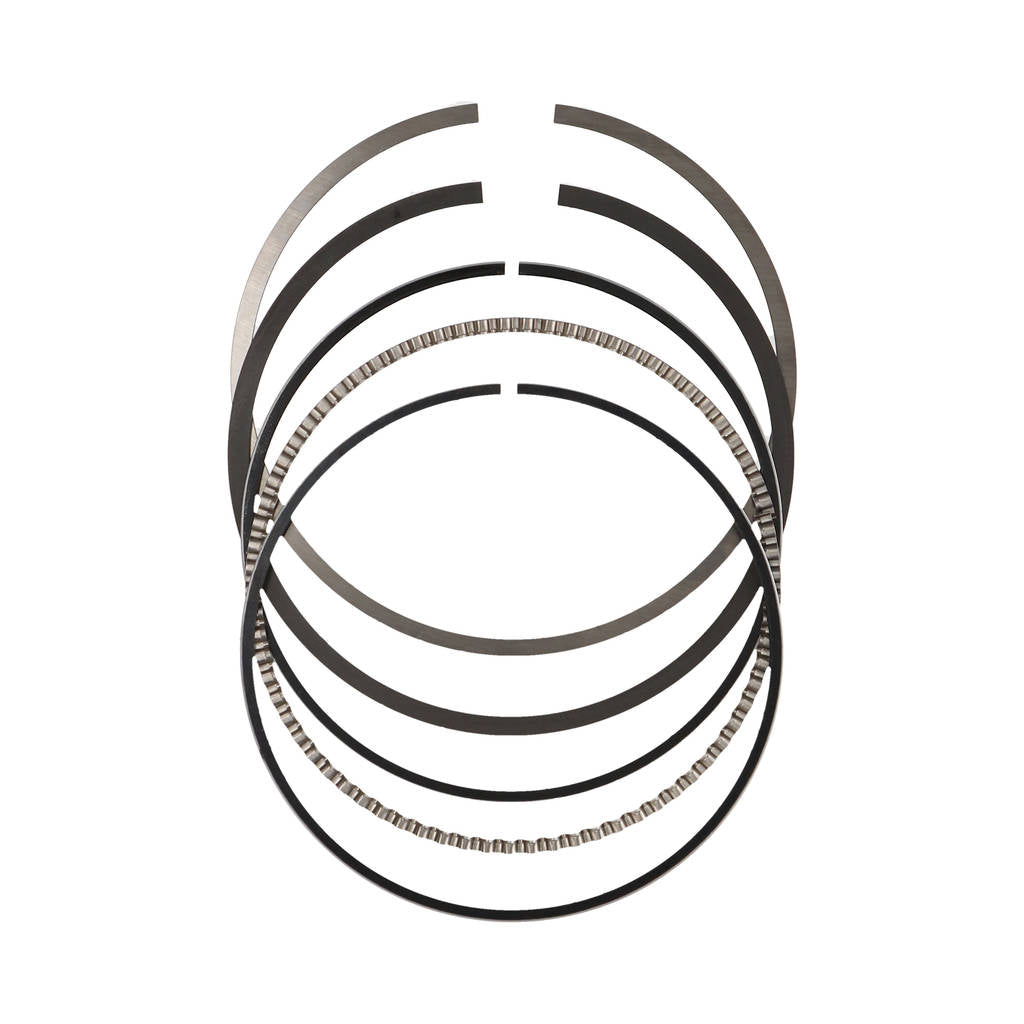

JE J140F2-3625 Piston Ring Set (3.625 in. Bore, 0.0640 in. Top / 0.0640 in. 2nd / 0.156 in. Oil, 2 Cyl.)

Description JE J140F2-3625 Piston Ring Set (3.625 in. Bore, 0.0640 in. Top / 0.0640 in. 2nd / 0.156 in. Oil, 2 Cyl.)

JE Piston Rings are designed to maximize Horsepower / HP through precision sealing of combustion pressure. They are available in a wide selection of sizes, materials, and thicknesses to suit various engines.

JE Pistons also offers custom Piston Ring services, including back cutting, Dykes cutting, lapping, grinding, and PVD coating. Used by top NHRA Pro Stock and NASCAR teams, these services are available to the public and provide increased durability, power through reduced friction, and improved Piston Ring sealing.

Specifications:

• Bore Diameter: 3.625 in / 92.08 mm
• Ring Type: 3 Ring
• File Fit: Yes
• Top Ring Axial Height: 1/16 in
• Top Ring Radial Width: 0.170 in
• Top Compression Ring Thickness: 1/16 in
• Top Ring Facing Material: Plasma Moly
• Top Ring Material: Iron
• Top Ring Shape: Barrel Face, D-wall, Neutral
• Second Ring Axial Height: 1/16 in
• Second Ring Radial Width: 0.17 in
• Second Compression Ring Thickness: 1/16 in
• Second Ring Facing Material: Phosphate
• Second Ring Shape: Taper Face, D-wall, Reverse Torsional
• Oil Ring Axial Height: 5/32 in
• Oil Ring Radial Width: 0.182 in
• Oil Ring Thickness: 0.156 in
• Third Ring Facing Material: Carbon Steel
• Third Ring Material: Carbon Steel
• Third Ring Shape: Full Seal, Flex Vent
• Ring Set Thickness: 0.0640 in Top x 0.0640 in 2nd x 0.156 in Oil
• Product Type: Engine Piston Ring Set
