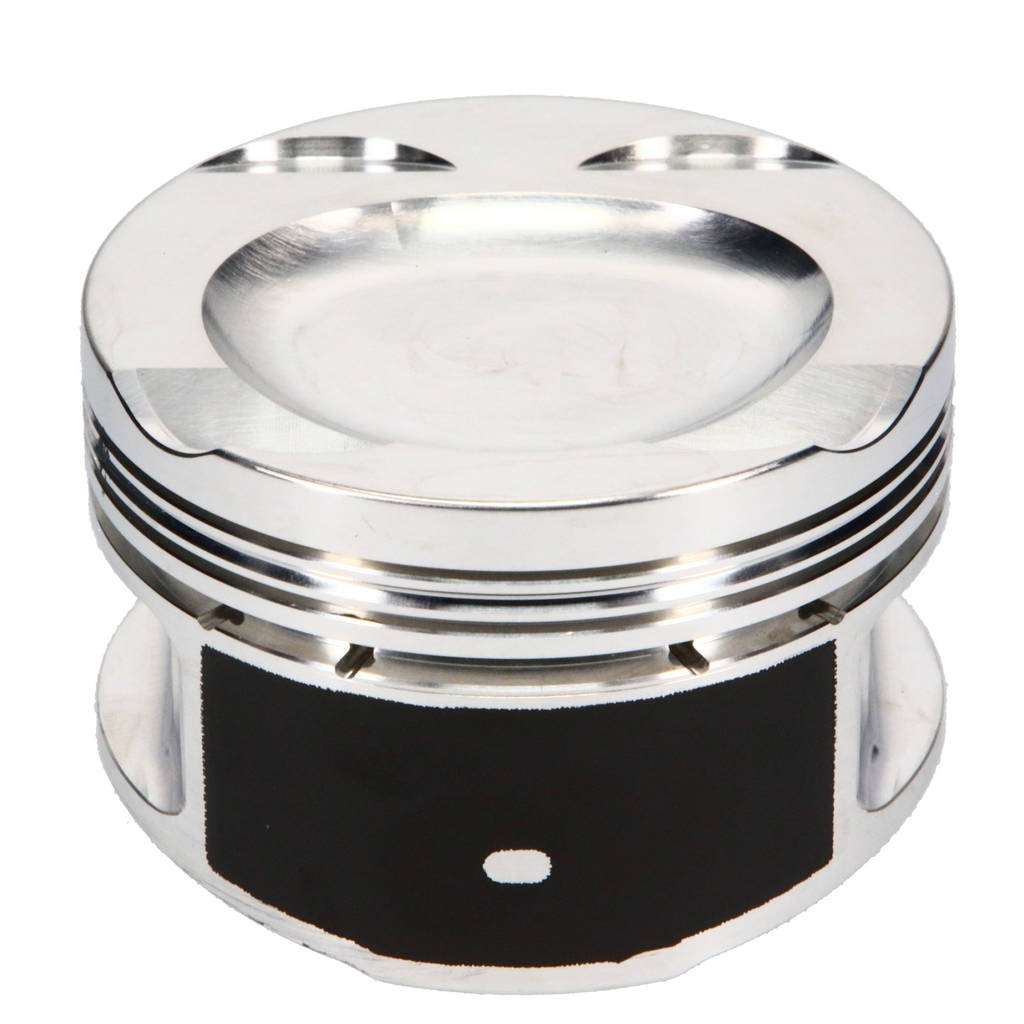

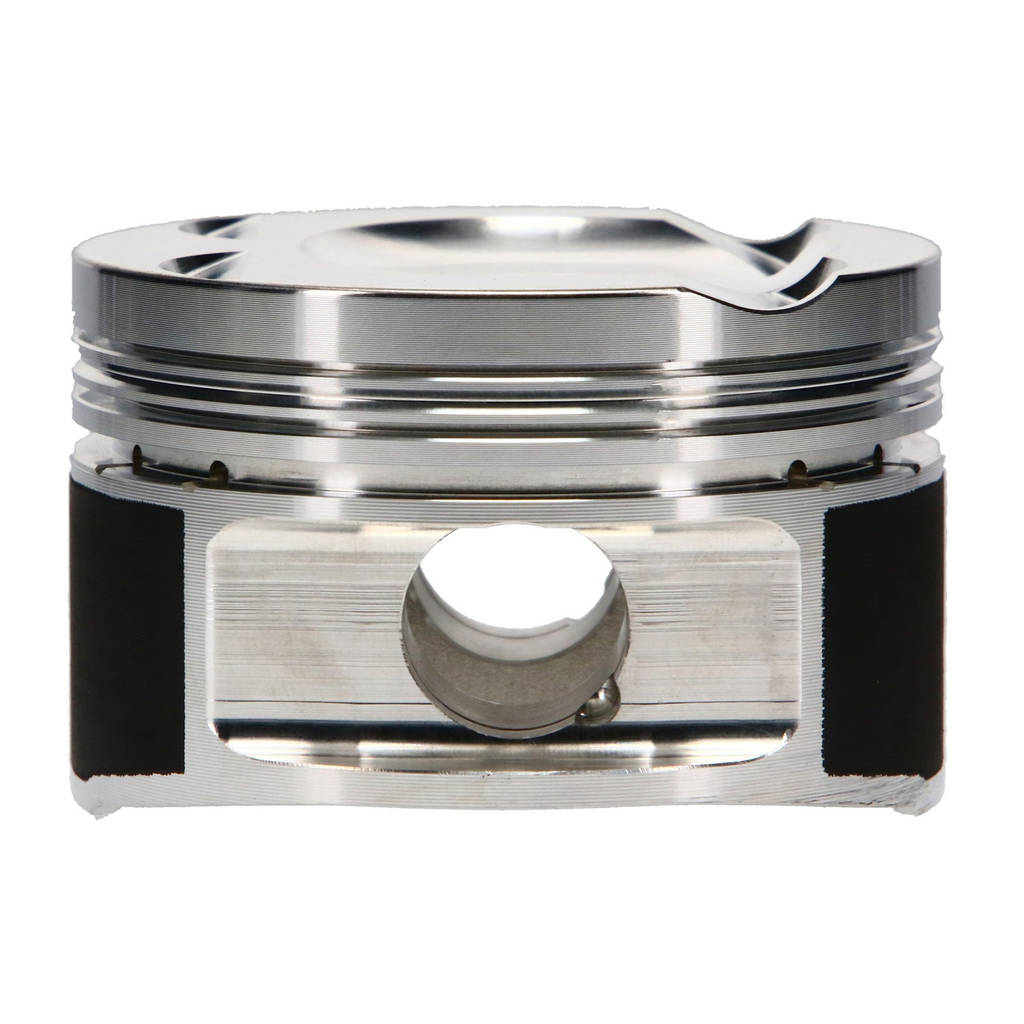

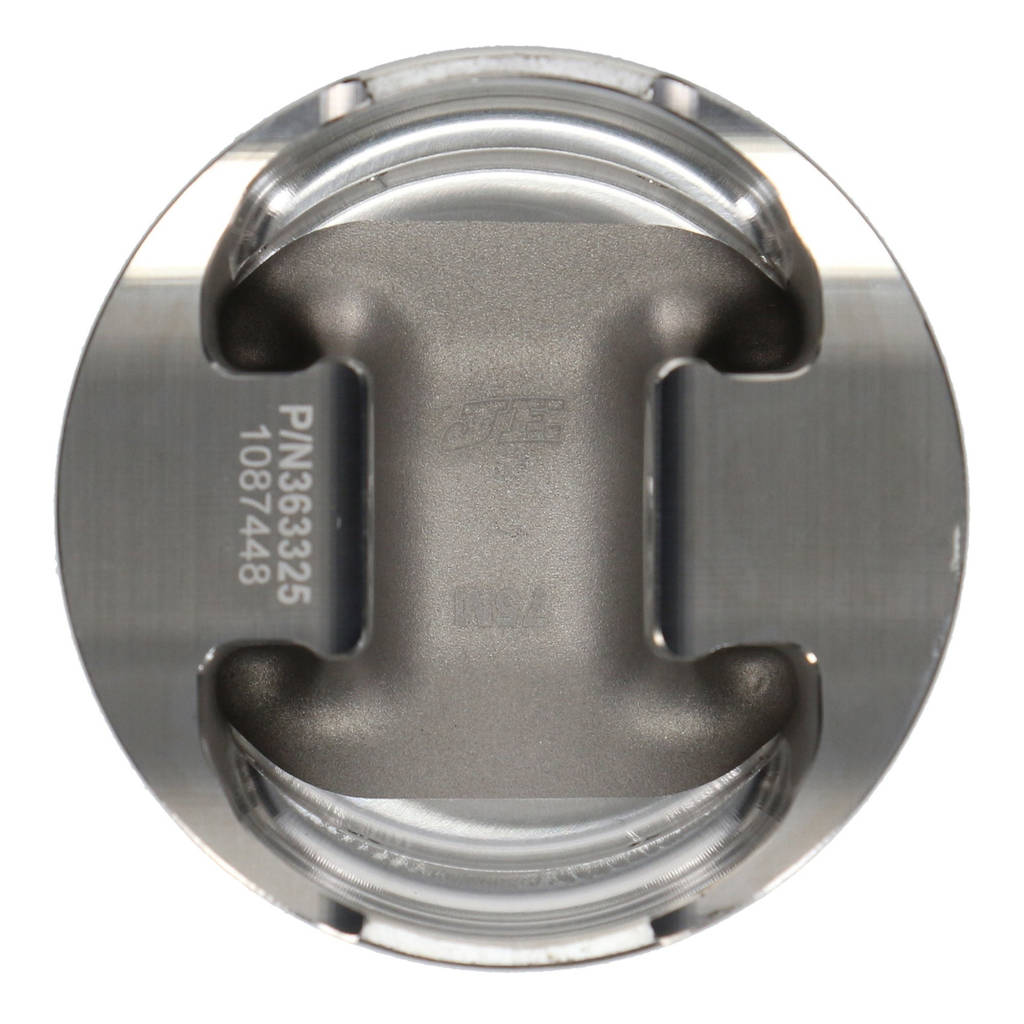

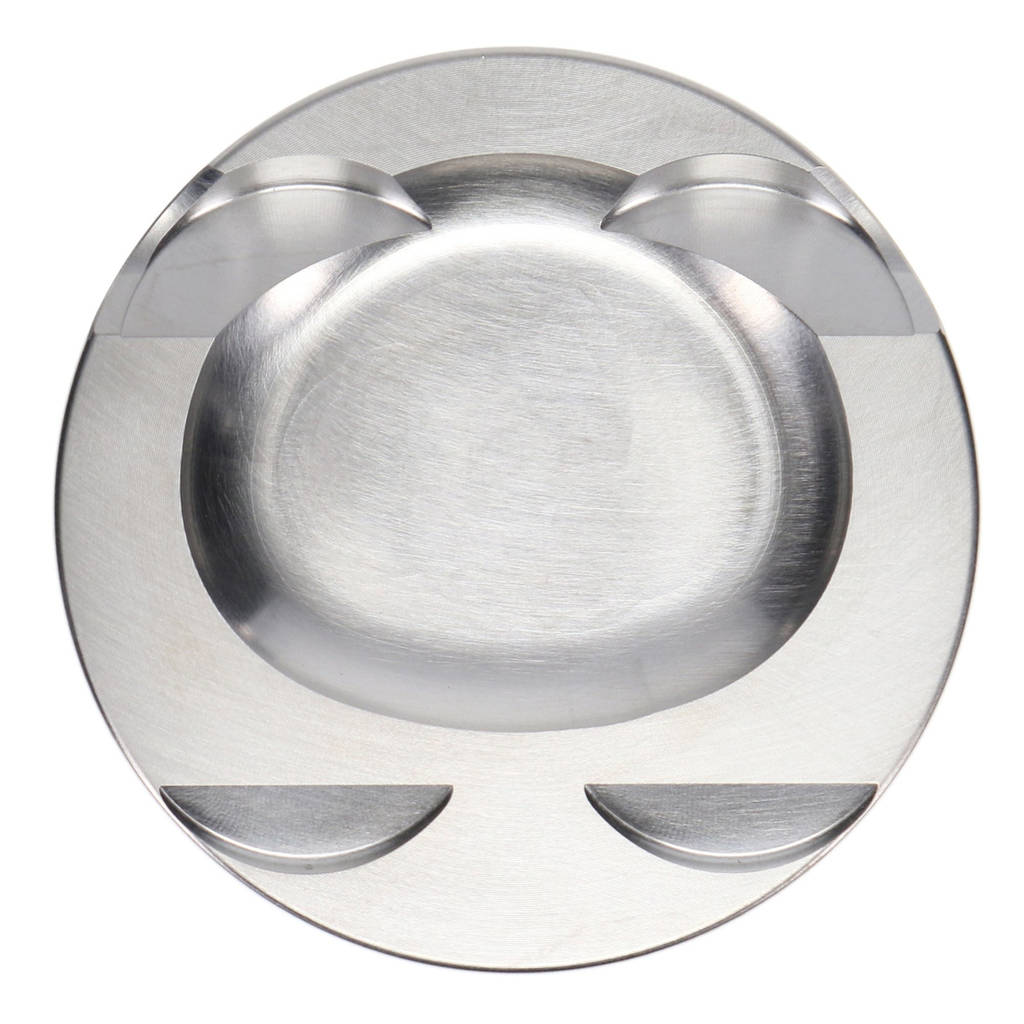

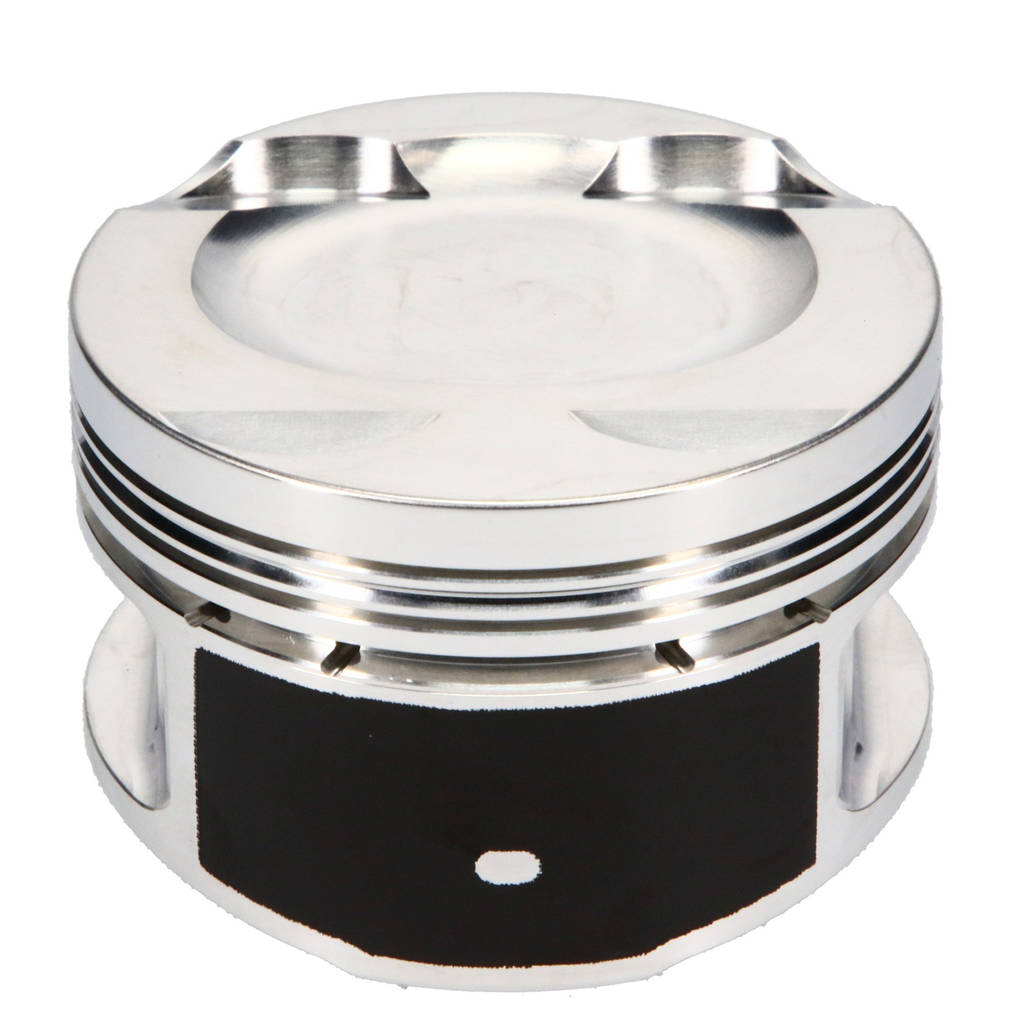

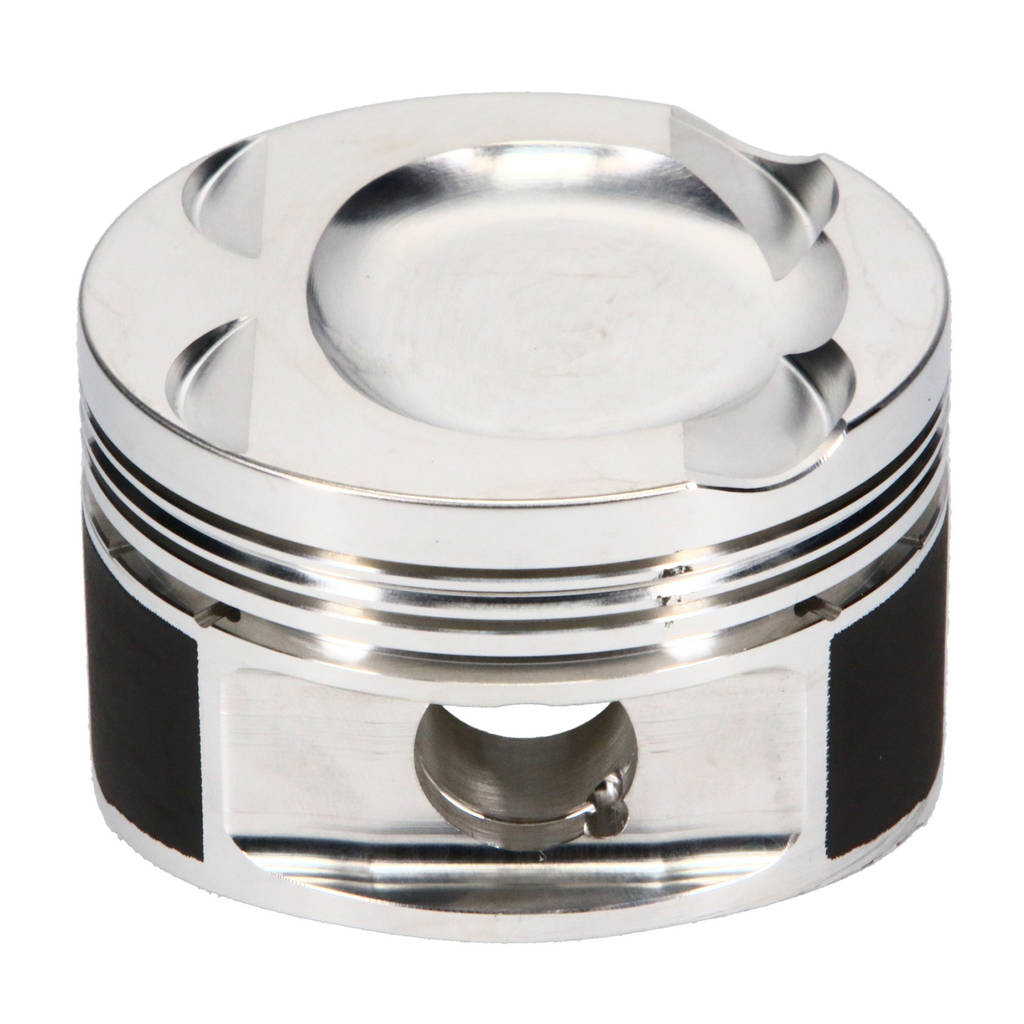

JE 363325S Piston Single (3.011 in. Bore, 1.141 in. CH, -8.00 CC) for VW 1.4L TFSI Engine

Description JE 363325S Piston Single (3.011 in. Bore, 1.141 in. CH, -8.00 CC) for VW 1.4L TFSI Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

• Forged from 4032 aluminum for tensile strength and minimal thermal expansion
• Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
• Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
• Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

• Piston Series: JE Pistons
• Cylinder Head: 4-VALVE
• Bore Diameter: 3.011 IN
• Piston Head Type: Dish
• Compression Height: 1.141 IN
• Piston Volume: -8.00 CC
• Piston Material: 2618
• Piston Quantity: 1
• Forging Type: Round
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0400 IN
• Second Compression Ring Thickness: 0.0480 IN
• Oil Ring Thickness: 0.111 IN
• Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
• Wrist Pin Length: 2.050 IN
• Wrist Pin Wall Thickness: 0.160 IN
• Engine Detail: 1.4L TFSI 2005+
