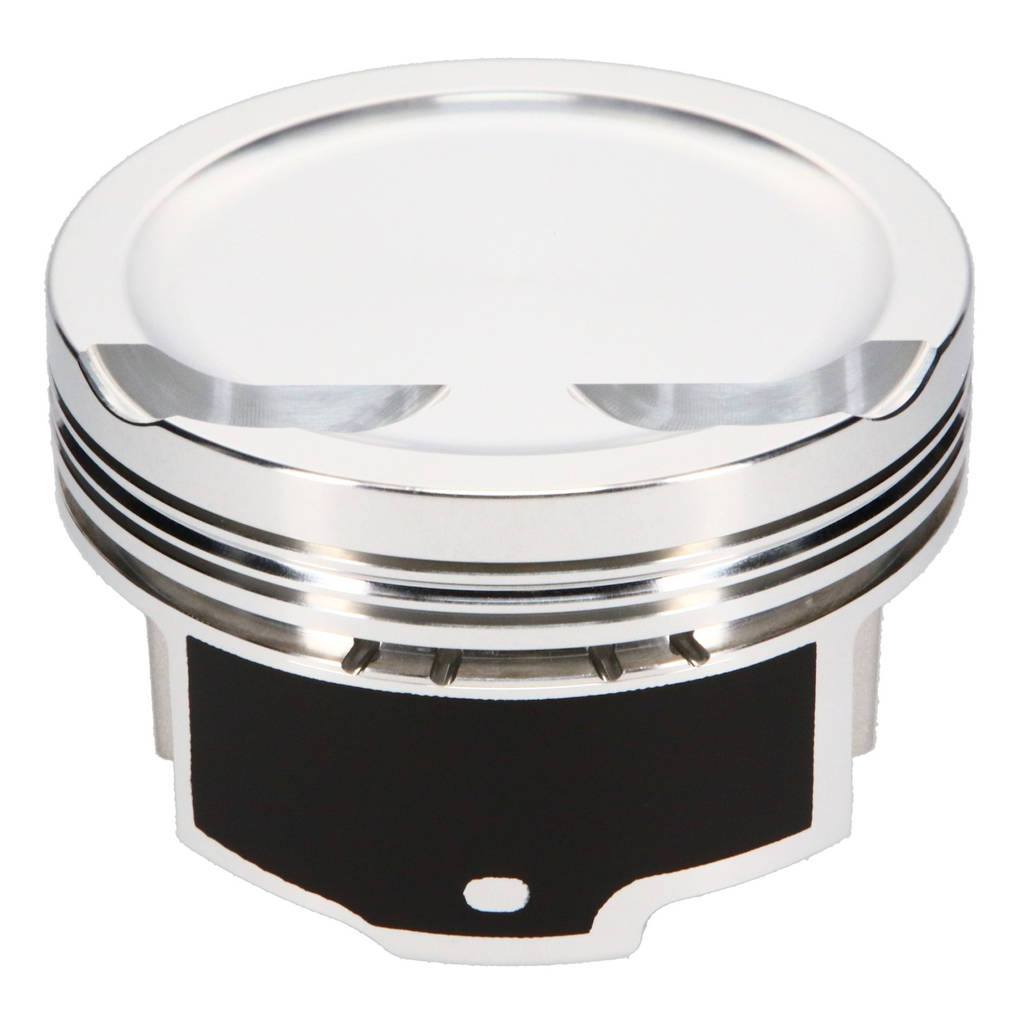

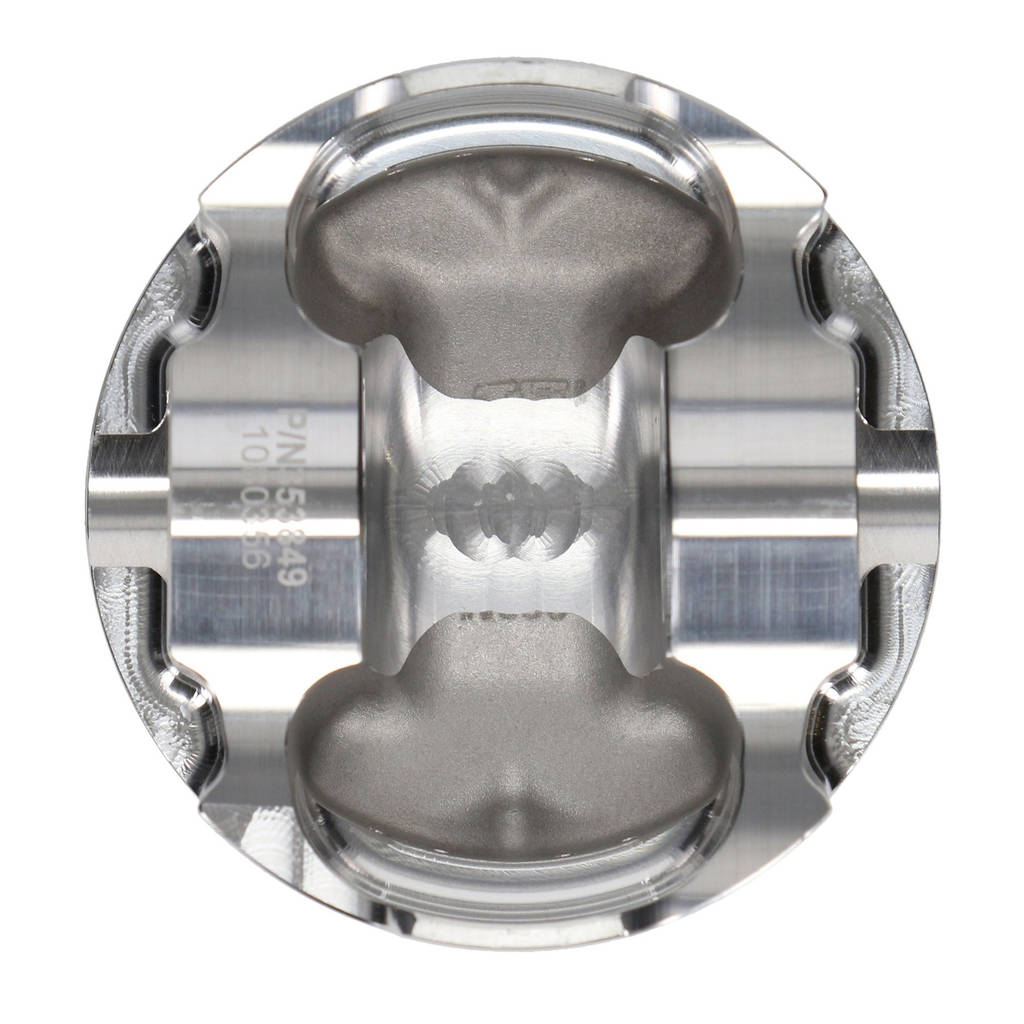

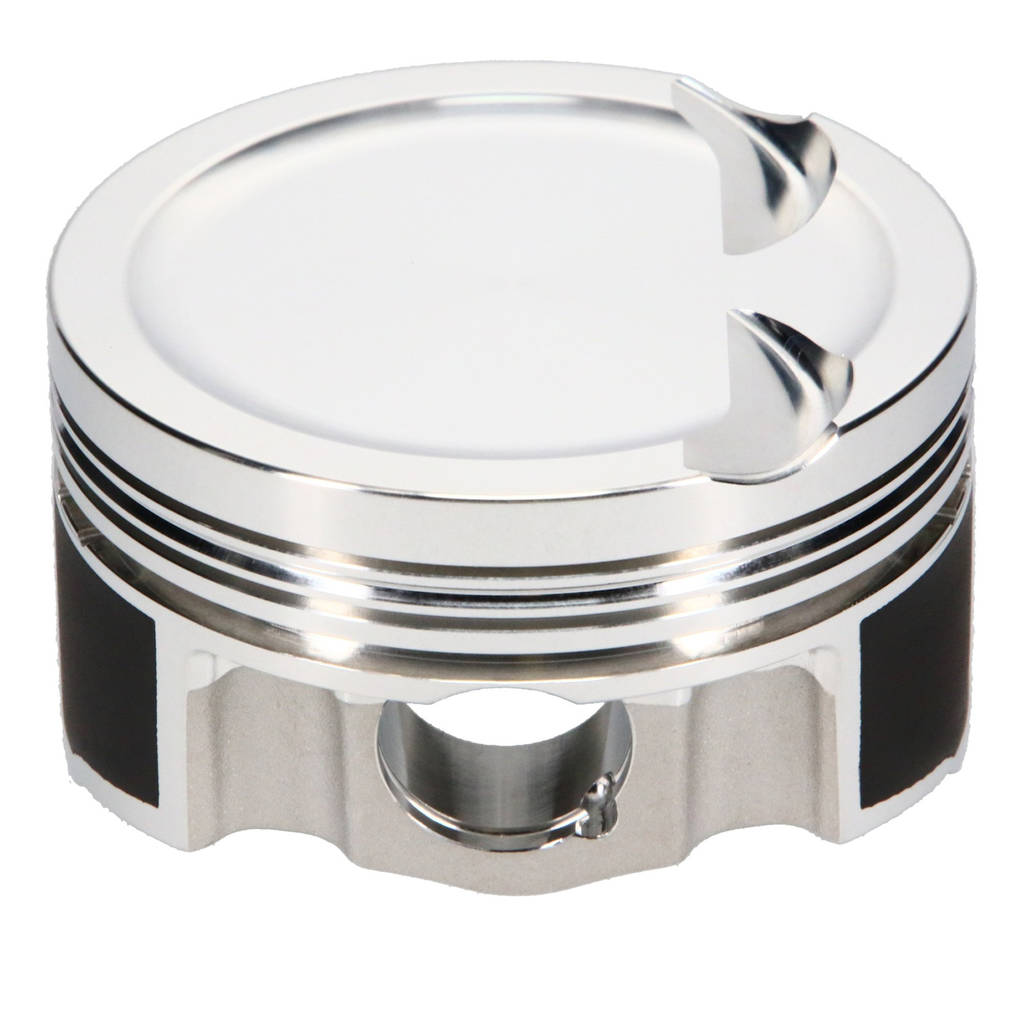

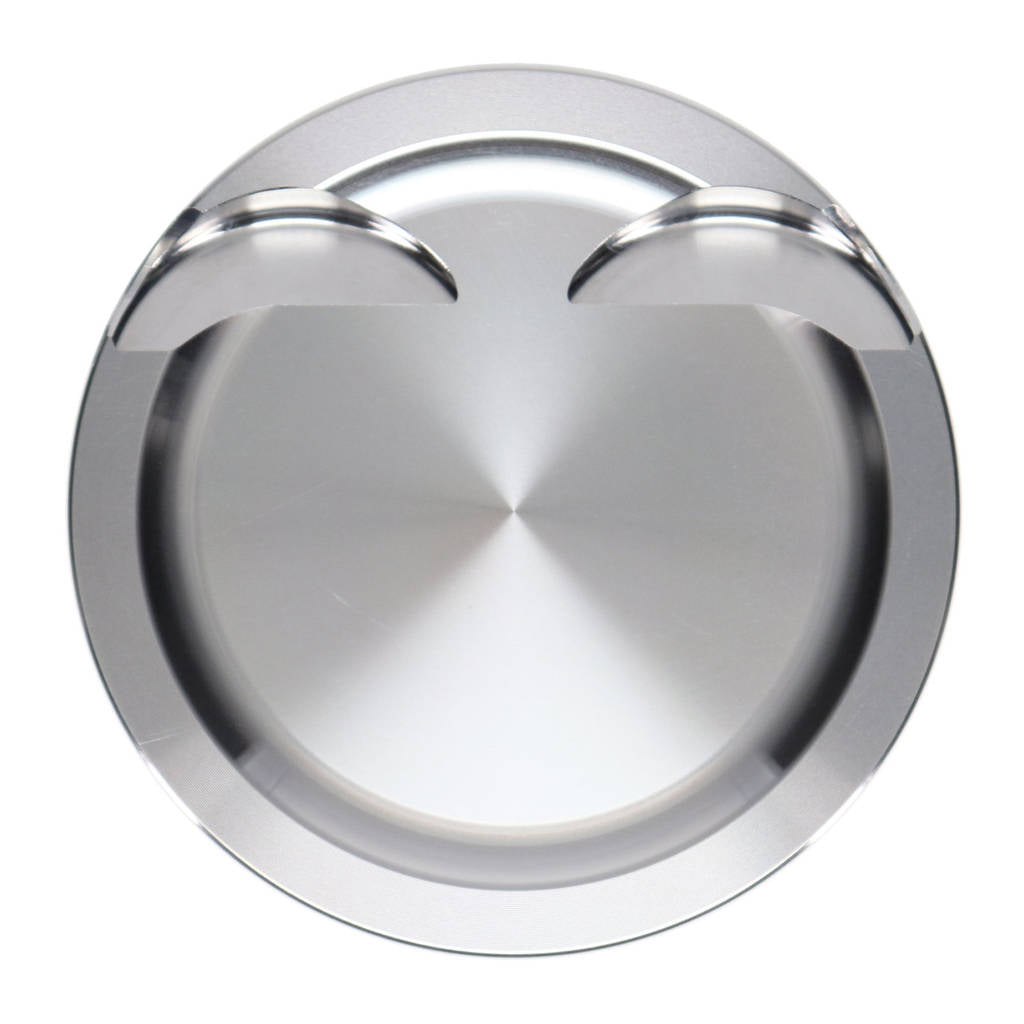

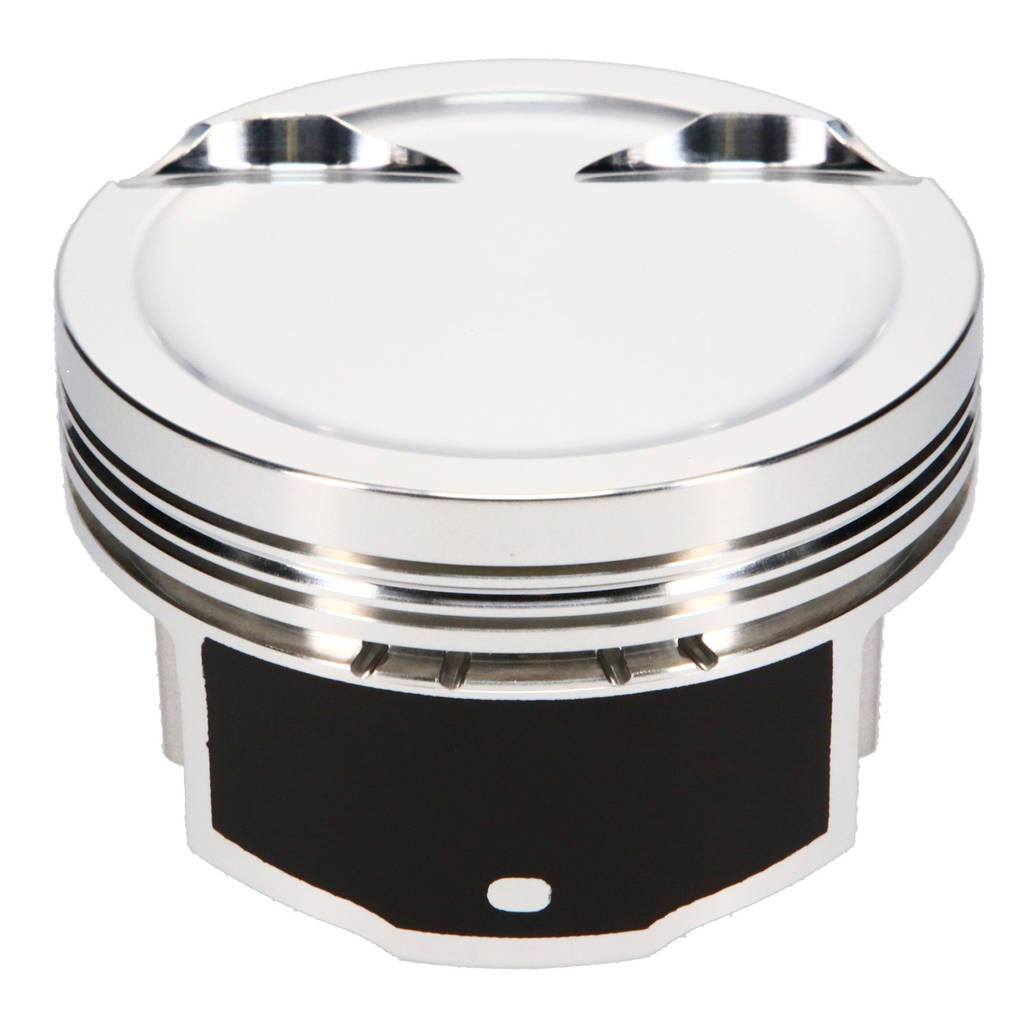

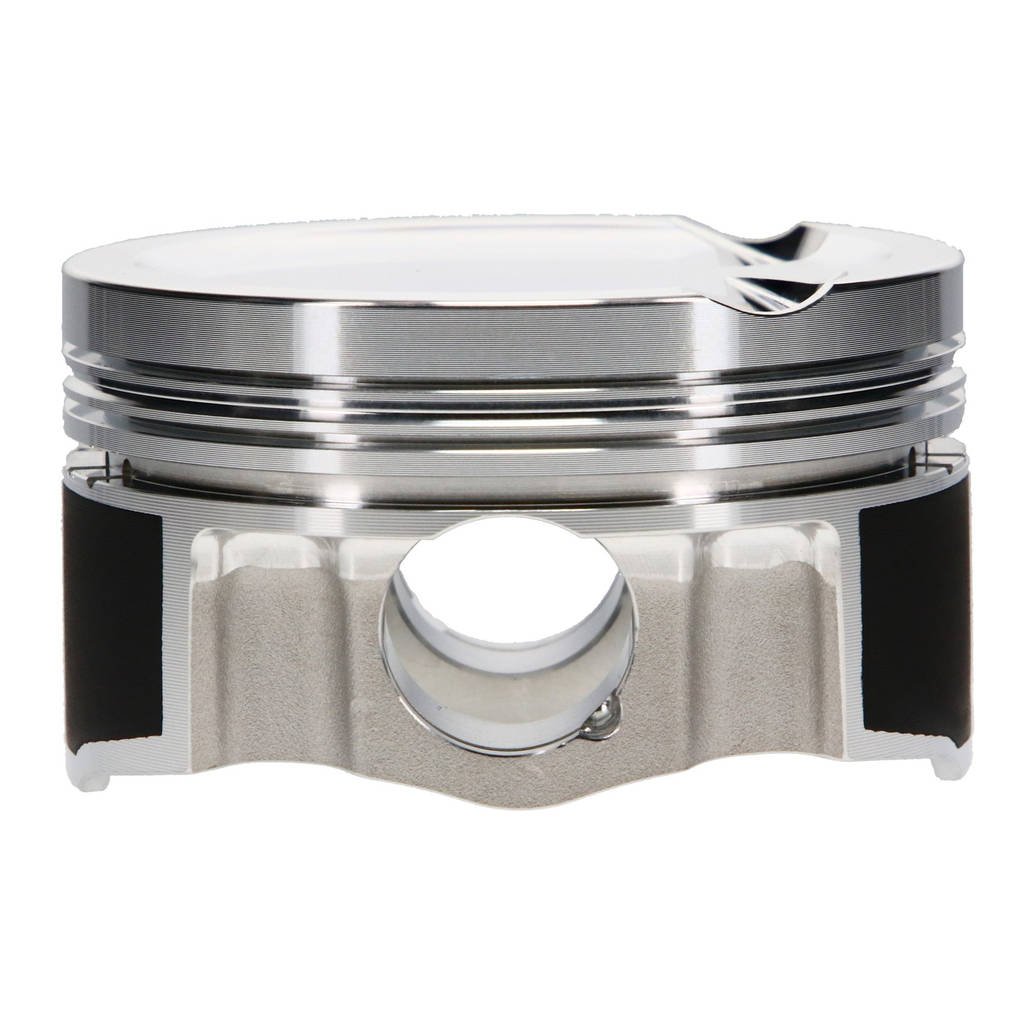

JE 353863S Piston Single (83.00 mm Bore, 1.165 in. CH, -5.20 CC) for VW 2.0T TSI Engine

Description JE 353863S Piston Single (83.00 mm Bore, 1.165 in. CH, -5.20 CC) for VW 2.0T TSI Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

• Forged from 4032 aluminum for tensile strength and minimal thermal expansion
• Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
• Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
• Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

• Piston Series: JE Pistons
• Cylinder Head: 2.0 TSI
• Bore Diameter: 83.00 MM
• Piston Head Type: Dish
• Compression Height: 1.165 IN
• Piston Volume: -5.20 CC
• Piston Material: 2618
• Piston Quantity: 1
• Forging Type: FSR
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0400 IN
• Second Compression Ring Thickness: 0.0480 IN
• Oil Ring Thickness: 0.111 IN
• Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
• Wrist Pin Length: 2.250 IN
• Wrist Pin Wall Thickness: 0.180 IN
• Engine Detail: 2.0T TSI 2013+ Euro 2015+ USA 23 mm Pin
