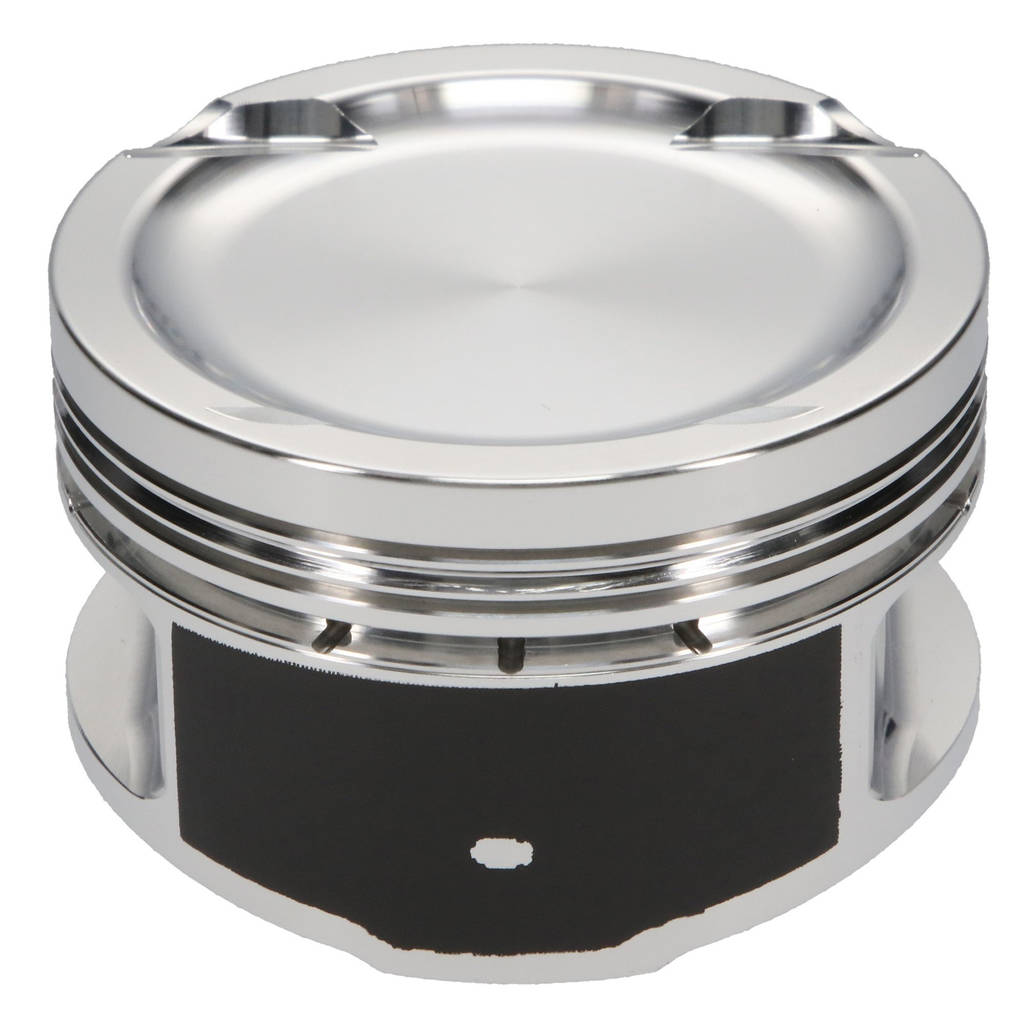

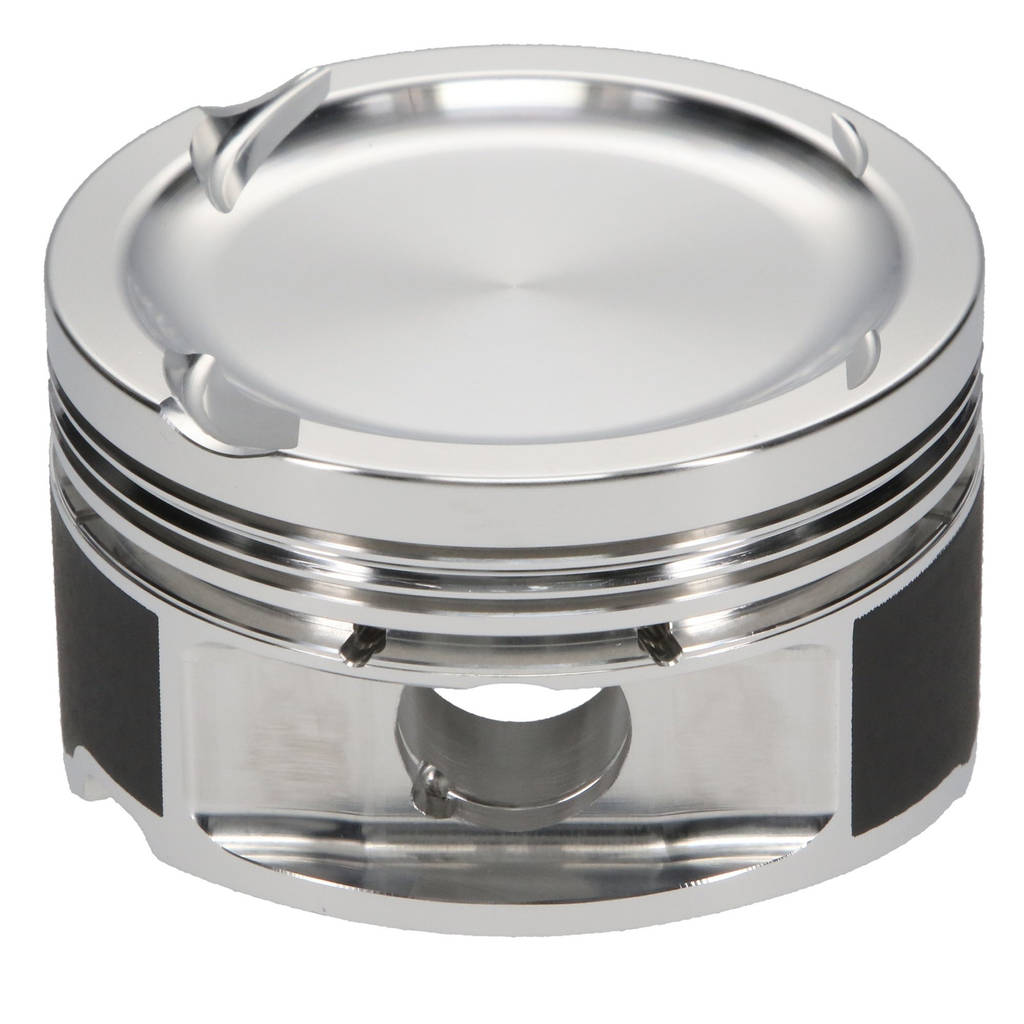

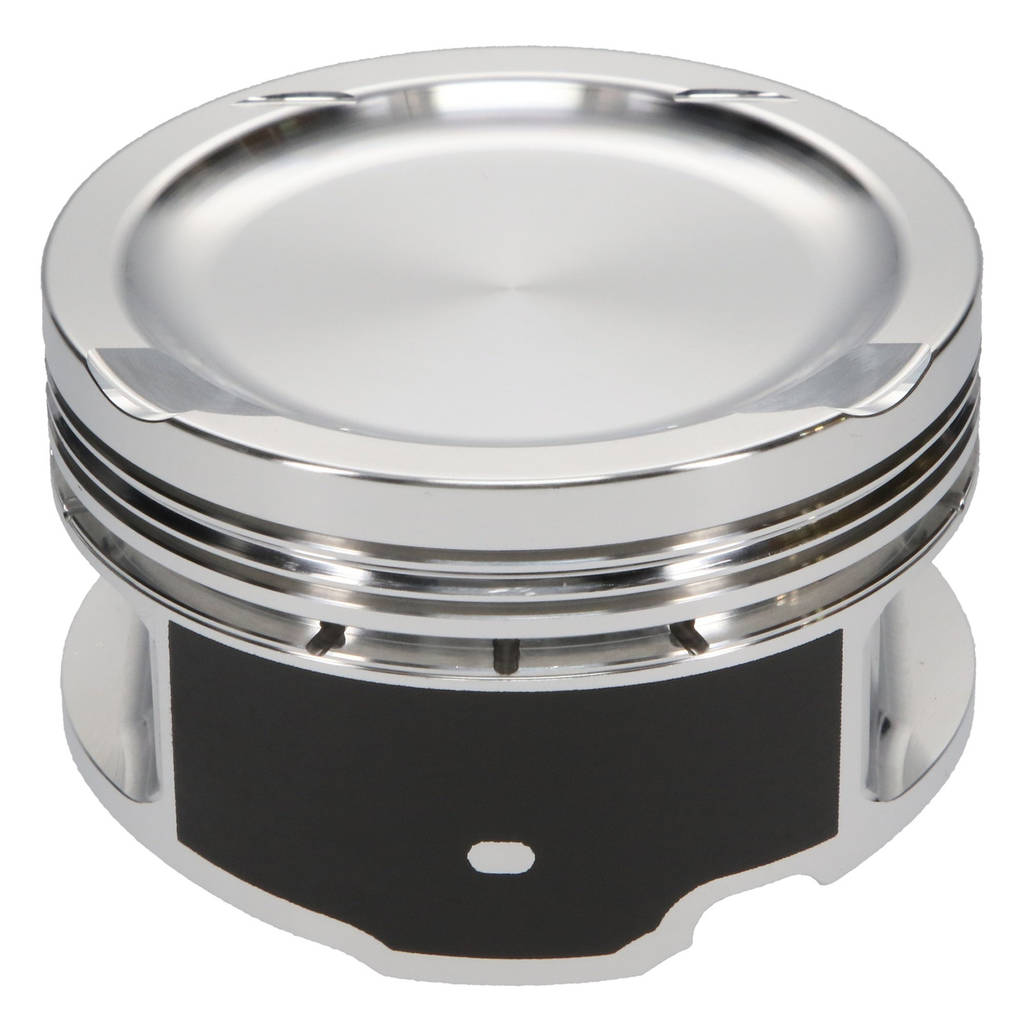

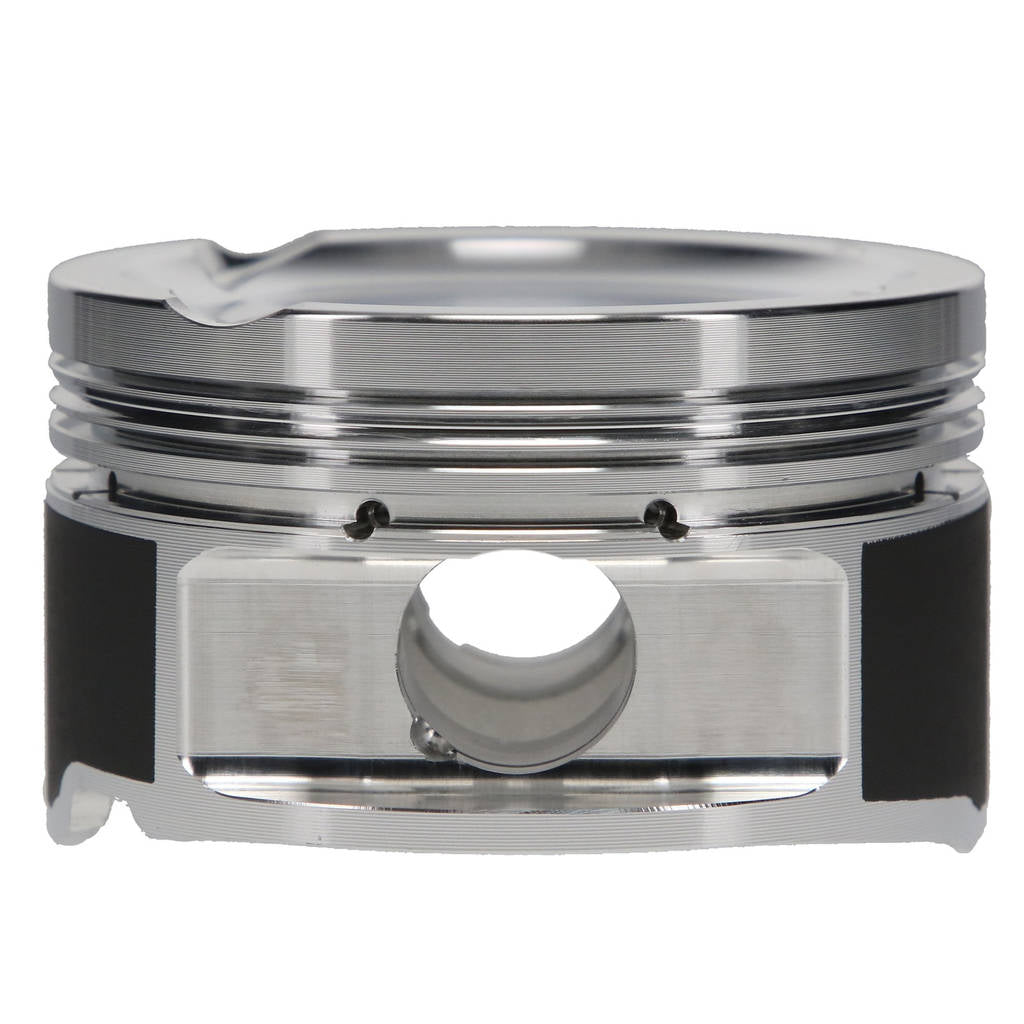

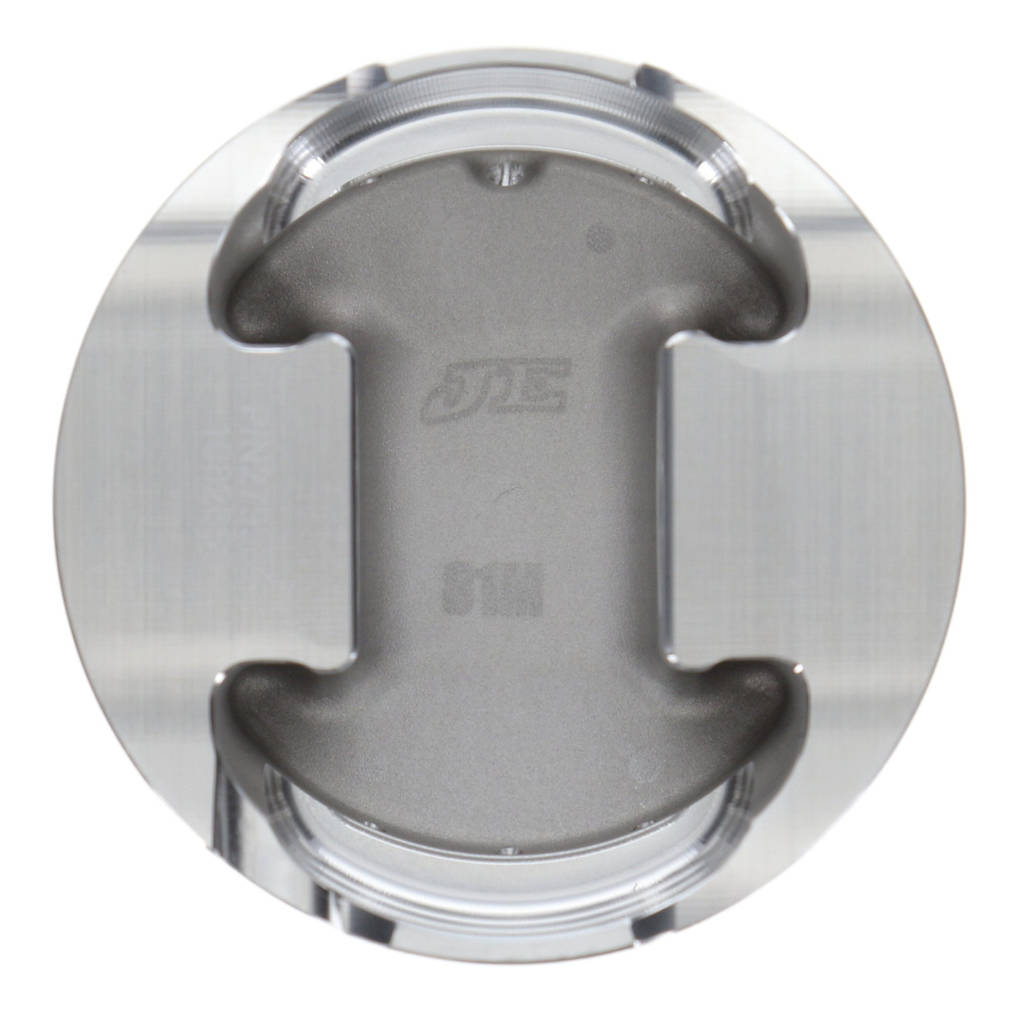

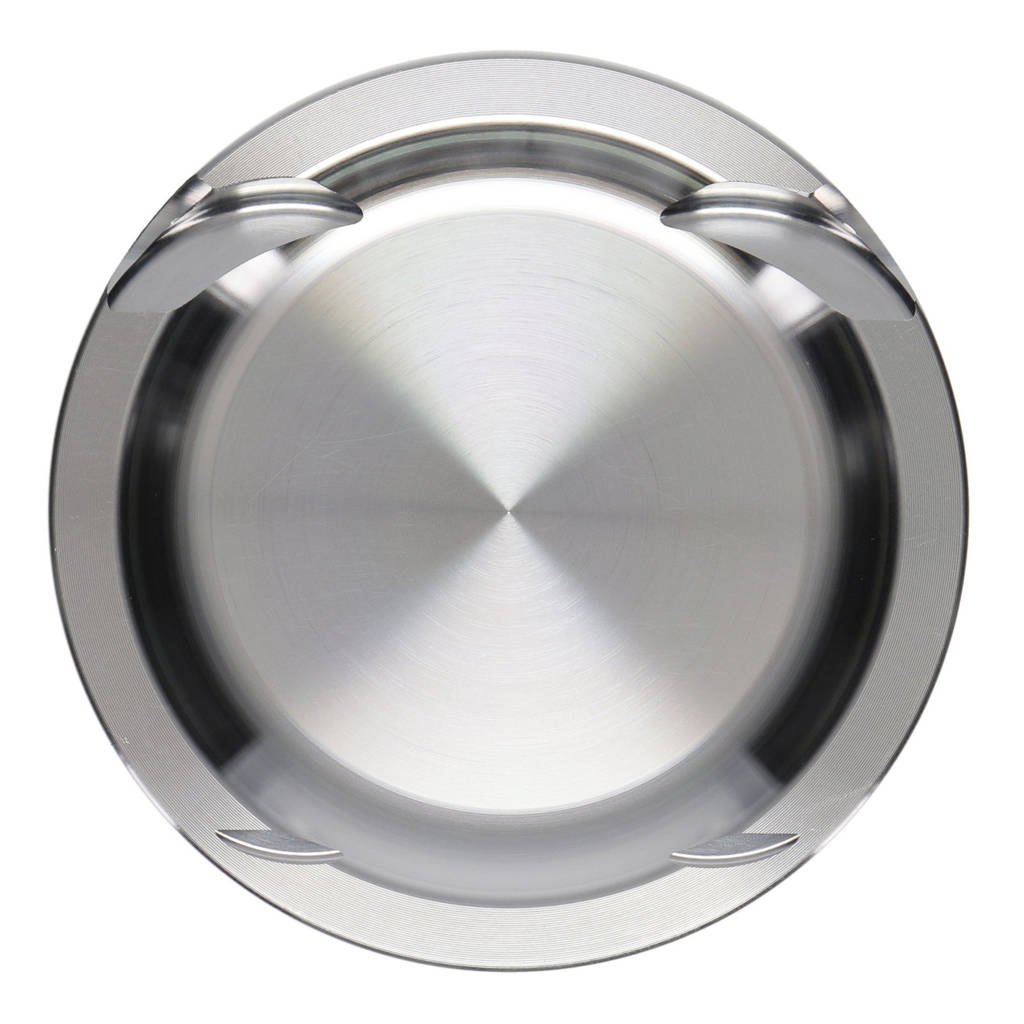

JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set)
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UA
Usually ready in 1 hour
JE 345817S Piston VW TS1 2.0 TURBO 23MM PIN (Single Piece Set)
ATOMIC-SHOP UA
Pickup available, usually ready in 1 hour
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
DESCRIPTION:
Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.165 CD, 0.905, Pin Dia, Set of 1.
Car | 2015 | Audi | A4
Truck | 2016 | Audi | Q3
Truck | 2018 | Audi | Q3
Truck | 2017 | Audi | Q3
Car | 2015 | Audi | S3
Truck | 2016 | Audi | Q5
Truck | 2015 | Audi | Q5
Truck | 2017 | Audi | Q5
Car | 2016 | Audi | A3 Quattro
Car | 2015 | Audi | A3 Quattro
Car | 2018 | Audi | A3 Quattro
Car | 2016 | Audi | A4 Quattro
Car | 2015 | Audi | A4 Quattro
Car | 2014 | Audi | A6 Quattro
AUDI / VOLKSWAGEN|2.0T TSI - 23MM PIN - FULL ROUND SERIES
| Bore (in) | 3.248 |
|---|---|
| Bore (mm) | 82.5 |
| Top Compression Ring Thickness | 0.0400 |
| Second Compression Ring Thickness | 0.0480 |
| Oil Ring Thickness | 0.111 |
| Forging Type | Round |
| Volume (cc) | -7.10 |
| Series | JE Pistons |
| Piston Head Type | Inv Dome/Dish |
| Pin Diameter (IN) | 0.905 |
| Compression Height | 1.165 |
| Make | AUDI / VOLKSWAGEN |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | CHAMFERED |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | JG1001-3250 |
| Ring Brand | ProSeal |
| Ringset Included | Yes |
| Retainer Thickness | 0.073 |
| Retainer Lock Style | Wire Lock |
| Retainer Lock Part Number | 905-073-MW |
| Retainer Diameter (IN) | 0.905 |
| Replacement Single Piston | 345817S |
| Piston Pin Inside Diameter | 0.605 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.250 |
| Pin Offset | Yes |
| Pin Brand | JE Pistons |
| Pin Part Number | 905-2250-15-51C |
| Pin Included | Yes |
| Pin Diameter (mm) | 23.00 |
| Oil Rail Support Included | No |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |
