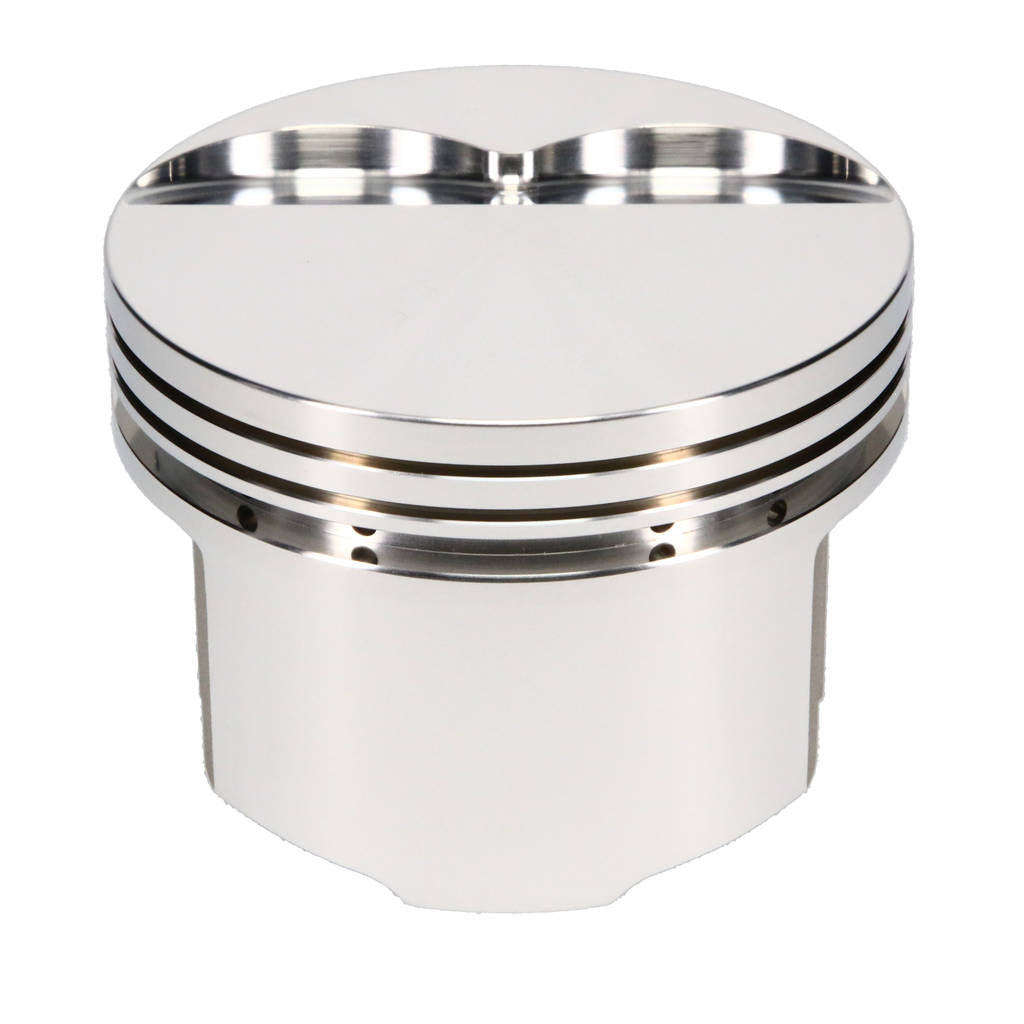

JE 345797S Поршень SRP (діаметр 4.070″, комп. висота 1.670″, -5.00 куб.см) для двигуна CHRYSLER Small Block Photo-0

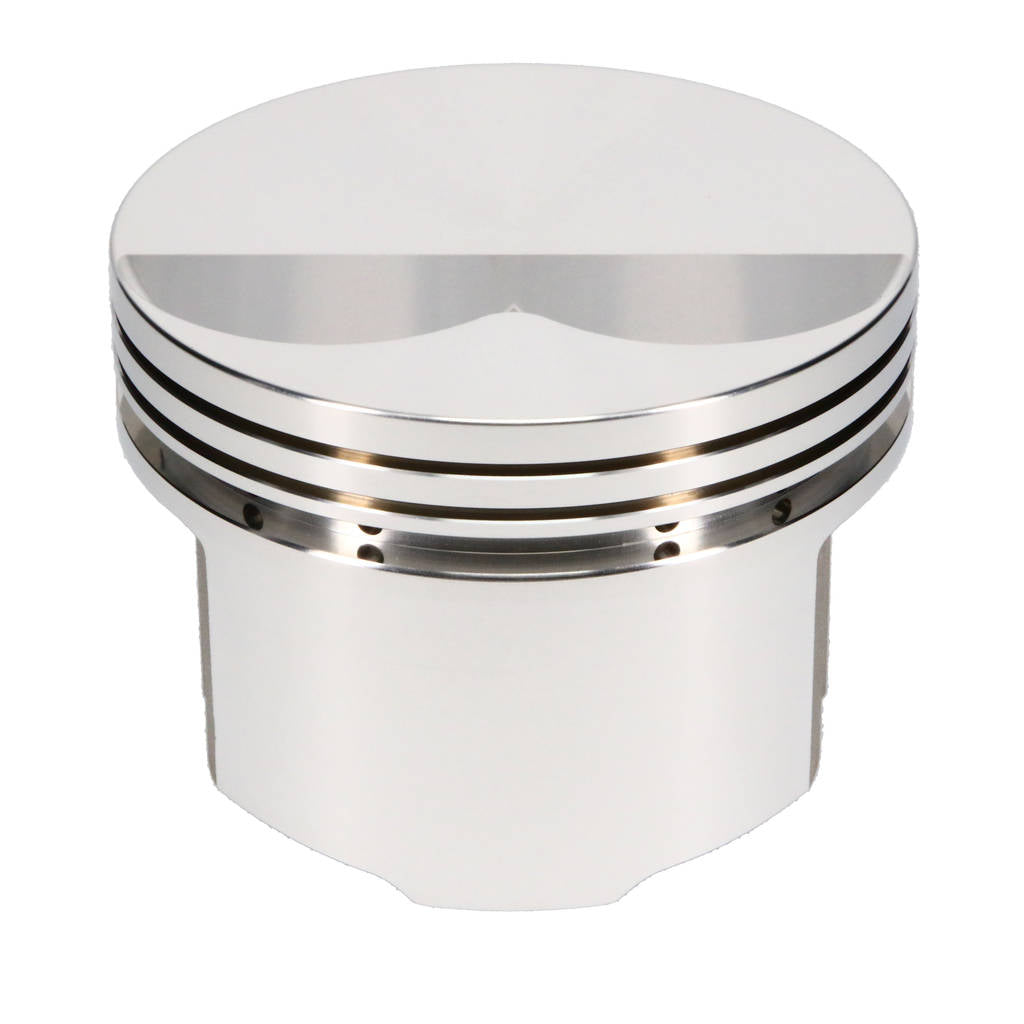

JE 345797S Поршень SRP (діаметр 4.070″, комп. висота 1.670″, -5.00 куб.см) для двигуна CHRYSLER Small Block Photo-1
JE 345797S Поршень SRP (діаметр 4.070″, комп. висота 1.670″, -5.00 куб.см) для двигуна CHRYSLER Small Block Photo-2

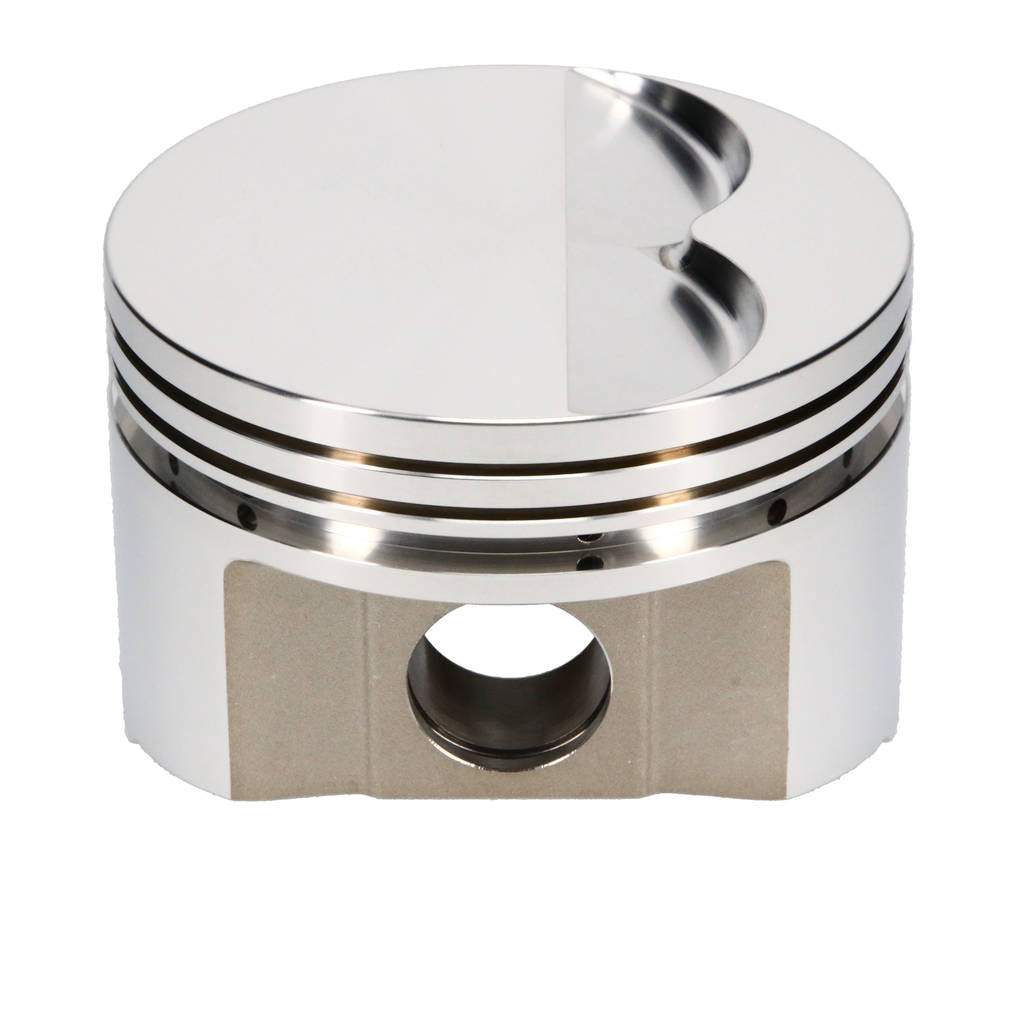

JE 345797S Поршень SRP (діаметр 4.070″, комп. висота 1.670″, -5.00 куб.см) для двигуна CHRYSLER Small Block Photo-3

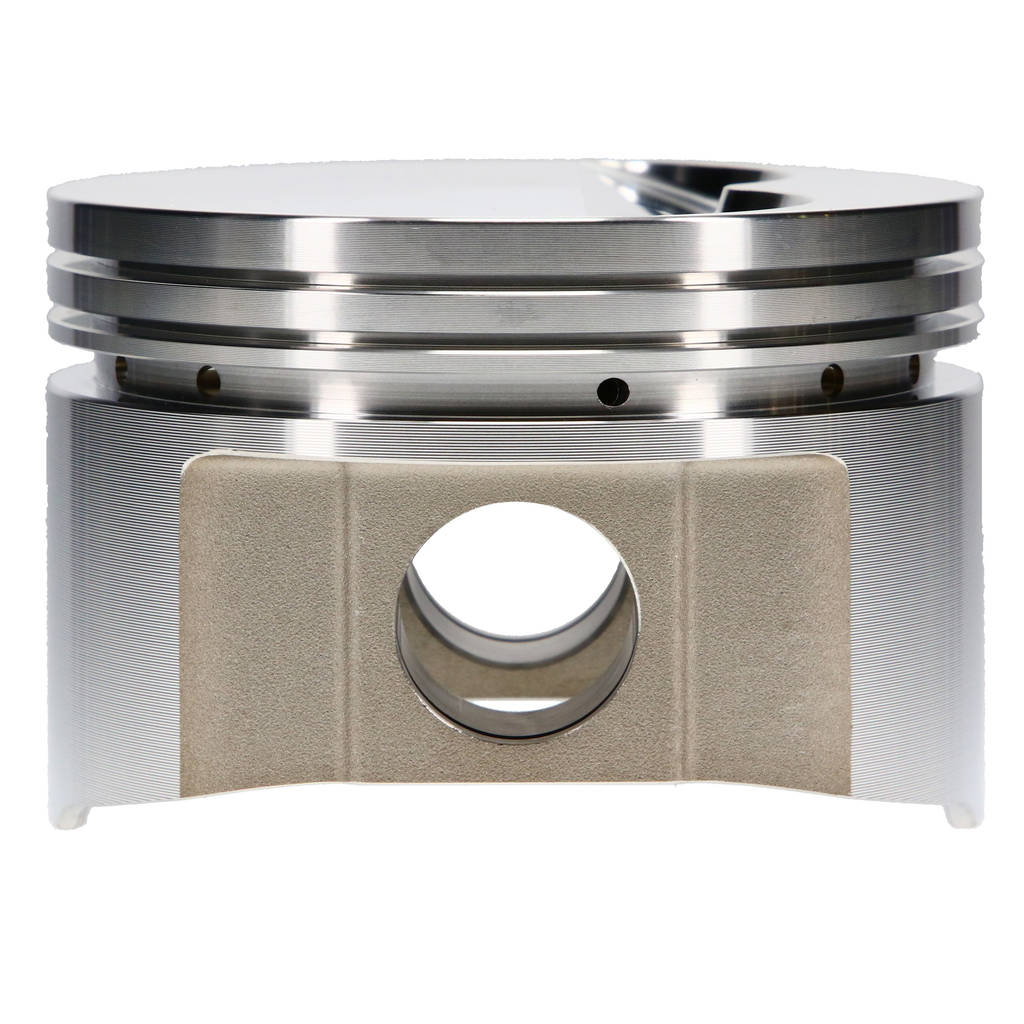

JE 345797S Поршень SRP (діаметр 4.070″, комп. висота 1.670″, -5.00 куб.см) для двигуна CHRYSLER Small Block Photo-4

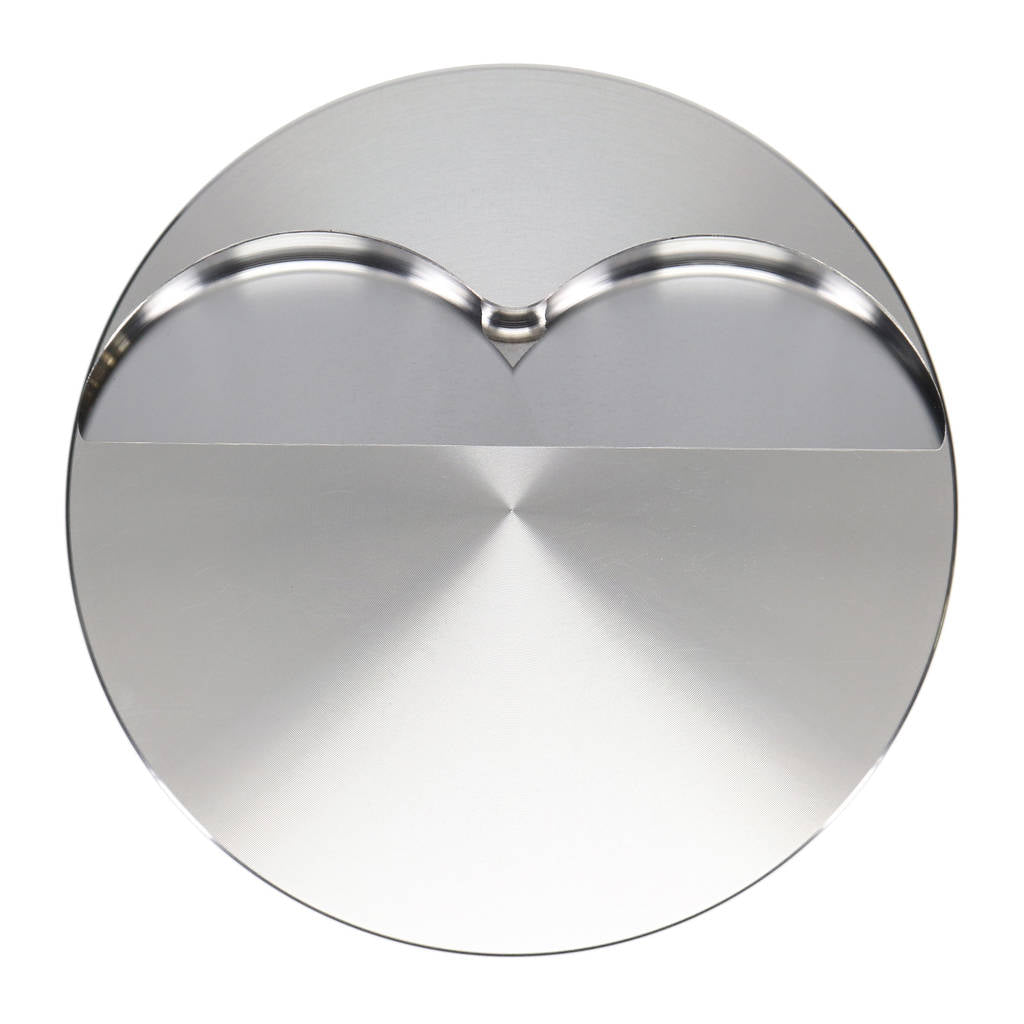

JE 345797S Поршень SRP (діаметр 4.070″, комп. висота 1.670″, -5.00 куб.см) для двигуна CHRYSLER Small Block Photo-5

JE PISTONS

JE 345797S Piston Single SRP (4.070 in. Bore, 1.670 in. CH, -5.00 CC) for CHRYSLER Small Block Engine

₴7,244.55

Shipping calculated at checkout

P/N: 345797S GTIN: 193564261489
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

JE 345797S Piston Single SRP (4.070 in. Bore, 1.670 in. CH, -5.00 CC) for CHRYSLER Small Block Engine

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611

Description JE 345797S Piston Single SRP (4.070 in. Bore, 1.670 in. CH, -5.00 CC) for CHRYSLER Small Block Engine

Born from the racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line bridges the gap between high-quality forged piston performance and affordability.

Forged from strong 4032 aluminum alloy, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance. They are suitable for mild to moderate performance engines on a sportsman budget.

  • Forged in the USA from 4032 aluminum for tensile strength and minimal thermal expansion
  • Dedicated forging optimizes strength and weight throughout the piston design
  • Suitable for street/strip applications
  • Forced pin oiling improves pin lubrication

Specifications:

  • Piston Series: SRP
  • Cylinder Head: 340 WEDGE
  • Bore Diameter: 4.070 IN
  • Piston Head Type: Flat
  • Compression Height: 1.670 IN
  • Piston Volume: -5.00 CC
  • Piston Material: 4032
  • Forging Type: FSR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 0.0640 IN
  • Second Compression Ring Thickness: 0.0640 IN
  • Oil Ring Thickness: 0.188 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Outer Diameter: 0.984 IN
  • Wrist Pin Wall Thickness: 0.150 IN
