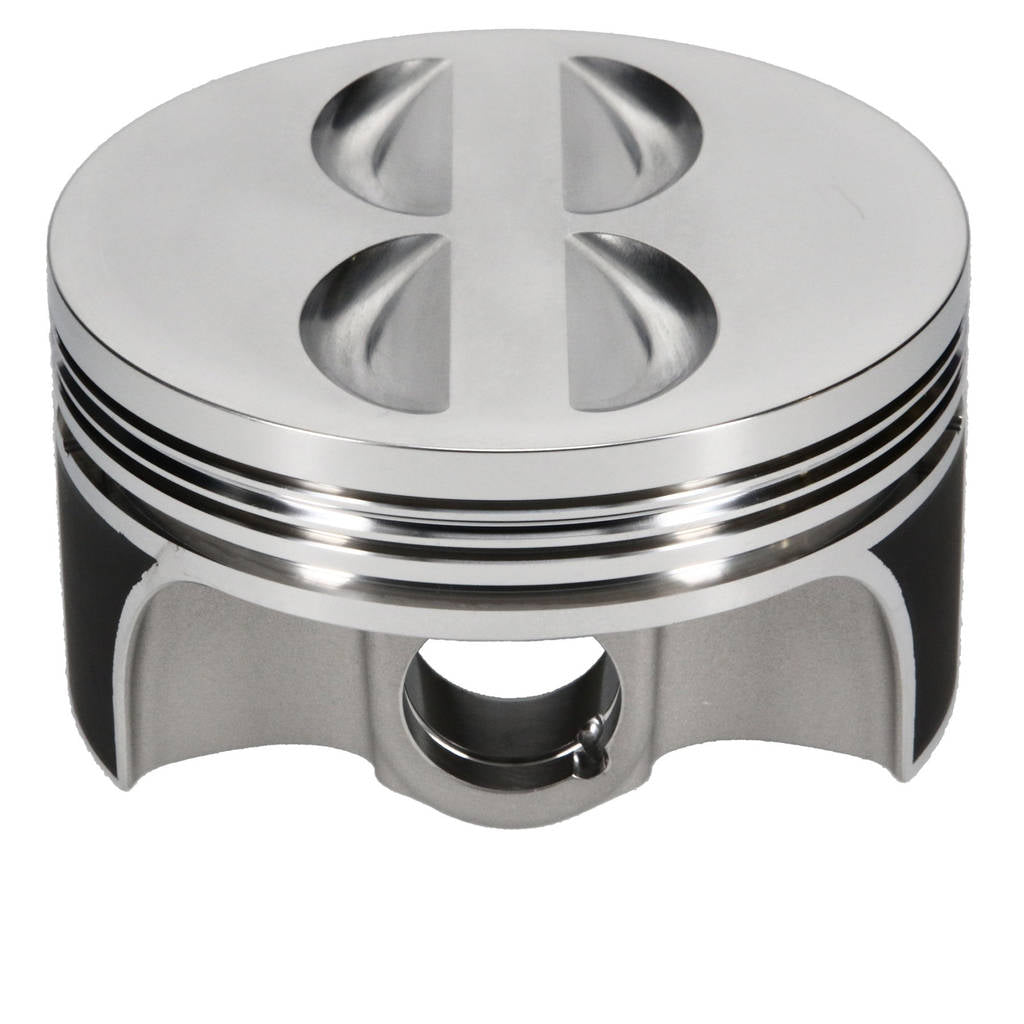

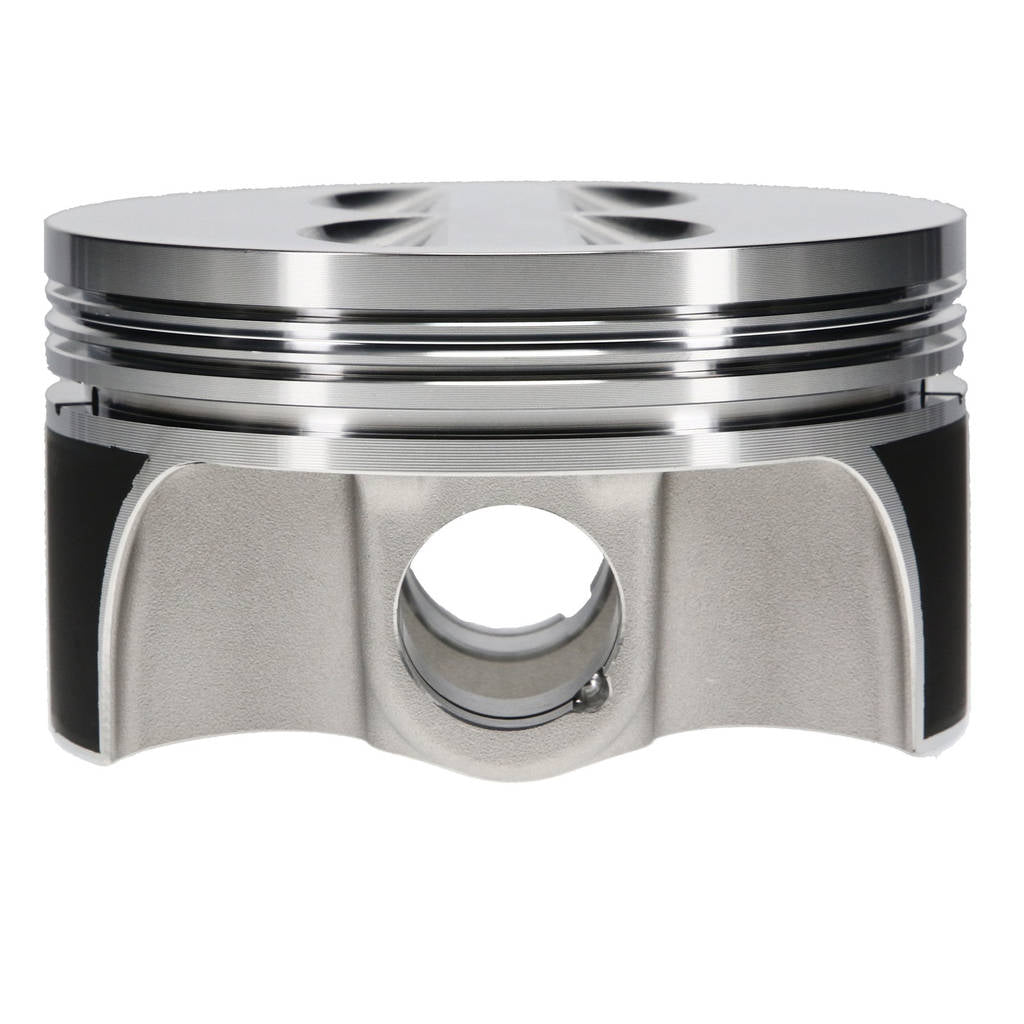

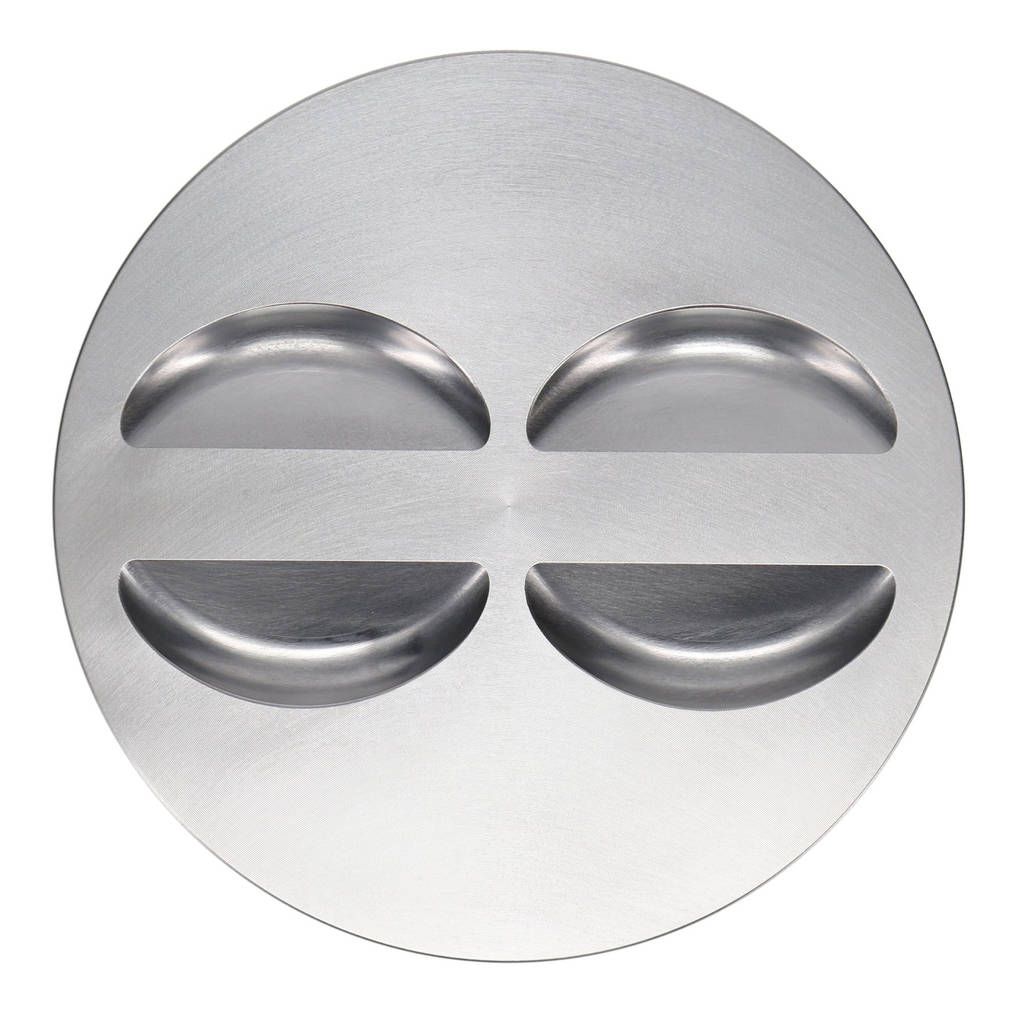

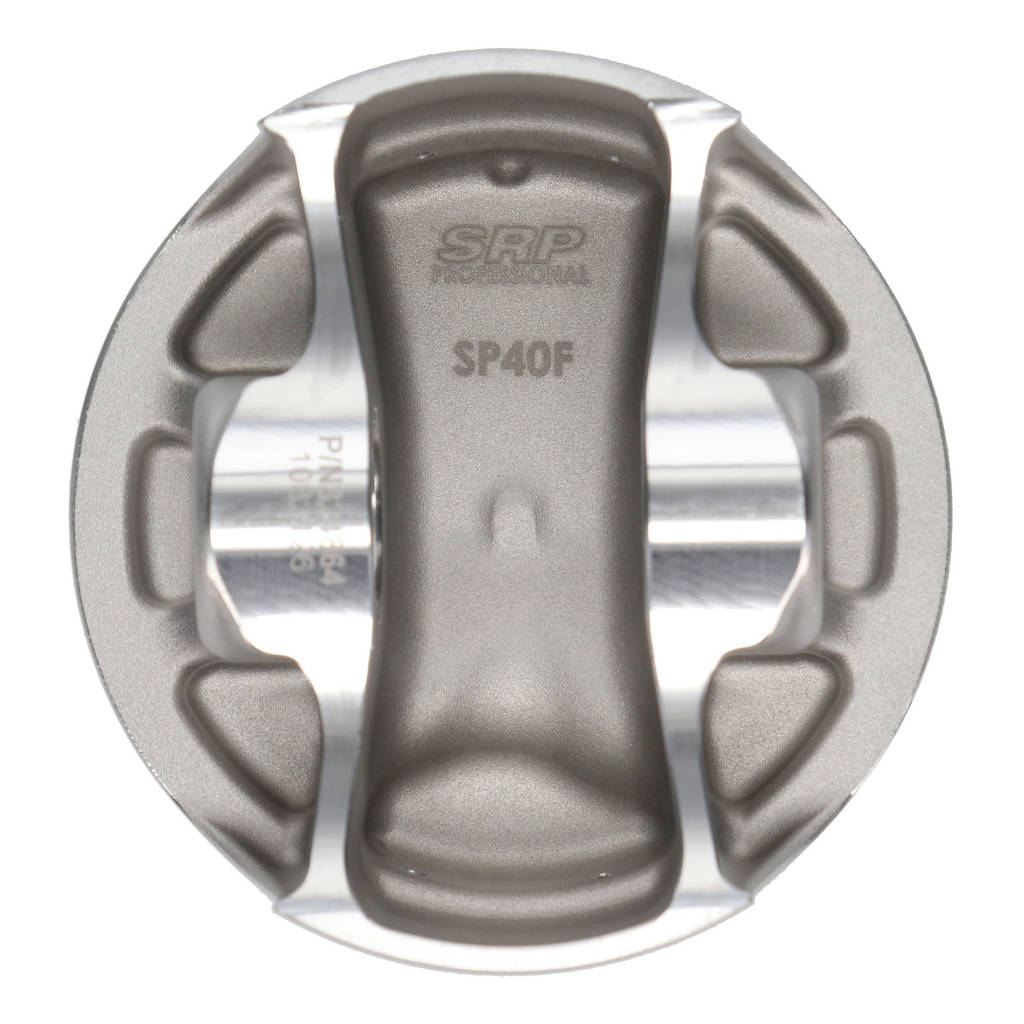

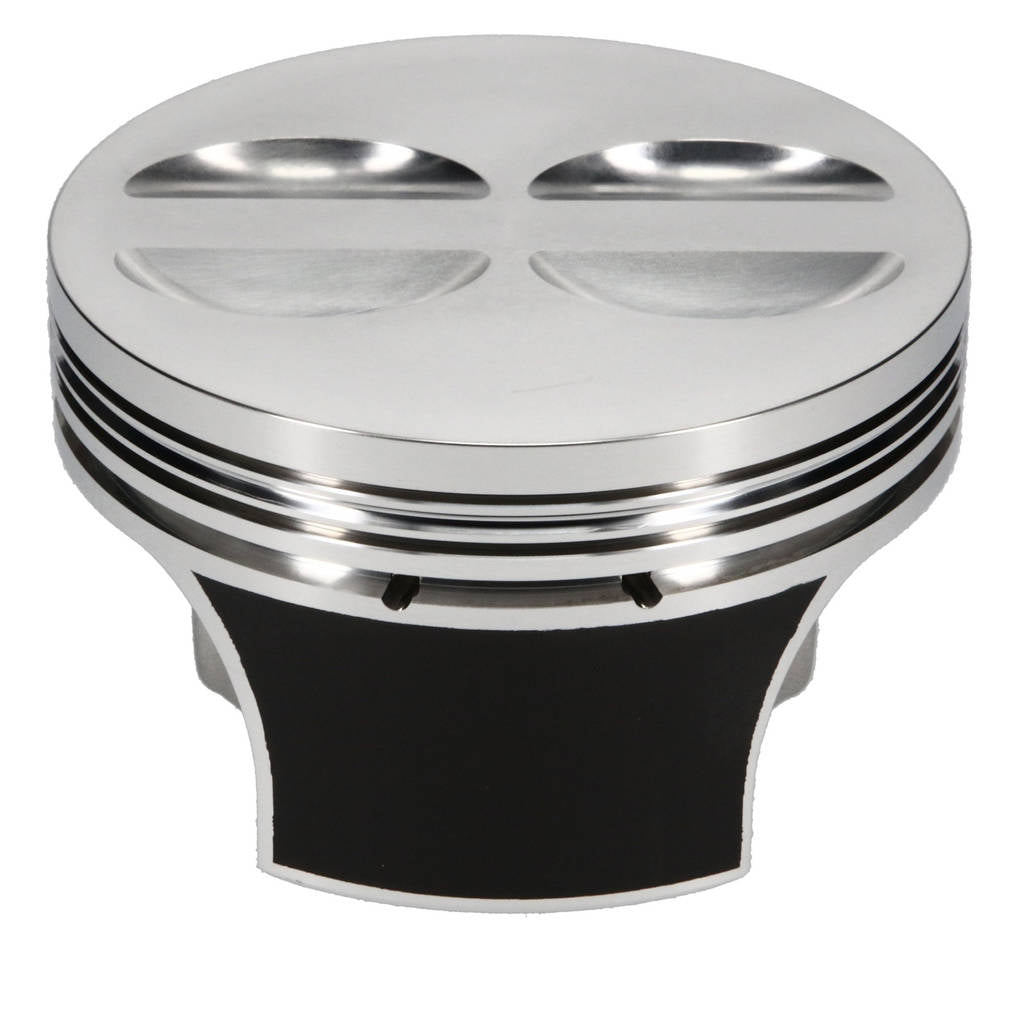

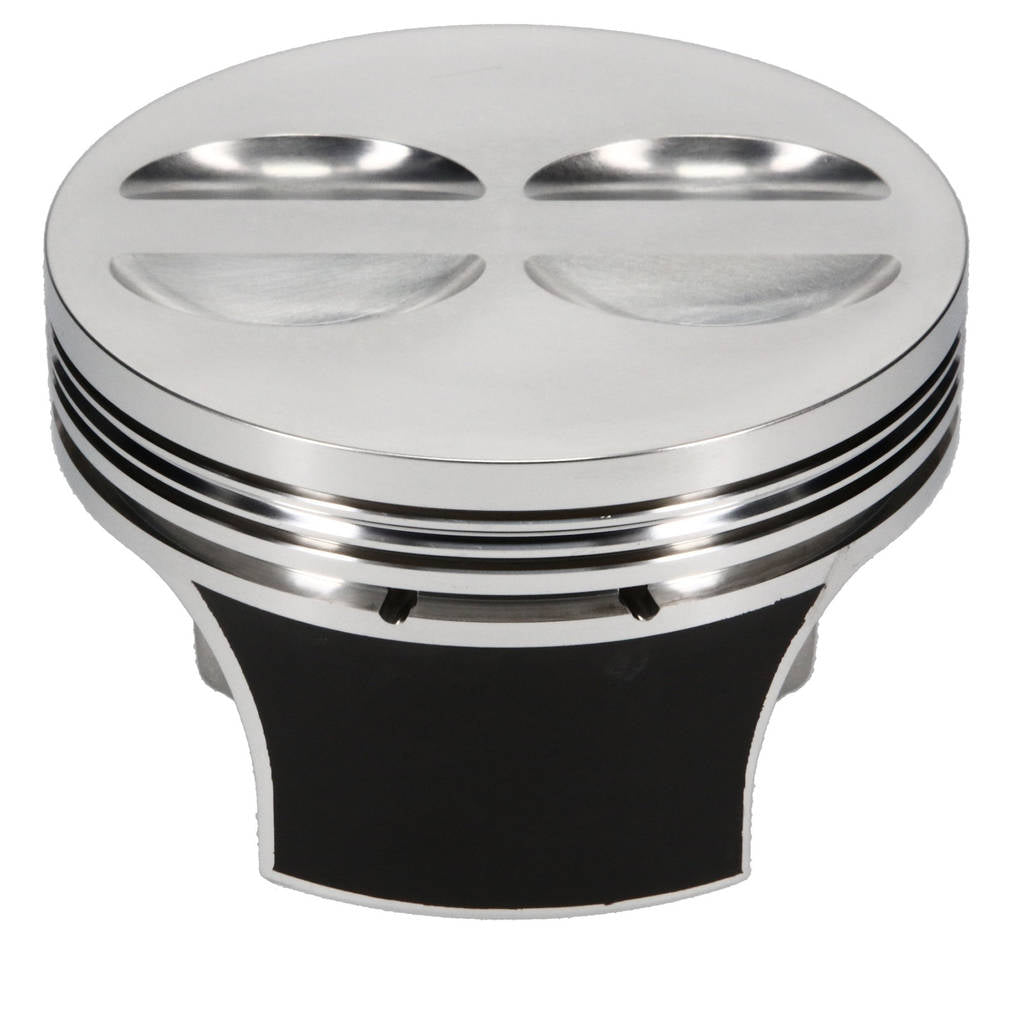

JE 324867S Piston Single SRP Pro 4032 (4.005 in. Bore, 1.125 in. CH, -4.50 CC) for CHEVROLET Small Block Engine

Description JE 324867S Piston Single SRP Pro 4032 (4.005 in. Bore, 1.125 in. CH, -4.50 CC) for CHEVROLET Small Block Engine

SRP Professional pistons combine forged piston durability with modern performance technology for a capable forged piston kit. Forged from 4032 aluminum, SRP Pro pistons experience minimal thermal expansion, making them suitable for reliable, high-performance engine builds from the track to the drag strip.

As with all JE Pistons products, SRP pistons are made 100% in the USA.

• 4032 forged aluminum provides tensile strength and minimal thermal expansion
• Proprietary Forged Side Relief forging design minimizes friction and power loss, reduces skirt width, and saves weight through a shorter Wrist Pin
• Low-friction skirt coating reduces wear and operating noise while optimizing performance
• Accumulator groove reduces combustion gas pressure, reducing Piston Ring flutter and improving ring seal for consistent power

Specifications:

• Piston Series: SRP Pro
• Cylinder Head: STD CHEVROLET 23 DEG
• Bore Diameter: 4.005 IN
• Piston Head Type: Flat
• Compression Height: 1.125 IN
• Piston Volume: -4.50 CC
• Piston Material: 4032
• Forging Type: FSR
• Piston Average Weight: 432 GR
• Ring Set Included: Yes
• Top Compression Ring Thickness: 0.0480 IN
• Second Compression Ring Thickness: 0.0600 IN
• Oil Ring Thickness: 0.149 IN
• Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
• Wrist Pin Length: 2.250 IN
• Wrist Pin Wall Thickness: 0.150 IN
