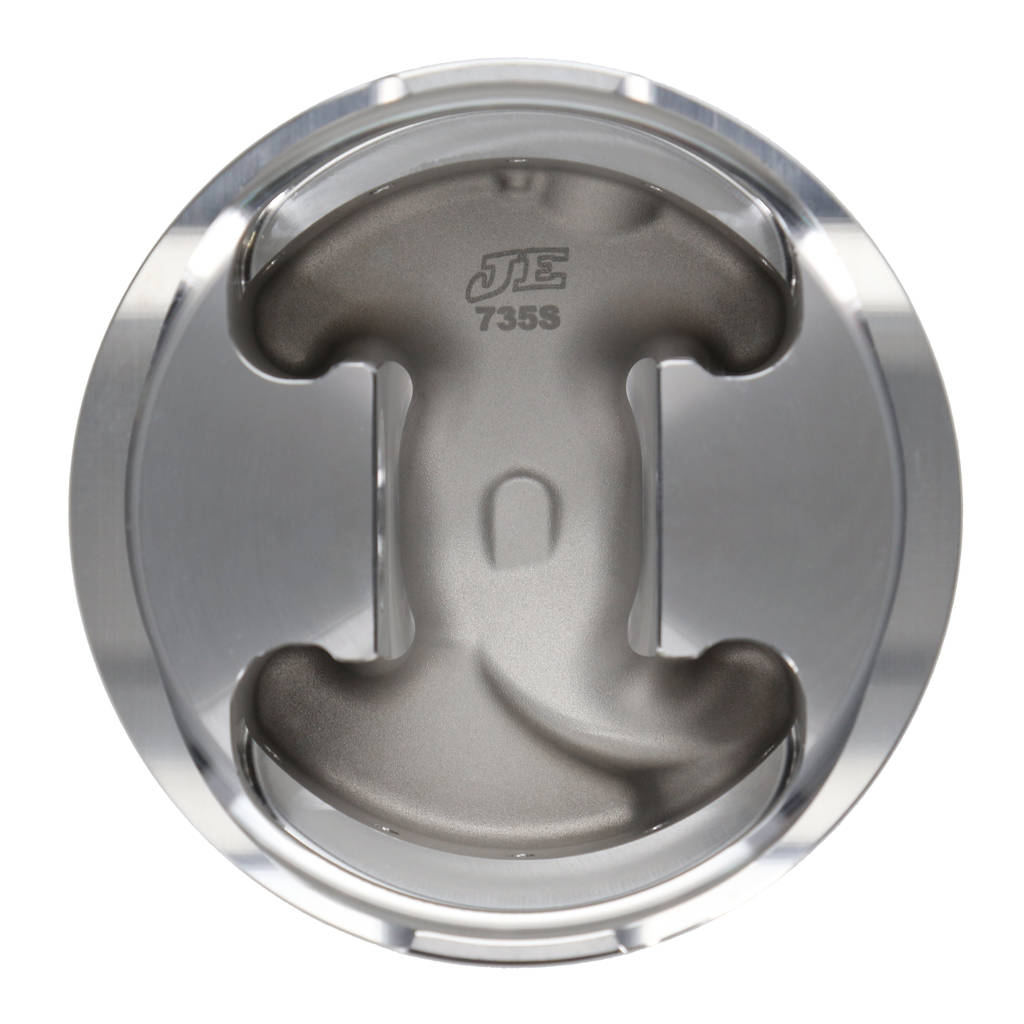

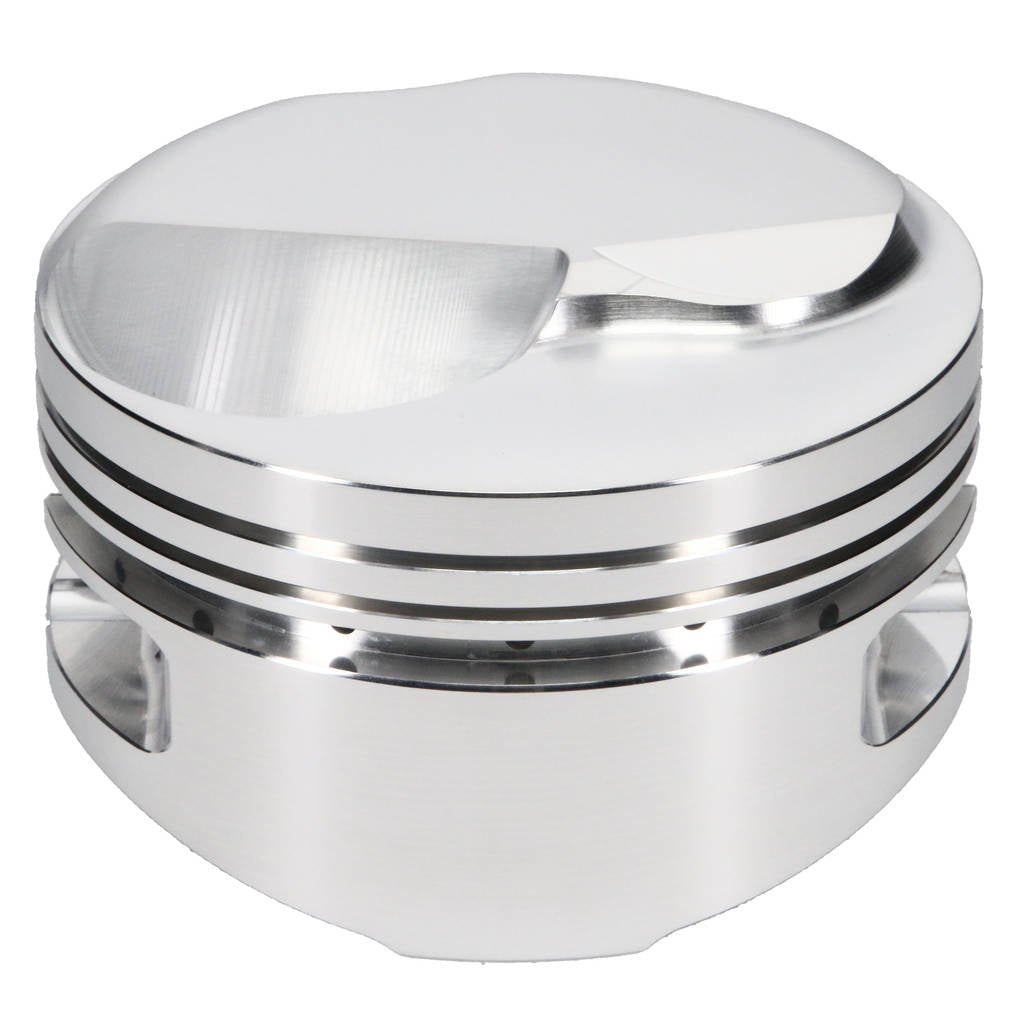

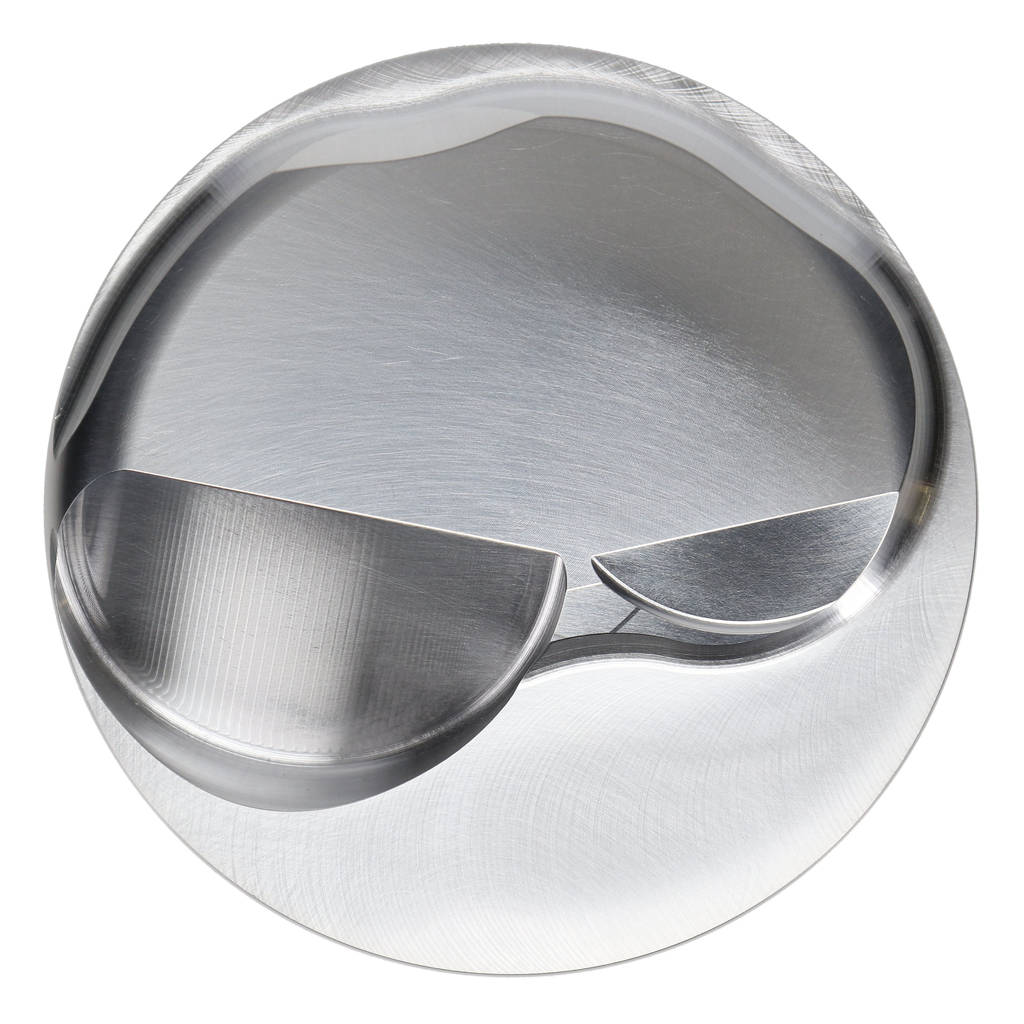

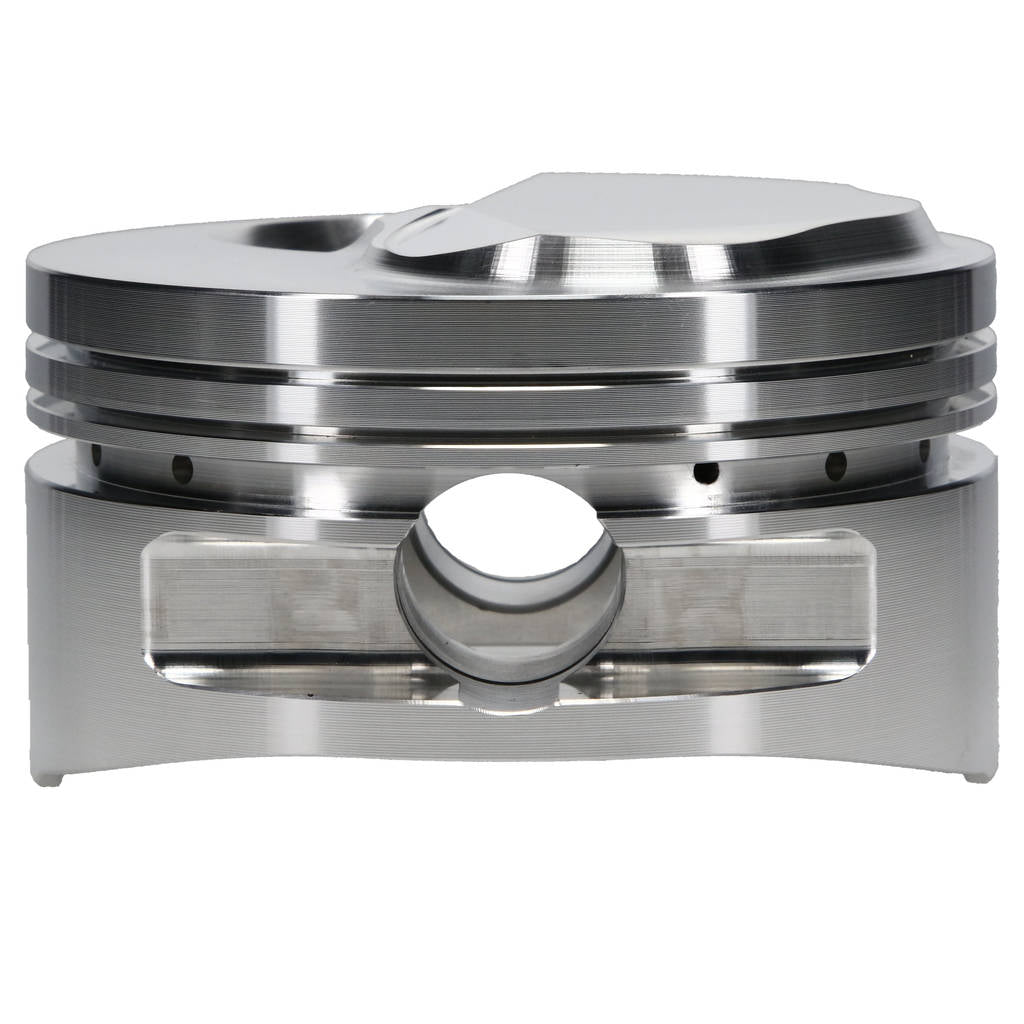

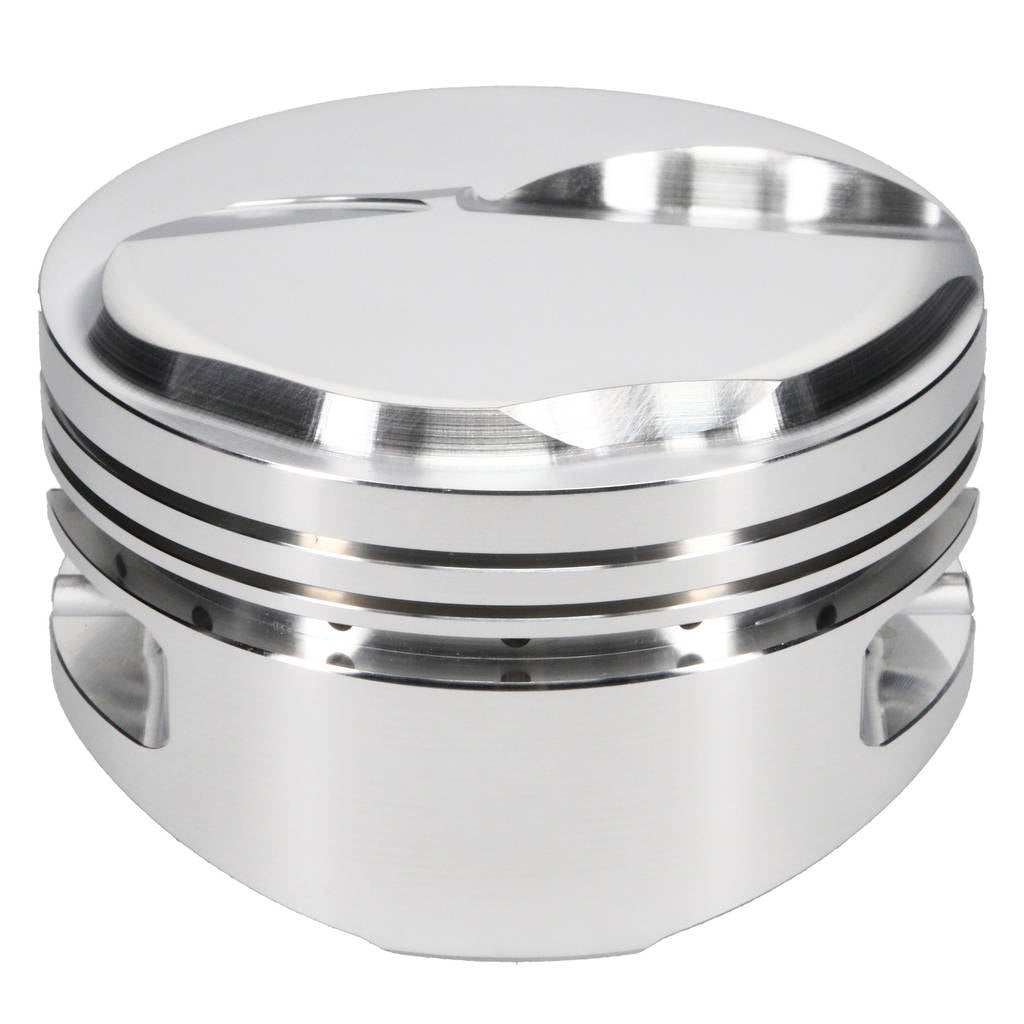

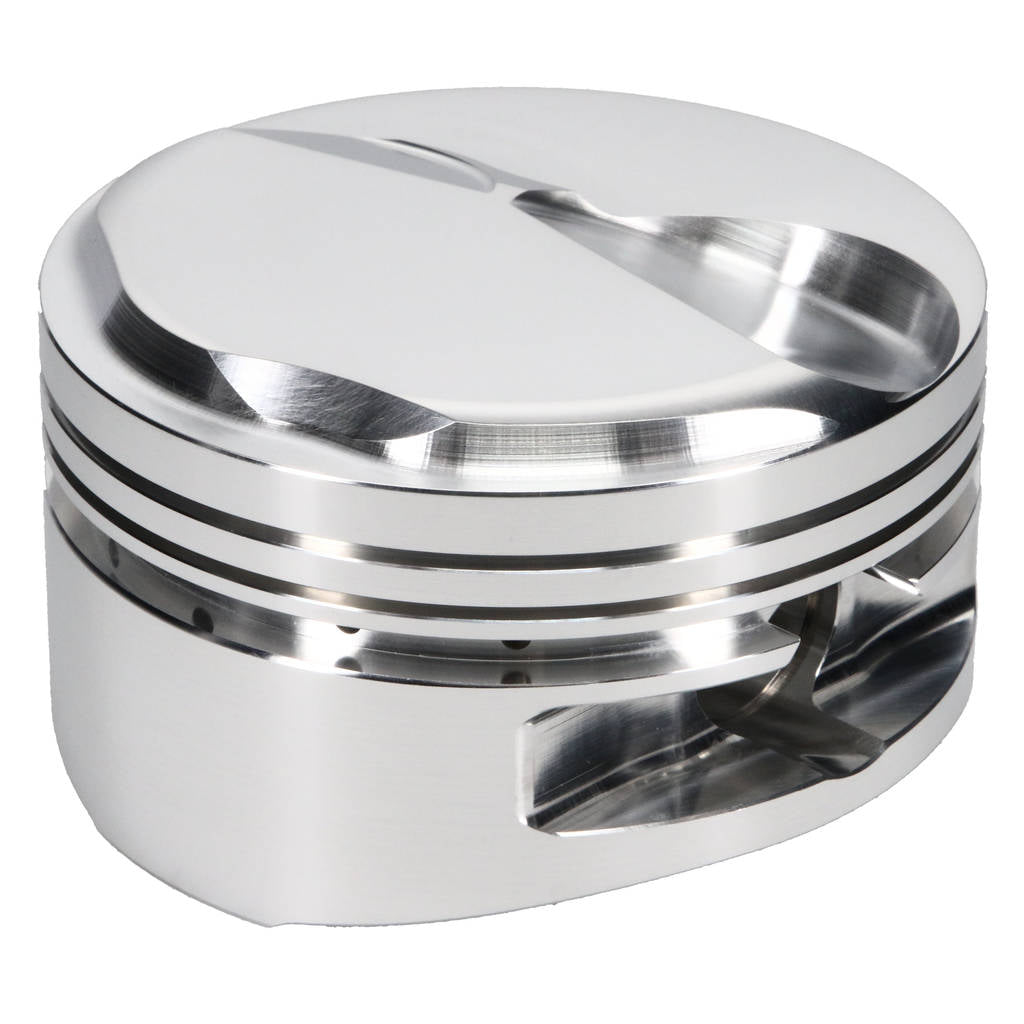

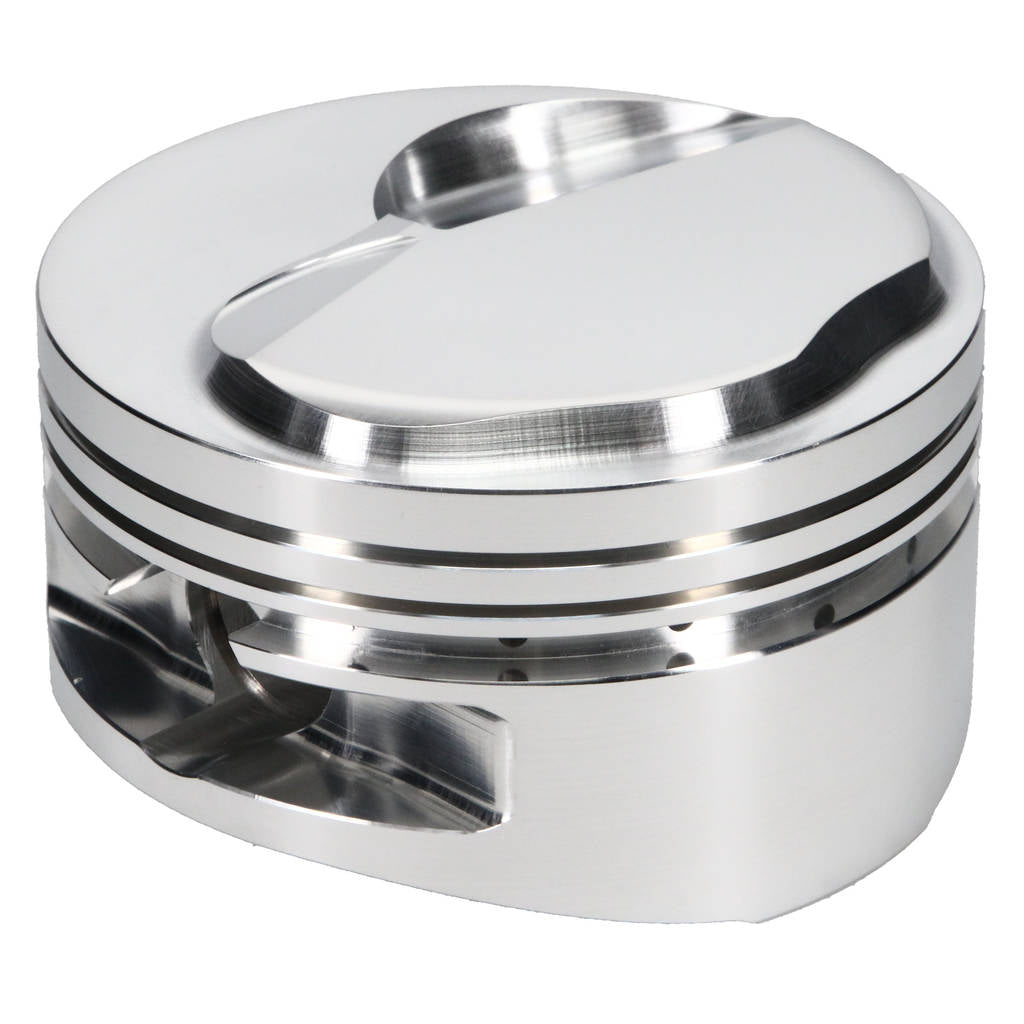

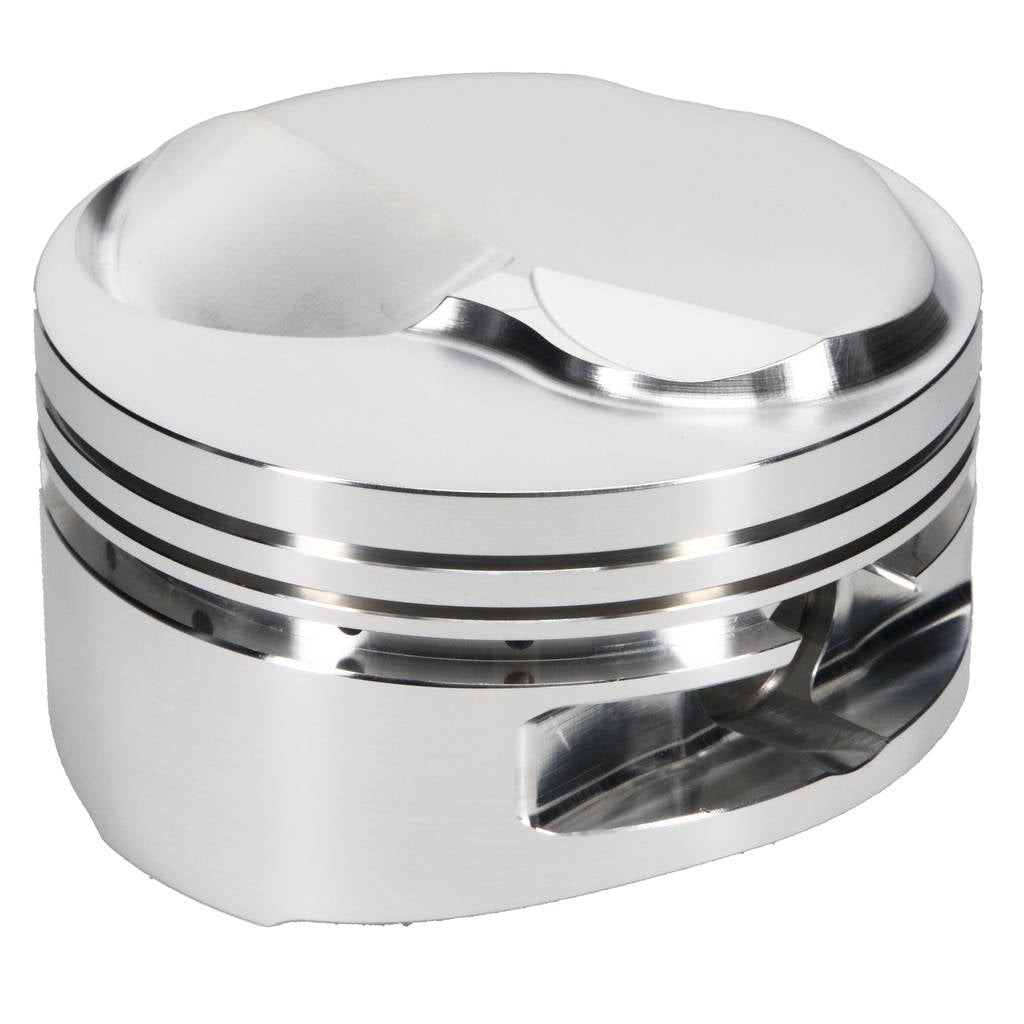

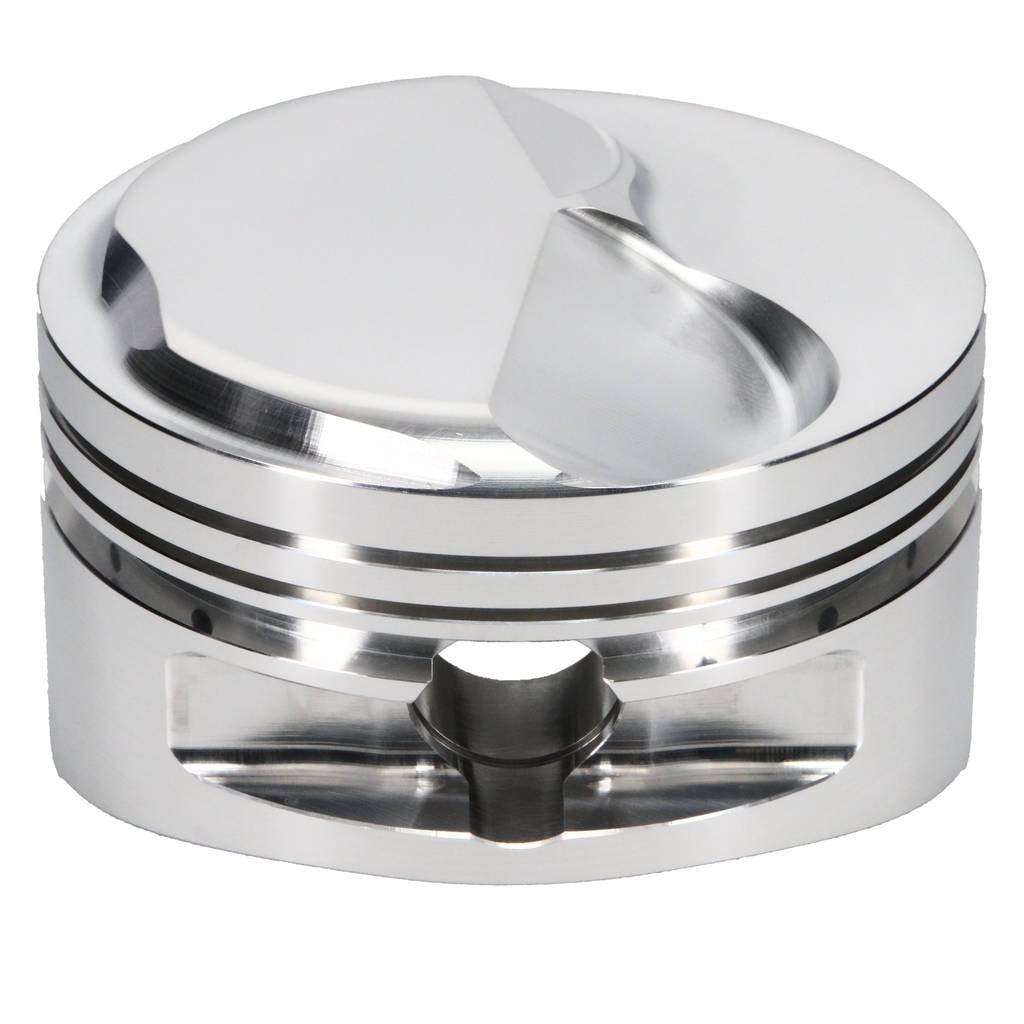

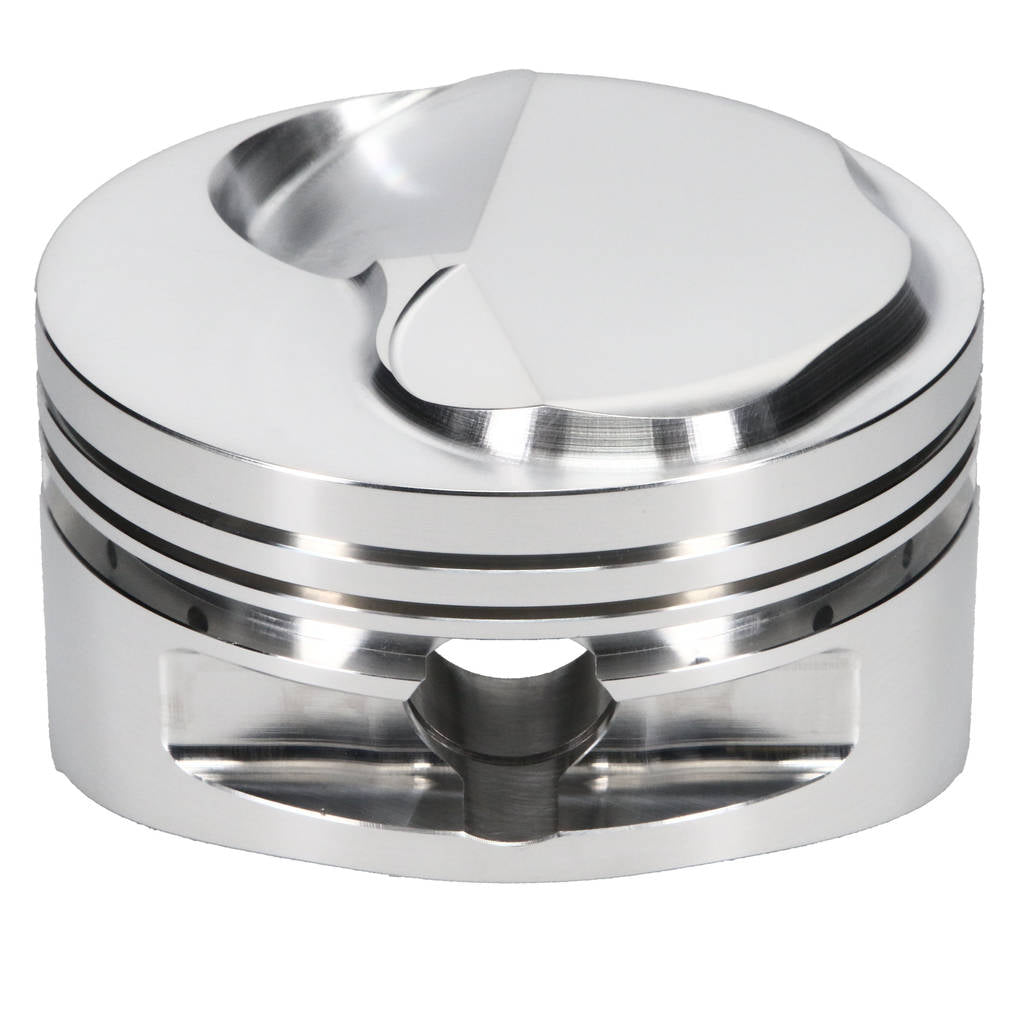

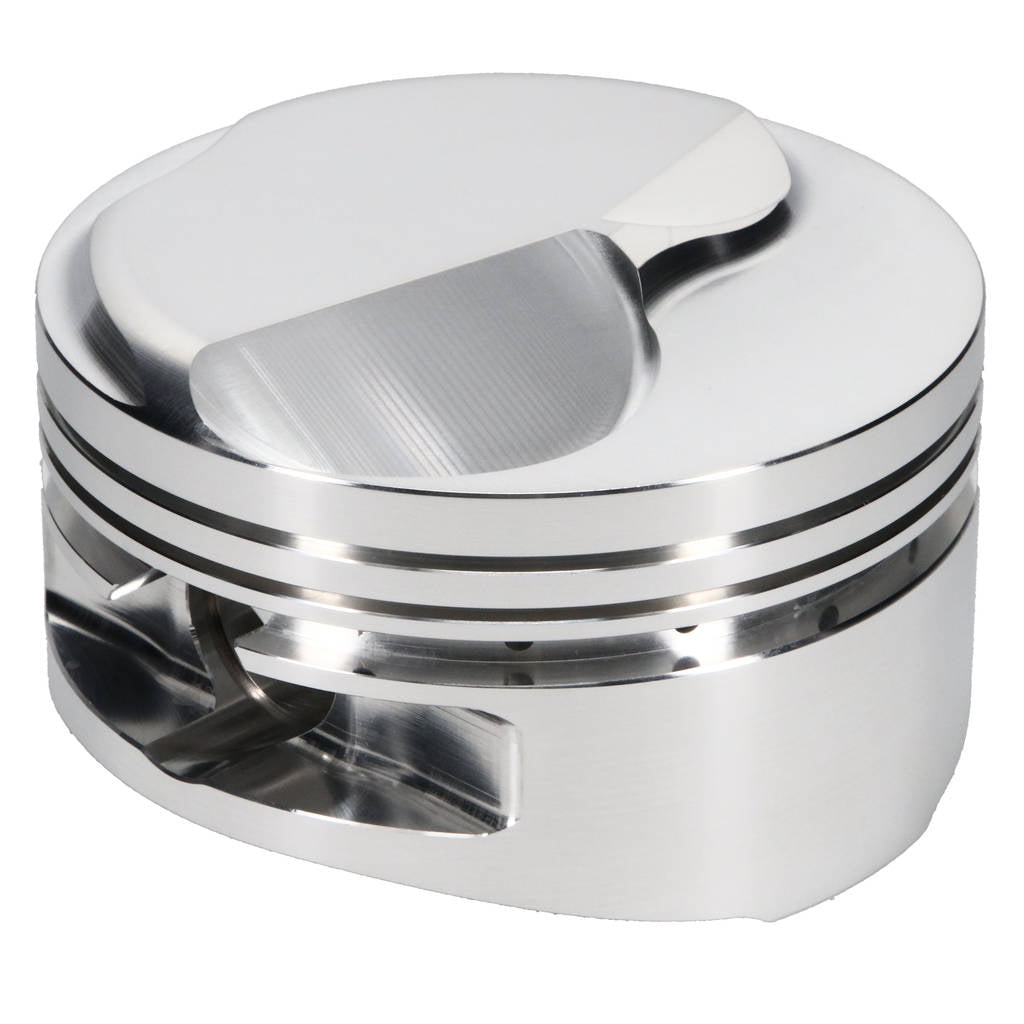

JE 297814 Piston Kit (4.500 in. Bore, 1.520 in. CH, 25.30 CC) for CHEVROLET Big Block Engine

Description JE 297814 Piston Kit (4.500 in. Bore, 1.520 in. CH, 25.30 CC) for CHEVROLET Big Block Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

• Forged from 4032 aluminum for tensile strength and minimal thermal expansion
• Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
• Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
• Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

• Piston Series: JE Pistons
• Cylinder Head: OPEN CHAMBER
• Bore Diameter: 4.500 IN
• Piston Head Type: Dome
• Compression Height: 1.520 IN
• Piston Volume: 25.30 CC
• Piston Material: 2618
• Piston Quantity: 8
• Forging Type: Round
• Piston Average Weight: 728 GR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.075 IN
• Second Compression Ring Thickness: 1/16 IN
• Oil Ring Thickness: 3/16 IN
• Wrist Pin Length: 2.930 IN
• Wrist Pin Wall Thickness: 0.200 IN
• Intake Depth: 0.310 IN
• Intake Diameter: 2.500 IN
• Intake Angle: 24
• Exhaust Depth: 0.100
• Exhaust Diameter: 2.050
• Exhaust Angle: 15
• Top Groove Width: 0.07500 IN
• 2nd Groove Width: 0.06400 IN
• Oil Groove Width: 0.18800 IN
• Product Type: Engine Piston Kit
• Big Block
