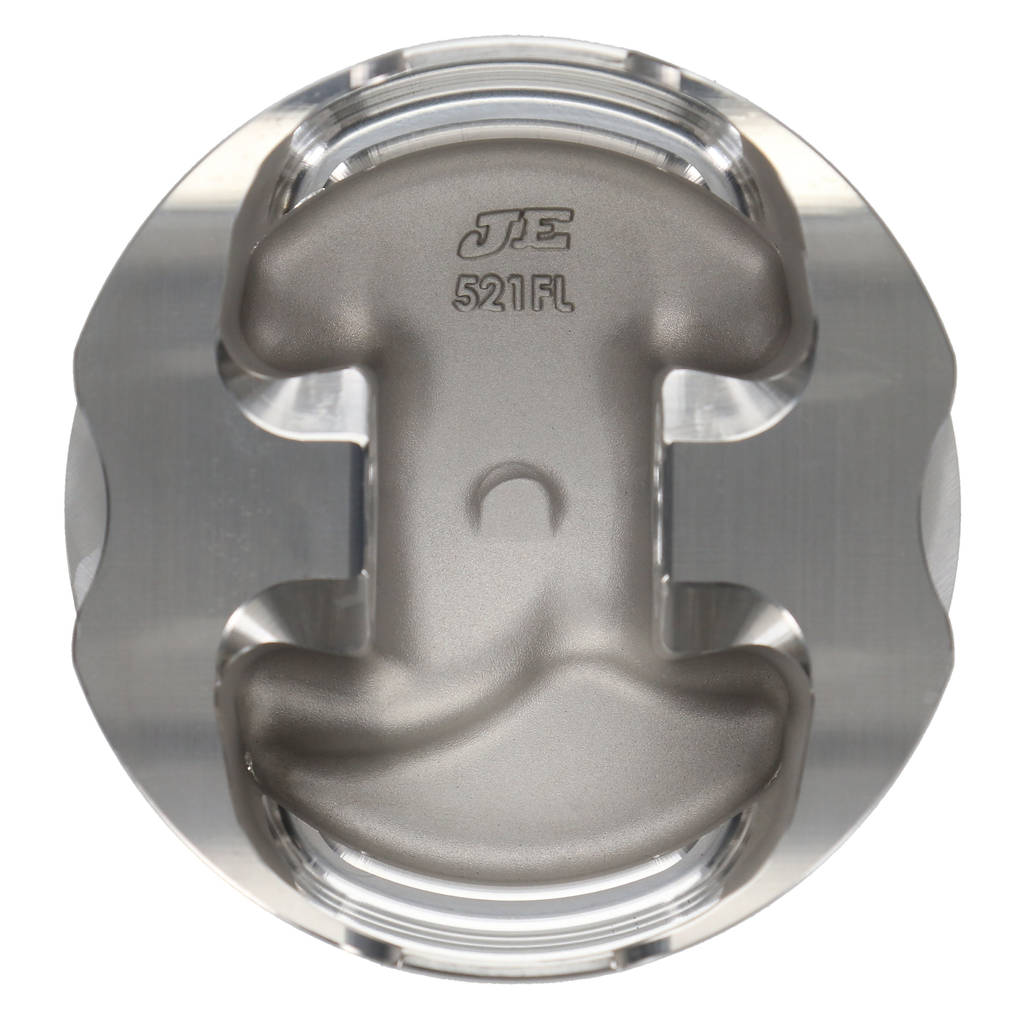

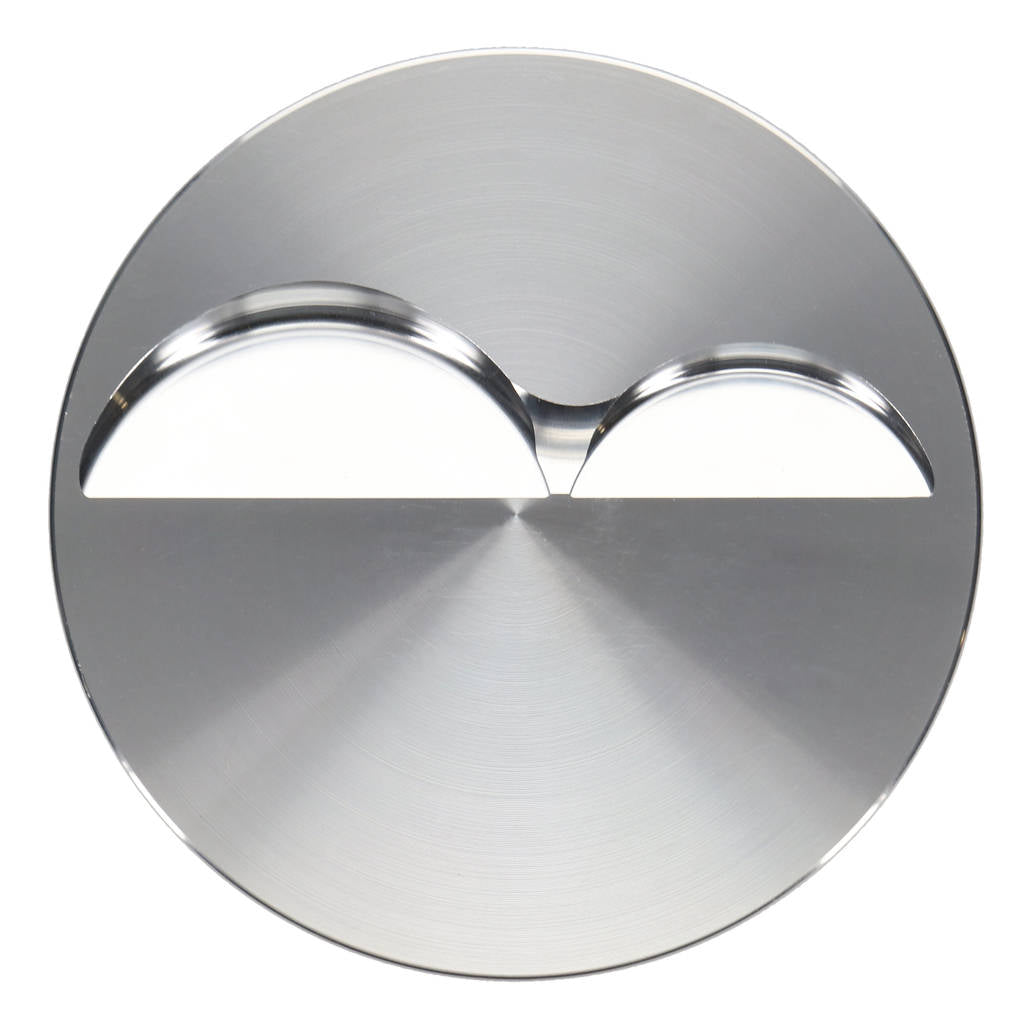

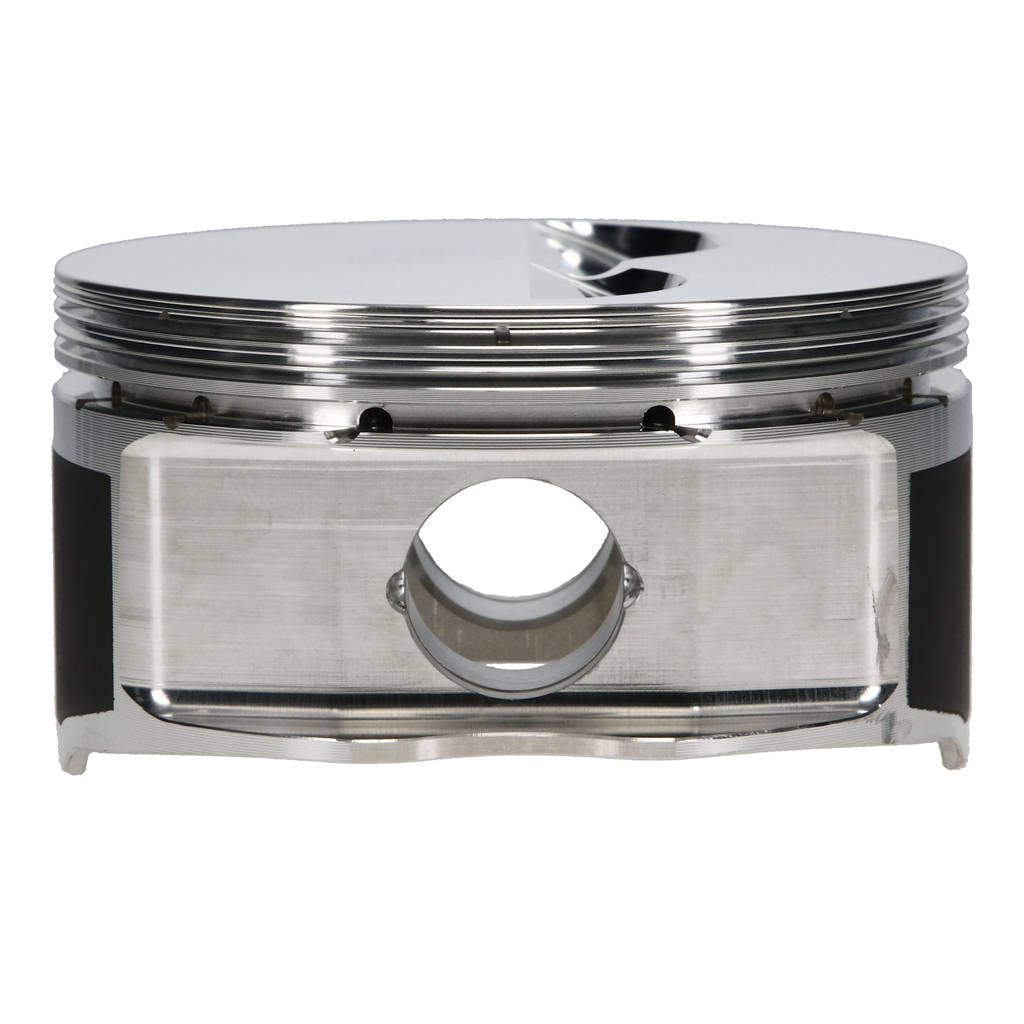

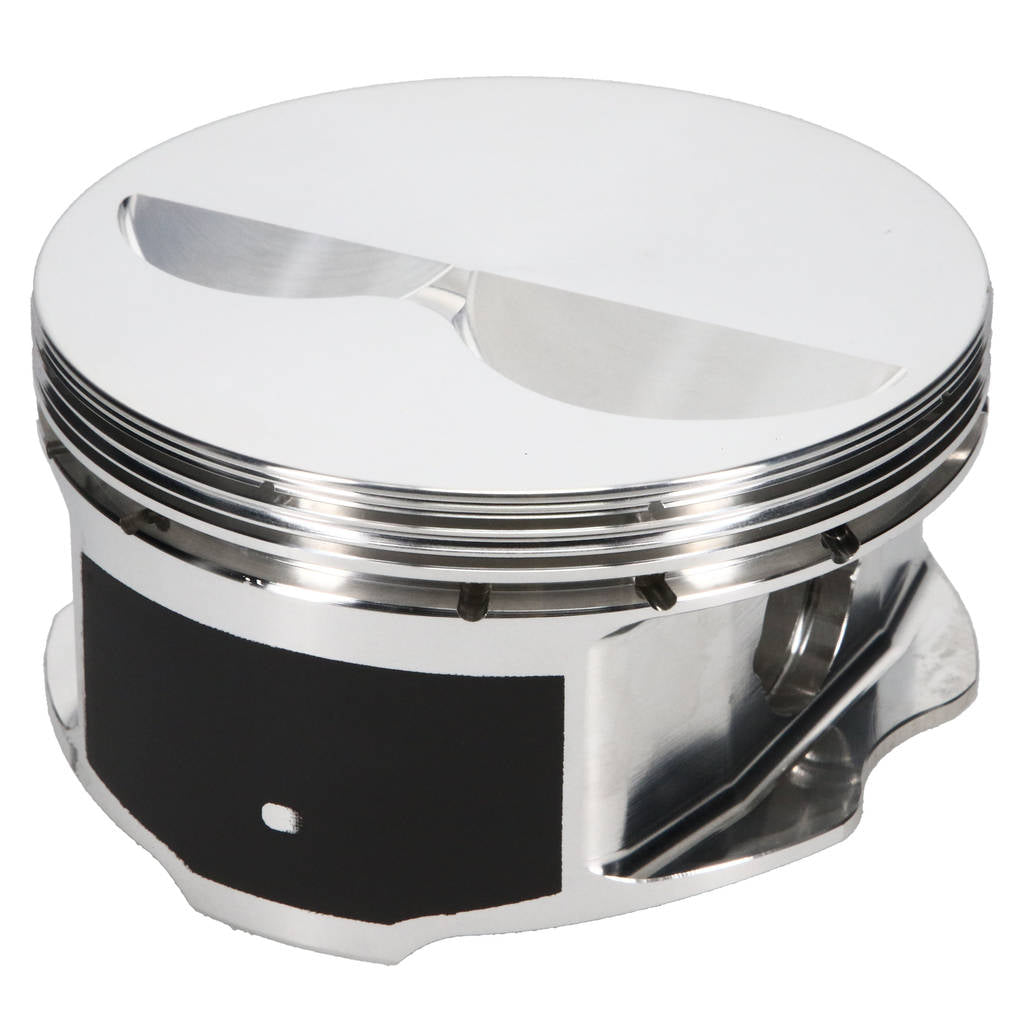

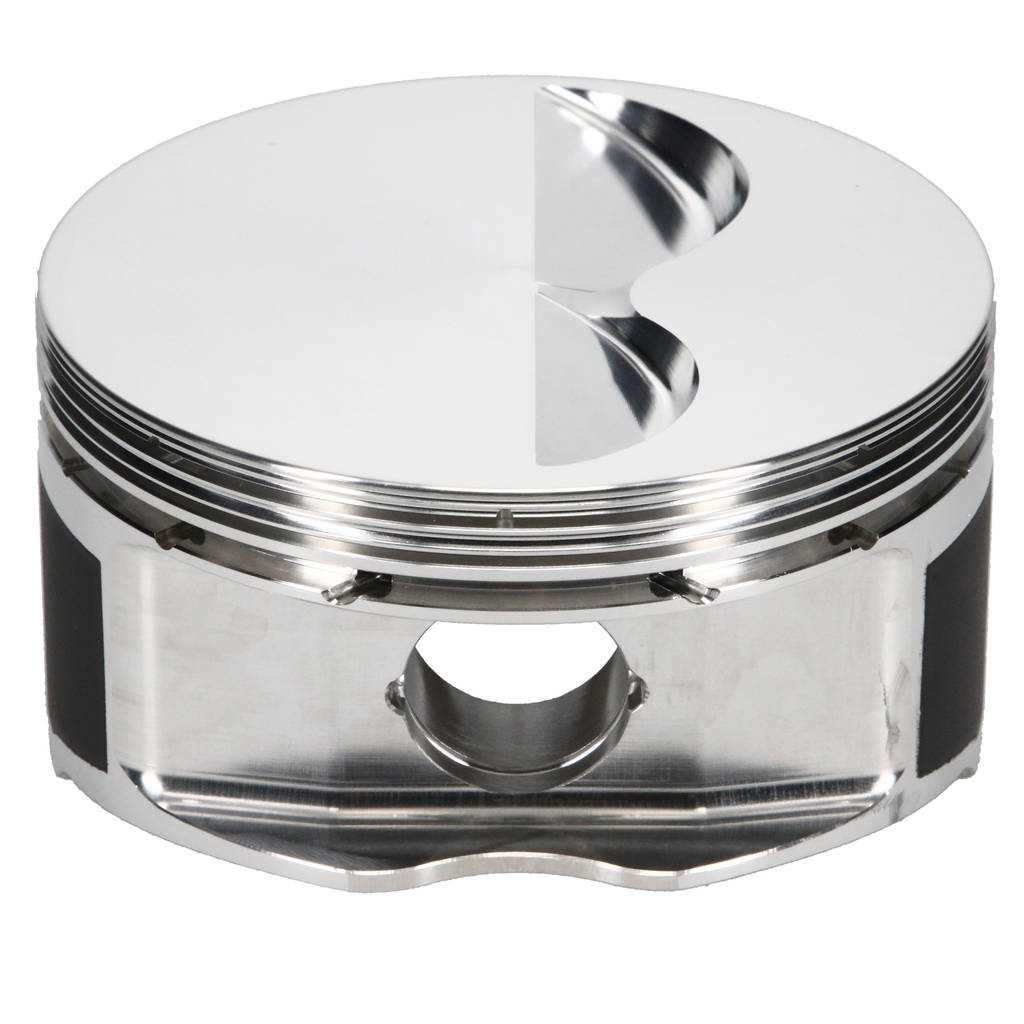

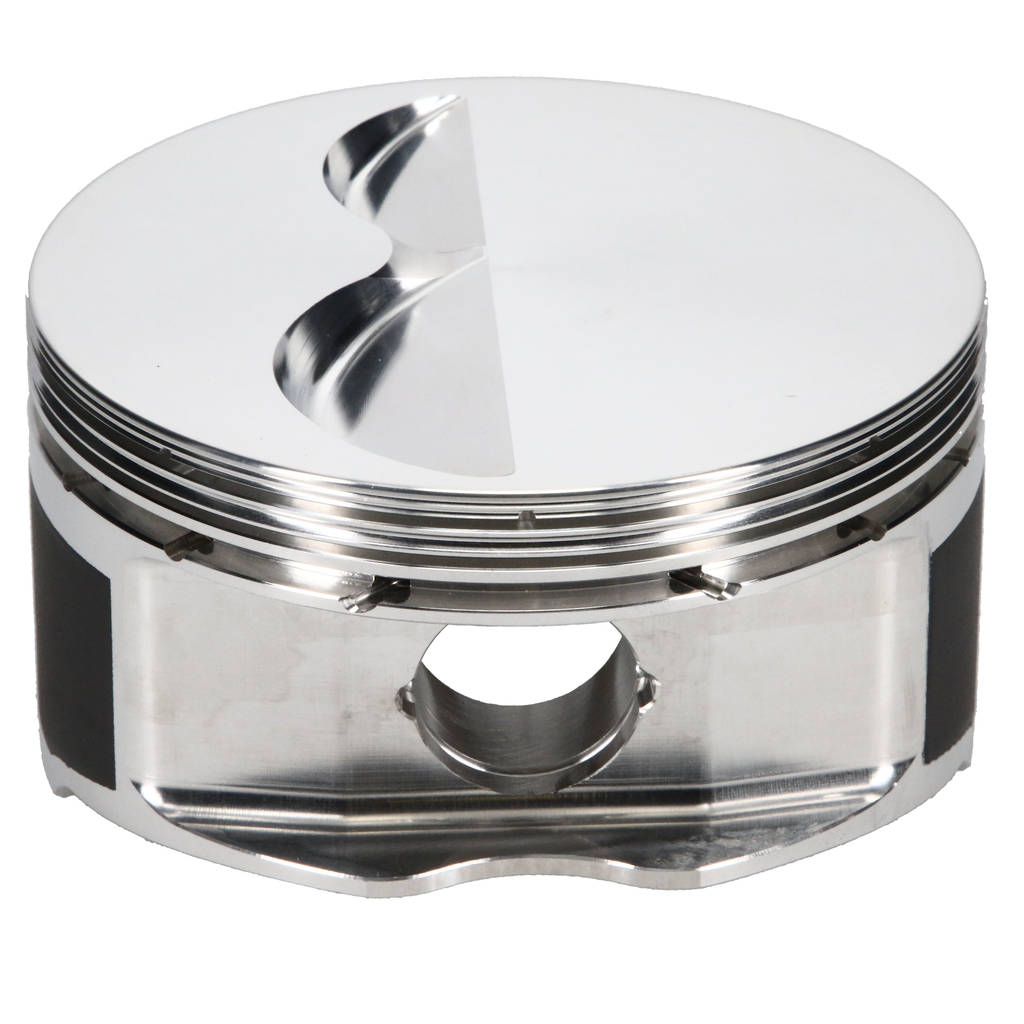

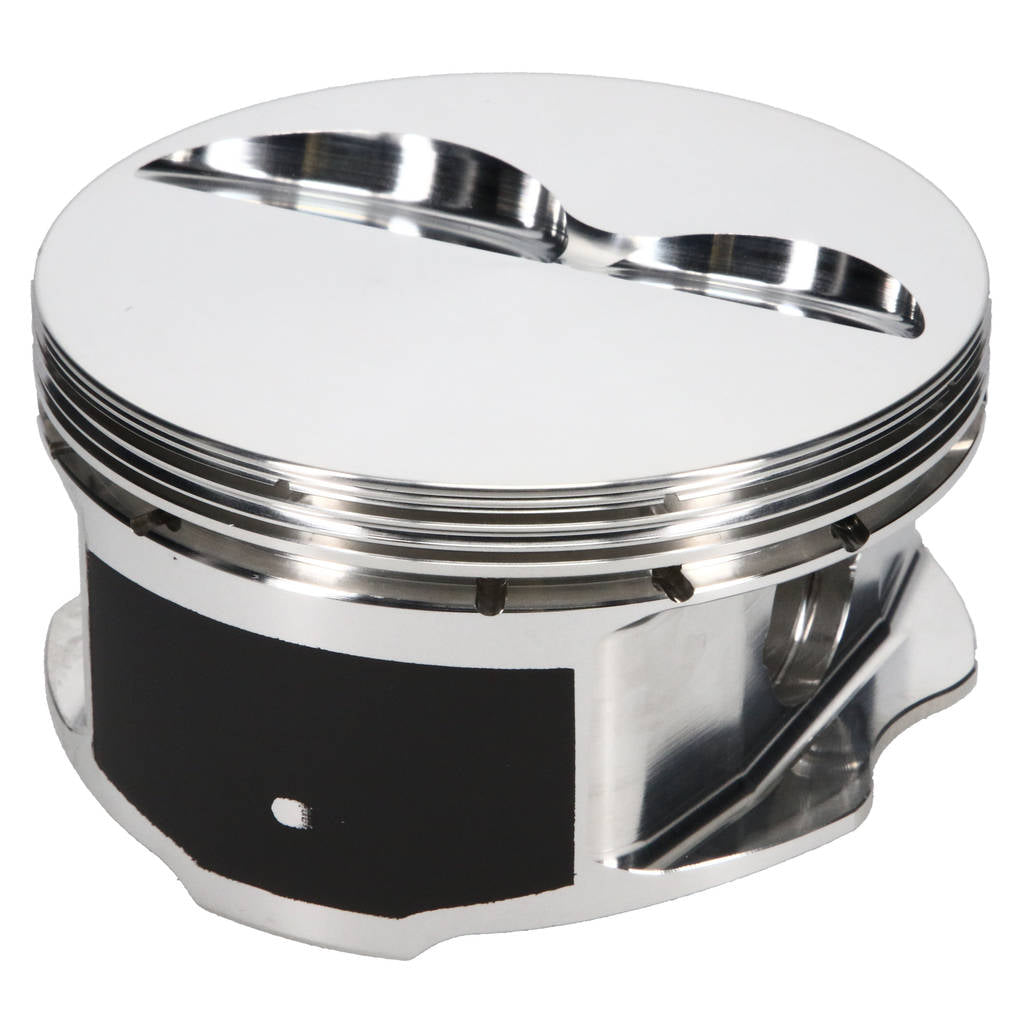

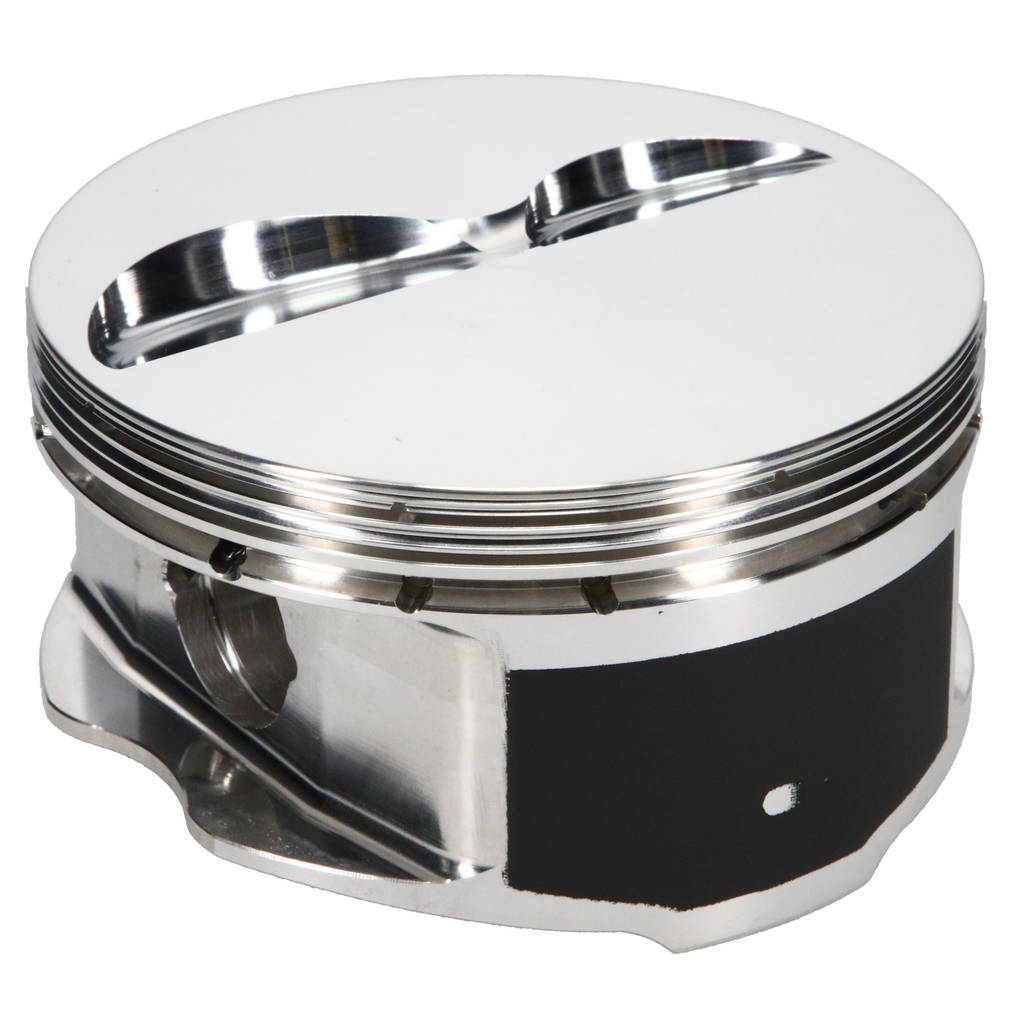

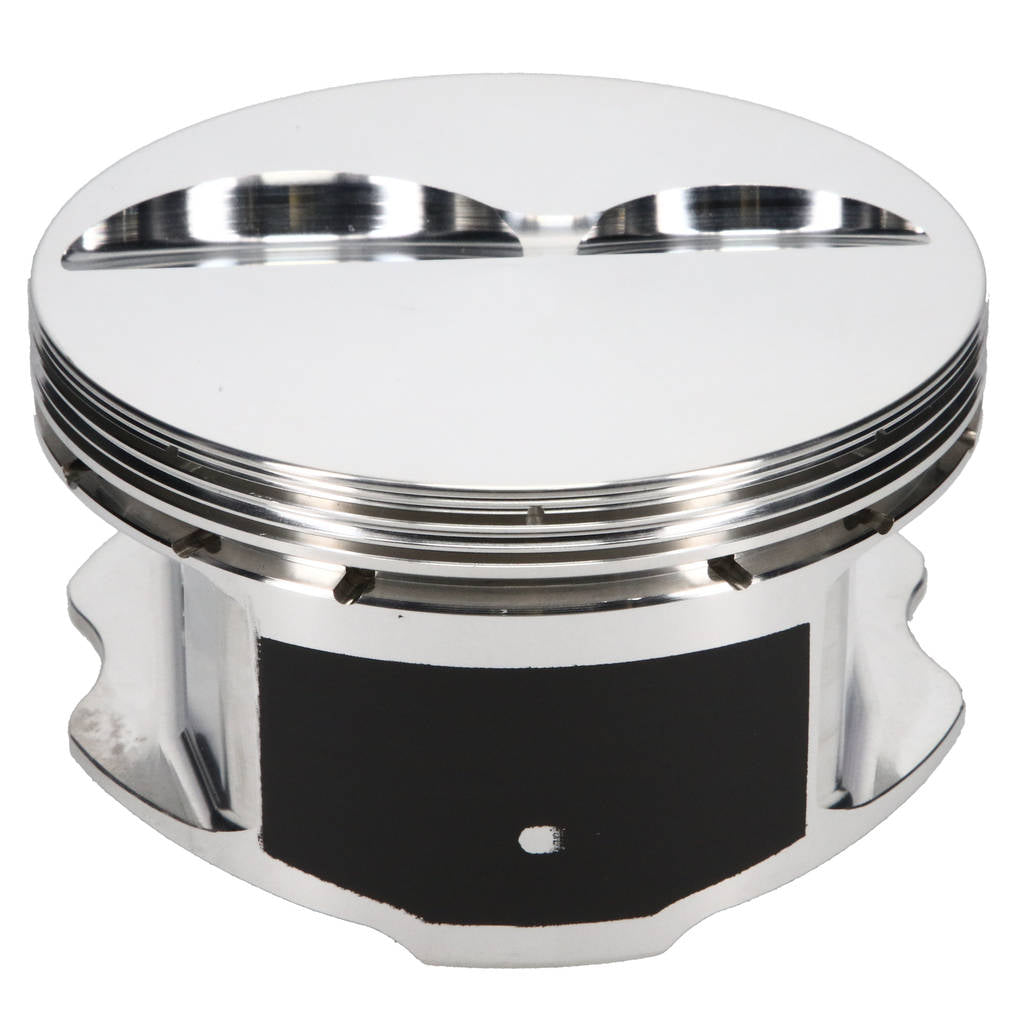

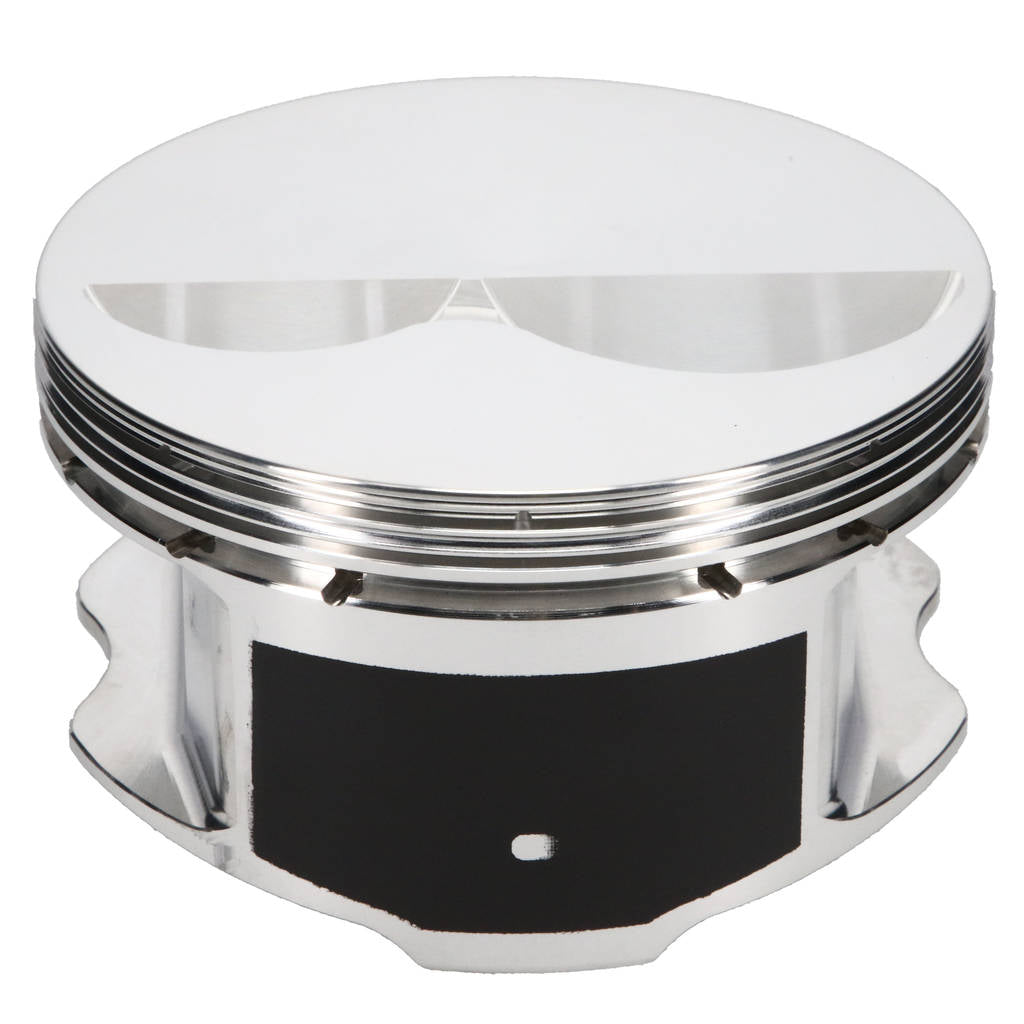

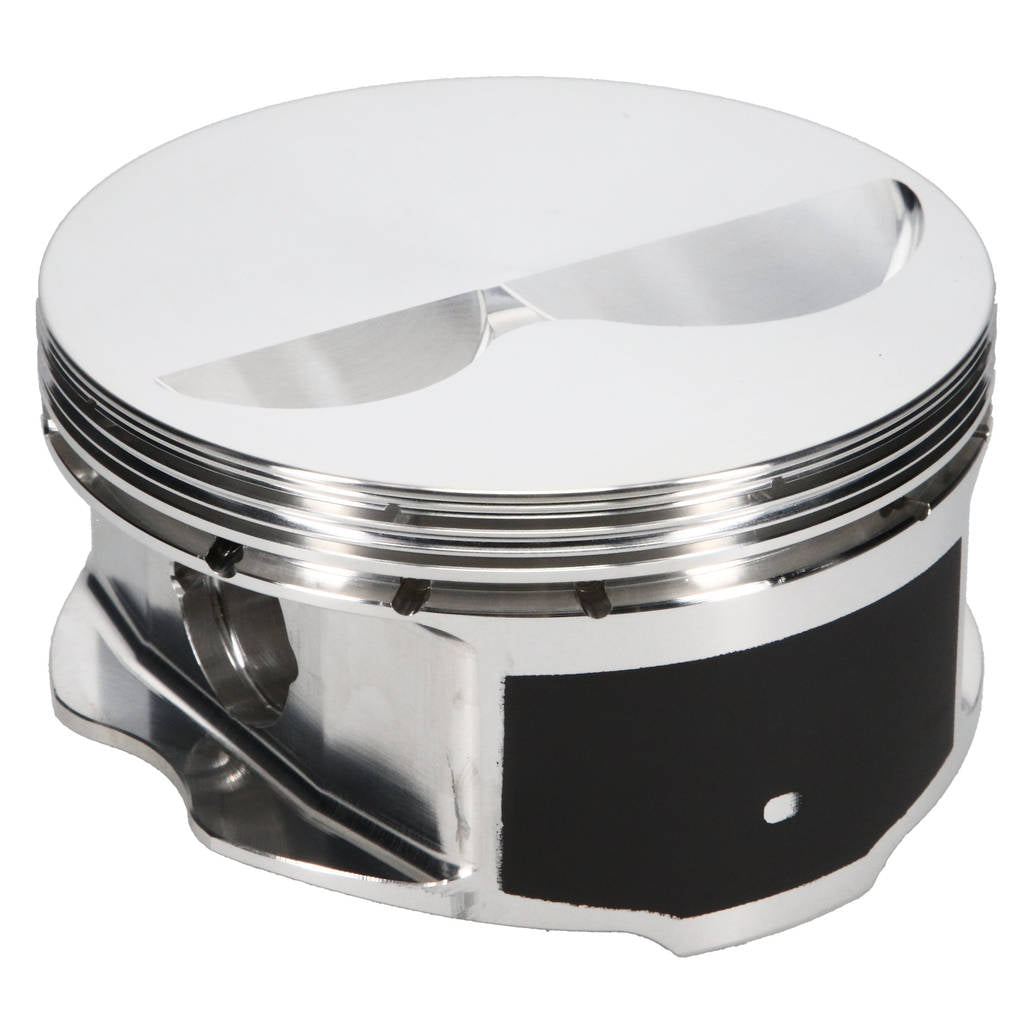

JE 173615L Piston Single Ultra-Light (4.030 in. Bore, 1.250 in. CH, -1.50 CC) for CHEVROLET 350 Small Block Engine
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
JE 173615L Piston Single Ultra-Light (4.030 in. Bore, 1.250 in. CH, -1.50 CC) for CHEVROLET 350 Small Block Engine
ATOMIC-SHOP UA
вул. Набережно-Лугова, 29
Київ
02000
Ukraine
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description JE 173615L Piston Single Ultra-Light (4.030 in. Bore, 1.250 in. CH, -1.50 CC) for CHEVROLET 350 Small Block Engine
JE Ultra Series forged Pistons are among the industry’s strongest and most fully featured off-the-shelf Pistons. Designed for domestic applications from LS to Big Block and HEMI to Ford Modular, they feature JE’s proprietary Aligned Grain Flow forging technology for next-level tensile strength under extreme cylinder pressures.
Ultra Series Pistons include custom-level features for boost-heavy or nitrous V8 engine builds. All JE Ultra Series Pistons are made 100% in the USA.
- Designed for Power: Every feature is optimized for high-Horsepower / HP racing engines. Aligned Grain Flow technology maximizes tensile strength for high-performance engine environments.
- Piston Coatings: Skirt coating reduces friction, Wall wear, and operating noise, especially during cold starts. The ceramic-based thermal barrier crown coating reduces Piston crown temperatures and improves exhaust gas scavenging.
- High-Strength Wrist Pins: Premium thick-Wall Wrist Pins are manufactured by Trend Performance in the USA and Designed for high-performance and power-adder builds.
- Gas Ports and Pin Oiling: Lateral gas ports help maintain top compression ring seal at high RPM and boost. Enhanced oiling keeps the Wrist Pin, pin Bore, and small end lubricated to reduce heat, friction, and wear.
Specifications:
- Piston Series: JE Pistons
- Cylinder Head: STD CHEVROLET 23 DEG
- Bore Diameter: 4.030 IN
- Piston Head Type: Flat
- Compression Height: 1.250 IN
- Piston Volume: -1.50 CC
- Piston Material: 2618
- Forging Type: Round
- Piston Orientation: Left
- Piston Average Weight: 358 GR
- Ring Set Included: No
- Top Compression Ring Thickness: 0.0436 IN
- Second Compression Ring Thickness: 0.0440 IN
- Oil Ring Thickness: 0.119 IN
- Wrist Pin Outer Diameter: 0.927 IN
- Wrist Pin Length: 2.400 IN
- Wrist Pin Wall Thickness: 0.130 IN
