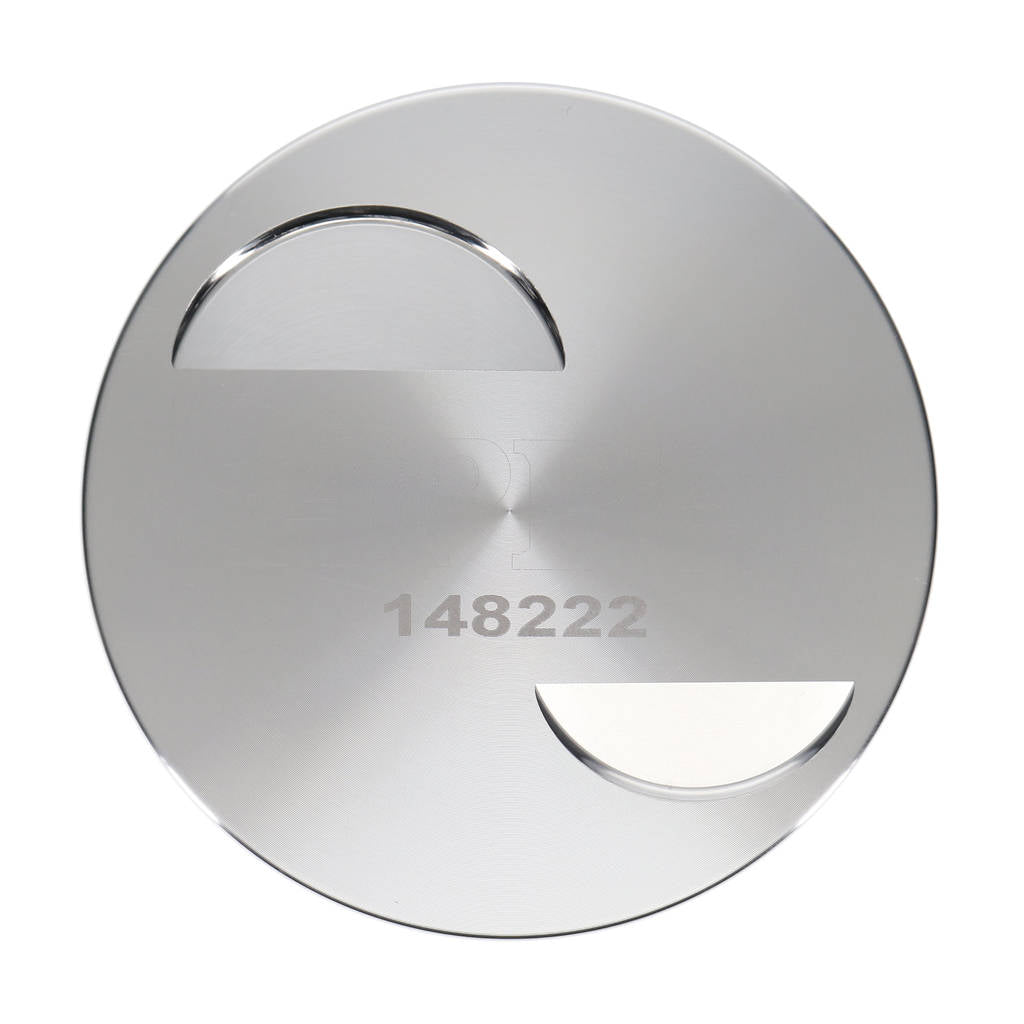

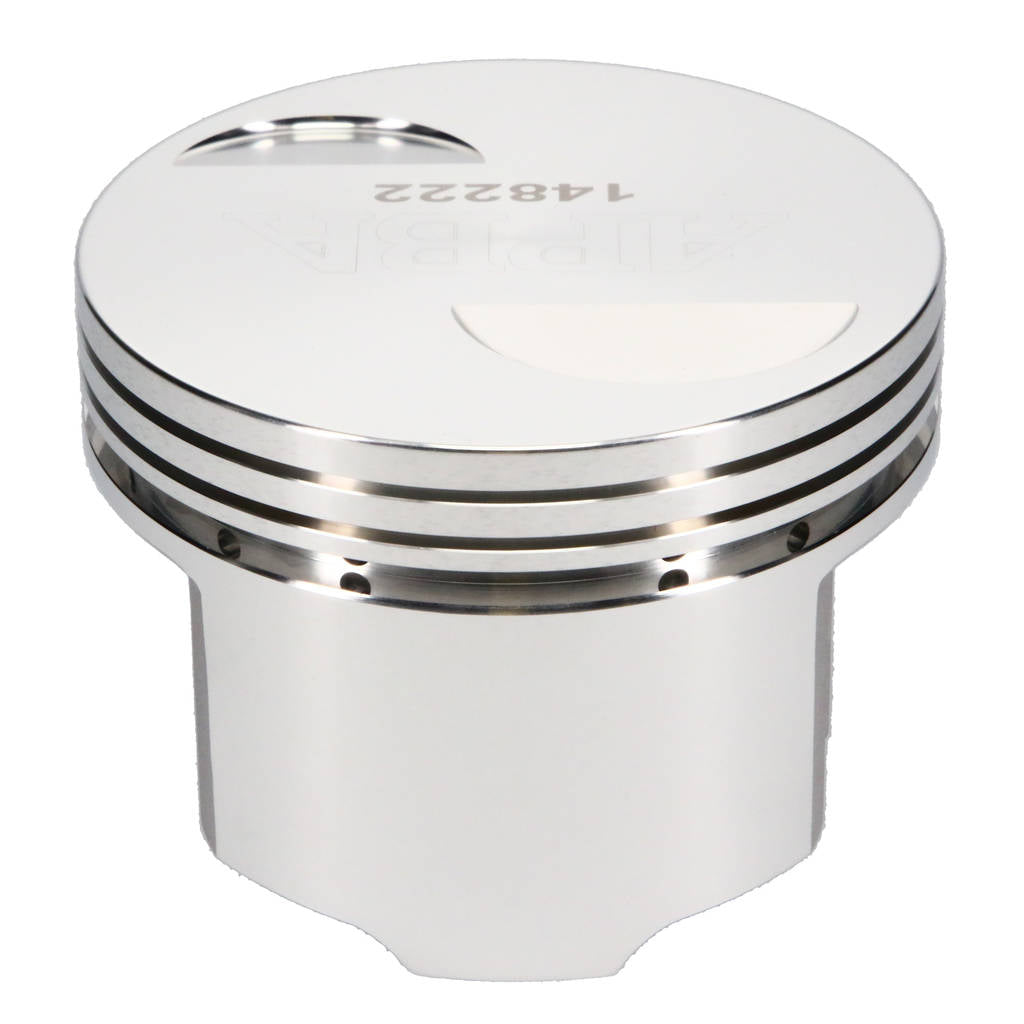

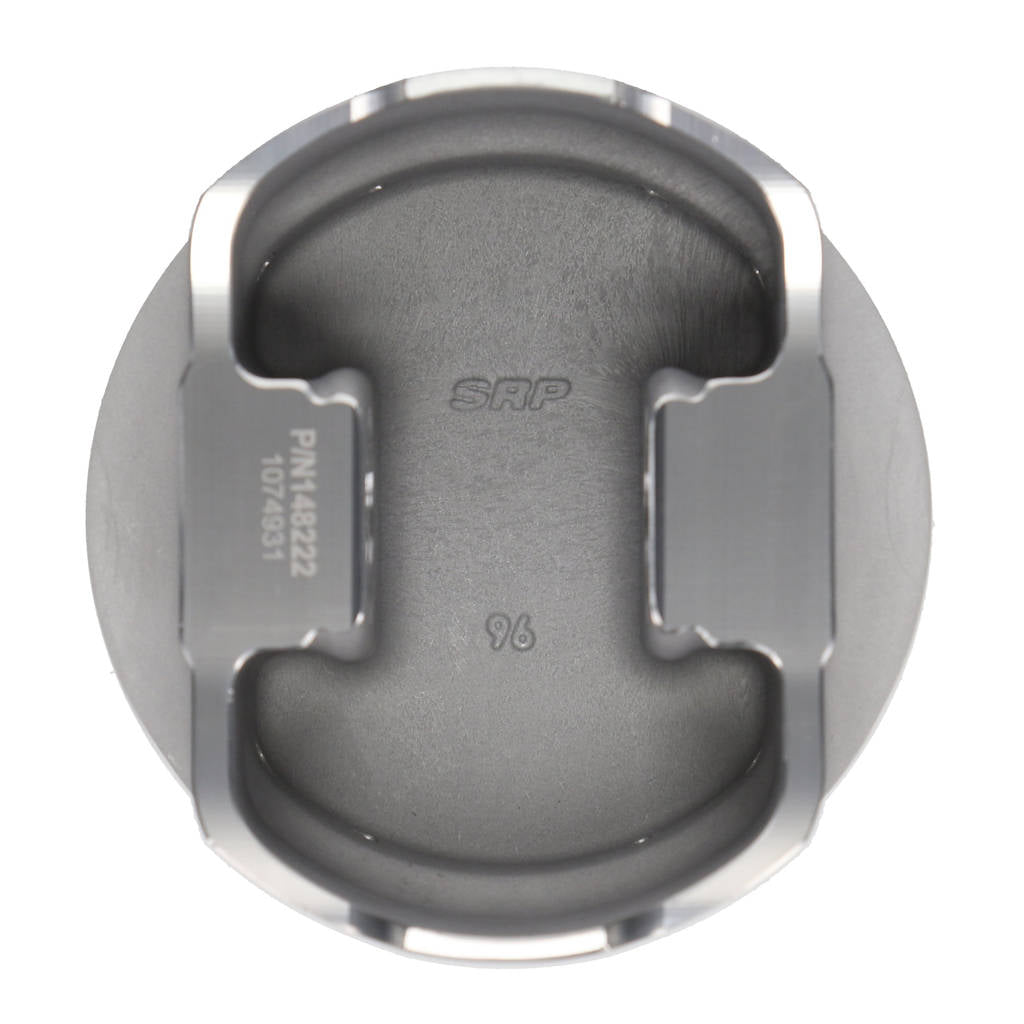

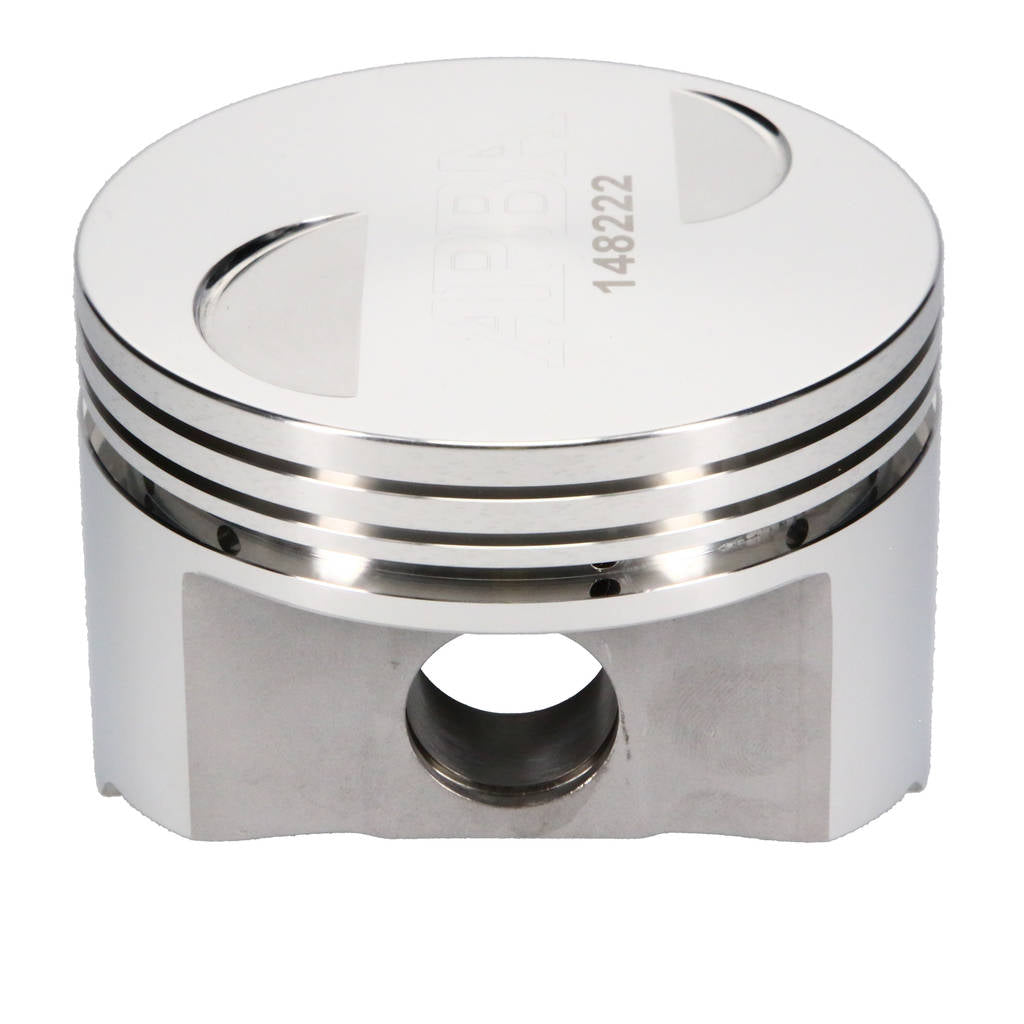

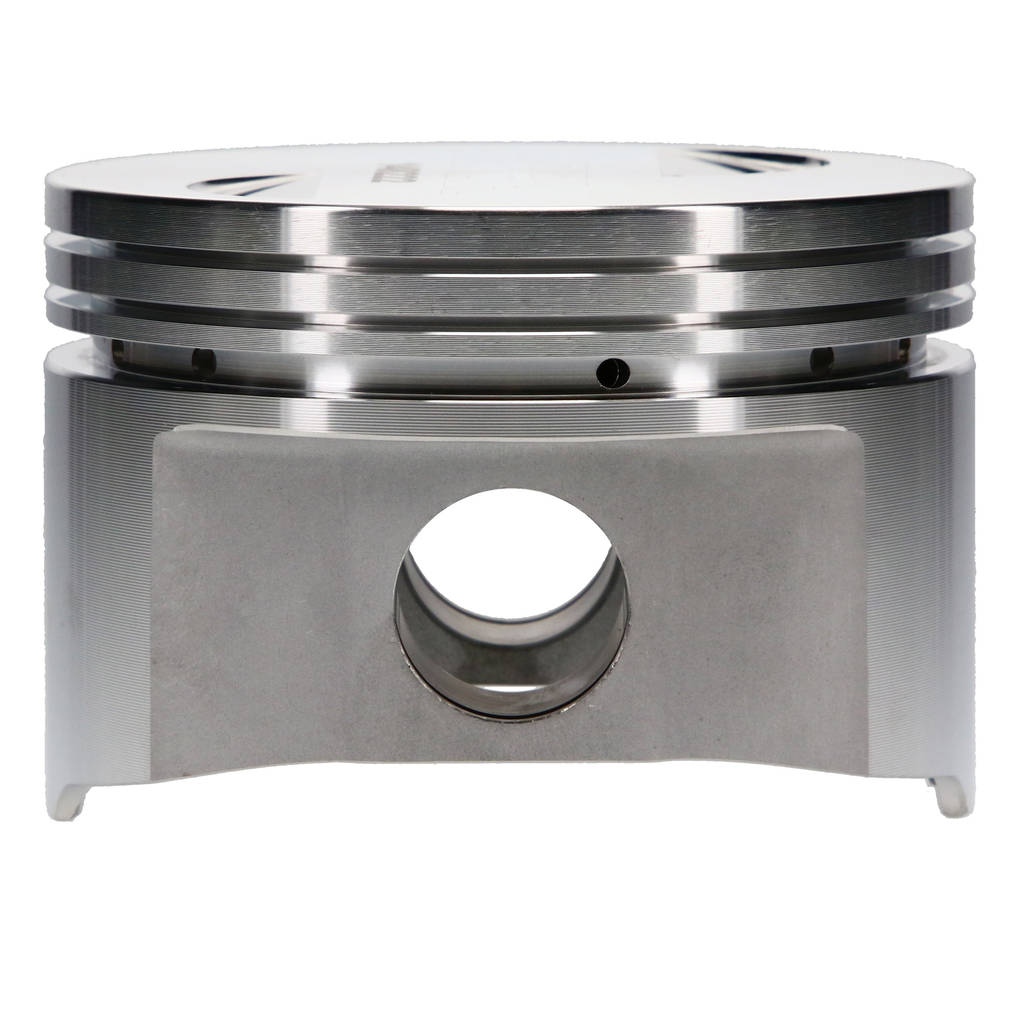

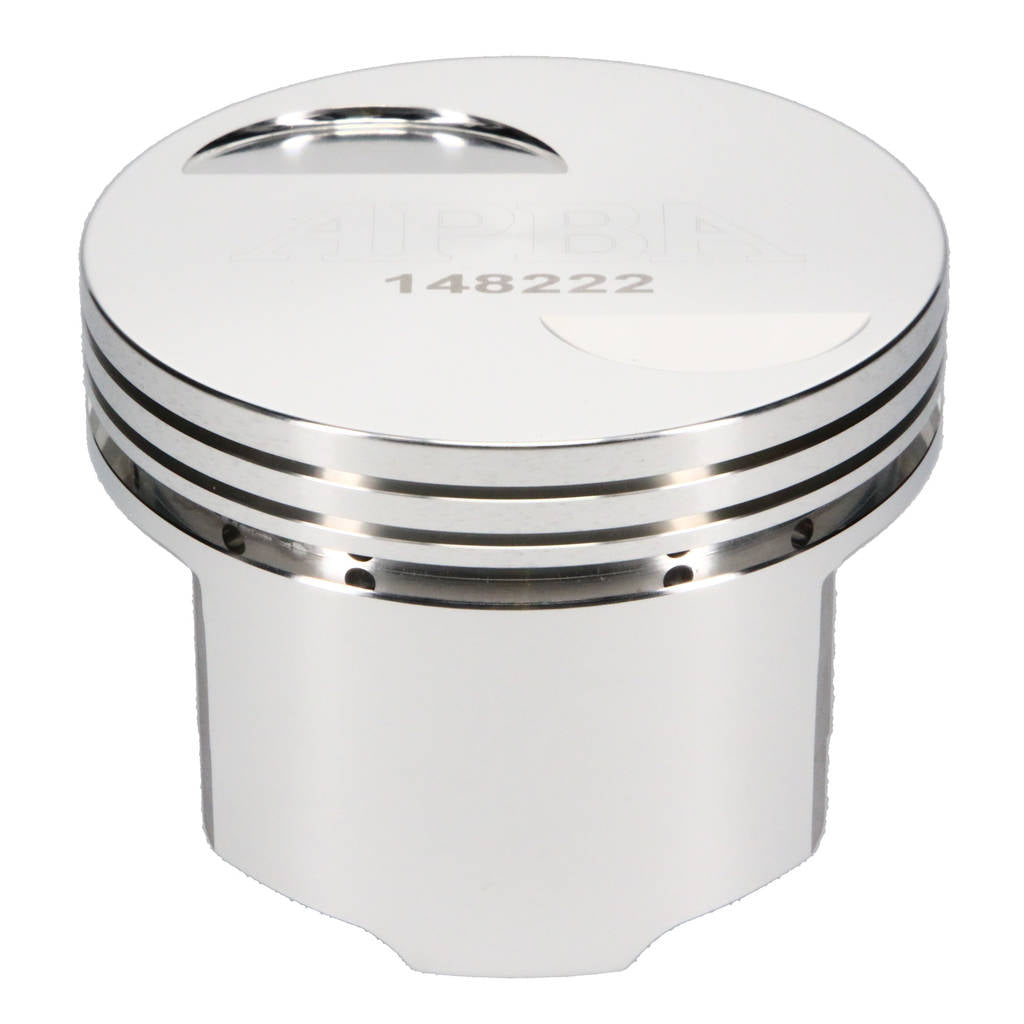

JE 148223L Piston Single SRP (3.830 in. Bore, 1.590 in. CH, -1.00 CC) for FORD Pin.to Engine

Description JE 148223L Piston Single SRP (3.830 in. Bore, 1.590 in. CH, -1.00 CC) for FORD Pin.to Engine

Born from the racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line bridges the gap between high-quality forged piston performance and affordability.

Forged from strong 4032 aluminum alloy, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance. They are suitable for mild to moderate performance engines on a sportsman budget.

• Forged in the USA from 4032 aluminum for tensile strength and minimal thermal expansion
• Dedicated forging optimizes strength and weight throughout the piston design
• Suitable for street/strip applications
• Forced pin oiling improves pin lubrication

Specifications:

• Piston Series: SRP
• Cylinder Head: PINTO
• Bore Diameter: 3.830 IN
• Piston Head Type: Flat
• Compression Height: 1.590 IN
• Piston Volume: -1.00 CC
• Piston Material: 4032
• Forging Type: FSR
• Piston Orientation: Left
• Piston Average Weight: 420 GR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.0600 IN
• Second Compression Ring Thickness: 0.0600 IN
• Oil Ring Thickness: 0.159 IN
• Wrist Pin Outer Diameter: 0.912 IN
• Wrist Pin Length: 2.500 IN
• Wrist Pin Wall Thickness: 0.140 IN
