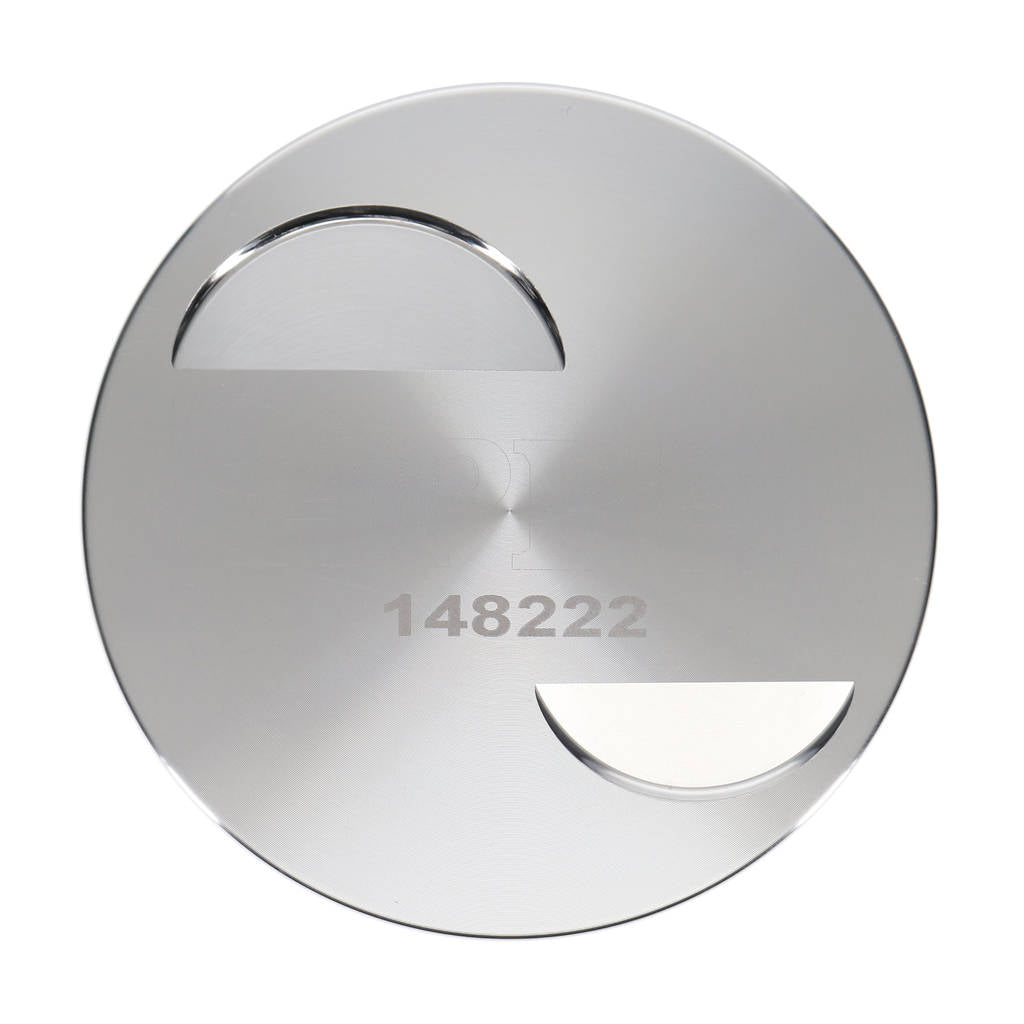

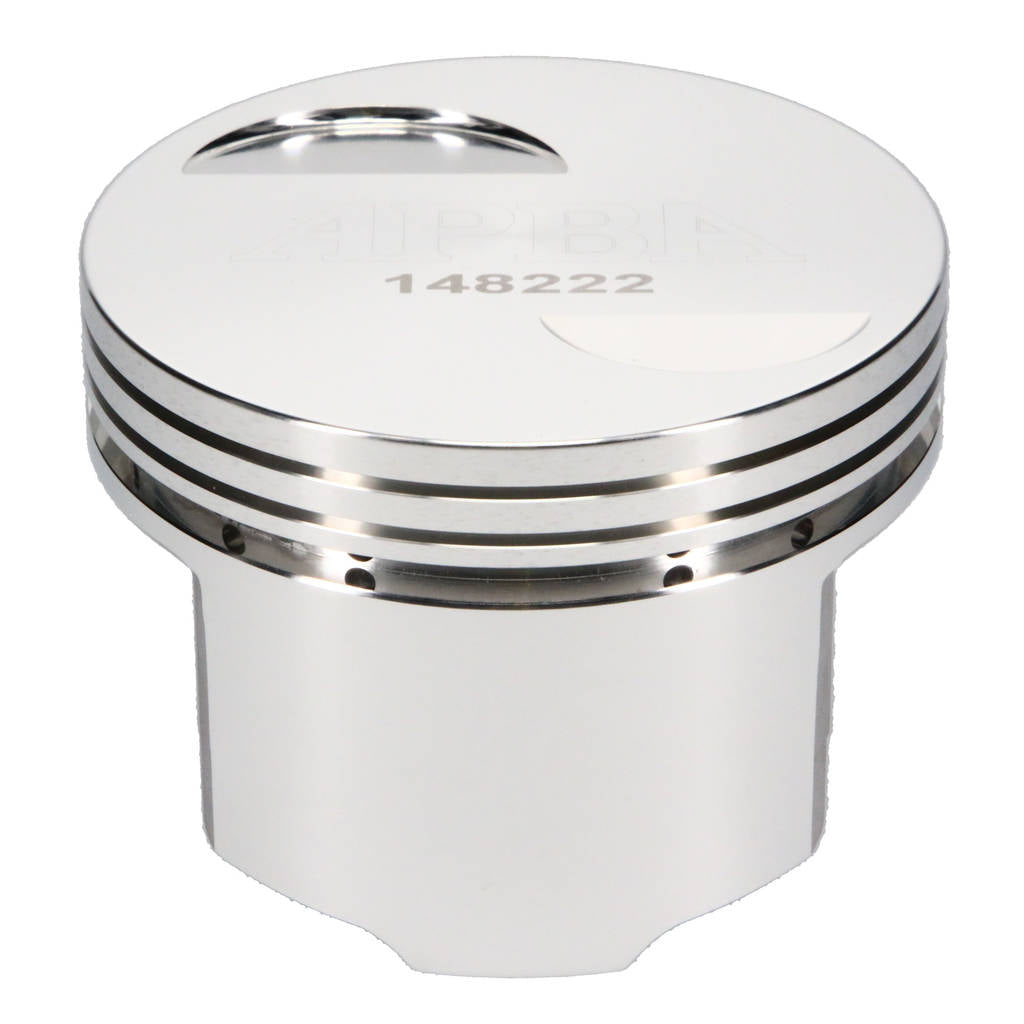

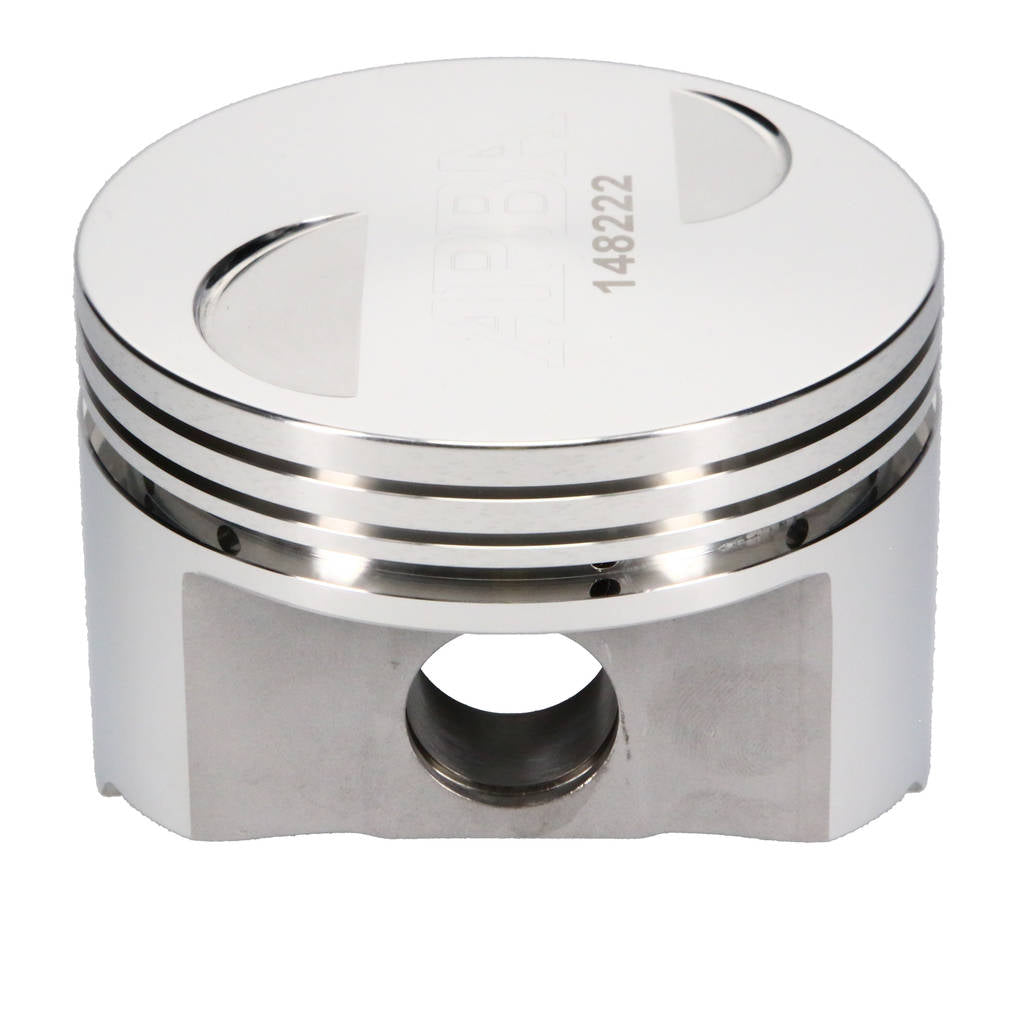

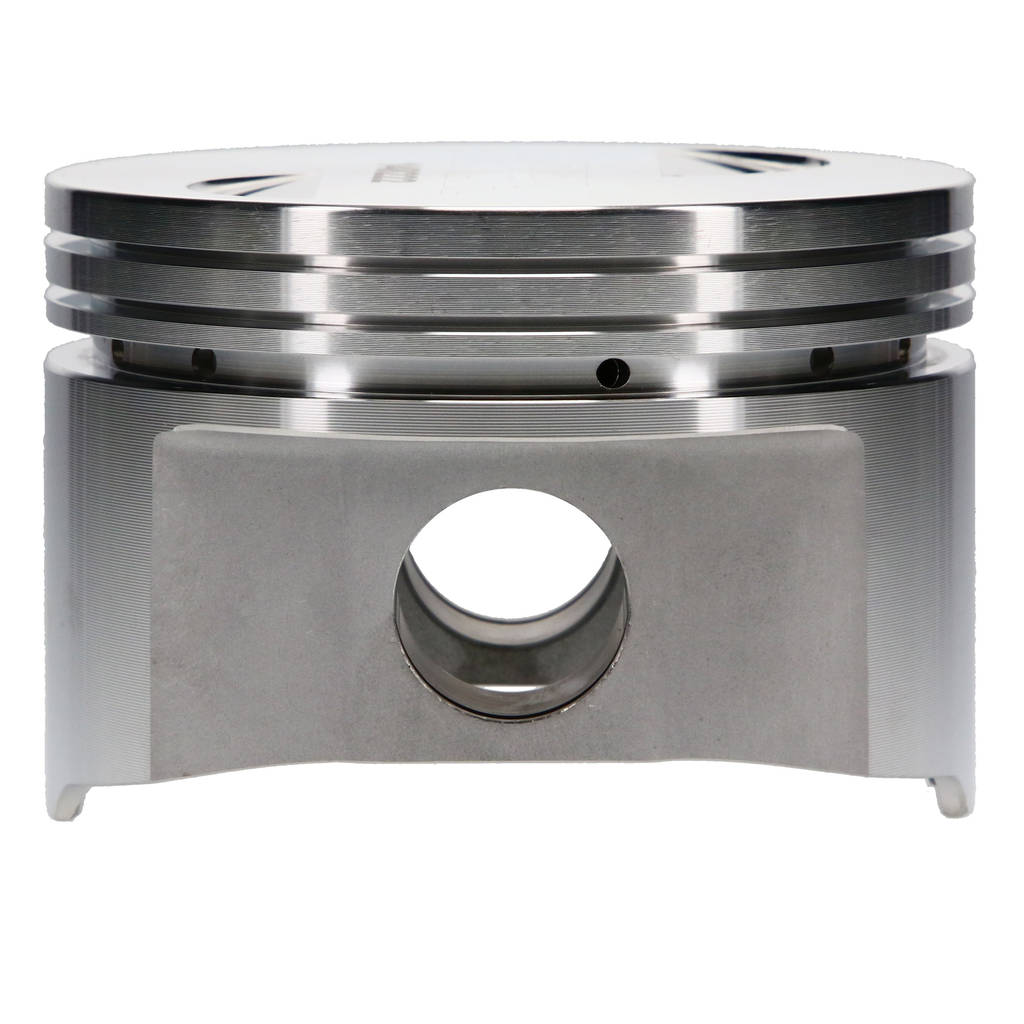

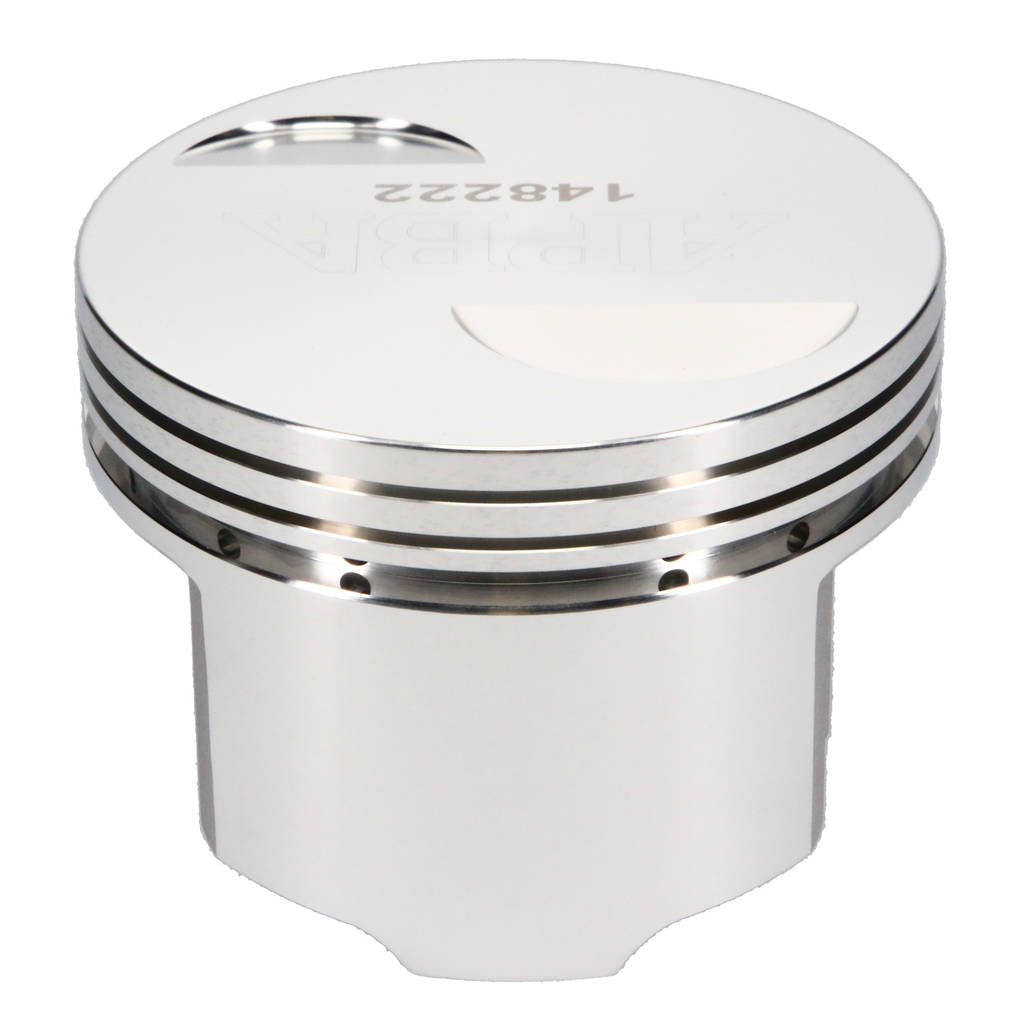

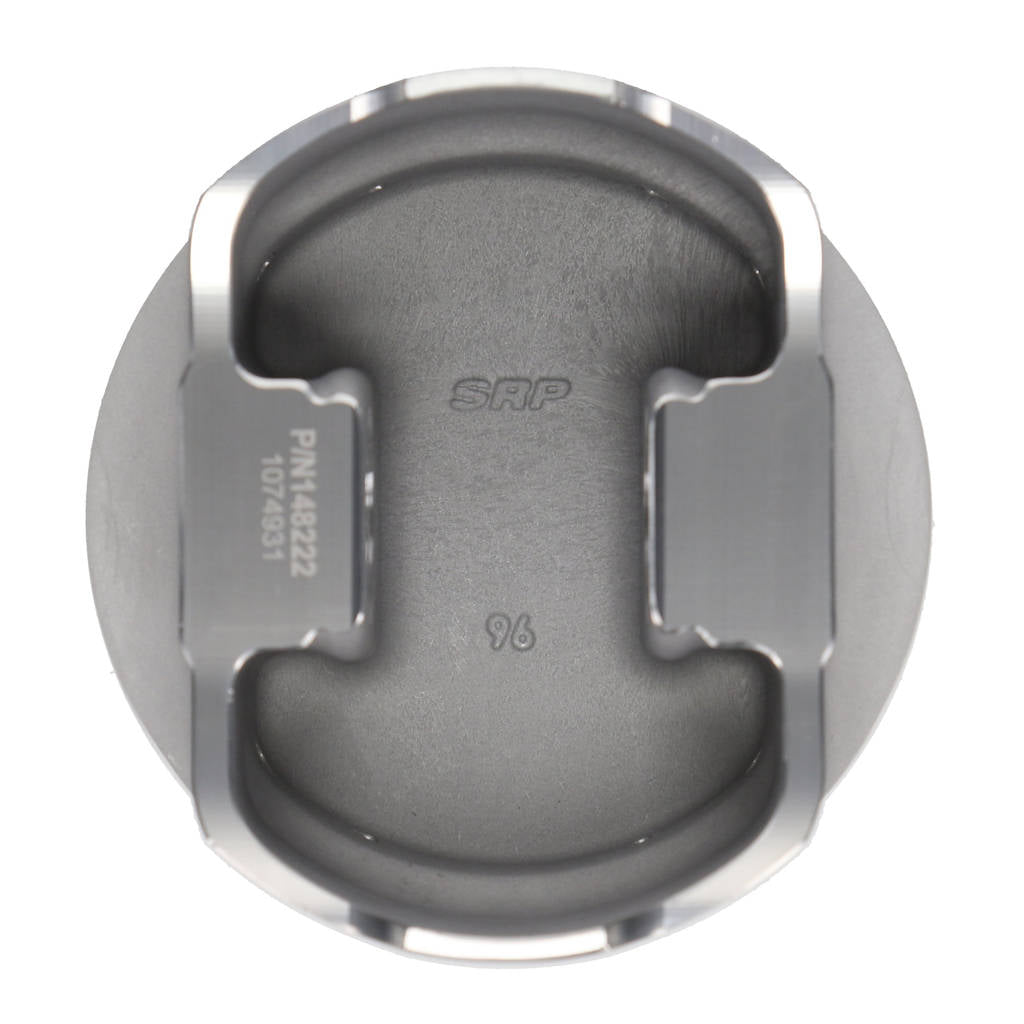

JE 148220 Piston Kit SRP (3.830 in. Bore, 1.090 in. CH, -1.00 CC) for FORD Pin.to Engine

Description JE 148220 Piston Kit SRP (3.830 in. Bore, 1.090 in. CH, -1.00 CC) for FORD Pin.to Engine

Born from the racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line bridges the gap between high-quality forged piston performance and affordability.

Forged from strong 4032 aluminum alloy, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance. They are suitable for mild to moderate performance engines on a sportsman budget.

• Forged in the USA from 4032 aluminum for tensile strength and minimal thermal expansion
• Dedicated forging optimizes strength and weight throughout the piston design
• Suitable for street/strip applications
• Forced pin oiling improves pin lubrication

Specifications:

• Piston Series: SRP
• Cylinder Head: PINTO
• Bore Diameter: 3.830 IN
• Piston Head Type: Flat
• Compression Height: 1.090 IN
• Piston Volume: -1.00 CC
• Piston Material: 4032
• Forging Type: FSR
• Piston Average Weight: 344 GR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.06 IN
• Second Compression Ring Thickness: 0.06 IN
• Oil Ring Thickness: 3/16 IN
• Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
• Wrist Pin Length: 2.500 IN
• Wrist Pin Wall Thickness: 0.130 IN
• Intake Depth: .080 IN
• Intake Angle: 7
• Exhaust Depth: .050
• Exhaust Angle: 7
• Top Groove Width: 0.06000 IN
• 2nd Groove Width: 0.06000 IN
• Oil Groove Width: 0.18800 IN
• Product Type: Engine Piston Kit
• Product Market: Domestic
