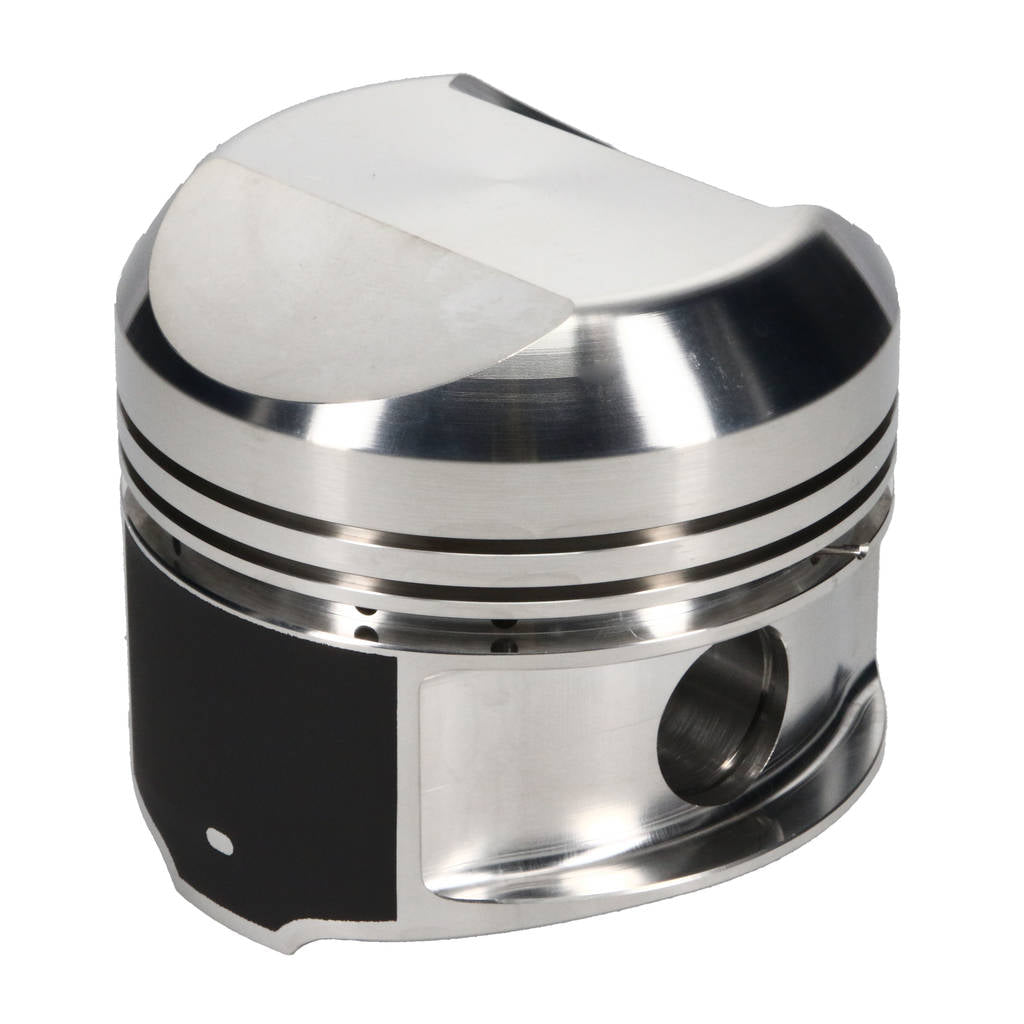

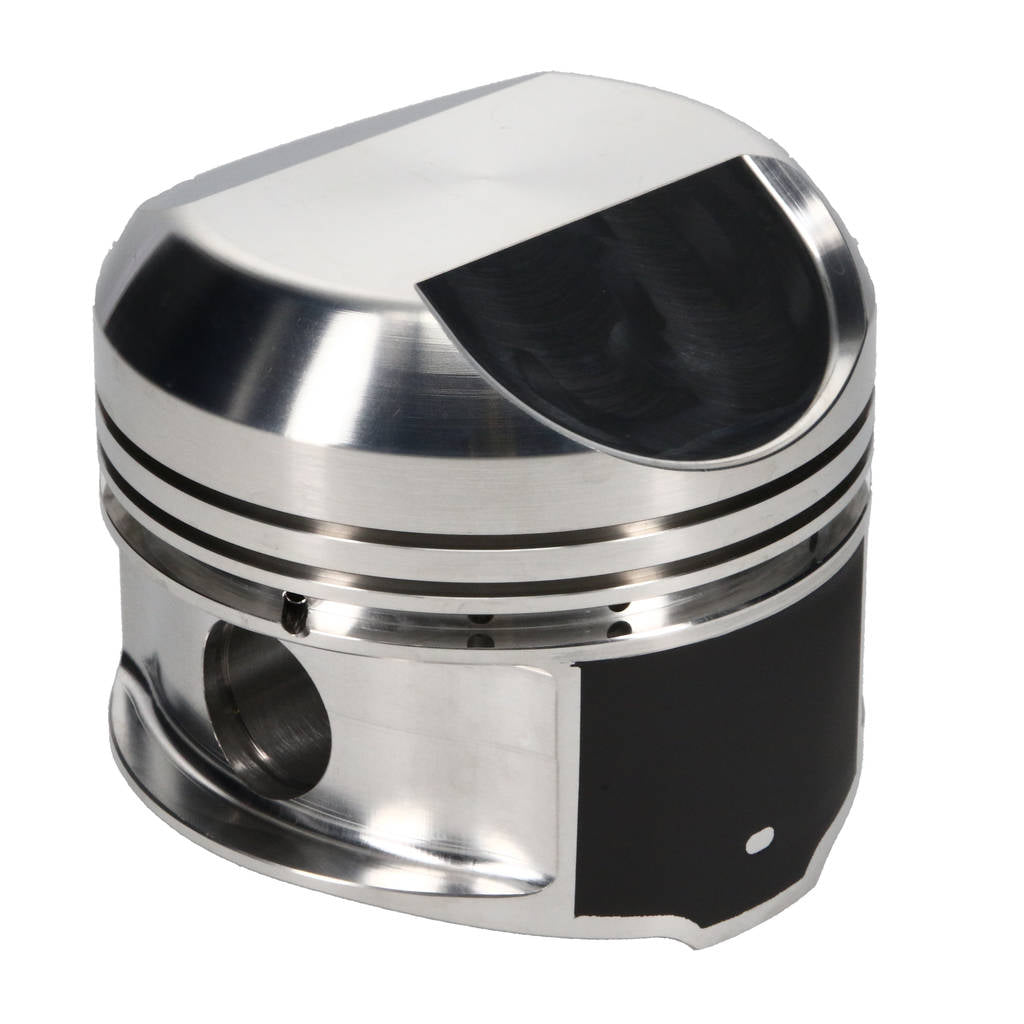

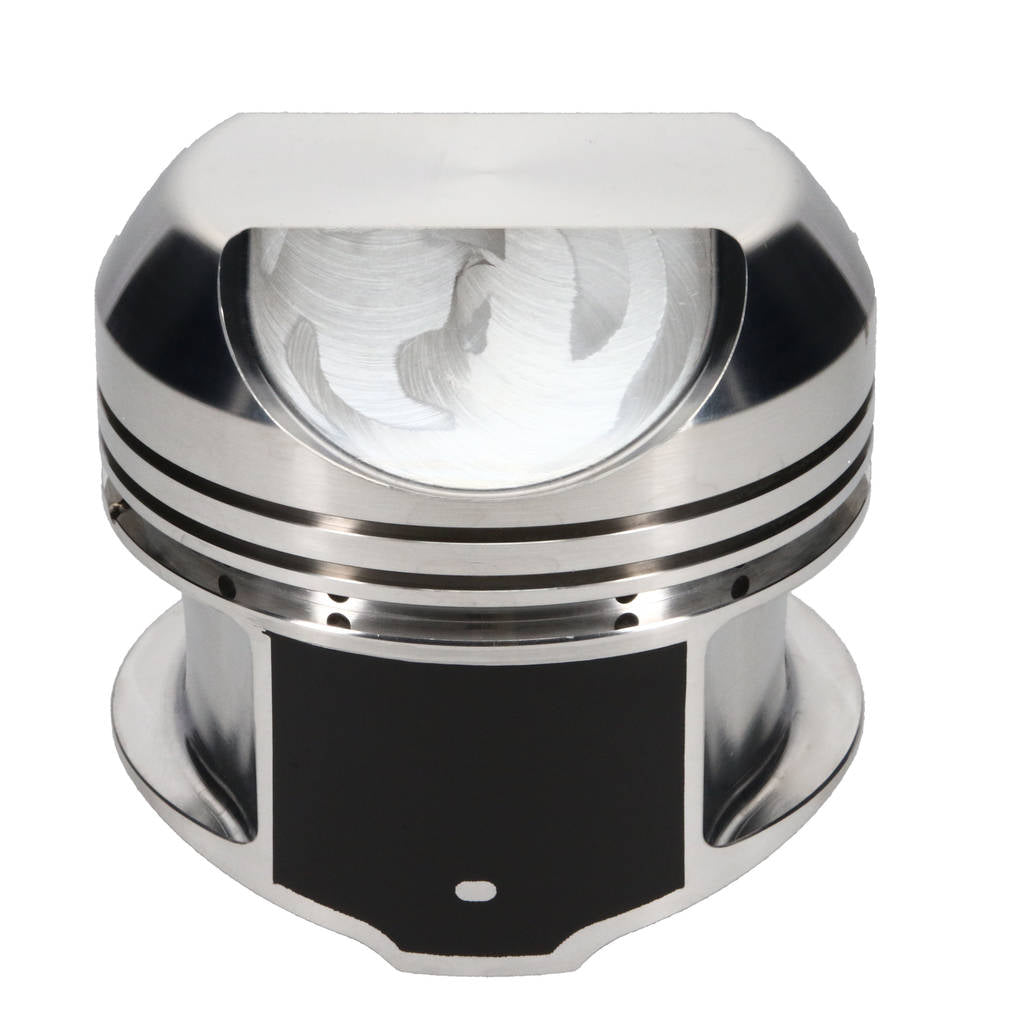

JE 118759 Piston Kit (4.290 in. Bore, 1.955 in. CH, 88.00 CC) for CHRYSLER 426 Hemi Engine

Description JE 118759 Piston Kit (4.290 in. Bore, 1.955 in. CH, 88.00 CC) for CHRYSLER 426 Hemi Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

• Forged from 4032 aluminum for tensile strength and minimal thermal expansion
• Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
• Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
• Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

• Piston Series: JE Pistons
• Cylinder Head: 426 HEMI
• Bore Diameter: 4.290 IN
• Piston Head Type: Dome
• Compression Height: 1.955 IN
• Piston Volume: 88.00 CC
• Piston Material: 4032
• Piston Quantity: 8
• Forging Type: Round
• Piston Average Weight: 841 GR
• Ring Set Included: No
• Top Compression Ring Thickness: 0.08 IN
• Second Compression Ring Thickness: 0.08 IN
• Oil Ring Thickness: 3/16 IN
• Wrist Pin Outer Diameter: 1.031 IN
• Wrist Pin Length: 2.930 IN
• Wrist Pin Wall Thickness: 0.170 IN
• Intake Depth: 0.300 IN
• Intake Angle: 26
• Exhaust Depth: 0.100
• Exhaust Angle: 17
• Top Groove Width: 0.08000 IN
• 2nd Groove Width: 0.08000 IN
• Oil Groove Width: 0.18800 IN
• Product Type: Engine Piston Kit
• Product Market: Domestic

Vehicle Compatibility:

• 426 Hemi
