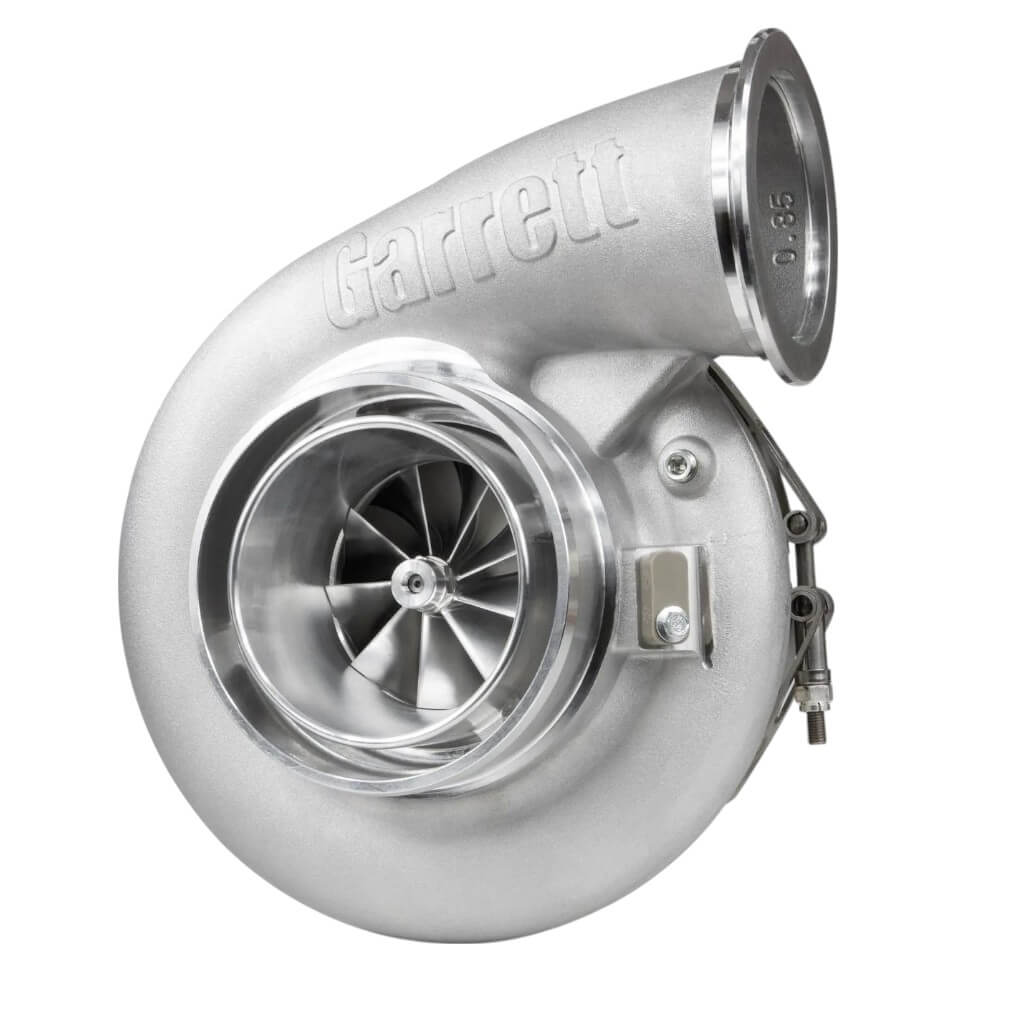

Description GARRETT 938339-5004S Supercore G-Series II G45-1610
The Garrett G45-1610 Supercore from the G-Series II line delivers exceptional power potential and race-ready efficiency for high-performance applications. Built on decades of motorsport engineering, this upgraded unit integrates the latest compressor aerodynamics to produce up to 10% higher flow than its G-Series Gen I predecessor. Designed for compatibility with existing Gen I turbine and compressor housings, the G45-1610 supports up to 1610 horsepower and is suitable for engine displacements ranging from 2.0L to 8.0L. Equipped with a robust Inconel turbine wheel and forged compressor internals, this Supercore balances thermal resilience and maximum flow under extreme load conditions.
Specifications
- Compressor Inducer: 79 mm
- Compressor Exducer: 98 mm
- Compressor Wheel Material: Forged Fully Machined
- Compressor A/R: 0.85
- Turbine Inducer: 89 mm
- Turbine Exducer: 82 mm
- Turbine Trim: 84
- Turbine Wheel Material: Inconel
- Frame Size: 45
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Minimum Horsepower: 750 HP
- Maximum Horsepower: 1610 HP
- Minimum Engine Displacement: 2.0 L
- Maximum Engine Displacement: 8.0 L
- Maximum Allowable Turbocharger Speed: 125,000 RPM
