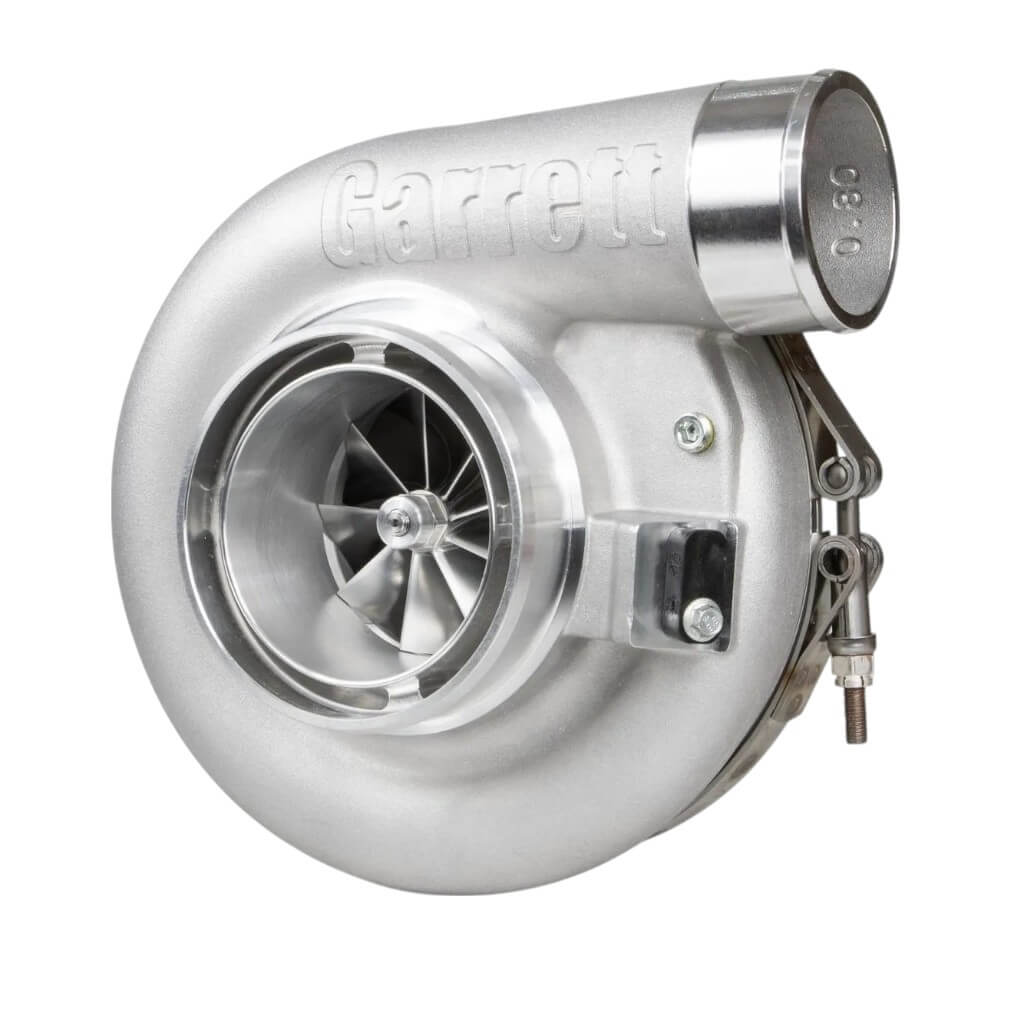

GARRETT 938272-5001S Supercore G-Series II G40-1000

Description GARRETT 938272-5001S Supercore G-Series II G40-1000

The Garrett G40-1000 Supercore from the G-Series II range delivers proven motorsport engineering in a compact, high-performance turbocharger core. Designed for engines producing between 500 and 1000 horsepower, this unit incorporates next-generation compressor aerodynamics for up to 10% more flow over its G-Series Gen I counterpart. With compatibility for existing Gen I turbine and compressor housings, the G40-1000 is an ideal upgrade for tuners seeking maximum performance gains with minimal installation complexity. Precision-balanced internals, including a forged compressor wheel and Inconel turbine, ensure durability and efficiency at high speeds and temperatures.

Specifications

• Compressor Inducer: 62 mm
• Compressor Exducer: 88 mm
• Compressor Wheel Material: Forged Fully Machined
• Compressor A/R: 0.80
• Turbine Inducer: 77 mm
• Turbine Exducer: 70 mm
• Turbine Trim: 84
• Turbine Wheel Material: Inconel
• Frame Size: 40
• Rotation: Standard
• Cooling: Oil & Water Cooled
• Bearing: Ceramic Dual Ball Bearing
• Minimum Horsepower: 500 HP
• Maximum Horsepower: 1000 HP
• Minimum Engine Displacement: 2.0 L
• Maximum Engine Displacement: 6.0 L
• Maximum Allowable Turbocharger Speed: 125,000 RPM
