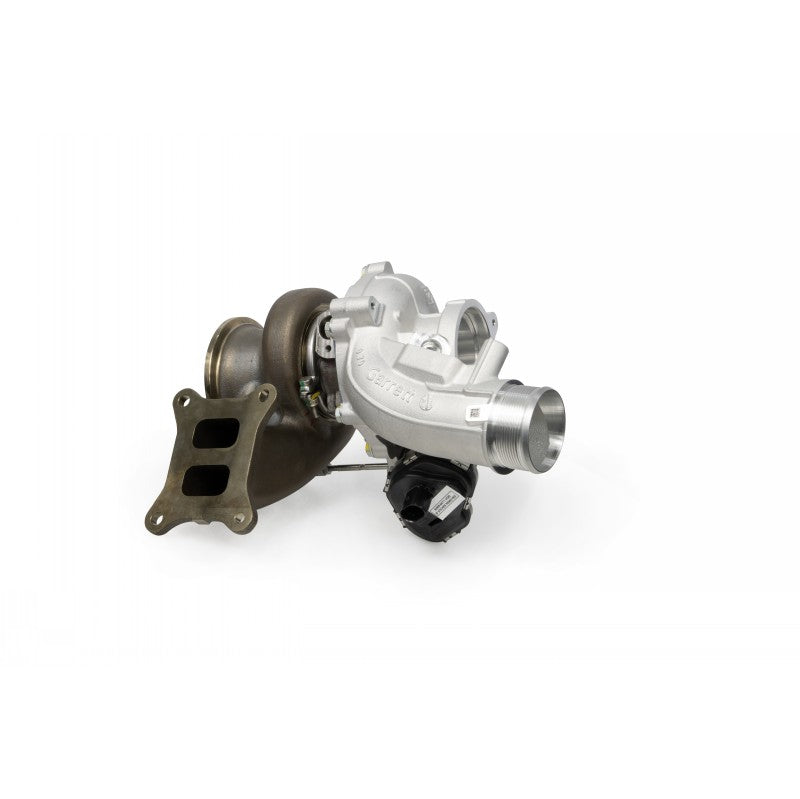

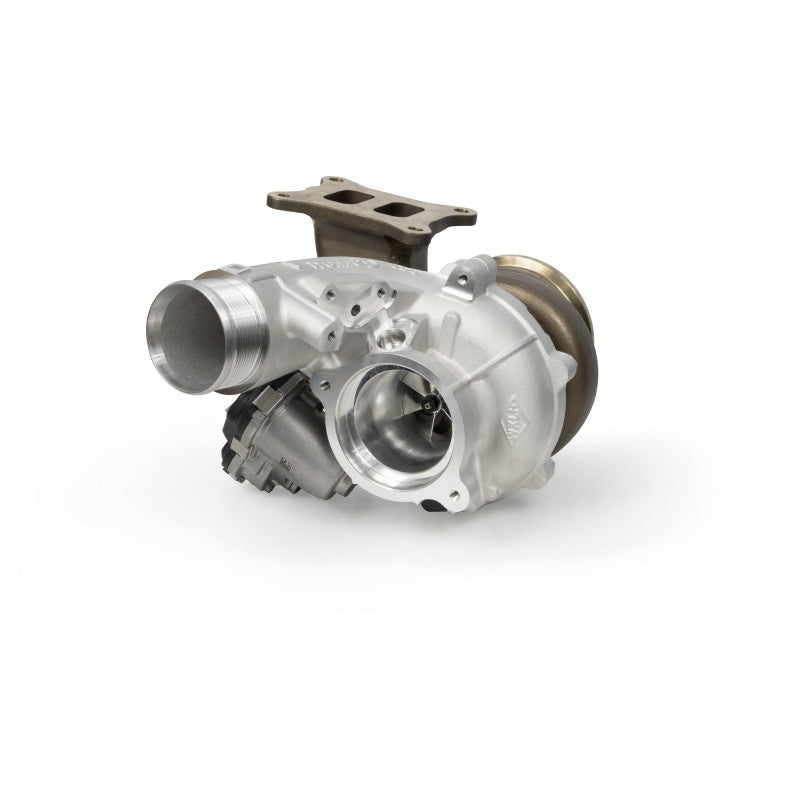

GARRETT 921474-5001S Turbocharger POWERMAX GT2563 for VW / AUDI / CUPRA 2.0L TSI EA888 EVO4

Introducing the 2020+ Garrett PowerMax direct mount turbocharger, delivering maximum performance enhancements to your 2.0L TSI EA888 EVO4 engine. Whether you drive an Audi A3, Golf R or Cupra Formentor, this update will take your driving experience to the next level.

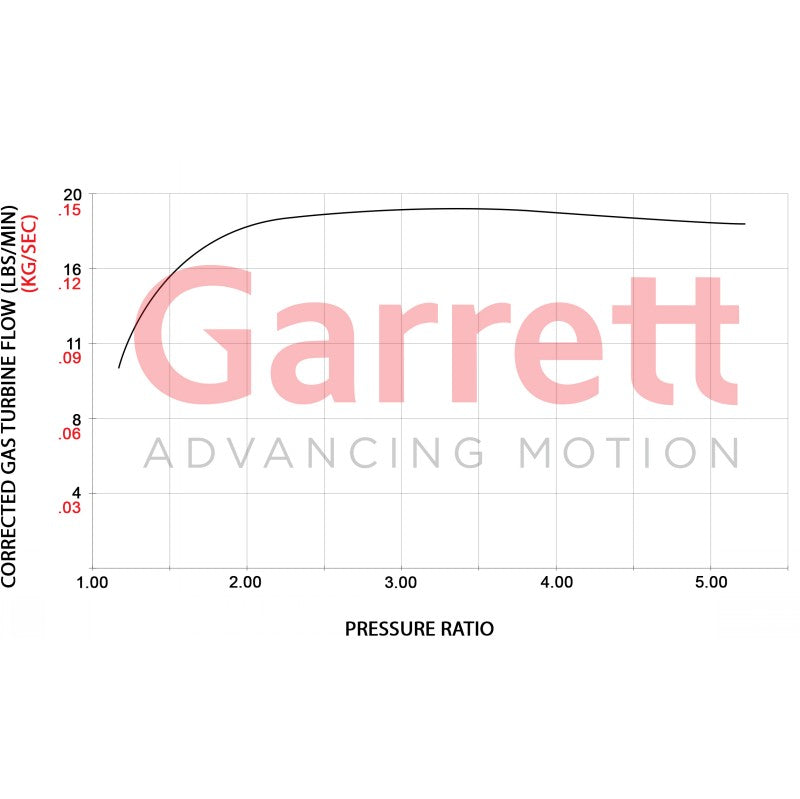

This upgraded version of the direct-mount turbocharger produced a staggering 520 hp. (383 kW) and 425 ft-lb (576 Nm) of torque when tuned conservatively on the dyno. During flow testing, this high performance turbocharger delivered +20% compressor flow and +37% turbine flow compared to the original turbocharger. The latest generation of Garrett compressor and turbine wheel technology ensures maximum flow and efficiency for this turbocharger, all from OEM production.

But that's not all. The turbine wheel is made of Mar-M alloy, designed for temperatures up to 1050°C. The stainless steel turbine housing with internal bypass valve is also rated for temperatures up to 1050°C, ensuring durability and reliability in extreme conditions. In addition, the turbine housing wastegate channel has been optimized for more efficient flow and performance control. The PowerMax turbocharger also features a fully machined speed sensor port, so you can monitor turbo speed in your data logger or in Garrett's new G-Smart Bluetooth module (sold separately, part number 923586-0003).

Don't miss the opportunity to unlock the full potential of your 2.0-litre EA888 EVO4 engine. Order your PowerMax Direct-Fit 2020+ upgrade today and get ready to enjoy an incredible driving experience!

Functions:

Direct Fit Upgrade for 2022+ 2.0L MK8 EA888 Evo4 Engine: Audi S3/VW Arteon, Golf-R
Complete assembly with calibrated motor drive for original equipment installation.
Flywheel power 514 hp. (383 kW) (car results – conservative setting)

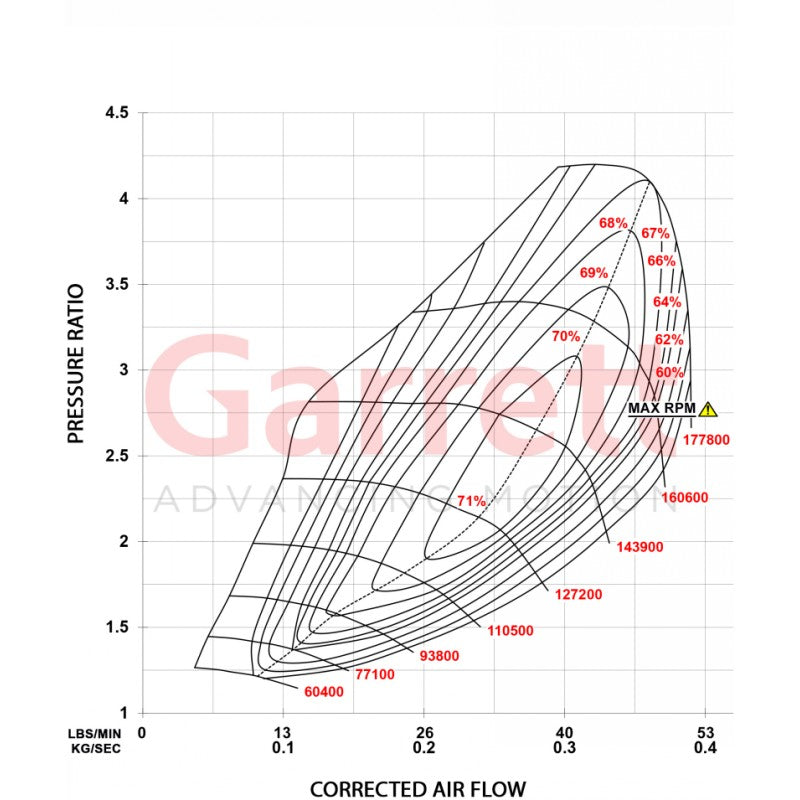

+20% compressor flow compared to the original turbine
Customized modern aerodynamic compressor wheel for application
Aerodynamics of a modern gasoline turbine wheel made of Mar-M alloy, designed for temperatures up to 1050°C.
The turbine housing is made of stainless steel, designed for temperatures up to 1050°C.
Fully machined speed sensor port
Built-in thrust bearing, reinforced for application
Turbocharger reference data:

PowerMax number: 921474-5001S
Power: 550 hp | 410kW
Model: GT2563
Comp Indication: 51mm
Comp Exd: 63 mm
Turbo Indium: 58 mm
Turbo Exd: 50 mm
Application in car:

VW Golf R 2022+ North America 2.0L EA888 Evo 4 L4 - Gas OEM: 06Q145703F | 06Q145703G | 06Q145703H
VW Golf VIII GTI Clubsport 2020+ Europe 2.0L EA888 Evo 4 L4 - Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW T-ROC R 4Motion 2022+ Europe 2.0L EA888 Evo 4 L4 - Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW Golf VIII R 4Motion 2020+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW Golf VIII Variant TSI R 4Motion 2021+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
VW Tiguan TSI R 4Motion 2020+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi A3 Limousine S3 Quattro 2020+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi A3 Sportback S3 Quattro 2020+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi SQ2 2021+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi TTS Quattro 2021+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Audi Roadster TTS Quattro 2020+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Formentor 2.0 TSI 4Drive 2020+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Leon Sportstourer 2.0 TSI 4Drive 2021+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Leon Sportstourer 2.0 TSI 2021+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Leon 2.0TSI 2021+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
Cupra Ateca 2.0 TSI 4Drive 2020+ Europe 2.0L EA888 Evo 4 L4 – Gas OEM: 06Q145703C | 06Q145703F | 06Q145703G | 06Q145703H
