GARRETT 898344-0006 Spring Valve Purple for Wastegate GVW-40

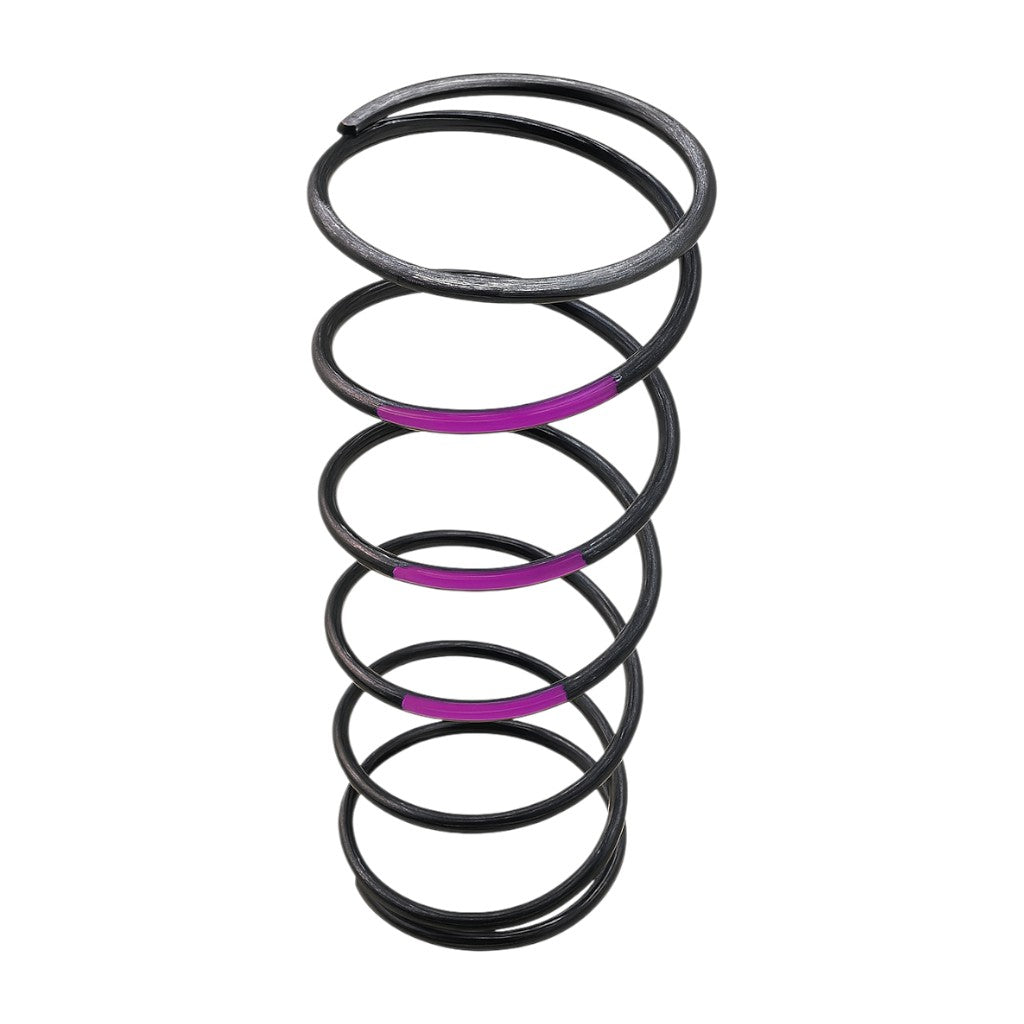

The Garrett 898344-0006 Spring Valve in purple is a component designed for use in the GVW-40 Wastegate. The Wastegate is a device used in turbocharged engines to regulate the amount of exhaust gas that enters the turbocharger, and the Garrett Spring Valve plays a critical role in this process. The spring valve is responsible for controlling the opening and closing of the wastegate valve, which helps to regulate the turbocharger's boost pressure. The purple color of the spring valve indicates that it has a specific spring rate, which determines the amount of pressure required to open the valve and regulate the boost.

The 898344-0006 Spring Valve is made from high-quality materials and is engineered to withstand the harsh operating conditions of a turbocharged engine. It is a direct replacement for the original spring valve in the GVW-40 Wastegate and is designed to provide reliable and consistent performance. Proper installation and maintenance of the Garrett 898344-0006 Spring Valve are essential for ensuring the proper operation of the Wastegate and the turbocharger. It is recommended that this component be replaced periodically to maintain optimal performance and prevent potential engine damage due to overboosting.

Technical Data:

• 17/7 PH stainless steel
• Max Spring Base Pressure: 1.7 bar | 25 psi (1:1 backpressure ratio)
• Minimum Spring Base Pressure: 0.2 bar | 3 psi (1:1 backpressure ratio)
• Spring - suit Garret GVW-40 /Garrett GVW-45 / Garrett GVW-50
