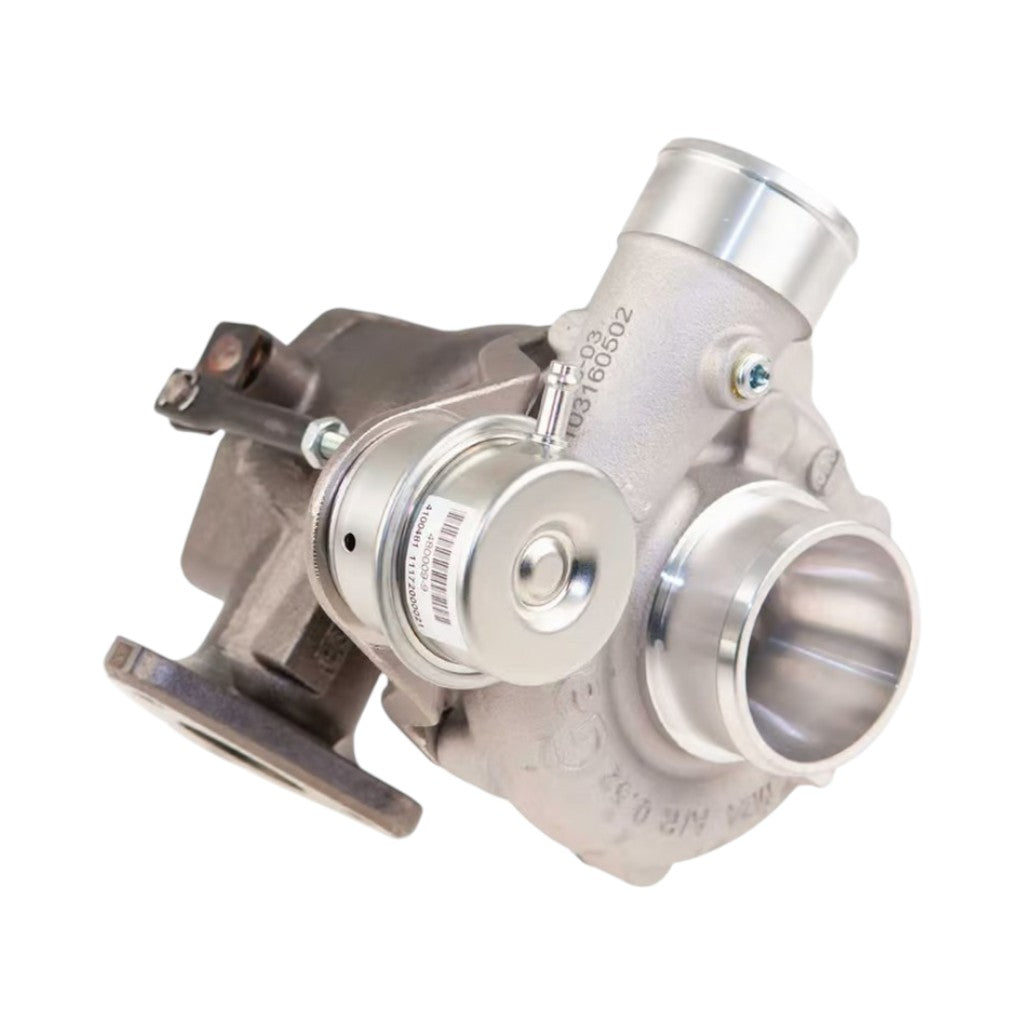

GARRETT 896051-5004S Турбокомпресор GBC14-200 0.45 A/R, 3-bolt / 4-bolt, внутрішній вестгейт Photo-0

GARRETT

GARRETT 896051-5004S Turbocharger GBC14-200 0.45 A/R, 3-bolt / 4-bolt, Internal Wastegate

₴36,437.50

Shipping calculated at checkout

P/N: 896051-5004S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 12.05.2026
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

GARRETT 896051-5004S Turbocharger GBC14-200 0.45 A/R, 3-bolt / 4-bolt, Internal Wastegate

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611

Description GARRETT 896051-5004S Turbocharger GBC14-200 0.45 A/R, 3-bolt / 4-bolt, Internal Wastegate

The Garrett GBC-Series turbocharger range is developed for small to medium displacement engines, delivering efficient performance in compact configurations.

Specifications

  • Turbo Series: GBC-Series
  • Compressor Inducer: 36 mm
  • Compressor Exducer: 49 mm
  • Turbine Inducer: 36 mm
  • Turbine Exducer: 40 mm
  • A/R 0.45
  • Supports 140 – 200 HP applications
  • CFD-optimized forged and machined compressor wheel
  • Journal bearing system with 360 degree thrust bearing
  • Ductile iron (SiMo+) turbine housing for durability
  • Inconel turbine wheel for high-temperature resistance
  • Integrated internal wastegate with 0.5 bar actuator
  • Oil-cooled center housing (CHRA)
  • 3-bolt turbine inlet and 4-bolt outlet configuration
  • V-band mounting interface for CHRA
