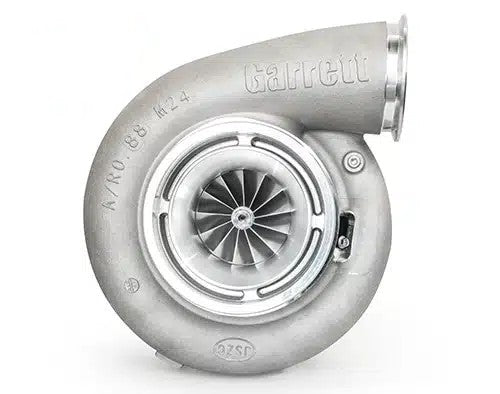

GARRETT 880547-5024S Турбокомпресор Super core G47-1650 80mm (G4709) Photo-1
GARRETT 880547-5024S Турбокомпресор Super core G47-1650 80mm (G4709) Photo-2

GARRETT 880547-5024S Super core G47-1650 80mm (G4709)

Sale price₴140,190.75

Shipping calculated at checkout

GARRETTP/N: 880547-5024S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UA Usually ready in 1 hour

GARRETT 880547-5024S Super core G47-1650 80mm (G4709)

ATOMIC-SHOP UA

Pickup available, usually ready in 1 hour

вул. Набережно-Лугова, 29
Київ
02000
Ukraine

+380444681611

Features

• Outline interchangeable with GTX Gen II turbos
• Supports up to 1650 flywheel horsepower
• 80mm | comp ind | 109mm comp exd
• High flow, high efficiency GTX Gen II comp aero
• G-Series turbine wheel aero increases performance compared to GTX47 Gen II
• Flow: up to 20% more
• Spool: up to +9% (estimated by flow, efficiency, and inertia)
• One-piece lightweight aluminum center hsg/backplate
• Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction

WARNING: Maximum allowable turbocharger speed is 102.5krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately.
