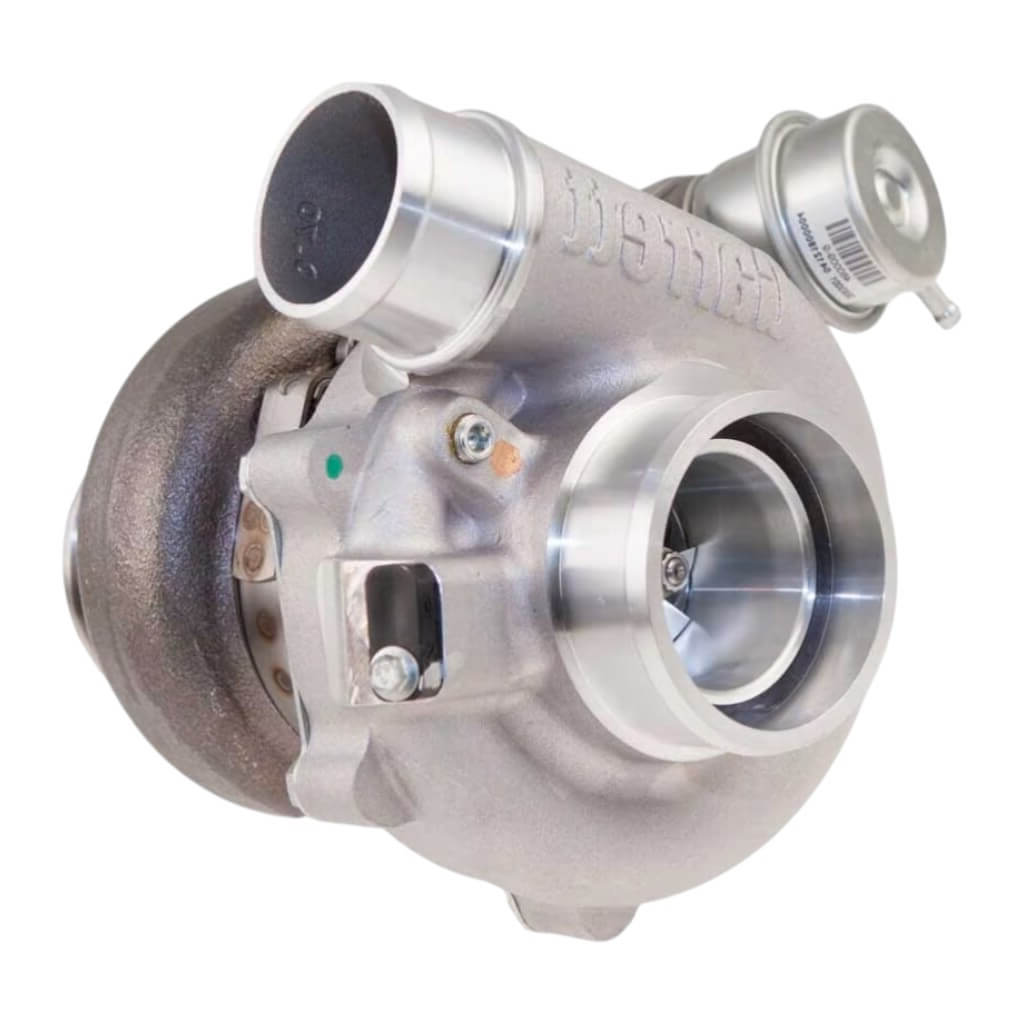

GARRETT 877895-5008S Turbocharger G25-550 0.92 A/R, V-Band / V-Band, Internal Wastegate (Reverse Rotation)

Description GARRETT 877895-5008S Turbocharger G25-550 0.92 A/R, V-Band / V-Band, Internal Wastegate (Reverse Rotation)

The Garrett G25-550 turbocharger is a fully assembled G-Series performance unit designed for fast response, strong flow, and reliable high-boost operation.

This reverse-rotation version is ideal for mirrored twin-turbo layouts and comes with an internally wastegated turbine housing calibrated with a 0.5 bar actuator.

Features

• Model: G25-550
• Part Number: 877895-5008S
• Series: Garrett G-Series
• Horsepower Rating: Up to 550 HP
• Displacement Range: 1.4L - 3.0L
• Comp Inducer: 48mm
• Comp Exducer: 60mm
• Turbine Inducer: 54mm
• Turbine Exducer: 49mm
• Bearing System: Dual ball bearing
• Turbine Housing A/R: 0.92
• Inlet: V-Band
• Outlet: V-Band
• Wastegate: Internal Wastegate
• Rotation: Reverse Rotation
• Actuator Calibration: 0.5 bar

Warning: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits. Please pay attention that maximum allowable turbocharger speed is 165krpm (G series). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers 781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART Module ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void warranty on product.
